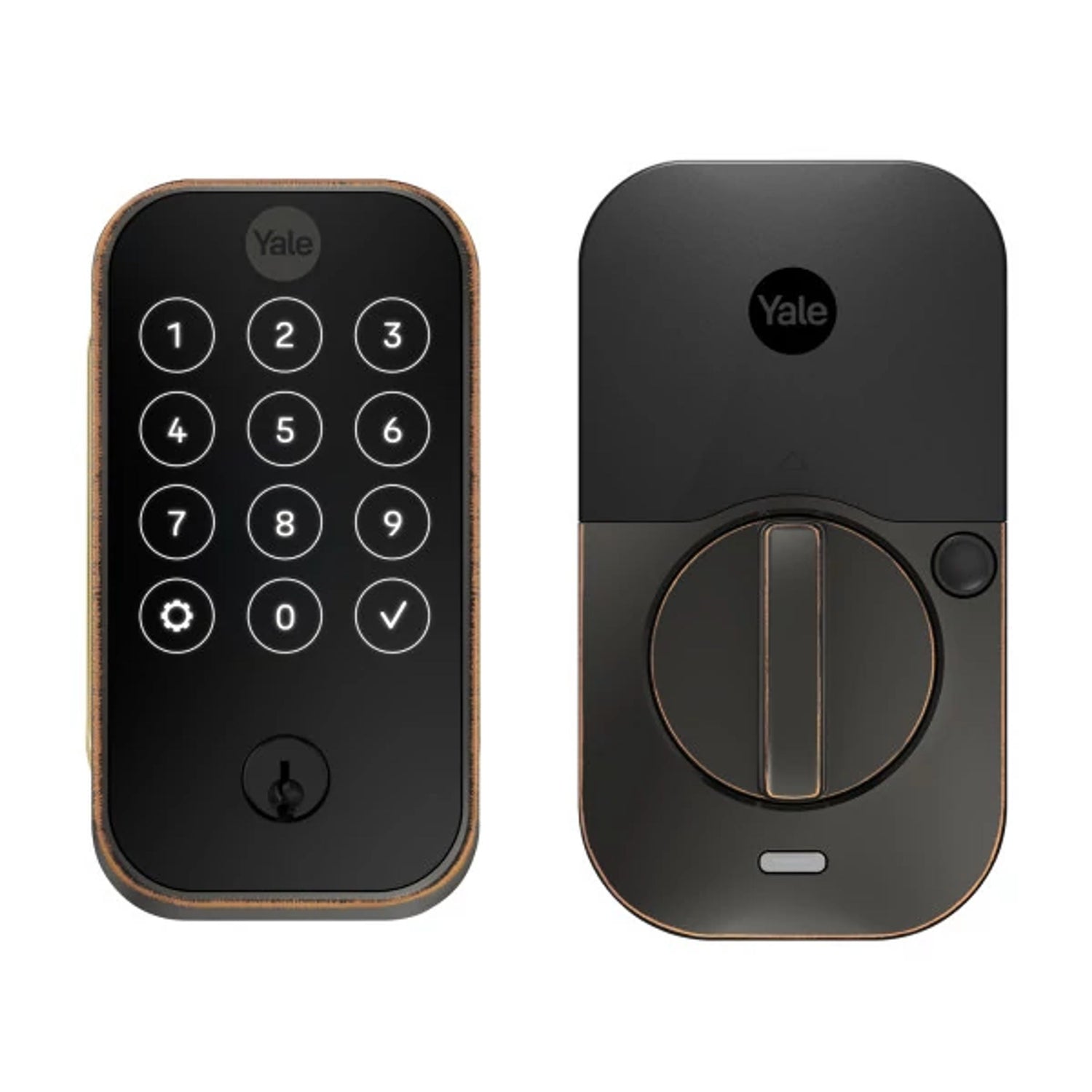

Crestron CLK-YL-YRD624-CR2-0BP – Yale Pro 2 Deadbolt with Touchscreen Keypad, Oil Rubbed Bronze

Product Overview

The Crestron CLK-YL-YRD624-CR2-0BP is a Yale Pro 2 Grade 2 deadbolt lock featuring a capacitive touchscreen keypad and infiNET EX wireless communication, finished in Oil Rubbed Bronze. It integrates directly with Crestron home automation systems, enabling centralized access control alongside lighting, HVAC, and AV. The lock supports up to 250 access codes and provides real-time status feedback to the Crestron controller.

Product Description

Designed for residential and light commercial installations where Crestron control is already deployed, this smart deadbolt eliminates the need for a physical key cylinder while maintaining ANSI/BHMA Grade 2 security standards. The touchscreen keypad offers intuitive entry without mechanical key wear. Using infiNET EX 2.4 GHz wireless mesh technology, the lock communicates reliably with Crestron processors without requiring additional wiring. When combined with a Crestron system, integrators can build automations such as unlocking the door at a scheduled time, triggering lights upon entry, or notifying facility managers of access events. The Oil Rubbed Bronze finish coordinates with residential hardware in traditional and transitional design schemes.

Key Features

• ANSI/BHMA Grade 2 deadbolt construction with Yale Pro 2 cylinder
• Capacitive touchscreen keypad for PIN-based access
• infiNET EX 2.4 GHz wireless mesh integration with Crestron systems
• Supports up to 250 user access codes
• Key-free design on the interior; physical key backup on exterior
• Real-time lock/unlock status reporting to Crestron processor
• Auto-lock and scheduled locking/unlocking via Crestron programming
• Oil Rubbed Bronze finish for traditional and transitional aesthetics

Typical Applications

• Crestron-controlled residential front entry and interior secured doors
• Hotel and hospitality rooms integrated into a Crestron guest room management system
• Executive offices and conference suites requiring audit-trail access control
• Multi-unit residential buildings with centralized Crestron management
• Vacation homes managed remotely via Crestron mobile apps

Technical Specifications

• Model: CLK-YL-YRD624-CR2-0BP
• Finish: Oil Rubbed Bronze
• Keypad Type: Capacitive Touchscreen
• Communication: infiNET EX 2.4 GHz Wireless Mesh
• Security Grade: ANSI/BHMA Grade 2
• User Codes: Up to 250
• Deadbolt Throw: 1 inch
• Power: 4 x AA batteries
• Compatible Systems: Crestron infiNET EX-enabled processors

Frequently Asked Questions

Q: Does the CLK-YL-YRD624-CR2-0BP require a Crestron gateway or processor to operate?
A: Yes, this lock requires a Crestron infiNET EX-compatible gateway or processor to communicate with the Crestron control system. Without a Crestron system, the lock still functions as a standalone keypad deadbolt using PIN codes.

Q: Can the CLK-YL-YRD624-CR2-0BP be programmed to lock automatically?
A: Yes. When integrated with a Crestron processor, auto-lock timing, scheduled lock/unlock, and event-triggered locking can all be configured via Crestron programming or the Crestron Home configuration tool.

Q: Is this lock compatible with both new installations and retrofit projects?
A: Yes. The Yale Pro 2 deadbolt installs in a standard door prep (2-1/8 inch bore hole), making it suitable for both new construction and replacement of existing deadbolts without door modification.
