Product Overview

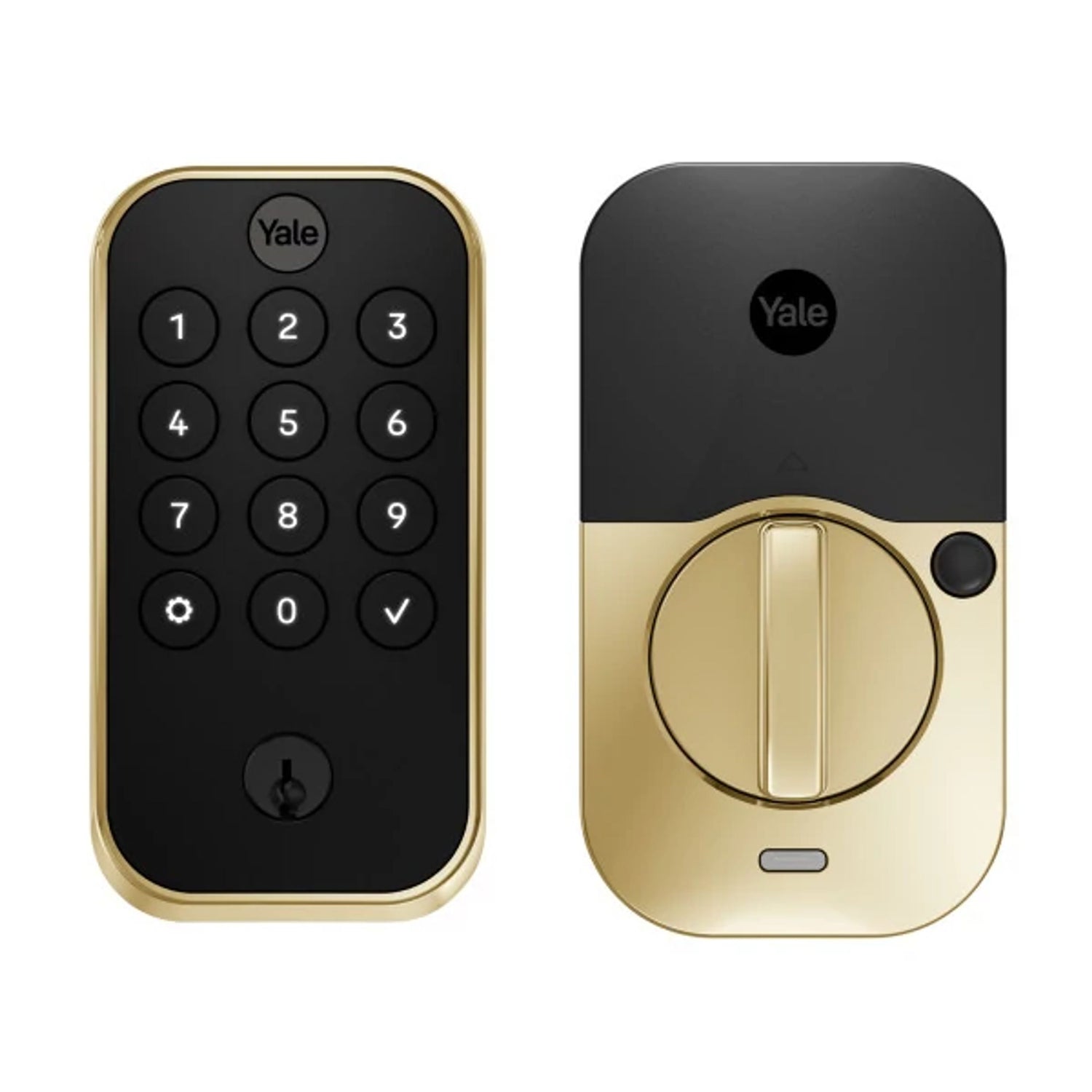

The Crestron CLK-YL-YRD614-CR2-P05 is a Yale Pro 2 push-button keypad deadbolt in Lifetime Brass finish, factory-integrated with Crestron infiNET EX wireless technology. It delivers remote lock/unlock monitoring and control through a Crestron automation system while providing UL 90-minute fire-rated security and support for up to 250 unique PIN codes.
Product Description
This deadbolt combines Yale’s commercial-grade security hardware with Crestron infiNET EX 2-way RF communication, enabling AV integrators and facilities managers to incorporate door lock status and control into a unified Crestron automation environment. DoorSense technology prevents locking until the door is fully closed, and automatic relock engages after a configurable timeout. The Lifetime Brass finish suits formal residential and executive-level commercial interiors. A compatible gateway (CEN-GW1 or CENI-GW1) is required and sold separately. Optional Yale Access mobile app connectivity is provided via Bluetooth. For purchasing and project support, visit creationnetworks.net.
Key Features
- Yale Pro 2 deadbolt with 10-button backlit push-button keypad; Lifetime Brass finish
- UL 90-minute fire rating; coastal-grade construction
- infiNET EX 2-way RF, 2.4 GHz, IEEE 802.15.4, AES-128 encryption; Crestron Home OS compatible
- Optional Yale Access Bluetooth app connectivity
- Supports up to 250 unique PINs (4–8 digit); 1 master PIN plus user PINs
- DoorSense technology: locks only when door is fully closed
- Auto-relock: 30 seconds default, adjustable to 1–3 minutes
- Activity log, scheduled PIN access, email/text notifications
- 4× AA batteries (included); 9 V battery backup terminal
- Door thickness: 1-3/8 to 2-1/4 in. (35–57 mm); adjustable backset 2-3/8 or 2-3/4 in.
- Dimensions — exterior: 4.9 × 2.6 × 0.8 in. (124 × 66 × 20 mm)
- Weight: 4.5 lb (2.04 kg)
Typical Applications
- Executive offices and conference rooms requiring remote lock monitoring via Crestron
- Residential automation projects integrating door security with AV and climate control
- Facilities management deployments with multiple access points centrally monitored through Crestron Fusion
- Hospitality installations where door status feeds into room automation logic
Technical Specifications
| Specification | Value |
|---|---|
| Lock Type | Deadbolt |
| Finish | Lifetime Brass (P05) |
| Keypad | 10-button backlit push-button |
| PIN Codes | Up to 250 unique (4–8 digits) |
| Wireless Protocol | infiNET EX, 2.4 GHz, IEEE 802.15.4, AES-128 |
| Bluetooth | Yale Access app (optional) |
| Required Gateway | CEN-GW1 or CENI-GW1 (sold separately) |
| Fire Rating | UL 90-minute |
| Door Thickness | 1-3/8 to 2-1/4 in. (35–57 mm) |
| Backset | 2-3/8 or 2-3/4 in. (adjustable) |
| Exterior Dimensions (H × W × D) | 4.9 × 2.6 × 0.8 in. (124 × 66 × 20 mm) |
| Interior Dimensions (H × W × D) | 4.9 × 2.7 × 1.7 in. (124 × 68 × 43 mm) |
| Weight | 4.5 lb (2.04 kg) |
| Power | 4× 1.5 V AA (included); 9 V backup |
| Operating Temp (Exterior) | -22° to 140°F (-30° to 60°C) |
| Certifications | ANSI/BHMA A156.36 Grade 2, UL 90-min fire, FCC, IC |
Frequently Asked Questions
- Does this lock require professional installation?
- The CLK-YL-YRD614-CR2-P05 replaces a standard deadbolt on most residential and light commercial doors with standard face bore and edge bore dimensions. Programming and Crestron integration requires an infiNET EX gateway and configuration through the Crestron control system by a trained integrator.
- Can the lock be controlled from outside the home via the Crestron app?
- Yes, when connected to a Crestron control system with remote access enabled, the lock status and control is available through the Crestron interface. The Yale Access app provides additional Bluetooth-based mobile control.
- What happens when the batteries die?
- A 9 V battery backup terminal on the exterior of the lock allows temporary power for entry code access when the internal batteries are depleted.
