Crestron CLK-YL-YRD614-CR2-BSP – Yale Pro 2 Push Button Deadbolt, Black Suede

Product Overview

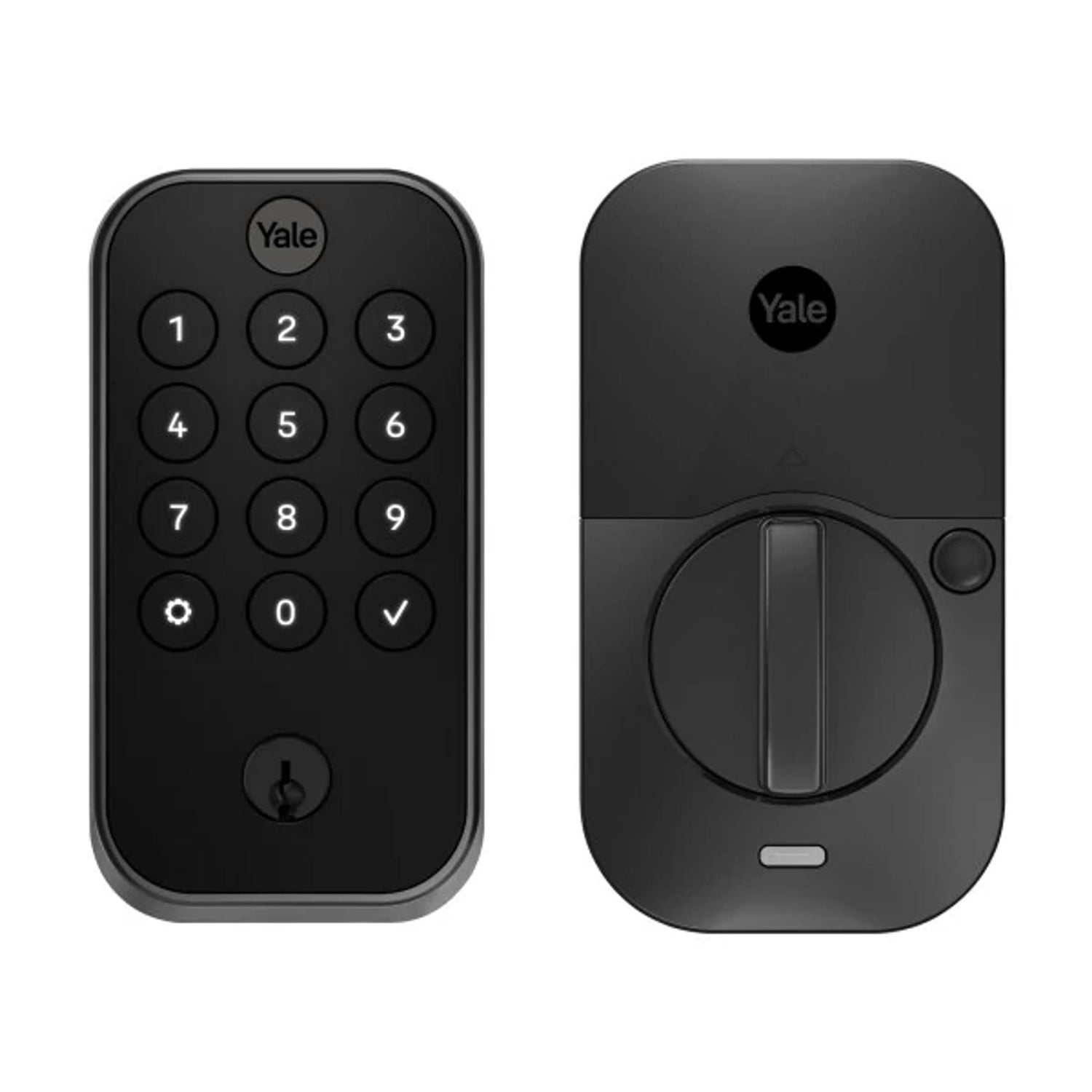

The Crestron CLK-YL-YRD614-CR2-BSP is a Yale Pro 2 deadbolt with a push button keypad and infiNET EX wireless communication in a black suede finish. It delivers keypad-based access control with native Crestron integration for residential and light commercial automation projects.

Product Description

The CLK-YL-YRD614-CR2-BSP brings together Yale's trusted deadbolt platform and Crestron's infiNET EX mesh wireless protocol. The push button keypad uses physical button input rather than a touchscreen, providing tactile feedback that many installers and end users prefer for reliability in high-use environments. The lock stores up to 250 individual access codes, each of which can be programmed with time-based schedules through the Crestron control system.

Unlike touchscreen-only models, the YRD614 variant retains a key cylinder, allowing physical key override when needed — useful in commercial applications or where backup access for facilities teams is required. The black suede finish suits modern interior aesthetics and is resistant to fingerprints and smudging compared to polished finishes.

The lock requires a Crestron infiNET EX-compatible gateway to communicate with the control processor. Once paired, lock/unlock commands, status feedback, and event logging are all available within the Crestron programming environment.

Key Features

• Push button keypad with physical button input for tactile access control
• Includes key cylinder for physical key override capability
• infiNET EX wireless communication for native Crestron system integration
• Supports up to 250 user access codes with schedule-based programming
• Black suede finish — modern look with reduced fingerprint visibility
• Two-way communication for real-time lock status reporting in Crestron
• Auto-lock feature with configurable timing
• Compatible with standard US single-cylinder deadbolt door preps

Typical Applications

• Residential smart home entry points requiring push button access and key backup
• Light commercial offices, retail spaces, and hospitality suites with Crestron control
• Multi-zone residential installations where door lock status integrates with security and lighting
• Facilities where maintenance personnel require physical key access as a fallback

Technical Specifications

• Model: CLK-YL-YRD614-CR2-BSP
• Lock Type: Deadbolt with key cylinder
• Keypad Type: Push button
• Finish: Black Suede
• Wireless Protocol: infiNET EX
• User Codes: Up to 250
• Power: 4x AA batteries (included)
• Door Thickness: 1-3/8 in. to 2-1/4 in.
• Handing: Field-reversible
• Standards: ANSI/BHMA Grade 2

Frequently Asked Questions

What is the difference between the YRD614 and YRD654 models in the Crestron Yale lineup?

The YRD614 is a push button keypad deadbolt that retains a key cylinder, while the YRD654 is a key free deadbolt with a touchscreen keypad and no cylinder. Choose the YRD614 when physical key backup is required; choose the YRD654 when a fully keyless installation is preferred.

Does the push button keypad work in outdoor or high-humidity environments?

The Yale Pro 2 deadbolt series is rated for standard interior residential and light commercial door applications. For exterior doors exposed to weather, verify environmental ratings with your distributor. Consult creationnetworks.net for application guidance.

Can I program this lock without a Crestron control system?

Basic access code programming can be performed directly on the keypad. However, advanced features such as scheduled access, real-time status monitoring, and integration with other building systems require a Crestron infiNET EX-compatible gateway and control processor.
