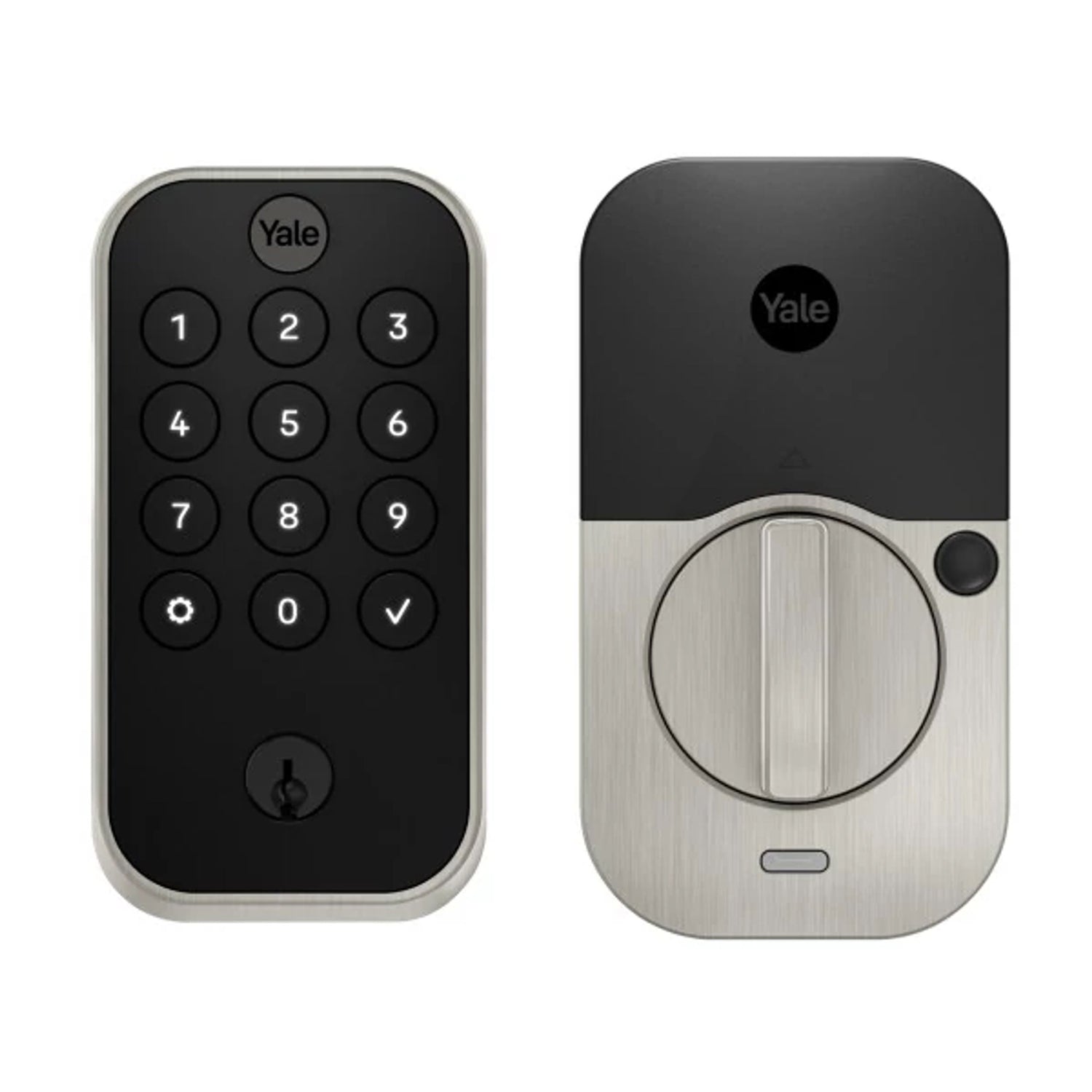

Crestron CLK-YL-YRD614-CR2-619 – Yale Pro 2 Push Button Deadbolt, Satin Nickel

Product Overview

The Crestron CLK-YL-YRD614-CR2-619 is the Yale Pro 2 Deadbolt with a push button keypad, integrated infiNET EX wireless communication, and satin nickel finish. It provides deadbolt-grade door security with native Crestron integration, enabling AV integrators and control system programmers to include door lock status and control within a unified Crestron program. No separate smart home hub or Yale application is required for Crestron-side operation.

Product Description

The CLK-YL-YRD614-CR2-619 uses the infiNET EX 2.4 GHz encrypted mesh wireless protocol to communicate directly with Crestron control processors and gateways, delivering two-way status reporting including lock state, low battery, and tamper events. The push button keypad supports up to 250 user PIN codes and features a backlit keypad for low-light use. The deadbolt throws a solid bolt into the door frame, providing a higher security level than a latch-only lock. The satin nickel finish (619) is a widely specified ANSI finish in commercial and upscale residential construction.

Key Features

• Yale Pro 2 deadbolt form factor — drop-in replacement for standard deadbolt door prep
• Push button keypad — supports up to 250 user PIN codes with illuminated buttons
• infiNET EX wireless — encrypted 2.4 GHz two-way communication, native Crestron protocol
• Motorized deadbolt — full bolt throw on valid credential; manual thumb turn for interior egress
• Status reporting — lock/unlock state, low battery, and forced-entry tamper alerts to Crestron
• Battery powered — no door wiring needed; integrates into wireless infiNET EX infrastructure
• Key override — exterior key cylinder allows mechanical backup access
• Satin nickel (619) finish — standard ANSI finish, coordinates with commercial hardware specifications

Typical Applications

• Executive offices and boardrooms with Crestron occupancy and scheduling integration
• Hospitality guest rooms where Crestron controls lighting, climate, and door access together
• Residential main entry doors in Crestron home automation installations
• Server rooms or equipment closets requiring logged, code-based access within a Crestron system
• Retrofit installations replacing standard deadbolts in existing Crestron-equipped buildings

Technical Specifications

• Model: CLK-YL-YRD614-CR2-619
• Finish: Satin Nickel (619)
• Lock Type: Motorized deadbolt
• Keypad Type: Push button, backlit
• Wireless Protocol: infiNET EX (2.4 GHz encrypted mesh)
• User Codes: Up to 250
• Power: 4 AA batteries
• Standard Backset: 2-3/8 in and 2-3/4 in (adjustable)
• Door Thickness: 1-3/8 in to 1-3/4 in
• Key Override: Yes, exterior key cylinder included
• Certifications: UL Listed, ANSI/BHMA Grade 2

FAQs

What Crestron device does the CLK-YL-YRD614-CR2-619 communicate with?

The lock communicates over infiNET EX wireless with any Crestron processor or gateway that supports infiNET EX, including 4-Series processors with built-in infiNET EX or dedicated gateway modules such as the CENI-GWEXER. No Yale Connect Bridge or separate Wi-Fi hub is required.

How many user codes can be stored on this lock?

Up to 250 individual PIN codes can be programmed into the lock. Code management can be performed at the keypad or through the Crestron control program, depending on how the integrator configures the system.

Is this lock compatible with standard single-cylinder deadbolt door prep?

Yes. The CLK-YL-YRD614-CR2-619 is designed to fit standard ANSI/BHMA single-cylinder deadbolt door preparation, making it compatible with most residential and light commercial door slabs without modifications.
