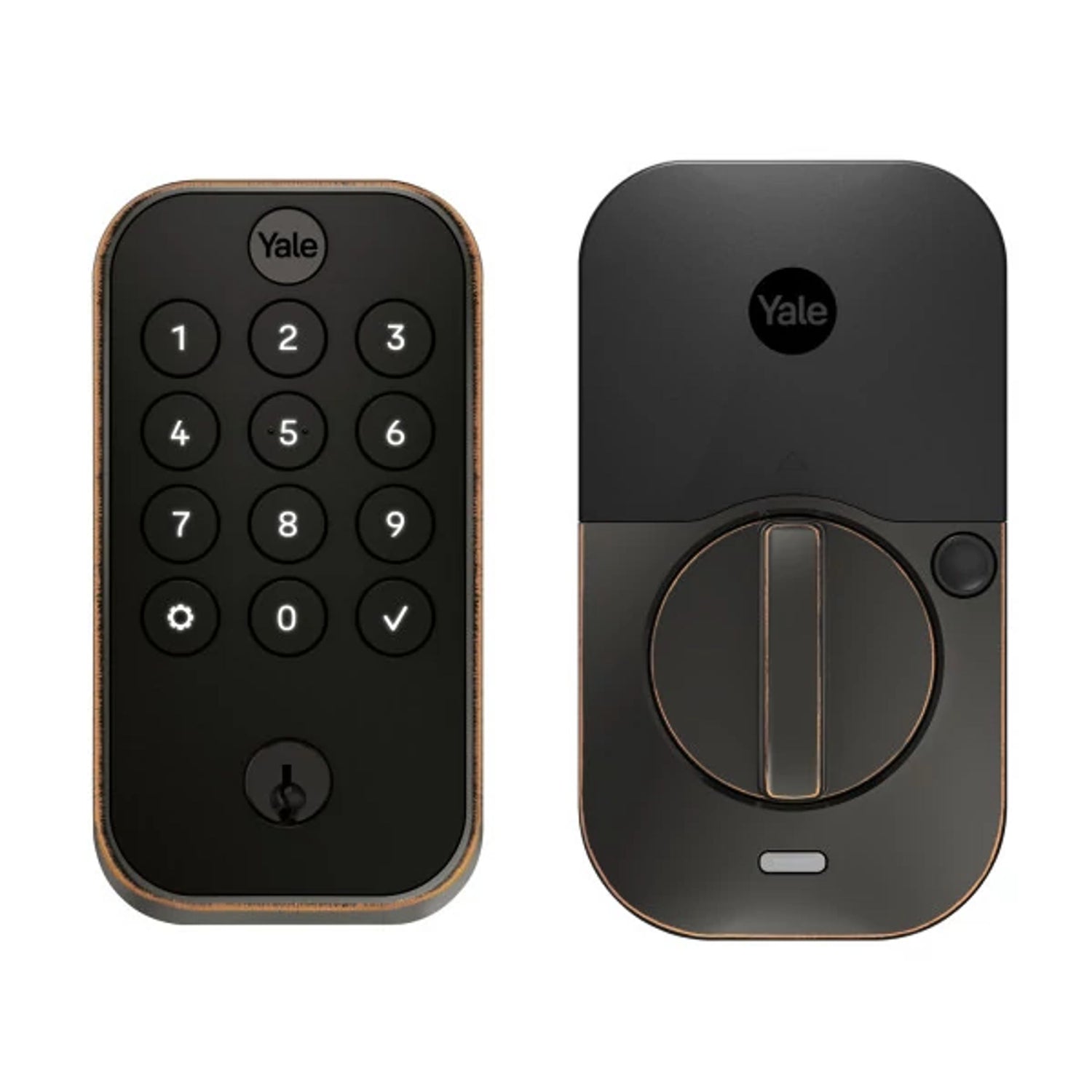

Crestron CLK-YL-YRD614-CR2-0BP – Yale Pro 2 Push Button Deadbolt, Oil Rubbed Bronze

Product Overview

The Crestron CLK-YL-YRD614-CR2-0BP is a Yale Pro 2 deadbolt lock featuring a push button keypad with integrated infiNET EX wireless communication, finished in oil rubbed bronze. Designed for residential and light commercial installations managed through Crestron home automation systems, this lock provides keypad access control that integrates natively with Crestron control processors.

Product Description

The CLK-YL-YRD614-CR2-0BP combines Yale's proven deadbolt hardware with Crestron's infiNET EX wireless mesh networking protocol. The push button keypad allows users to enter a PIN code for entry, and the lock reports status back to the Crestron control system in real time. It supports up to 250 user codes, and AV integrators can program access schedules, entry notifications, and auto-lock behaviors through the Crestron control system. The oil rubbed bronze finish suits traditional and transitional interior styles.

Key Features

• Yale Pro 2 deadbolt with push button keypad for PIN-code entry
• Integrated infiNET EX wireless mesh communication for Crestron system integration
• Supports up to 250 user access codes with programmable schedules
• Auto-lock and real-time status reporting to Crestron control processors
• Oil rubbed bronze finish for traditional and transitional aesthetics
• Compatible with standard door preparations; includes standard and drive-in latch options
• Battery-powered operation with low-battery alert signaling

Typical Applications

• Crestron-integrated smart home door access control
• Residential automation projects requiring programmable user codes and remote lock status
• Multi-room AV and control installations with automated entry scheduling
• Rental properties and vacation homes managed via Crestron control systems
• Custom integration projects combining Crestron lighting, shading, and access control

Technical Specifications

• Lock Type: Deadbolt with push button keypad
• Wireless Protocol: infiNET EX (900 MHz mesh)
• Finish: Oil Rubbed Bronze (0BP)
• User Codes: Up to 250
• Power: 4 x AA batteries
• Compatible With: Crestron infiNET EX gateways and control processors
• Standards: ANSI/BHMA Grade 2

FAQs

Does this lock require a dedicated infiNET EX gateway?

Yes, the CLK-YL-YRD614-CR2-0BP communicates over the infiNET EX wireless mesh network, which requires a compatible Crestron infiNET EX gateway or a control processor with built-in infiNET EX support.

Can this lock be programmed without a Crestron control system?

Basic keypad operation can be used standalone, but full integration features such as scheduled access, remote status, and automation routines require a Crestron control processor running appropriate logic.

What door preparations are required?

The lock fits standard US door preparations with a 2-1/8 inch bore hole and a 1-inch backset or 2-3/8 inch backset. Consult the Yale installation guide included with the product for full door prep requirements.
