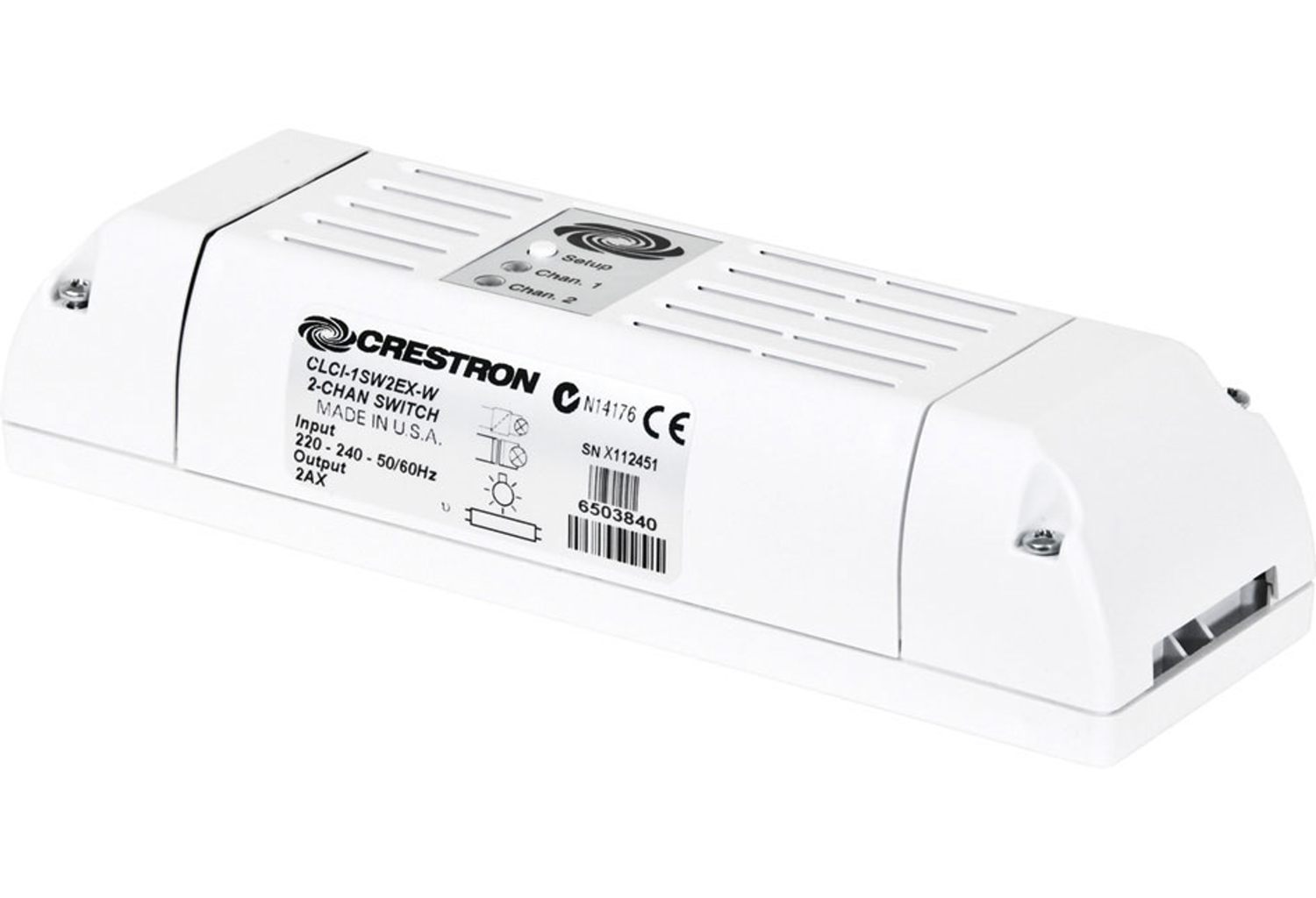

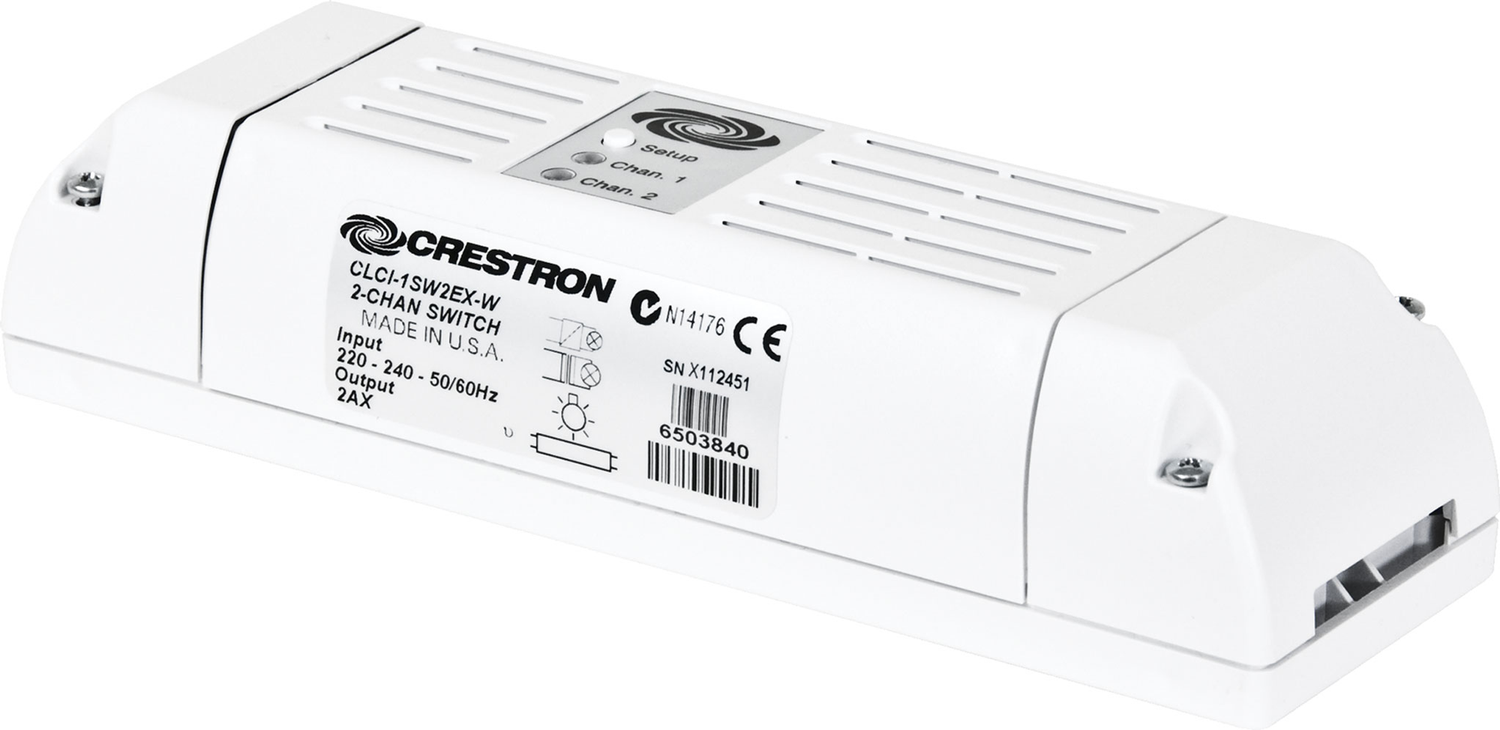

Crestron CLCI-1SW2EX-W – In-Ceiling 2-Channel Switch, infiNET EX Wireless, 230VAC

Product Overview

The Crestron CLCI-1SW2EX-W is a two-channel, 230VAC in-ceiling switch designed for wireless lighting control in new construction and retrofit projects. It communicates with a Crestron control system via infiNET EX two-way RF wireless technology, eliminating the need for dedicated control wiring to the ceiling. Its ultra-slim, surface-mount housing installs directly in a non-plenum ceiling space next to or near the fixture.

Product Description

The CLCI-1SW2EX-W controls two independent 230VAC lighting zones from a single device, with each channel rated at 500 VA. It installs inline at the fixture—no special wiring required—and supports daisy-chaining to additional CLCI-series devices through its loop-thru screw terminals. Out of the box, it can be operated via a standard maintained or momentary switch without requiring a full control system, making it suitable for phased deployments. When integrated with a Crestron processor, the device can be managed from any keypad, touch panel, or mobile device, and tied into occupancy sensors, photocells, and Crestron Fusion energy management software.

Key Features

• Two independently controlled 230VAC switching channels, 500 VA per channel
• infiNET EX two-way RF wireless; 2.4 GHz IEEE 802.15.4; up to 150 ft (46 m) indoors to gateway
• Supports incandescent, tungsten-halogen, magnetic/electronic low-voltage, fluorescent ballast, neon/cold cathode, and motor loads
• Loop-thru captive screw terminals for daisy-chaining multiple CLCI-series units
• Built-in support for standard maintained or momentary switch control—no processor required for basic operation
• Setup via on-board button or connected switch; no ladder access required after installation
• Ultra-slim plastic surface-mount housing; non-plenum ceiling installation
• Captive screw terminals accept 18–14 AWG (1–2.5 mm²) conductors

Typical Applications

• Retrofit lighting control in commercial offices, hospitality, and multi-use facilities
• New construction projects requiring wireless zone switching without conduit runs to ceilings
• Crestron integrated residential or commercial environments using infiNET EX wireless networks
• Energy management applications with Crestron Fusion, occupancy sensors, and daylight harvesting
• Multi-zone lighting control in conference rooms, classrooms, and open-plan spaces

Technical Specifications

• Power Input: 220–240VAC, 50/60 Hz
• Control Channels: 2
• Max Load per Channel: 2AX (2A fluorescent)
• RF: infiNET EX 2-way; 2.4 GHz ISM channels 11–26; IEEE 802.15.4 compliant
• RF Range (device to gateway): 46 m (150 ft) indoors / 75 m (250 ft) outdoors
• Connections: Captive screw terminals; L, N, G, R, N1, SL1, N2, SL2
• Dimensions: 178 mm W x 41 mm H x 55 mm D (7 x 1.61 x 2.13 in.)
• Weight: 199 g (7 oz)
• Operating Temperature: 0° to 40°C (32° to 104°F)
• Humidity: 10% to 90% RH, non-condensing
• Certifications: CE, RCM
• Housing: Plastic surface-mount, non-plenum ceiling installation

FAQs

Does the CLCI-1SW2EX-W require a Crestron control processor to operate?
No. For basic on/off control, the device can be operated using a standard maintained or momentary switch without a processor. Full integration with scheduling, scenes, and remote control requires a Crestron control system and infiNET EX wireless gateway (sold separately).

Can multiple CLCI-1SW2EX-W units be wired together?
Yes. The device includes two sets of line and neutral terminals wired in parallel internally, allowing you to daisy-chain additional CLCI-series devices without wire connectors or extra gang boxes. Up to 100 infiNET EX devices can coexist on a single wireless network.

Where can I purchase the CLCI-1SW2EX-W?
The CLCI-1SW2EX-W is available through authorized Crestron dealers and distributors. Visit creationnetworks.net to order or request a quote.
