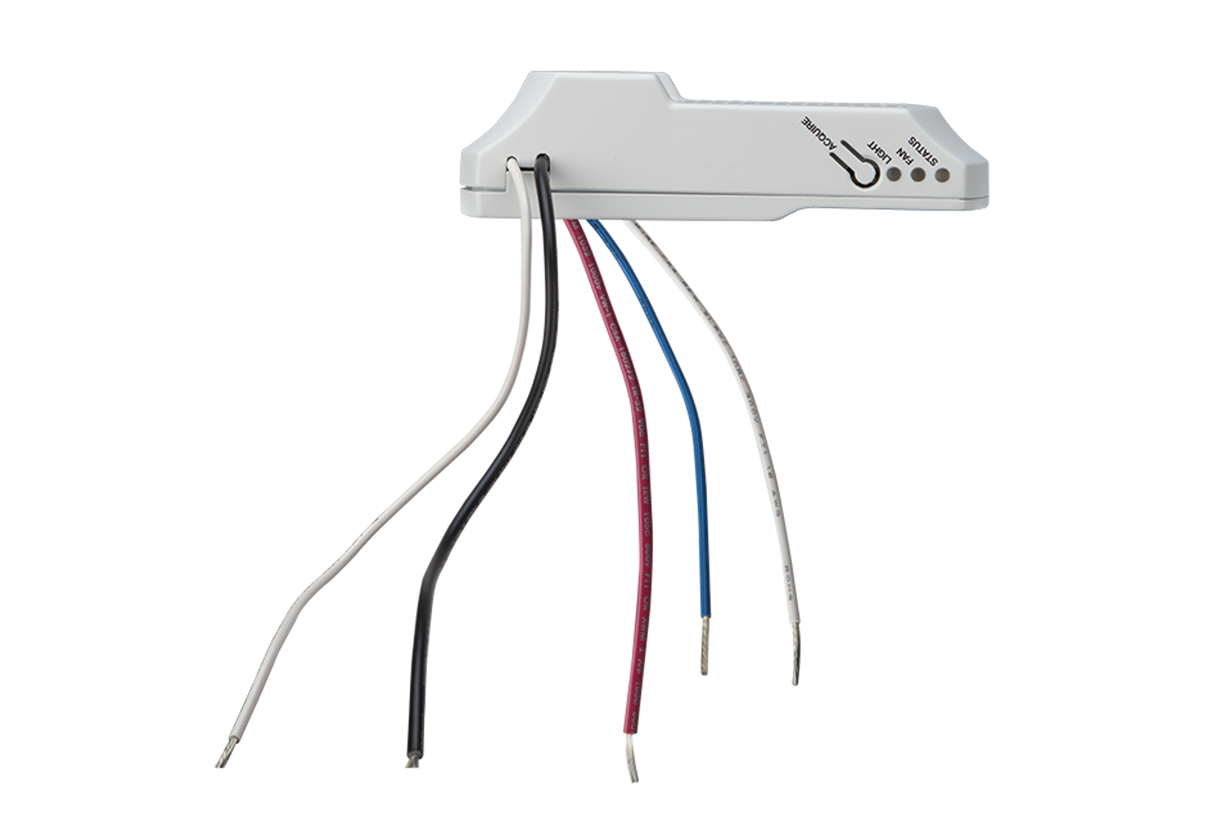

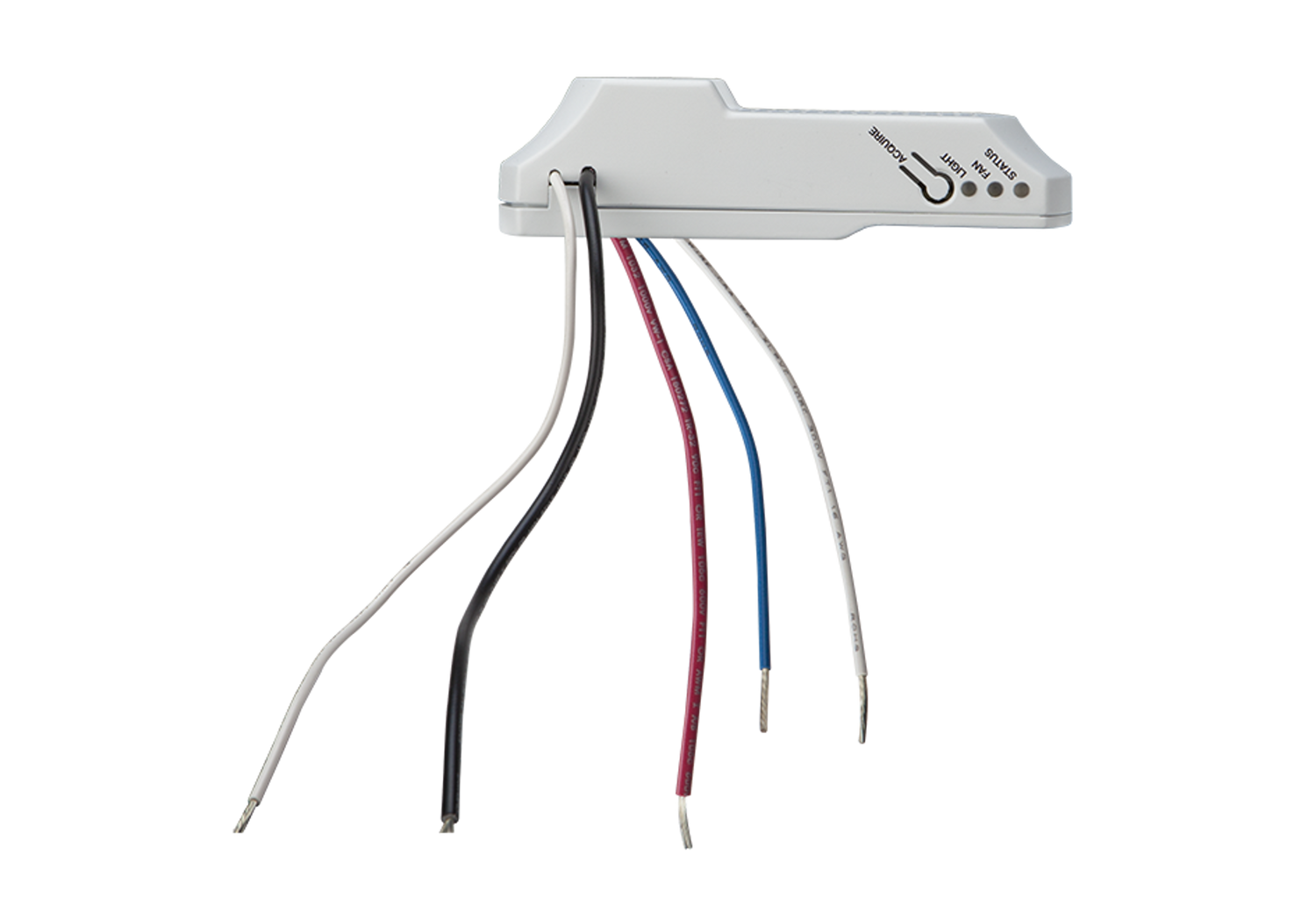

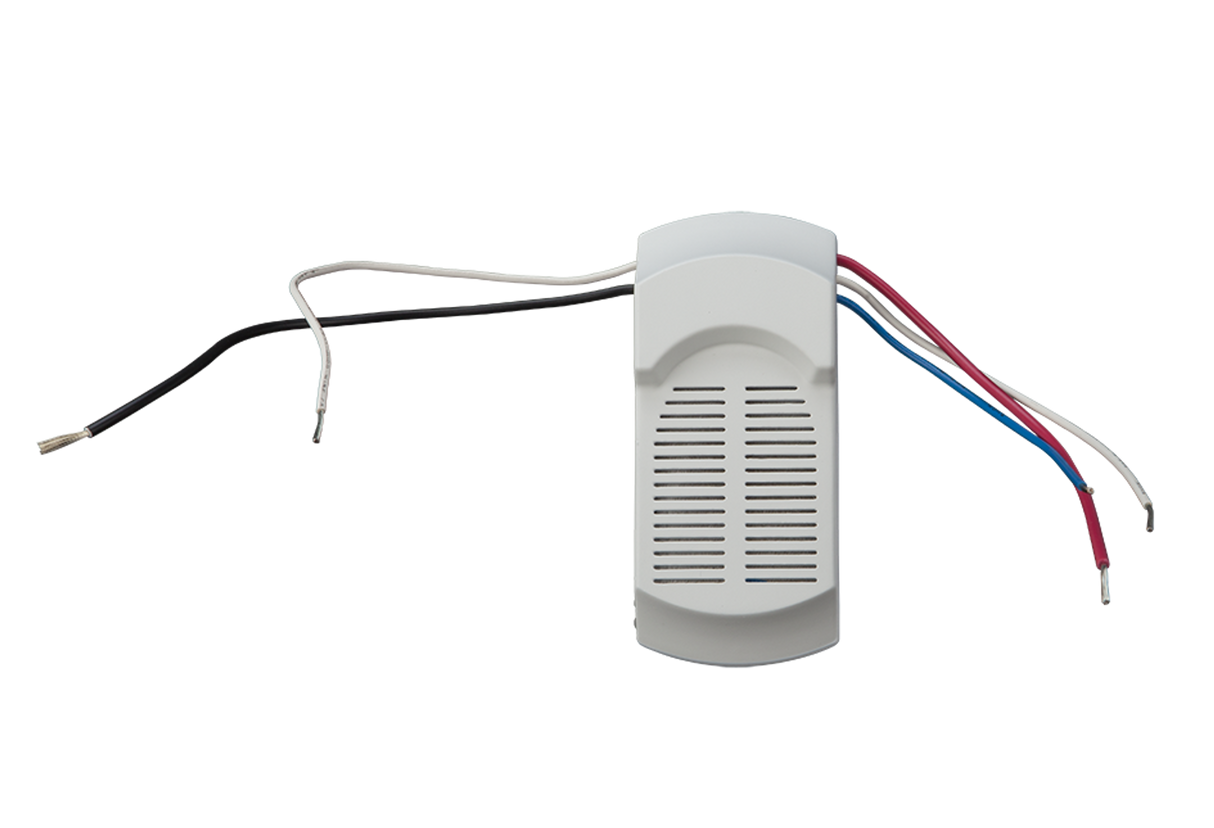

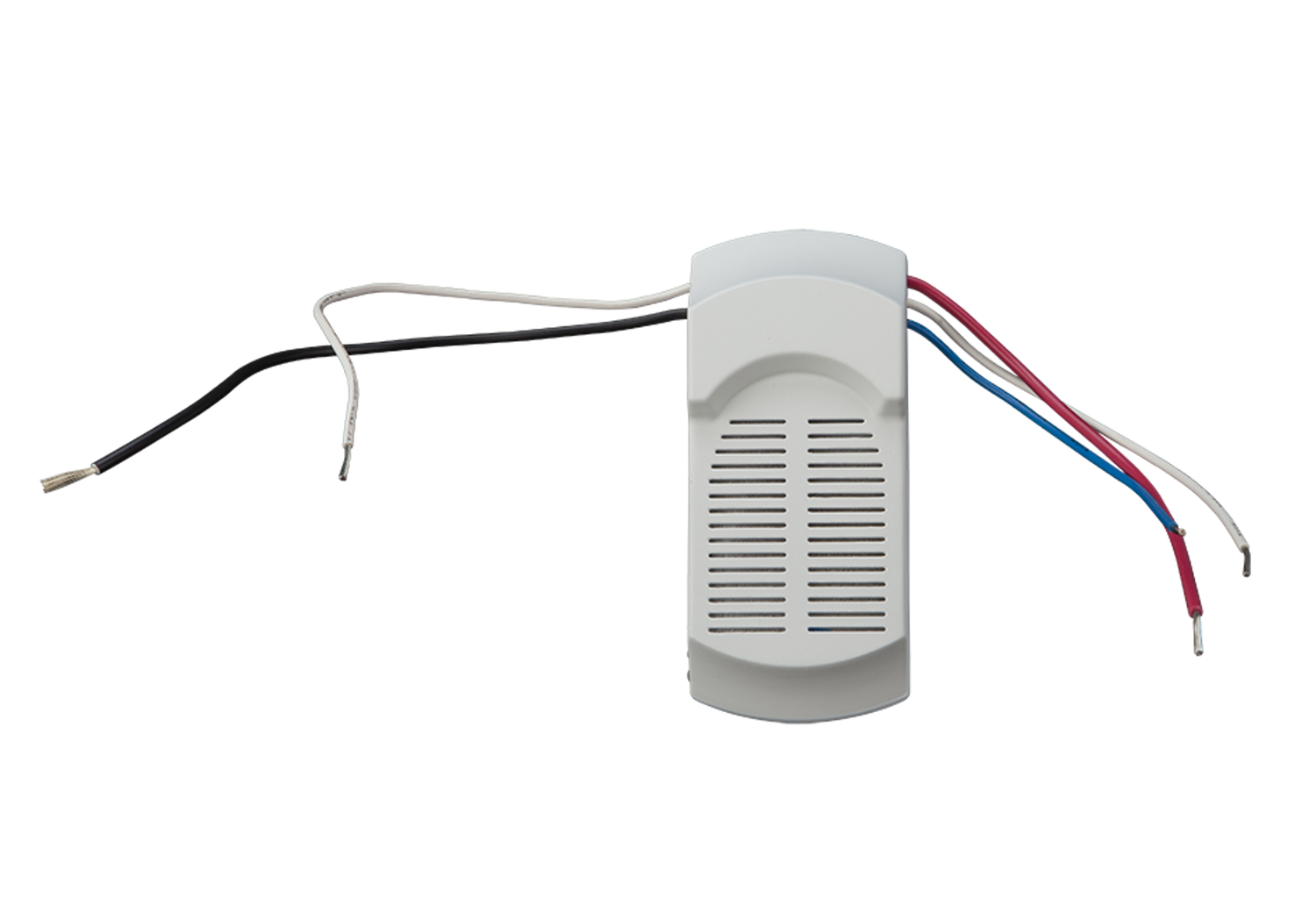

Crestron CLC-FANDELVEX-W – Wireless Lighting and Fan Controller

Product Overview

The Crestron CLC-FANDELVEX-W is a wireless in-wall lighting and fan controller that provides independent control of a ceiling fan's speed and an attached light fixture's dimming level. It operates on the infiNET EX® wireless mesh network, integrating directly into Crestron Home® and Cresnet-based control systems without requiring a dedicated control wire. Designed for standard single-gang wallbox installation, the CLC-FANDELVEX-W is an efficient choice for rooms where running Cresnet wiring is impractical.

Product Description

The CLC-FANDELVEX-W supports incandescent, electronic low-voltage, and motor (fan) loads on a single output, making it suitable for ceiling fans equipped with integral light kits. Fan speed is adjustable across three preset speed settings, while the lighting circuit provides a full-range dimming capability for incandescent and ELV light sources up to 200 watts. Communication uses infiNET EX® wireless mesh, which provides reliable two-way RF communication in commercial and residential environments. The -W suffix denotes the wireless variant; a wired Cresnet version (CLC-FANDELVEX) is also available.

Key Features

• Wireless infiNET EX® communication — no Cresnet wiring required
• 3-speed fan control plus full-range incandescent/ELV dimming on a single output
• Lighting load: 120 VAC, 200 W maximum at 60 Hz
• Compatible with Crestron Home® OS and Cresnet-based control systems
• Single-gang wallbox installation
• Supports incandescent, electronic low-voltage, and motor load types
• Two-way RF communication for status feedback to control system

Typical Applications

• Bedroom ceiling fans with integrated light kits in smart home installations
• Living room and great room fan/light combinations controlled via Crestron touchscreen or keypad
• Retrofit projects where running Cresnet wiring to an existing outlet location is not feasible
• Multi-room residential Crestron Home systems with ceiling fan zones
• Hospitality guest rooms with automated fan and lighting control

Technical Specifications

• Communication: infiNET EX® wireless mesh (two-way)
• Load Types: Incandescent, electronic low-voltage, motor (fan)
• Lighting Load Rating: 120 VAC, 200 W, 60 Hz
• Fan Speed Control: 3 preset speeds
• Mounting: Single-gang wallbox
• Weight: 0.5 oz (14 g)
• Operating Voltage: 120 VAC

Frequently Asked Questions

Does the CLC-FANDELVEX-W require a Cresnet wire?
No. The -W version communicates over infiNET EX® wireless mesh. It does require 120VAC line power at the wallbox but eliminates the Cresnet control wire entirely.

Will this controller work with LED ceiling fan light kits?
The CLC-FANDELVEX-W is rated for incandescent and electronic low-voltage loads. Compatibility with specific LED light kits depends on the driver type; consult Crestron's load compatibility documentation before specifying LED fixtures.

What is the difference between the CLC-FANDELVEX and the CLC-FANDELVEX-W?
The CLC-FANDELVEX uses a wired Cresnet connection, while the CLC-FANDELVEX-W uses infiNET EX wireless communication. Both provide identical fan speed and dimming control functionality.
