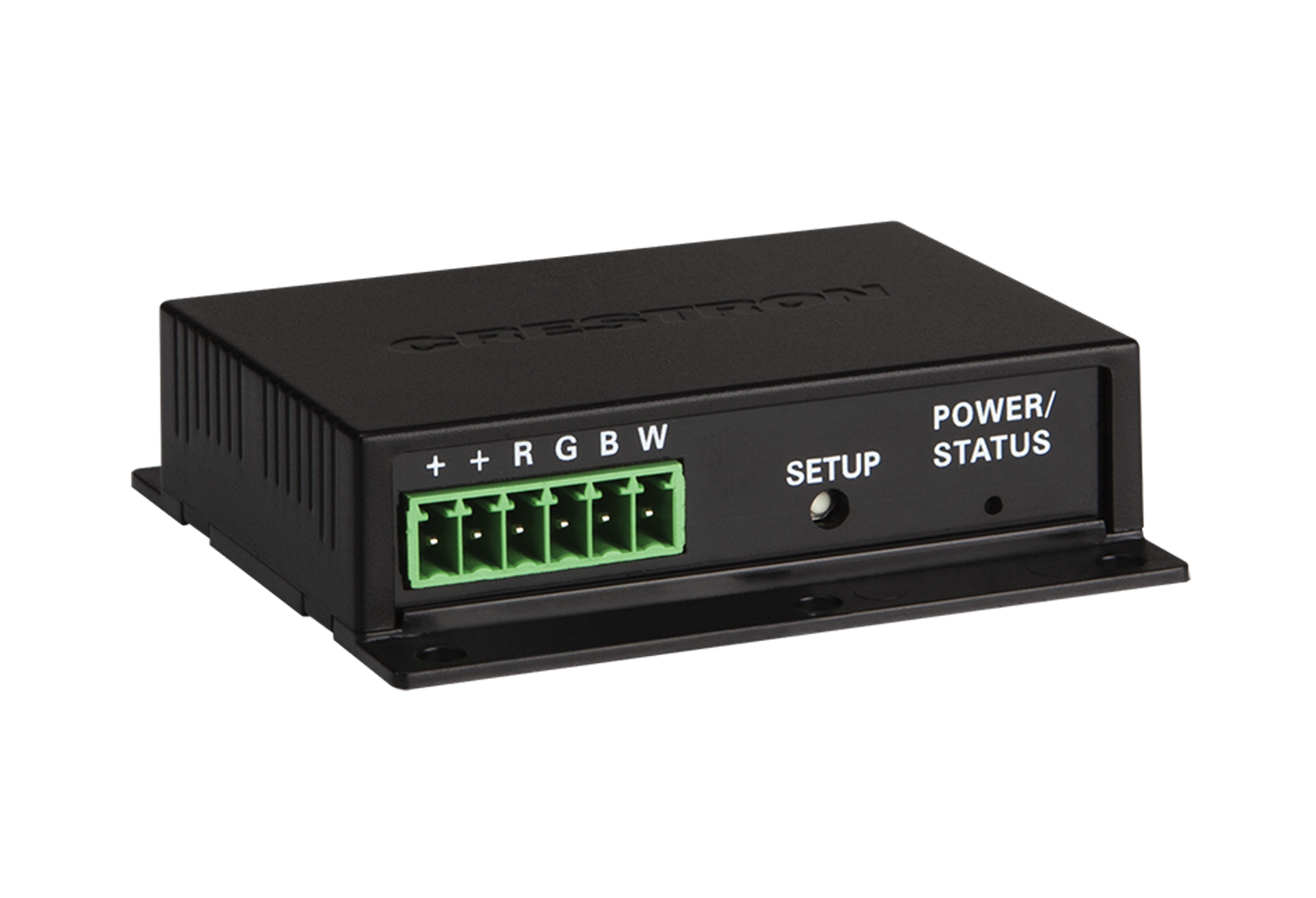

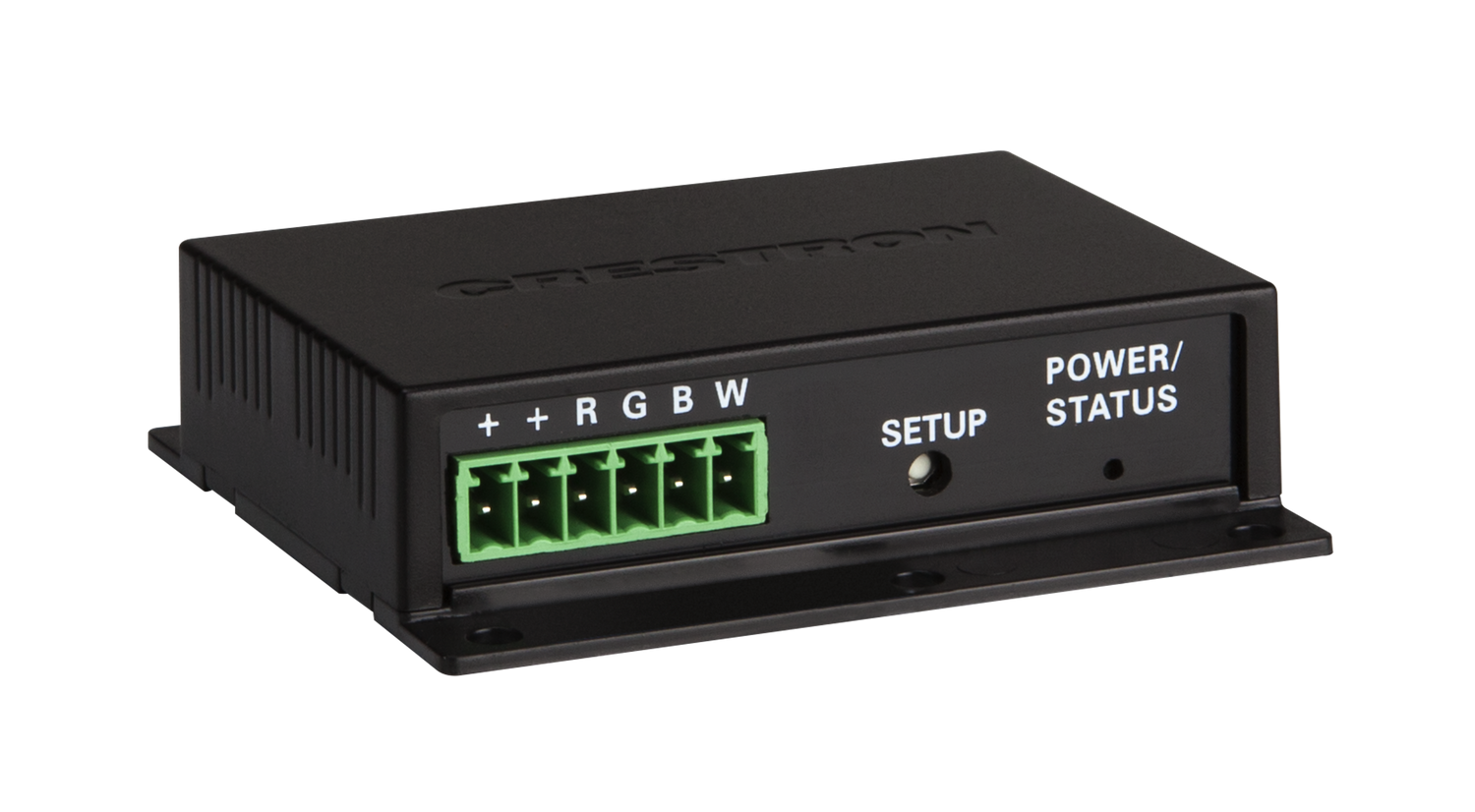

Crestron CLC-1LEDPWM-RGBW-EX – Wireless RGBW LED Controller, infiNET EX

Product Overview

The Crestron CLC-1LEDPWM-RGBW-EX is a four-channel PWM LED controller designed to manage RGBW color-mixing LED fixtures through Crestron's infiNET EX wireless platform. It installs directly in the ceiling at the fixture location, eliminating dedicated conduit runs for low-voltage control wiring while providing individual control of red, green, blue, and white LED channels.

Product Description

The CLC-1LEDPWM-RGBW-EX outputs four independent PWM channels to drive RGBW LED strips or fixtures. Wireless communication via infiNET EX provides a dependable mesh-network connection to the Crestron control processor without requiring a dedicated control wire between the panel and the fixture. The compact form factor allows in-ceiling installation near the LED driver or fixture junction box. The device pairs with a Crestron infiNET EX gateway and is programmed through the Crestron lighting system interface, supporting both Crestron Home and SIMPL/SIMPL# environments. Color scenes, transition curves, and individual channel levels are all programmable from the control system.

Key Features

• Four independent PWM output channels for RGBW LED color mixing
• infiNET EX wireless communication for tool-less field deployment
• Compact in-ceiling form factor installs at the fixture location
• Compatible with Crestron Home OS and SIMPL/SIMPL# programming
• Supports programmable color scenes, presets, and channel-level control
• Reduces low-voltage wiring complexity in new and retrofit installations
• Works within a larger infiNET EX wireless lighting network

Typical Applications

• Residential living rooms, bedrooms, and entertainment spaces using RGBW accent or cove lighting
• Hospitality environments requiring tunable color and white lighting with centralized control
• Commercial spaces where in-ceiling LED fixtures require programmable color control
• Retrofit installations where running control conduit is impractical
• Multi-zone lighting systems managed by a Crestron processor

Technical Specifications

• Model: CLC-1LEDPWM-RGBW-EX
• Output Channels: 4 (R, G, B, W PWM)
• Wireless Protocol: infiNET EX
• Dimensions: H 0.68 in (18 mm) × W 2.58 in (66 mm) × D 2.49 in (64 mm)
• Weight: 1.6 oz (45 g)
• Certifications: UL Listed (per Crestron safety certification)

FAQs

Does the CLC-1LEDPWM-RGBW-EX require a gateway?

Yes. The device uses infiNET EX wireless and requires a Crestron infiNET EX gateway to communicate with the control processor. The gateway is sold separately.

Can this controller work with non-RGBW fixtures?

The controller has four PWM output channels. While it is designed for RGBW LED fixtures, individual channels can be assigned to control other load types supported by PWM dimming. Consult Crestron compatibility documentation for specific load types.

Is this device compatible with Crestron Home OS?

Yes. The CLC-1LEDPWM-RGBW-EX is compatible with Crestron Home OS as well as SIMPL and SIMPL# programming environments for commercial and residential integration projects.
