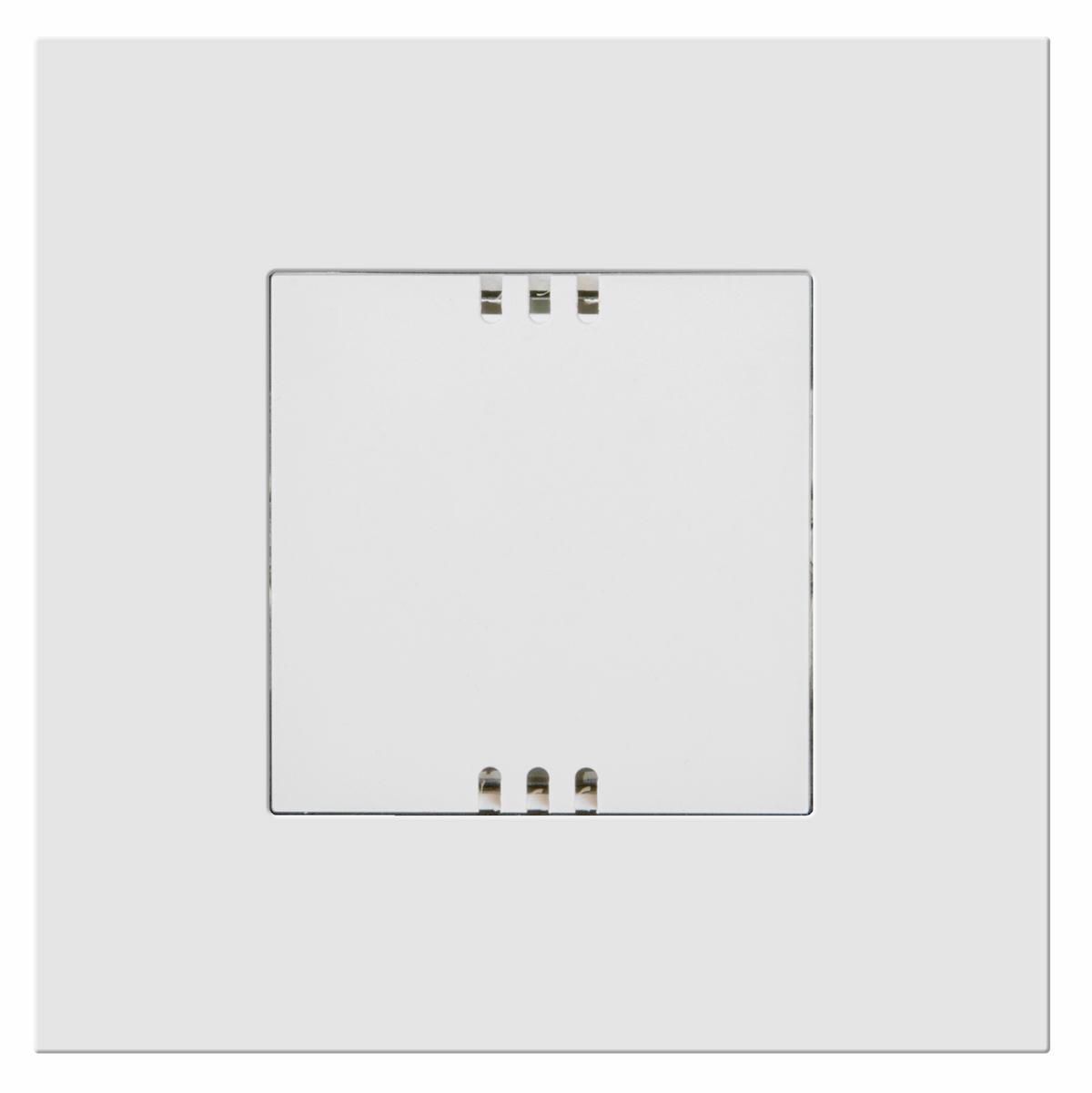

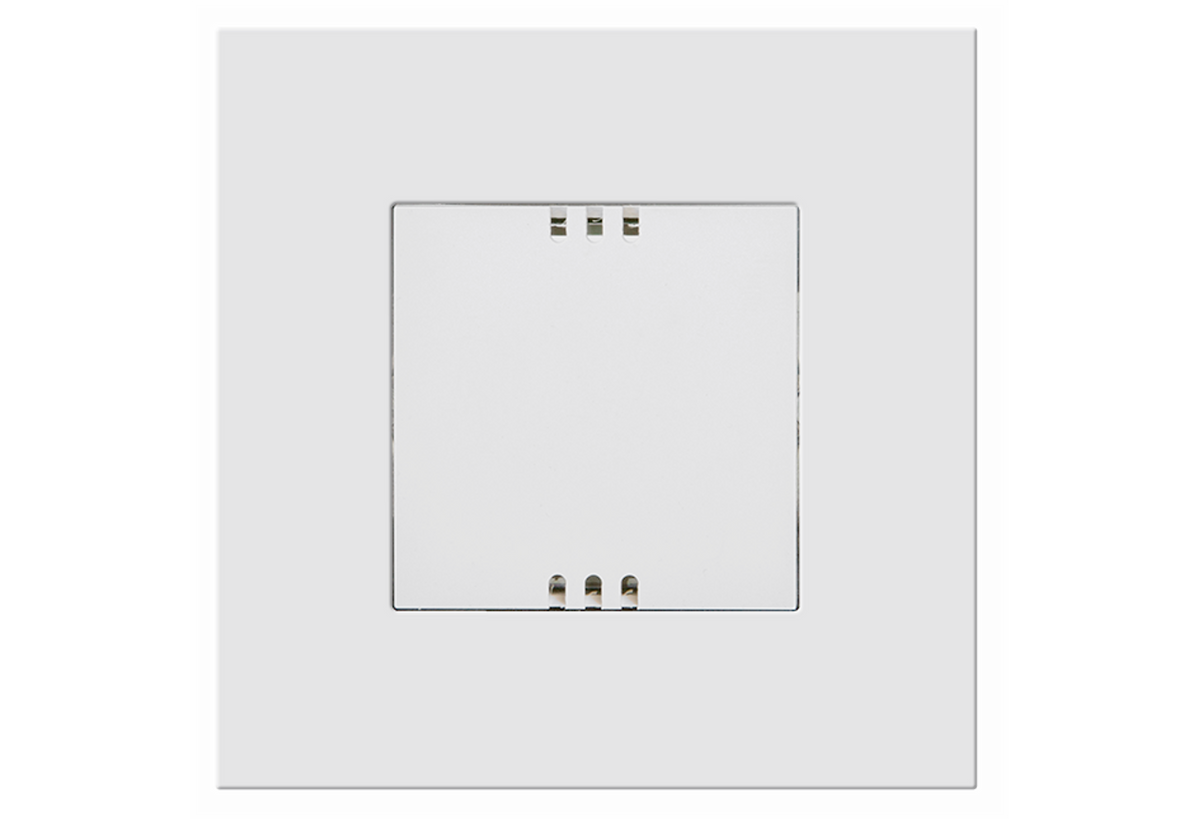

Crestron CHVI-RTS-1G-N-W – Wall Mount Remote Temperature Sensor, White

Product Overview

The Crestron CHVI-RTS-1G-N-W is a wall-mounted remote temperature sensor in white finish, designed for use with Crestron HVAC control systems and building automation processors. It mounts in a single-gang (1G) wall box and reports ambient room temperature to the connected Crestron processor, enabling precise temperature monitoring and HVAC control without a full thermostat interface. This sensor is used when a display or keypad thermostat is not required, but accurate room temperature feedback is needed for HVAC automation logic.

Product Description

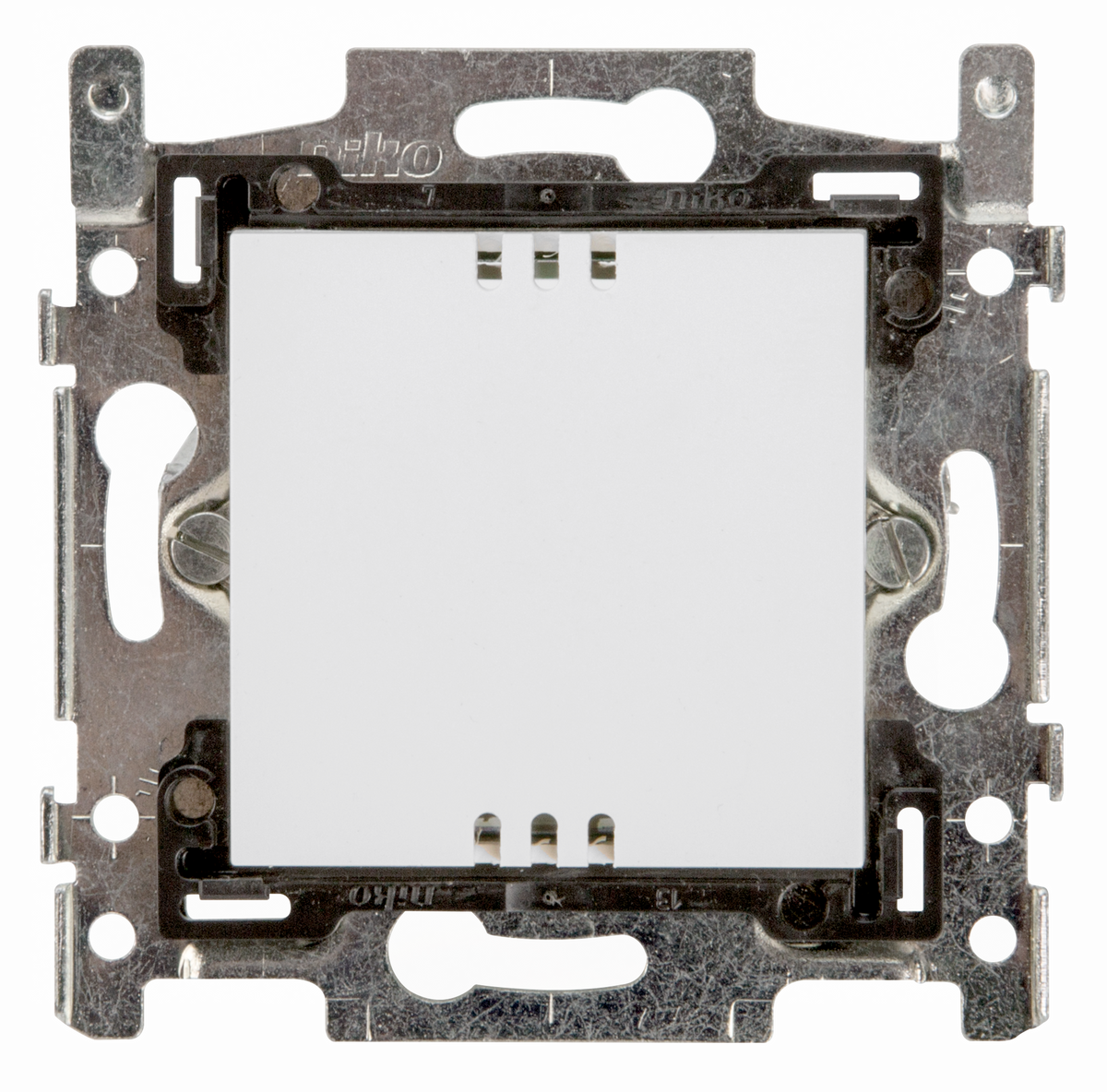

The CHVI-RTS-1G-N-W installs in a standard single-gang wall box and connects to the Crestron HVAC control module or compatible processor via low-voltage wiring. Its low-profile faceplate blends with standard commercial and residential wall finishes in white. Unlike a full thermostat, the sensor contains no display or user controls, making it appropriate for occupied spaces where the HVAC system is managed entirely through a Crestron control interface in another location—such as a room touch panel or centralized building management system. Temperature data from this sensor drives zone-level HVAC control logic in the Crestron program.

Key Features

• Wall-mount design — fits standard single-gang (1G) electrical wall box
• Remote temperature sensing — reports ambient room temperature to Crestron HVAC control module
• No user controls — sensor-only device; all control managed through separate Crestron interface
• White finish — low-profile faceplate for unobtrusive installation in occupied spaces
• Designed for Crestron HVAC systems — integrates with compatible Crestron heating and cooling controllers
• Supports zone-level HVAC control — provides localized temperature data for per-room automation logic
• Low-voltage wiring — connects to Crestron processor or HVAC module via standard low-voltage terminal connection

Typical Applications

• Conference rooms and offices where HVAC is controlled from a room panel or centralized Crestron system
• Hotel guest rooms with Crestron energy management requiring room temperature feedback without a guest-facing thermostat
• Building zones where temperature setpoint control is managed by facility staff at a central Crestron interface
• Supplemental temperature sensing in large spaces with multiple zone sensors feeding a single Crestron HVAC program
• AV equipment rooms where ambient temperature monitoring is required for equipment protection

Technical Specifications

• Model: CHVI-RTS-1G-N-W
• Mounting: Single-gang (1G) wall box
• Finish: White
• Function: Remote ambient temperature sensor
• Connection: Low-voltage wiring to Crestron HVAC controller or processor
• Controls: None (sensor only)
• Compatible Systems: Crestron HVAC control modules and compatible processors

FAQs

Does the CHVI-RTS-1G-N-W display the temperature reading?

No. This is a sensor-only device with no display or user interface. Temperature data is reported to the Crestron processor and can be displayed on a Crestron touch panel, wall keypad, or building management interface as configured in the control program.

What Crestron HVAC modules is this sensor compatible with?

The CHVI-RTS-1G-N-W is designed for Crestron’s HVAC control ecosystem. Verify compatibility with your specific Crestron HVAC module or processor by checking the Crestron product specification sheet or contacting Crestron technical support.

Can this sensor be used outdoors?

No. This sensor is designed for indoor wall-mount installation. For outdoor or slab temperature sensing, Crestron offers dedicated outdoor temperature sensors such as the CHV-RSS.
