Crestron CHV-TSTAT-FCU-W – Heating/Cooling Fan-Coil Thermostat, White
Product Overview
The Crestron CHV-TSTAT-FCU-W is a wall-mount heating and cooling thermostat for fan coil unit (FCU) HVAC systems. Available in a white faceplate finish, it integrates with Crestron control systems over Cresnet to enable centralized climate scheduling, remote setpoint adjustment, and coordination with lighting and shade control.
Product Description

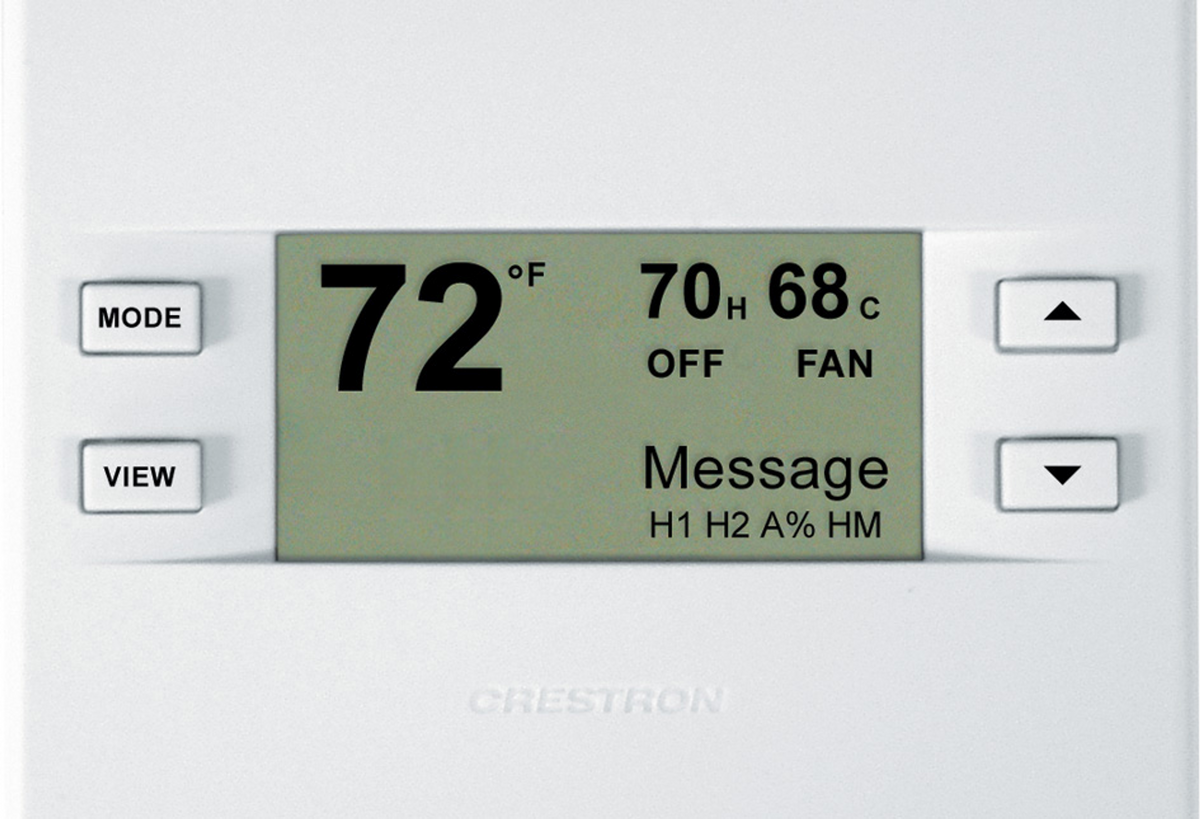

The CHV-TSTAT-FCU-W features a transflective backlit LCD display navigated by four front-panel buttons. It displays current room temperature, setpoint, heat/cool mode, and fan status. The thermostat supports separate heating and cooling setpoints with optional automatic changeover, adjustable anticipators to prevent temperature overshoot, and continuous fan mode for increased circulation. Optional remote temperature and humidity sensors can be connected to extend climate monitoring capability. Up to four remote temperature sensors, two remote temp/humidity sensors, or a combination can be connected. Cresnet connectivity allows multiple thermostats to be networked to a single 3-Series or DIN-AP3 control system.
Key Features
- Fan coil unit thermostat with separate heat, cool, and humidity setpoints
- Transflective backlit LCD display, 128 x 64 resolution, 2.75 in (70 mm)
- Cresnet wired network integration for multi-thermostat and automation system control
- Supports up to four optional remote temperature or temp/humidity sensors
- White faceplate; surface-mountable to a horizontally-oriented 1-gang electrical box
- Adjustable anticipators and automatic heat/cool changeover
- Continuous fan mode selection
- Operable if Cresnet communication is lost
Typical Applications
- Hotel rooms and hospitality guest room climate control
- Corporate office and open-plan workspace FCU systems
- Residential multi-zone HVAC integration in Crestron home automation projects
- Multi-thermostat deployments networked via Cresnet for centralized scheduling
- Facilities requiring humidity monitoring via remote sensor add-on
Technical Specifications
| Parameter | Value |
|---|---|
| Finish | White |
| Display | Transflective LCD, backlit, 128 x 64, 2.75 in (70 mm) |
| Indoor Temp Range | 0° to 110°F (-18° to 43°C) |
| Outdoor Temp Range | -40° to 170°F (-40° to 77°C) via remote sensor |
| Temp Tolerance | ±1°F (±0.5°C) over full range |
| Auto Setpoint Range | 38° to 99°F (3° to 37°C) |
| Relay Rating | 1A at 40 VDC or 24 VAC |
| Power | 24 VAC, 2 W; Cresnet <1 W additional |
| Height | 3.75 in (96 mm) |
| Width | 5.00 in (127 mm) |
| Depth | 1.04 in (27 mm) |
| Weight | 5.80 oz (165 g) |
| Mounting | Surface mount, 1-gang horizontal electrical box |
Frequently Asked Questions
Q: Does the CHV-TSTAT-FCU-W work without a Crestron control system?
A: Yes. The thermostat operates as a standalone FCU controller. Cresnet connection is optional and enables automation system integration, remote scheduling, and multi-thermostat networking.
Q: What remote sensors are compatible with this thermostat?
A: The CHV-TSTAT-FCU-W accepts up to four CHV-RTS remote temperature sensors, two CHV-RTHS remote temp/humidity sensors, or a mixed combination. The CHV-RSS outdoor/slab sensor is also supported for outdoor temperature compensation.
Q: Is this thermostat available in other colors?
A: Yes. The CHV-TSTAT-FCU is available in white (CHV-TSTAT-FCU-W), black (CHV-TSTAT-FCU-B), and almond (CHV-TSTAT-FCU-A) finishes.
