Crestron CHV-TSTAT-FCU-B – Heating/Cooling Fan-Coil Thermostat, Black

Product Overview

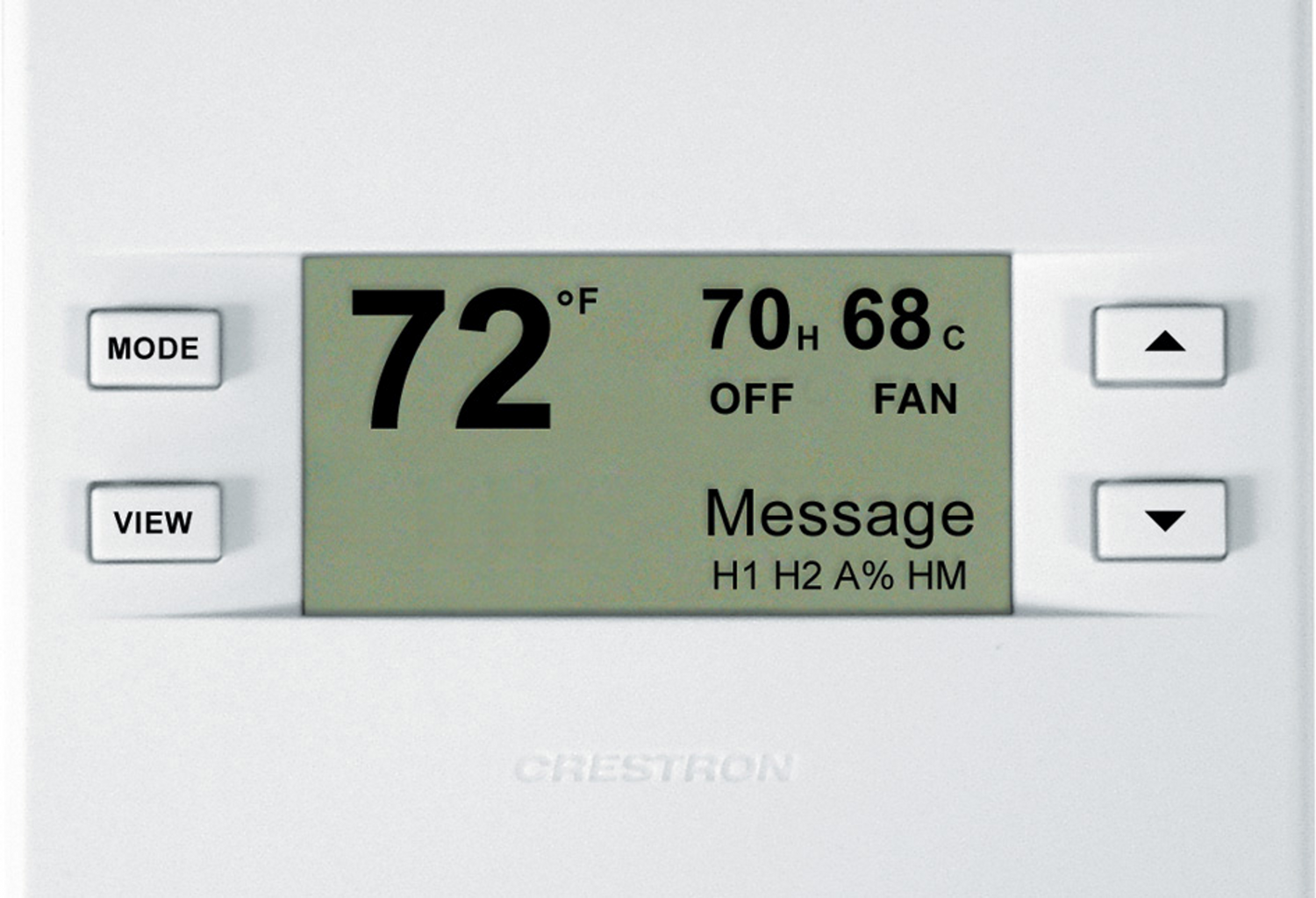

The Crestron CHV-TSTAT-FCU-B is a wall-mount heating and cooling thermostat designed specifically for fan-coil HVAC units. It integrates directly with the Crestron Horizon Series HVAC control system to provide centralized setpoint management, scheduling, and occupancy-based temperature control across multi-zone commercial and residential installations. The Black finish matches the full CHV family of wall devices.

Product Description

Unlike conventional digital thermostats, the CHV-TSTAT-FCU-B communicates over a 2-wire Cresnet connection, eliminating the need for separate thermostat wiring runs. It supports both heating-only and cooling-only fan-coil configurations, as well as four-pipe heating/cooling systems. The device reports room temperature and setpoints in real time to the Crestron control processor, allowing centralized energy management, override scheduling, and occupancy integration with compatible sensors. The compact, low-profile housing mounts to a standard single-gang electrical box.

Key Features

• Fan-coil HVAC control supporting heating, cooling, and heat/cool changeover modes
• Communicates over Cresnet 2-wire network at up to 1,000 ft from the control processor
• Integrated temperature sensor with reported accuracy to the control system
• Manual fan speed selection: Auto, Low, Medium, High
• Setpoint adjustment, system mode selection, and fan control from the device or the control system
• Black finish coordinates with Crestron CHV family wall devices
• Low-profile single-gang form factor for straightforward installation

Typical Applications

• Hotel guest room HVAC control in Crestron-managed hospitality projects
• Commercial open-plan offices with ceiling-mounted fan-coil units
• Multi-zone residential fan-coil systems requiring centralized scheduling
• Conference rooms and private offices where occupancy-based setback is required

Technical Specifications

• Network: Cresnet 2-wire, up to 1,000 ft from control processor
• HVAC type: Fan-coil; heating only, cooling only, or heat/cool changeover (2- or 4-pipe)
• Fan speeds: Auto, Low, Medium, High
• Temperature range: 32°–104°F (0°–40°C) operational
• Setpoint range: Configurable from the control processor
• Weight: 5.80 oz (164 g)
• Finish: Black
• Mounting: Single-gang electrical box (horizontal orientation)

Frequently Asked Questions

Does the CHV-TSTAT-FCU-B work with non-Crestron control systems?

No. The CHV-TSTAT-FCU-B communicates exclusively over Cresnet and requires a Crestron control processor. It is not compatible with third-party building management systems or standalone operation without a Crestron system.

Can this thermostat control a heat pump or variable refrigerant flow system?

The CHV-TSTAT-FCU-B is designed for fan-coil systems. Heat pump and VRF system control requires compatible Crestron HVAC interface modules specific to those equipment types. Consult the Crestron product catalog for compatible solutions.
