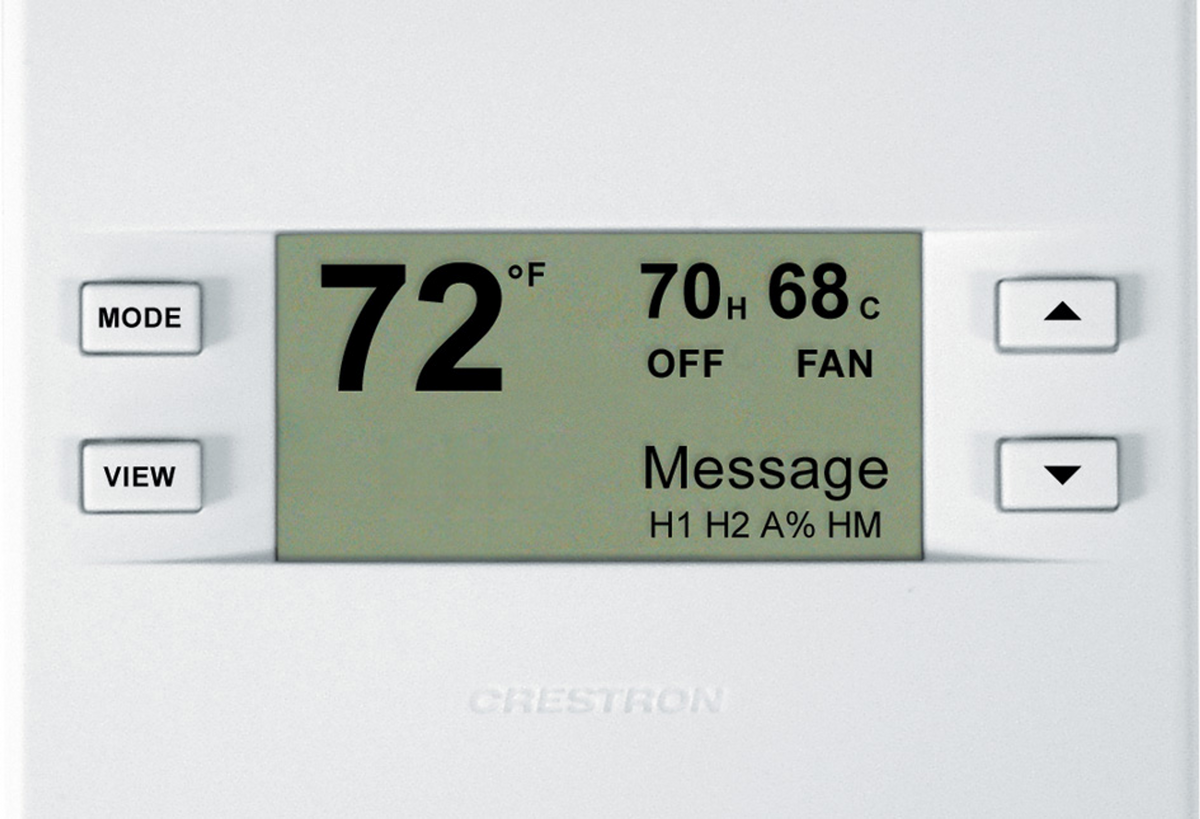

Crestron CHV-TSTAT-FCU-A – Heating/Cooling Fan-Coil Thermostat, Almond

Product Overview

The Crestron CHV-TSTAT-FCU-A is a wall-mount thermostat designed for fan-coil HVAC systems in Crestron-controlled environments, finished in Almond. It provides direct control of heating and cooling fan-coil units through Crestron's HVAC control infrastructure. The thermostat interfaces with Crestron processors to enable centralized climate management, scheduled temperature control, and occupancy-based setpoints across commercial and residential projects.

Product Description

Fan-coil systems are commonly deployed in hotels, multi-tenant office buildings, and multi-family residential projects where individual zone HVAC control is required without full ducted HVAC infrastructure. The CHV-TSTAT-FCU-A connects to the Crestron system to deliver precise setpoint control, fan speed selection, and mode switching (heat, cool, auto, fan-only) from a single control interface. The Almond finish matches standard commercial electrical trim in installations using neutral-toned hardware. Crestron integration enables facility managers and building automation systems to override individual room setpoints, enforce energy-saving temperature limits, and automate HVAC scheduling based on occupancy data from connected sensors or access control events.

Key Features

• Compatible with 2-pipe and 4-pipe fan-coil HVAC systems
• Heating, cooling, auto, and fan-only operating modes
• Fan speed control: low, medium, high
• Crestron system integration for centralized HVAC scheduling and setpoint override
• Occupancy-based temperature control when paired with Crestron occupancy sensors
• Almond finish for standard commercial and residential electrical trim compatibility
• Wall-mount form factor for standard single-gang installation
• Built-in temperature sensor for local zone measurement

Typical Applications

• Hotel guest rooms with individual fan-coil HVAC units
• Multi-tenant office suites requiring per-zone climate control
• Multi-family residential units in Crestron-managed buildings
• Conference rooms with occupancy-triggered temperature setback
• Commercial spaces needing centralized BAS integration via Crestron

Technical Specifications

• Model: CHV-TSTAT-FCU-A
• Finish/Color: Almond
• HVAC Compatibility: 2-pipe and 4-pipe fan-coil units
• Operating Modes: Heat, Cool, Auto, Fan Only
• Fan Speed: Low, Medium, High
• Mounting: Single-gang wall box
• Communication: Crestron system bus (refer to Crestron wiring guide for specific interface)
• Temperature Sensing: Built-in
• Installation: Low-voltage wiring to fan-coil unit and Crestron system

Frequently Asked Questions

Q: Is the CHV-TSTAT-FCU-A compatible with both 2-pipe and 4-pipe fan-coil systems?
A: Yes. The thermostat supports both 2-pipe (single coil) and 4-pipe (separate heating and cooling coils) fan-coil configurations. Wiring differs between the two; consult the Crestron installation guide for the correct terminal connections.

Q: Can the CHV-TSTAT-FCU-A be controlled remotely through a Crestron touchpanel or app?
A: Yes. When integrated with a Crestron processor, the thermostat setpoints, mode, and fan speed can be adjusted from any Crestron touchpanel, keypad, or mobile device running the Crestron Home or Crestron control app.

Q: Are other color options available for this thermostat?
A: Yes. Crestron offers the CHV-TSTAT-FCU series in Black (CHV-TSTAT-FCU-B) and White (CHV-TSTAT-FCU-W) in addition to Almond. All share the same specifications and differ only in housing color.
