Crestron CEN-SWSFP-28 – 28-Port All-Fiber Managed Switch, Redundant PSU Slot

Product Overview

The Crestron CEN-SWSFP-28 is a 28-port all-SFP managed switch built for high-bandwidth AV-over-IP backbone applications and fiber-based network distribution. It combines 24 ports of 10 Gigabit SFP+ and four ports of 25 Gigabit SFP28 in a compact 1U chassis, with a 680 Gbps non-blocking switching fabric and a modular power supply slot for redundancy. With integrated DM NVX and DM NAX AV-over-IP profiles and full Layer 2/Layer 3 management, the CEN-SWSFP-28 serves as a capable and reliable fiber aggregation and distribution switch for commercial AV installations.

Product Description

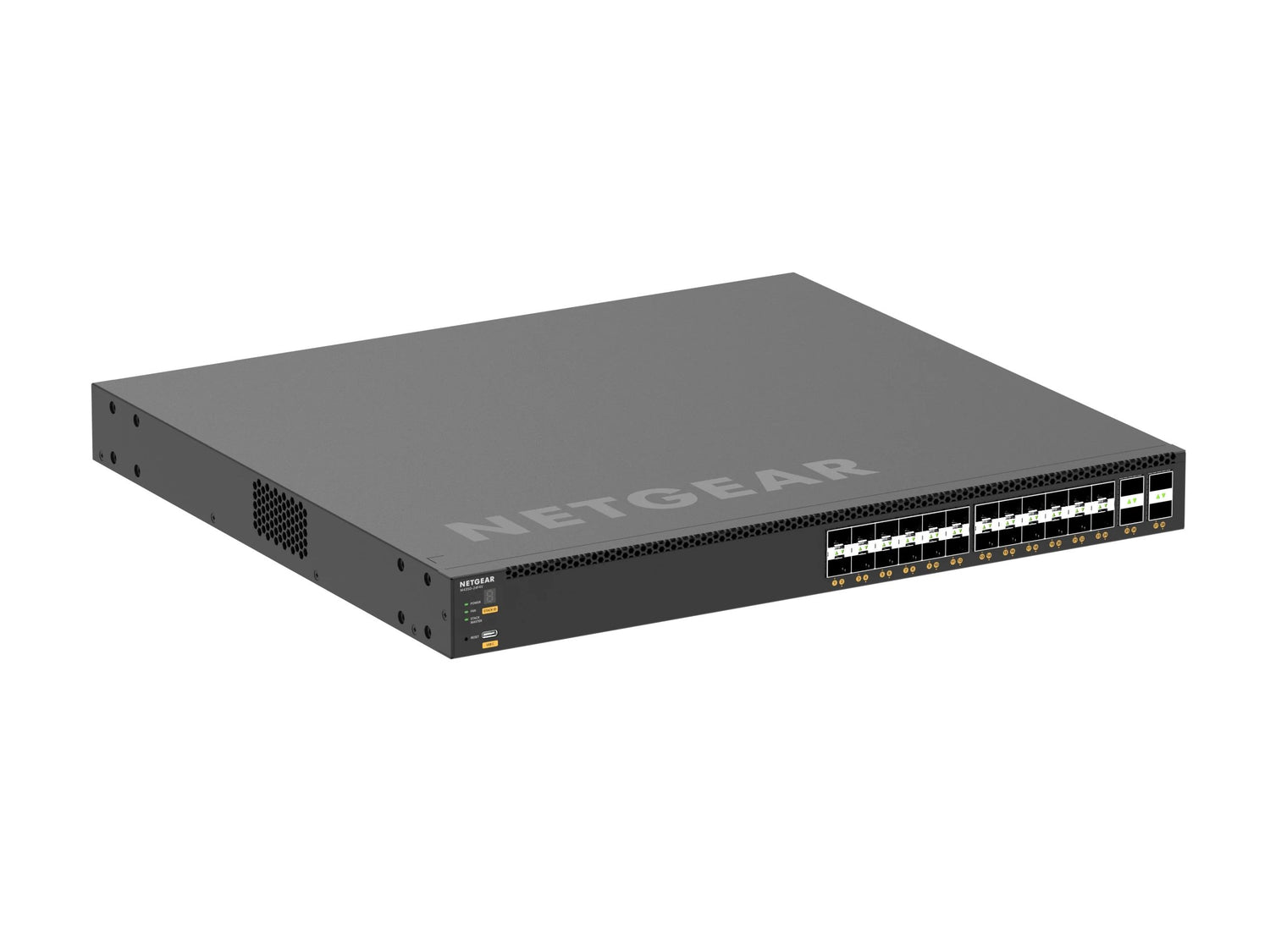

The CEN-SWSFP-28 provides 24 ports of 10 Gigabit Base-X SFP+ and four ports of 25 Gigabit Base-X SFP28, all supporting both multimode and single-mode fiber transceiver modules. This all-fiber design is well-suited to AV network backbones where copper distances are exceeded, where electrical isolation between buildings or floors is required, or where future-proofing with high-bandwidth uplinks is a priority.

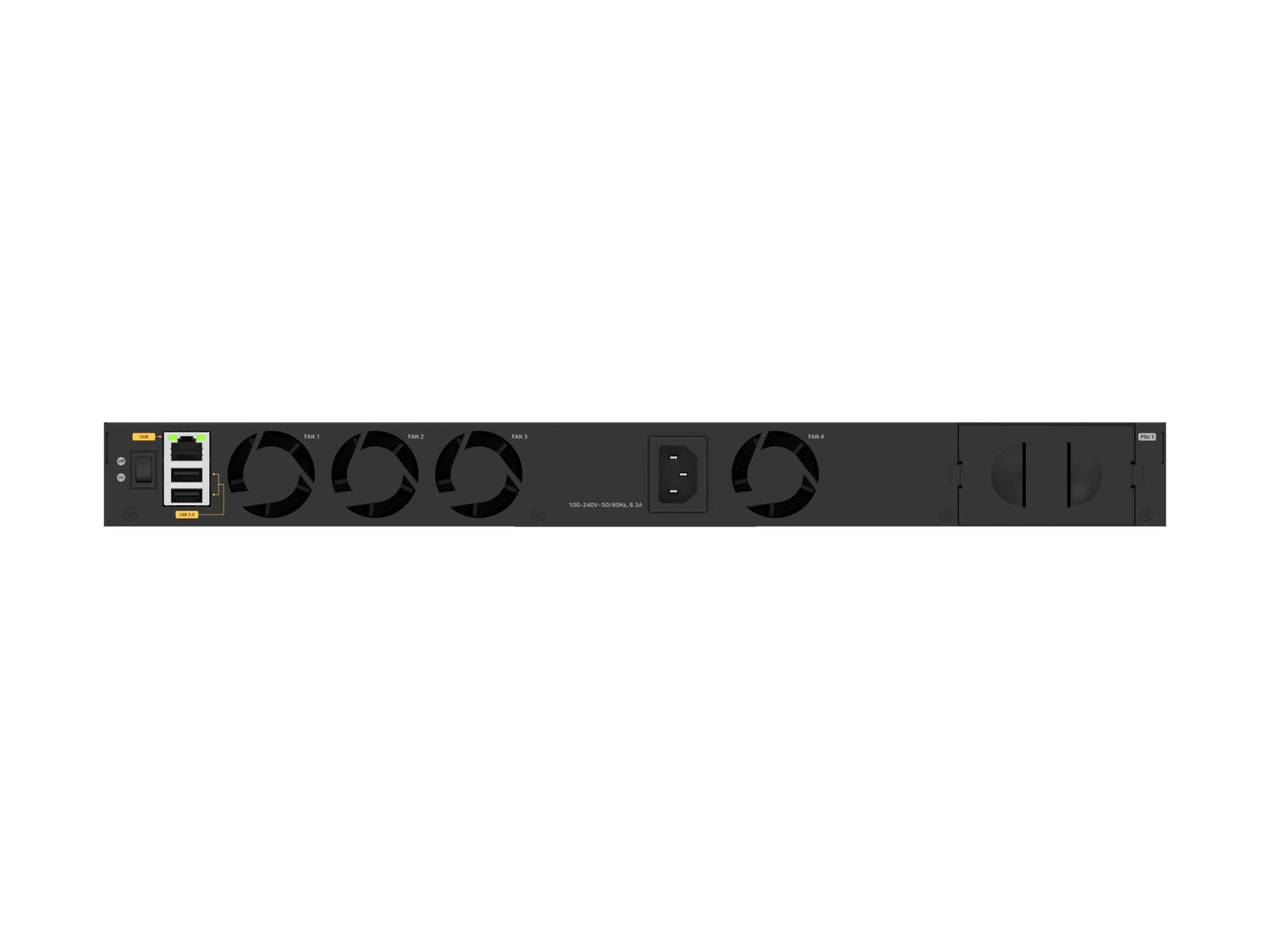

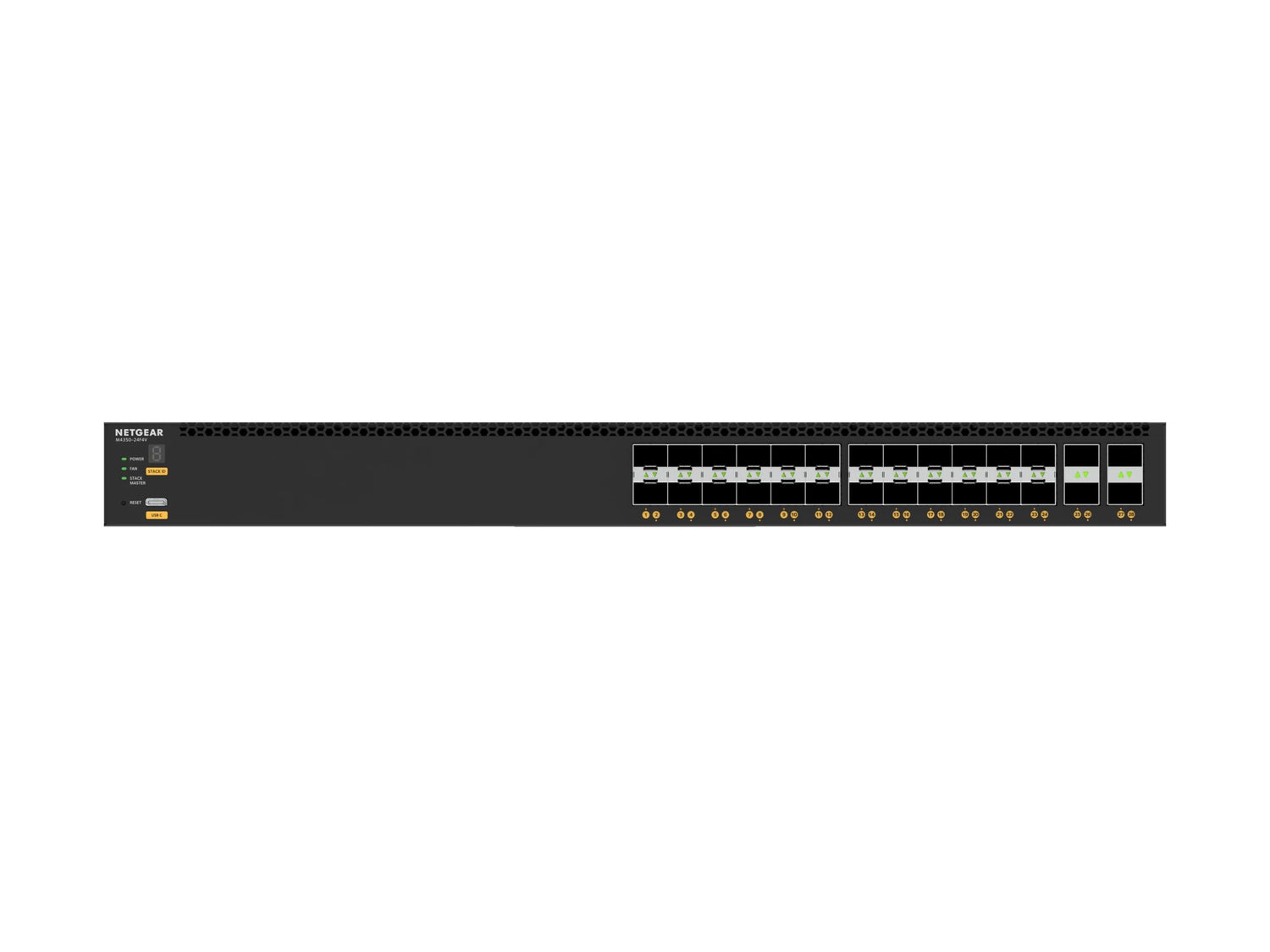

A modular power supply slot accepts the optional CEN-SWSFP-PWS350 for power redundancy, an important consideration in mission-critical AV environments where downtime is not acceptable. The 680 Gbps non-blocking switching fabric delivers line-rate throughput across all 28 ports simultaneously, ensuring congestion-free multicast video distribution for DM NVX AV-over-IP systems. Switch stacking is supported via the front-panel Stack Master LED and Stack ID display, allowing multiple CEN-SWSFP-28 units to operate as a unified logical switch.

DM NVX and DM NAX AV-over-IP profile selection automates the multicast management configuration required by those systems. Full IT management is available via HTTPS web GUI, CLI, SSH, Telnet, SNMP, RADIUS, and TACACS+. Layer 2 and Layer 3 features include VLANs, IGMP snooping (IGMPv3, MLDv2), IEEE 1588 PTPv2, QoS, static and dynamic routing, DHCP server, and comprehensive security including 802.1X, DHCP snooping, and dynamic ARP inspection.

Key Features

• 24x 10 GbE SFP+ + 4x 25 GbE SFP28 — All-fiber port configuration for backbone and high-bandwidth AV distribution deployments.
• 680 Gbps Non-Blocking Switching Fabric — Wire-speed performance across all 28 ports for congestion-free AV-over-IP multicast distribution.
• Modular Power Supply Slot — Compatible with CEN-SWSFP-PWS350 for power redundancy in mission-critical AV installations.
• DM NVX & DM NAX AV Profiles — Automated multicast configuration for Crestron AV-over-IP and Audio-over-IP systems.
• Switch Stacking Support — Stack Master LED and Stack ID display for multi-switch stacking in large deployments.
• Layer 2 & Layer 3 Managed — VLANs, IGMP snooping, PTP, QoS, routing, and DHCP server all included.
• Enterprise Security — 802.1X, DHCP snooping, dynamic ARP inspection, IP source guard, RADIUS, and TACACS+.
• Quiet Operation — 34 dBA in Quiet Mode, 62 dBA in Cool Mode at 77°F for flexible placement in mixed-use equipment rooms.
• Compact 1U Form Factor — 17.32 in. W × 15.74 in. D chassis fits standard 19-inch racks with reversible rack ears.

Typical Applications

• Large-venue DM NVX AV-over-IP backbone and distribution switches
• Multi-building fiber AV network aggregation for campus and enterprise
• High-availability commercial AV installations requiring redundant power
• Boardroom and auditorium AV core network infrastructure
• Broadcast studio and all-hands room fiber network distribution
• Government and enterprise AV backbone deployments

Technical Specifications

Frequently Asked Questions

Does the CEN-SWSFP-28 provide PoE?

No. This is an all-fiber SFP switch without Power over Ethernet. It is designed as a backbone or aggregation switch. For edge switching with PoE, see the CEN-SWPOE series.

What is the difference between CEN-SWSFP-28 and CEN-SWSFP-40-TAA?

The CEN-SWSFP-28 has 28 ports (24x SFP+ and 4x SFP28) with a 680 Gbps fabric. The CEN-SWSFP-40-TAA has 40 ports (32x SFP+ and 8x SFP28) with a 1.04 Tbps fabric and adds TAA compliance. Choose based on port count and compliance requirements.

What transceivers are compatible?

All SFP+ ports support 10 Gigabit Base-X modules; SFP28 ports support 25 Gigabit Base-X modules. Both multimode and single-mode fiber transceivers are supported. Modules are sold separately.

Is the power supply included?

The switch includes a built-in primary power supply. The modular PSU slot accepts the optional CEN-SWSFP-PWS350 for redundancy, sold separately.

How does this switch integrate with DM NVX systems?

Selecting the DM NVX AV-over-IP profile via the web interface automatically applies the multicast routing and IGMP settings required by DM NVX encoders and decoders.

What warranty applies?

Covered under Crestron's standard limited warranty. Full details at crestron.com/warranty.
