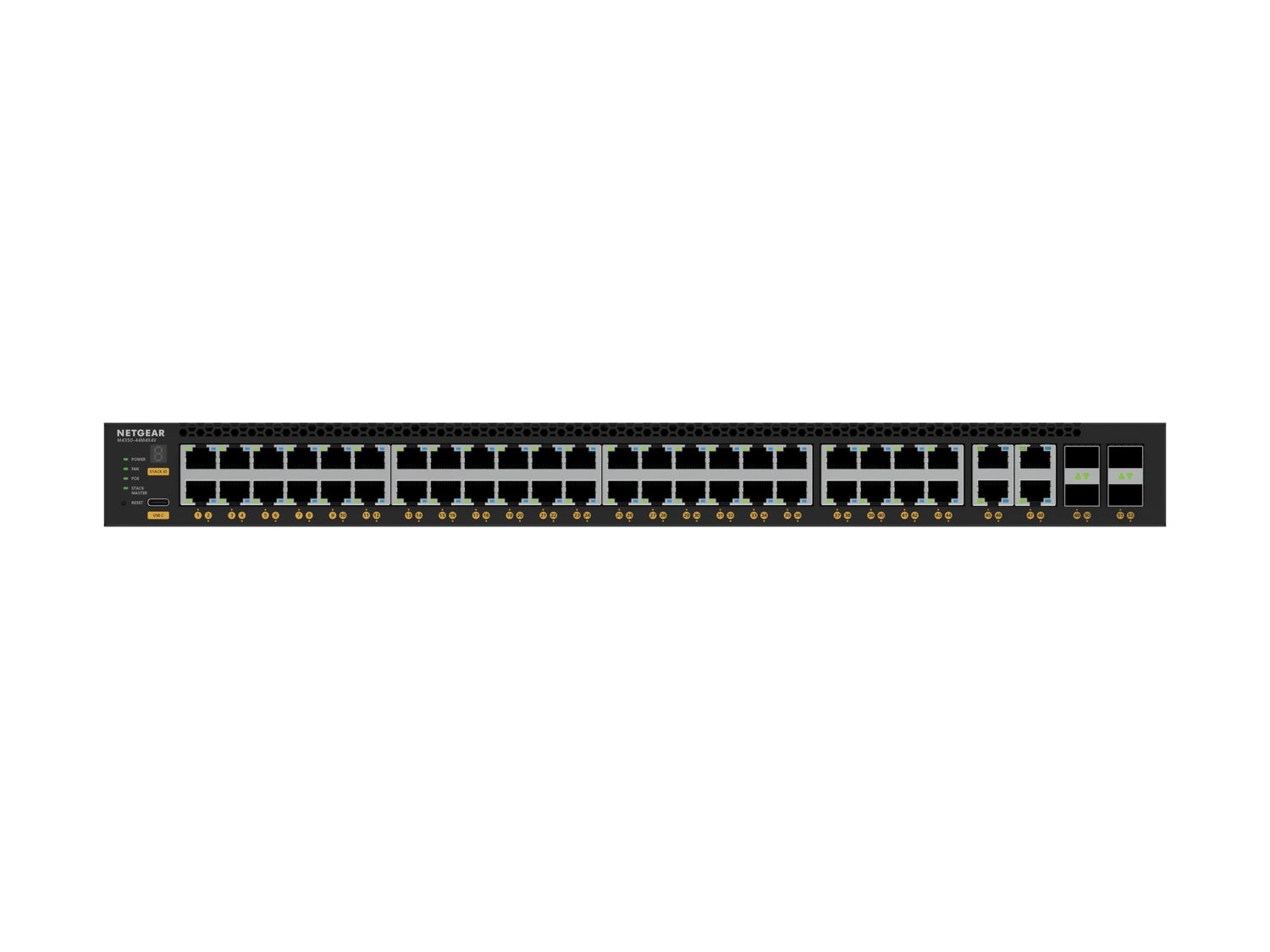

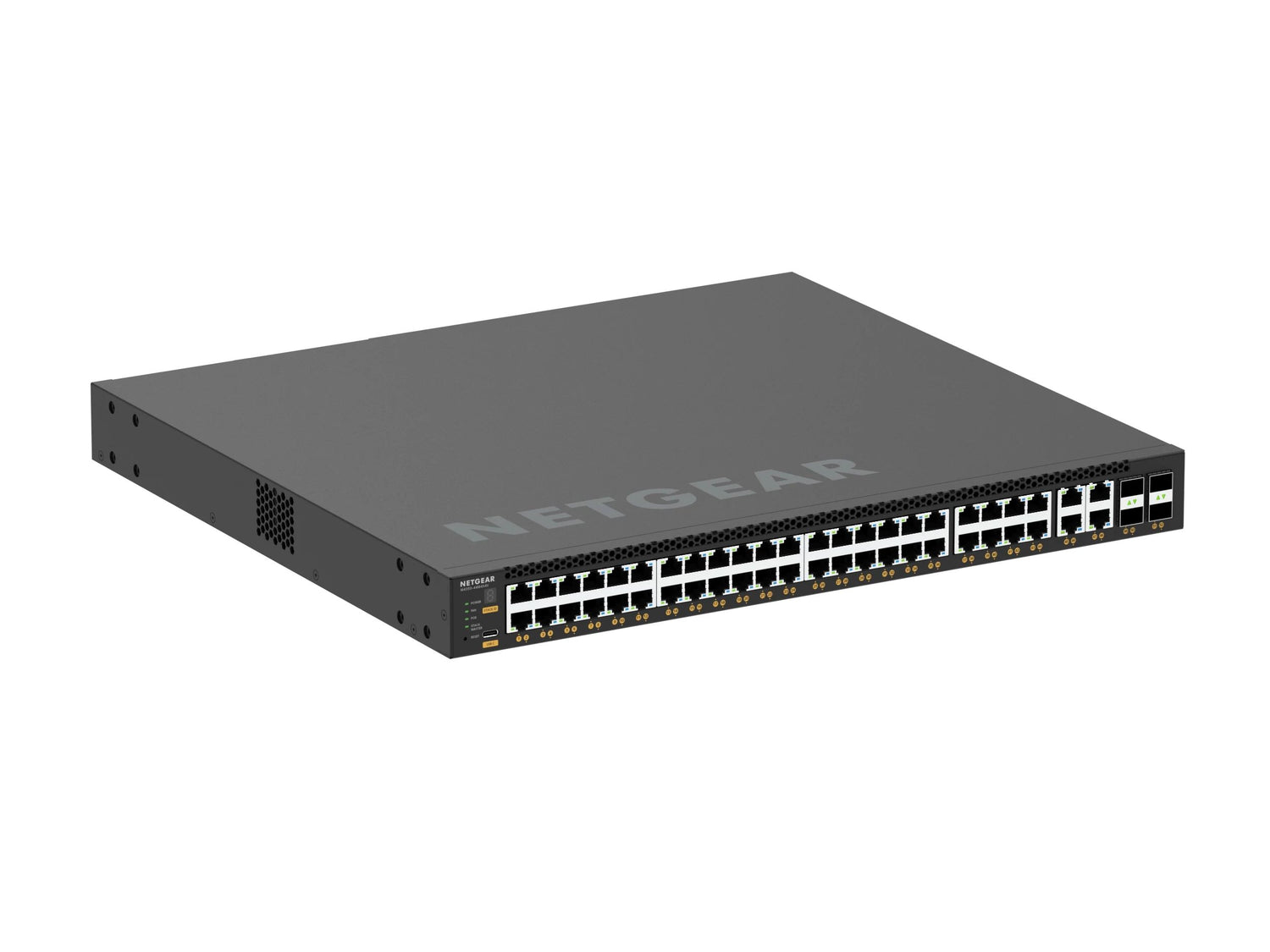

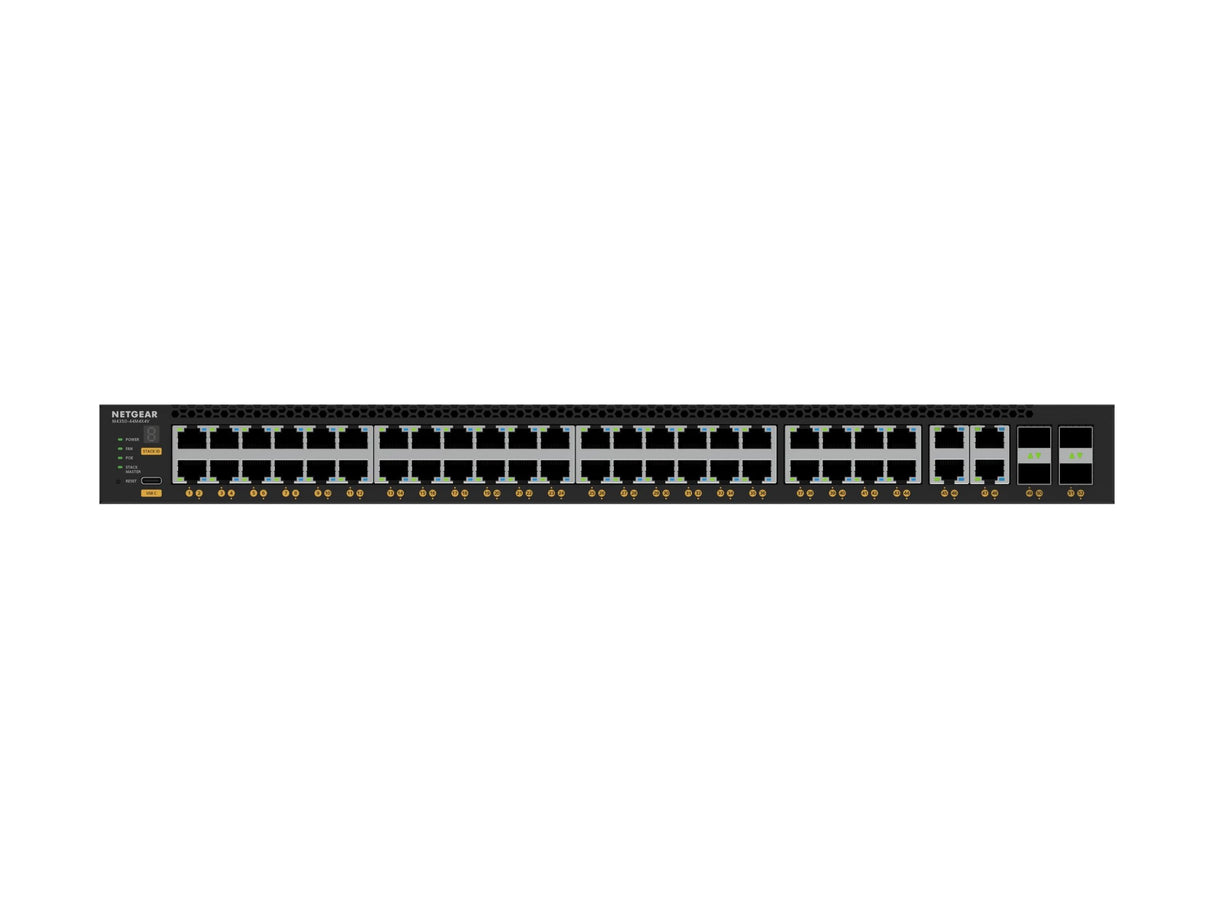

Crestron CEN-SWPOE-52-ULTRA – 52-Port Ultra PoE++ Managed Switch
Product Overview
The Crestron CEN-SWPOE-52-ULTRA is a 52-port managed PoE++ network switch built on the NETGEAR AV platform for large-scale commercial AV-over-IP installations. It powers up to 48 Ethernet endpoints at 90 W per port, provides a 500 Gbps non-blocking switching fabric, and includes four 25 Gigabit SFP28 uplink ports for high-capacity fiber backbone connectivity. With built-in DM NVX and DM NAX AV-over-IP profiles, the switch is purpose-configured for Crestron AV-over-IP deployments in enterprise, education, government, and large-venue commercial environments.
Product Description
The CEN-SWPOE-52-ULTRA provides 44 ports of 2.5 Gigabit auto-sensing Ethernet with PoE++ and four ports of 10 Gigabit auto-sensing multi-gigabit Ethernet with PoE++, for a total of 48 powered copper ports. All PoE++ ports conform to IEEE 802.3bt Type 4, delivering up to 90 W per port. Combined PoE output reaches up to 3,314 W when equipped with optional modular power supply units. Without the modular supplies, the internal power supply provides a maximum of 194 W of PoE.

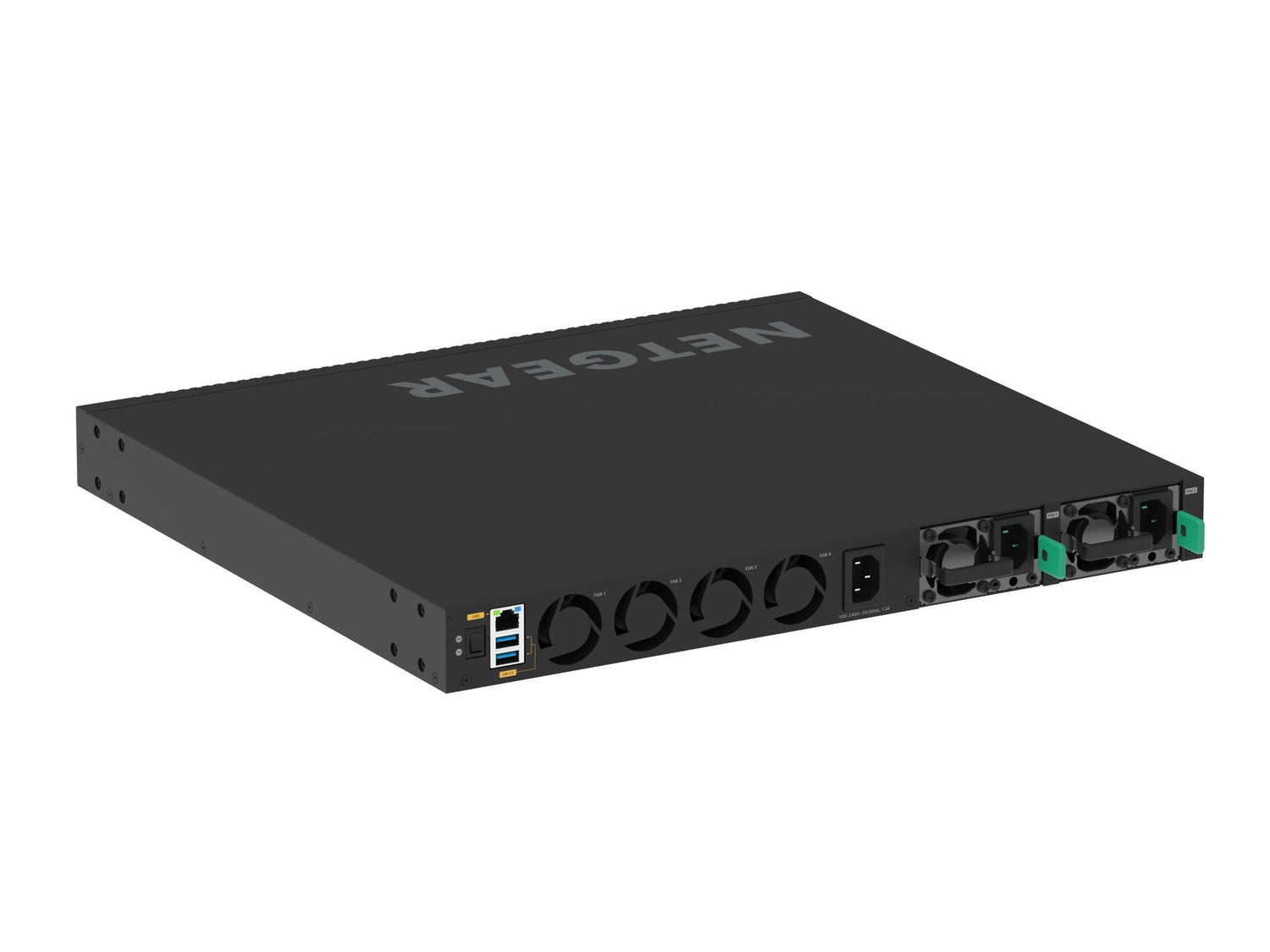

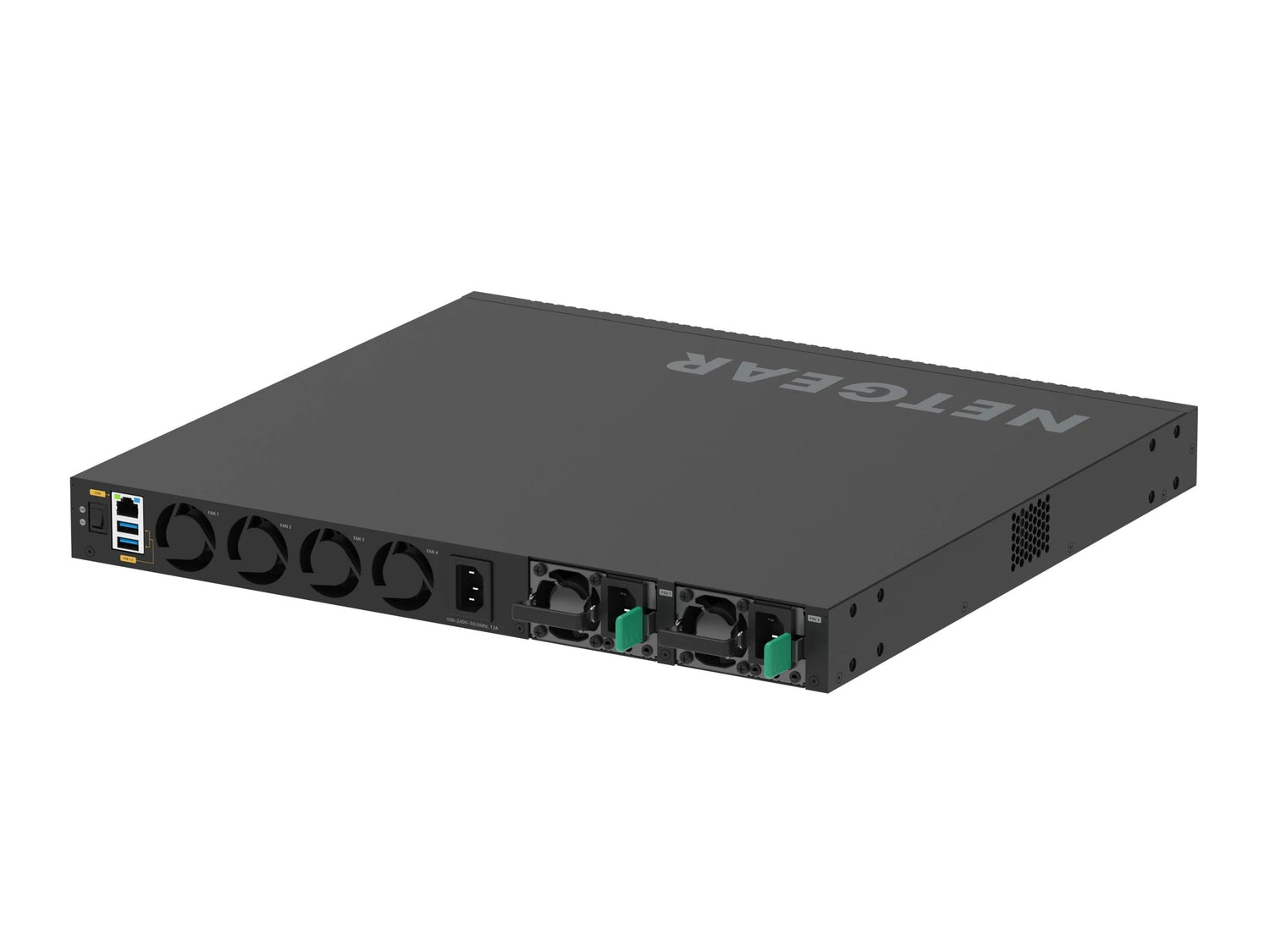

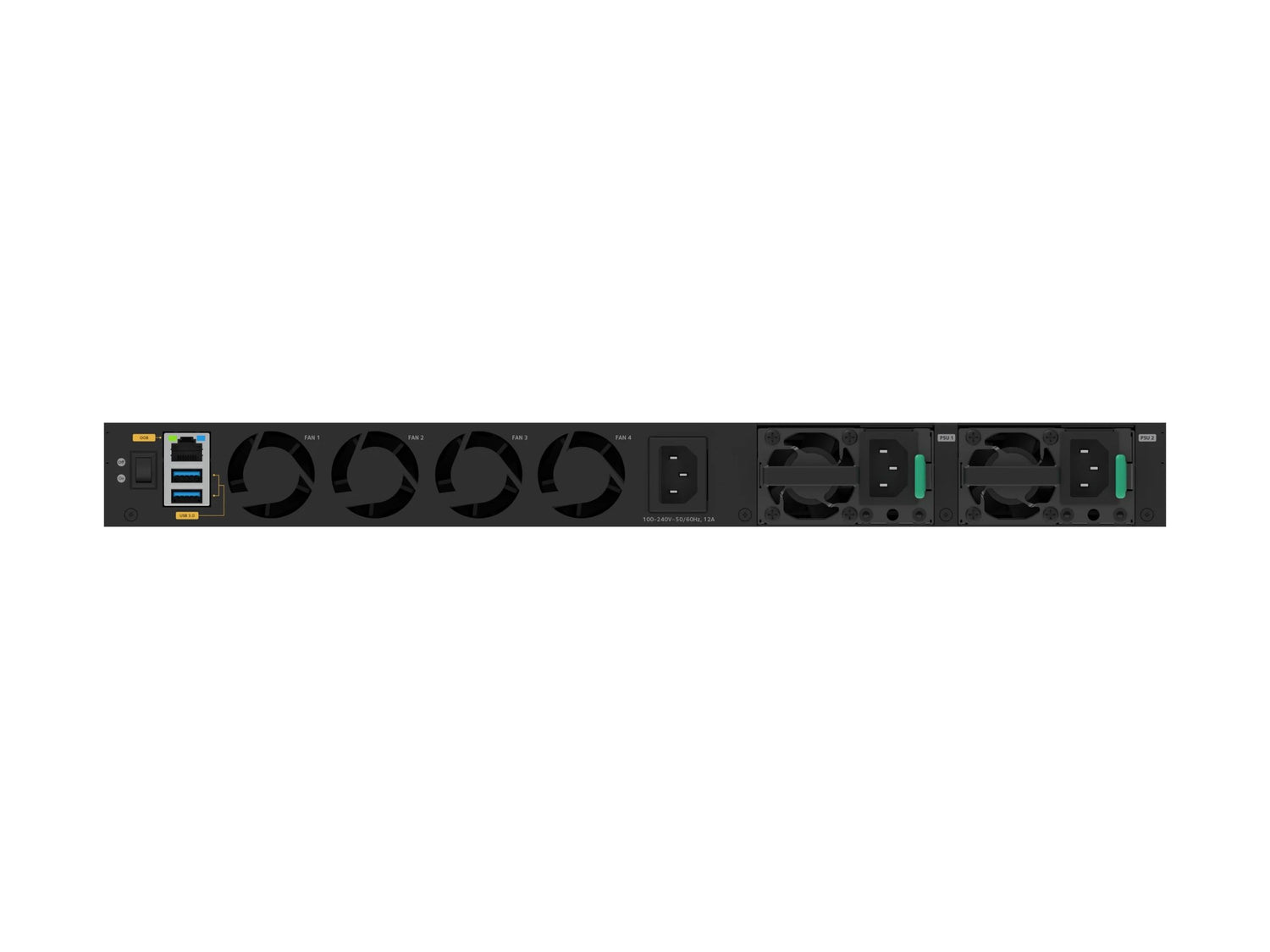

Two modular power supply slots accept the CEN-SWSFP-PWS350 or CEN-SWPOE-PWS2000-ULTRA. The CEN-SWPOE-PWS2000-ULTRA expands the total PoE budget to 3,314 W without redundancy, or maintains up to 1,794 W in a redundant failover configuration. Four 25 Gigabit Base-X SFP28 ports support both multimode and single-mode fiber transceiver modules for backbone uplinks.
Selecting the DM NVX AV-over-IP or DM NAX Audio-over-IP profile in the built-in browser interface automatically configures the multicast management settings required for those systems. IGMP snooping (IGMPv3, MLDv2), IEEE 1588 PTPv2, full VLAN management, QoS, Layer 3 routing, DHCP server, 802.1X, DHCP snooping, and RADIUS/TACACS+ authentication are all included. The 1U metal chassis ships with reversible rack ears and supports both Quiet Mode (34 dBA) and Cool Mode (52 dBA) fan operation.
Key Features
- 48-Port PoE++ (802.3bt Type 4) — Up to 90 W per port; combined maximum 3,314 W with modular power supplies installed.
- 44x 2.5 GbE + 4x 10 GbE Copper Ports — Multi-gigabit auto-sensing copper ports support high-bandwidth AV-over-IP devices and 4K/5K streaming endpoints.
- 4x 25 Gigabit SFP28 Uplinks — Multimode and single-mode fiber support for high-capacity backbone connectivity.
- 500 Gbps Non-Blocking Switching Fabric — Wire-speed performance across all 52 ports with no oversubscription.
- Dual Modular Power Supply Slots — Supports CEN-SWSFP-PWS350 or CEN-SWPOE-PWS2000-ULTRA for expanded PoE budget and optional redundancy.
- DM NVX & DM NAX AV Profiles — One-click profile selection configures multicast management for Crestron AV-over-IP and Audio-over-IP deployments.
- Layer 2 & Layer 3 Managed Switching — VLANs, IGMP snooping, PTP, QoS, static/dynamic routing, and DHCP server.
- Switch Stacking — Stack Master LED and Stack ID display support multi-switch stacking configurations.
- Selectable Fan Modes — Quiet Mode (34 dBA) for noise-sensitive spaces; Cool Mode (52 dBA) for maximum thermal performance.
Typical Applications
- Large boardroom and executive conference center AV-over-IP distribution
- Auditorium and all-hands room AV infrastructure with high-density endpoints
- Multi-room commercial AV networks with mixed DM NVX encoder/decoder deployments
- Training room and higher-education AV-over-IP backbone switches
- House of worship production and distribution networks
- Broadcast studio network infrastructure
Technical Specifications
| Attribute | Detail |
|---|---|
| Ethernet Ports | (44) 2.5 Gigabit auto-sensing w/PoE++; (4) 10 Gigabit auto-sensing w/PoE++; (4) 25 Gigabit Base-X SFP28 |
| PoE Standard | IEEE 802.3af, 802.3at, 802.3bt (Type 4) |
| PoE Power per Port | Up to 90 W |
| Combined PoE Output | Up to 3,314 W (with modular power supplies); 194 W without |
| Switching Fabric | 500 Gbps non-blocking |
| MAC Addresses | Up to 16K |
| Management | HTTPS Web GUI, CLI, SSH, Telnet, SNMP, RADIUS, TACACS+; IPv4/IPv6 |
| Modular PSU Slots | (2) for CEN-SWSFP-PWS350 or CEN-SWPOE-PWS2000-ULTRA (sold separately) |
| Power Input | 12A @ 100–240VAC, 50/60 Hz |
| Power Consumption | Max PoE (w/supplies): 3,857.5 W; Internal only Max PoE: 351.5 W; No PoE: 133.5 W; Standby: 56.5 W |
| Mounting | 1U 19-inch rackmount or freestanding; reversible rack ears |
| Dimensions | 1.7 in. H × 17.32 in. W × 15.74 in. D (43.2 × 440 × 400 mm) |
| Weight | 16.18 lb (7.34 kg) |
| Temperature | 32° to 113°F (0° to 45°C) operating |
| Acoustic Noise | 34 dBA (Quiet Mode) / 52 dBA (Cool Mode) at 77°F |
Frequently Asked Questions
- How much PoE power is available without purchasing additional power supplies?
- The internal power supply provides a maximum of 194 W of combined PoE output. Adding optional CEN-SWPOE-PWS2000-ULTRA modular units expands this to a maximum of 3,314 W.
- What is the difference between the CEN-SWPOE-52-ULTRA and the CEN-SWPOE-52-ULTRA-TAA?
- The hardware specifications are identical. The TAA variant adds Trade Agreements Act compliance for government and federally funded procurement eligibility.
- What are the fan mode options?
- The switch supports Quiet Mode (34 dBA at 77°F) for noise-sensitive environments and Cool Mode (52 dBA at 77°F) for environments requiring maximum airflow. Fan mode can be selected via the management interface.
- Can this switch be used as both an AV switch and an IT switch?
- Yes. The switch supports full IT management via SNMP, SSH, CLI, RADIUS, and TACACS+ alongside simplified AV profile configuration, making it suitable for IT-managed AV networks.
- Are the SFP28 modules included?
- No. Transceiver modules for the SFP28 uplink ports are sold separately. Both multimode and single-mode fiber modules are supported.
- What warranty covers this product?
- Covered under Crestron's standard limited warranty. Full details at crestron.com/warranty.
