Crestron CEN-SWPOE-30-ULTRA – 30-Port Ultra PoE++ Managed Switch

Product Overview

The Crestron CEN-SWPOE-30-ULTRA is a 30-port managed PoE++ network switch designed for mid-scale commercial AV-over-IP installations using Crestron DM NVX and DM NAX systems. It delivers up to 90 W per port across 24 Ethernet ports and includes four 1 Gigabit SFP uplink ports. With a 60 Gbps non-blocking switching fabric and built-in DM NVX and DM NAX AV-over-IP profiles, the CEN-SWPOE-30-ULTRA is well-suited to conference rooms, training rooms, and commercial multi-room AV deployments requiring high per-port power delivery in a compact 1U chassis.

Product Description

The CEN-SWPOE-30-ULTRA provides PoE++ (802.3bt Type 4) on 24 of its 30 Ethernet ports, with two additional non-PoE Gigabit Ethernet ports and four 1 Gigabit Base-X SFP uplink ports. Per-port PoE power reaches up to 90 W, and combined output reaches up to 1,440 W using dual AC inputs. This high per-port budget accommodates demanding AV and network endpoints including 4K PTZ cameras, multi-radio wireless access points, digital signage displays, and DM NVX endpoints in a 30-port form factor appropriate for smaller venue sizes.

The ULTRA designation distinguishes this model from the standard CEN-SWPOE-30 (which supports PoE+ at 30 W per port) and indicates IEEE 802.3bt Type 4 PoE++ support. The CEN-SWPOE-30-ULTRA includes two AC power inputs for expanded PoE budget: a single connection provides a maximum of 889 W combined PoE output, while a dual AC connection extends this to 1,734 W.

DM NVX and DM NAX AV-over-IP profile selection automates multicast configuration from the built-in browser interface. Full Layer 2 and Layer 3 management is included: VLANs, IGMP snooping (IGMPv3, MLDv2), IEEE 1588 PTPv2, QoS, static and dynamic routing, DHCP server, 802.1X, DHCP snooping, RADIUS, and TACACS+. The 1U metal chassis ships with reversible rack ears and an out-of-band management port.

Key Features

• 24-Port PoE++ (802.3bt Type 4) — Up to 90 W per port; combined maximum 1,440 W with dual AC power connection.
• Dual AC Power Inputs — Single AC: 889 W max PoE; Dual AC: 1,734 W max PoE for expanded endpoint power budgets.
• 4x 1 Gigabit SFP Uplinks — Supports multimode and single-mode fiber transceiver modules for backbone uplink connectivity.
• 60 Gbps Non-Blocking Switching Fabric — Wire-speed throughput across all 30 ports for congestion-free AV-over-IP operation.
• DM NVX & DM NAX AV Profiles — Single-step profile selection configures multicast management for Crestron AV-over-IP and Audio-over-IP deployments.
• Layer 2 & Layer 3 Management — VLANs, IGMP snooping, PTP, QoS, routing, and DHCP server included.
• Enterprise Security — 802.1X, DHCP snooping, dynamic ARP inspection, IP source guard, RADIUS, and TACACS+.

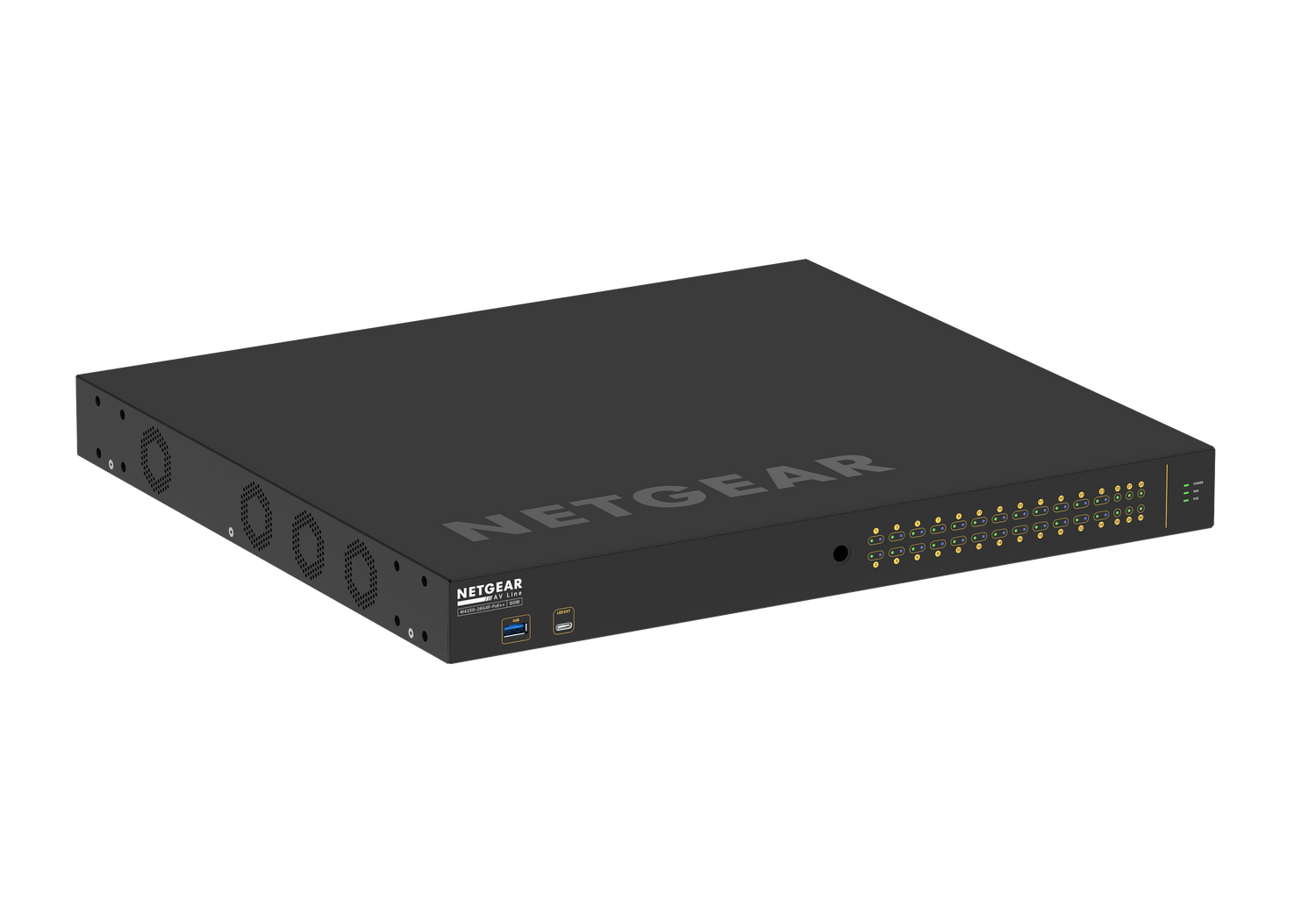

• 1U Rackmount Chassis — Metal, fan-cooled with reversible rack ears; 14.87 lb and 15.78 in. depth fits standard AV racks.

Typical Applications

• Mid-size conference room and boardroom DM NVX AV-over-IP networks
• Training room AV infrastructure with high-draw endpoints
• Commercial multi-purpose room AV distribution
• House of worship production networks with PTZ cameras
• All-hands room AV infrastructure in smaller venues
• Huddle room and smaller meeting space AV-over-IP deployment

Technical Specifications

Frequently Asked Questions

What is the difference between CEN-SWPOE-30-ULTRA and CEN-SWPOE-30?

The ULTRA model supports PoE++ (802.3bt Type 4) at up to 90 W per port. The standard CEN-SWPOE-30 supports PoE+ (802.3at) at up to 30 W per port and uses 10 Gigabit SFP+ uplinks rather than 1 Gigabit SFP. Choose the ULTRA when endpoints require more than 30 W per port.

Do both AC power inputs need to be connected?

No. A single AC connection is sufficient for operation and provides up to 889 W of combined PoE output. Connecting a second AC input increases the maximum combined PoE to 1,734 W.

Are the SFP transceivers included?

No. Transceiver modules for the SFP uplink ports are sold separately. Both multimode and single-mode fiber modules are supported.

How many ports provide PoE++?

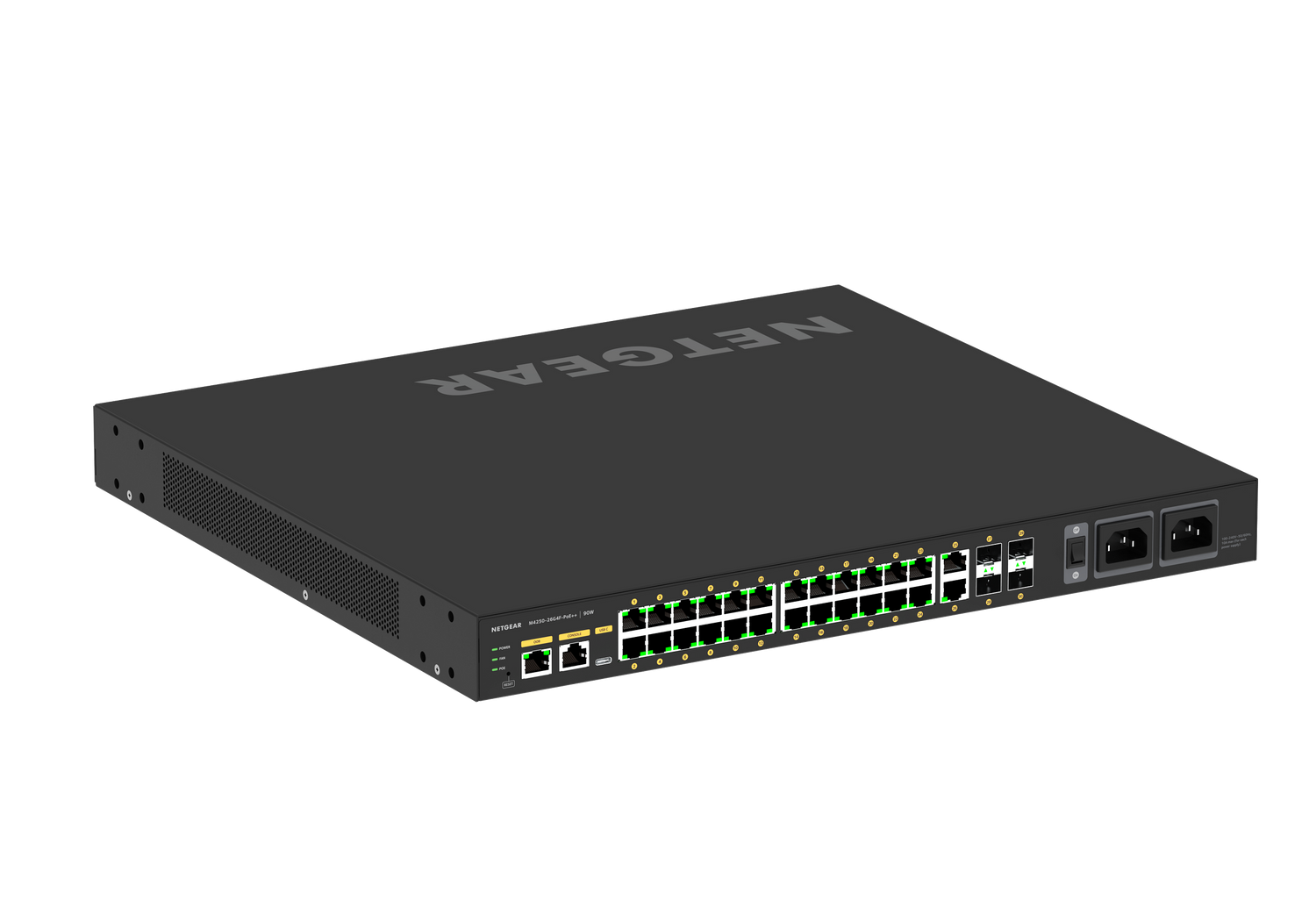

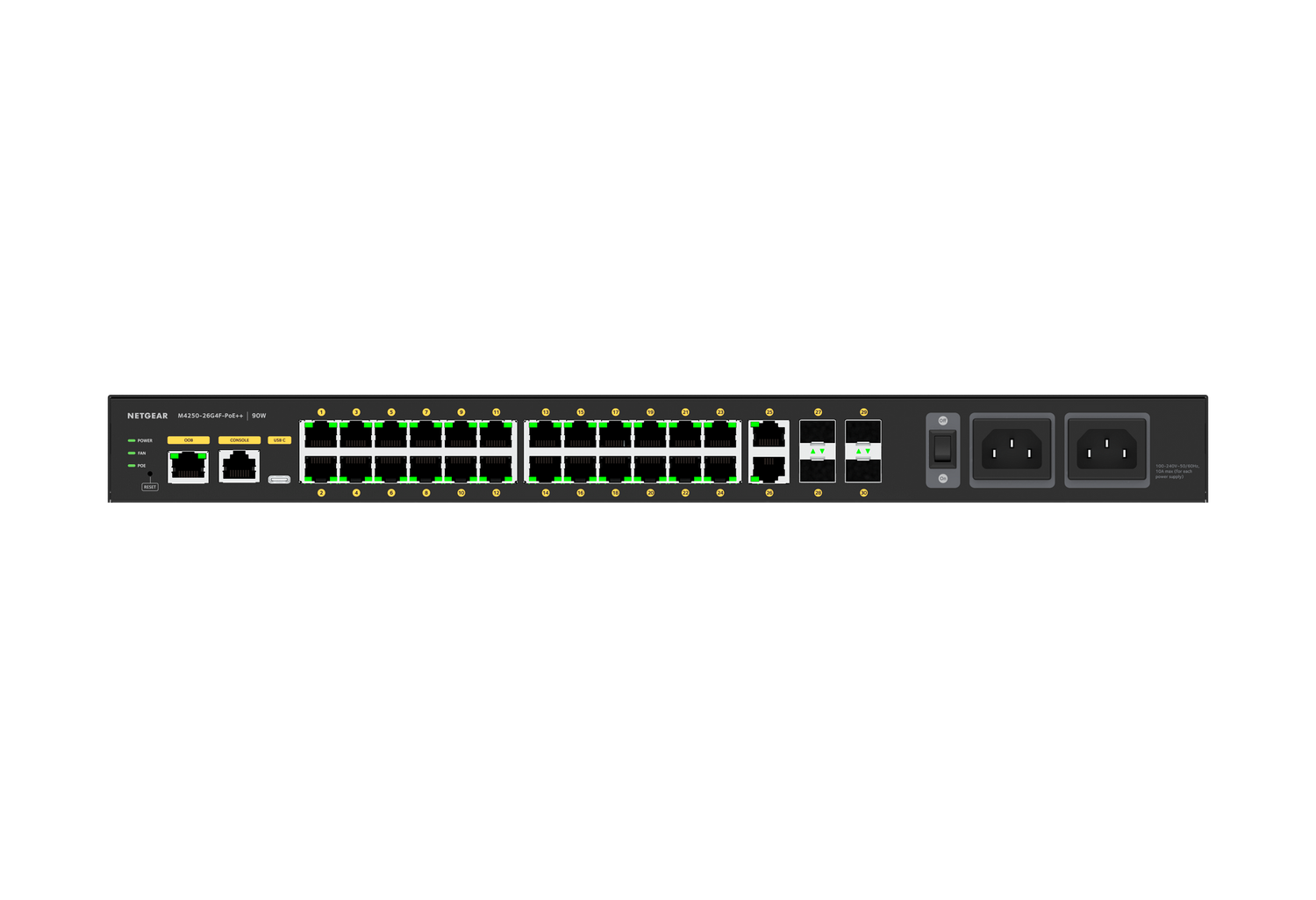

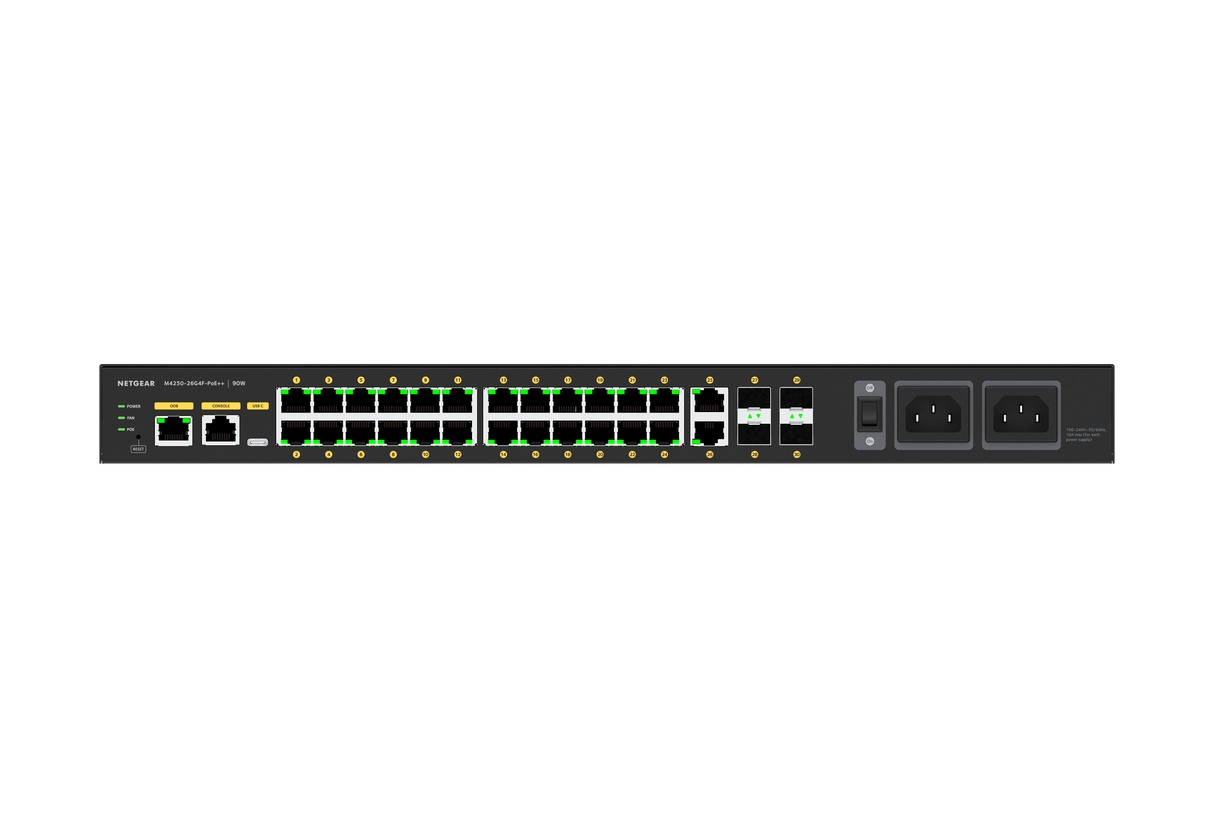

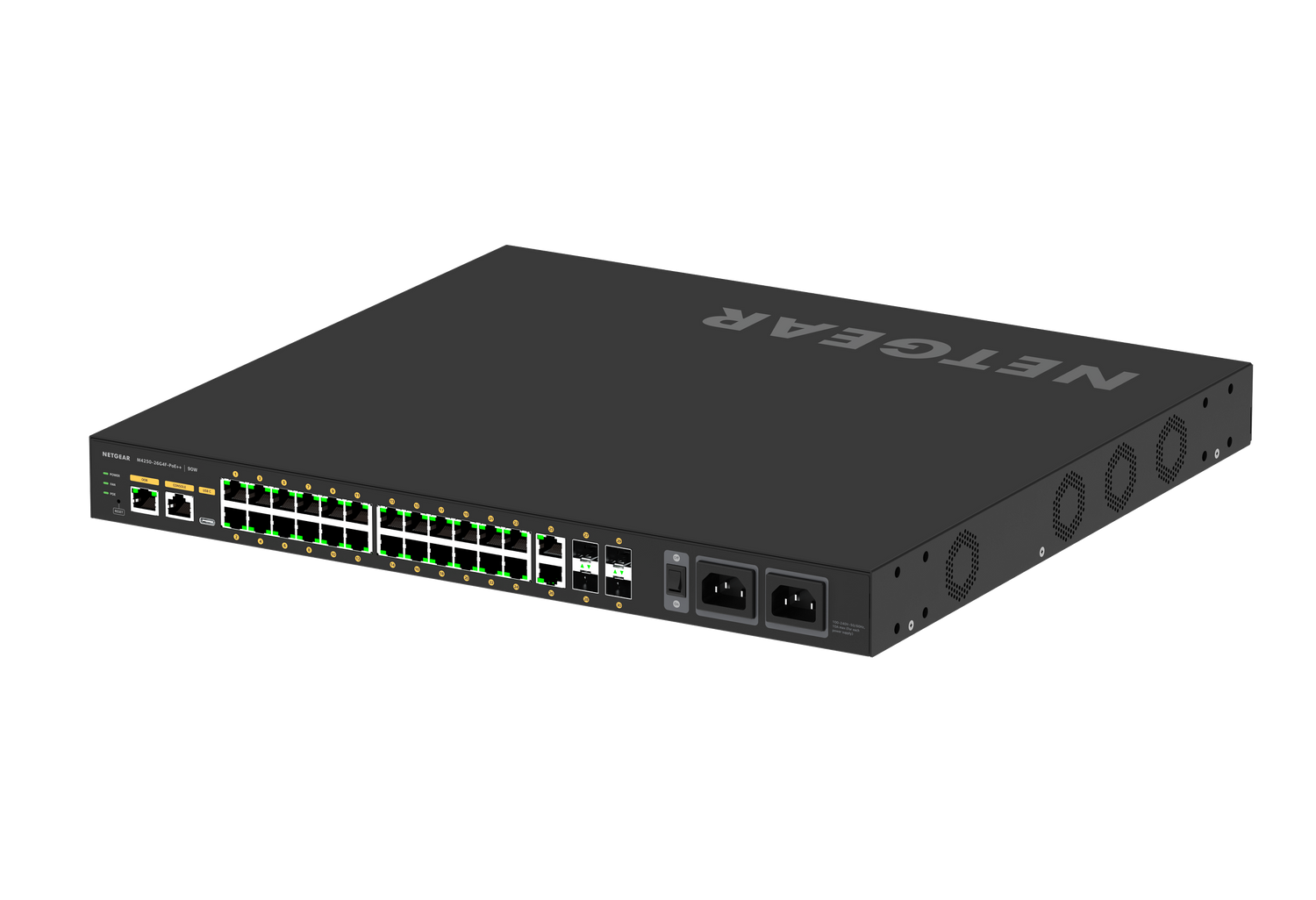

Twenty-four of the 30 ports provide PoE++. Ports 25 and 26 are standard Gigabit Ethernet without PoE; ports 27–30 are 1 Gigabit SFP uplinks.

Is the CEN-SWPOE-30-ULTRA TAA compliant?

No. For a TAA-compliant 30-port PoE switch, see the CEN-SWPOE-30-TAA, which provides PoE+ (802.3at) at up to 30 W per port.

What warranty applies?

Covered under Crestron's standard limited warranty. Full details at crestron.com/warranty.
