Crestron CEN-IO-IR-204 – Wi-Fi Network I/O Extender with 4 IR Ports
Product Overview

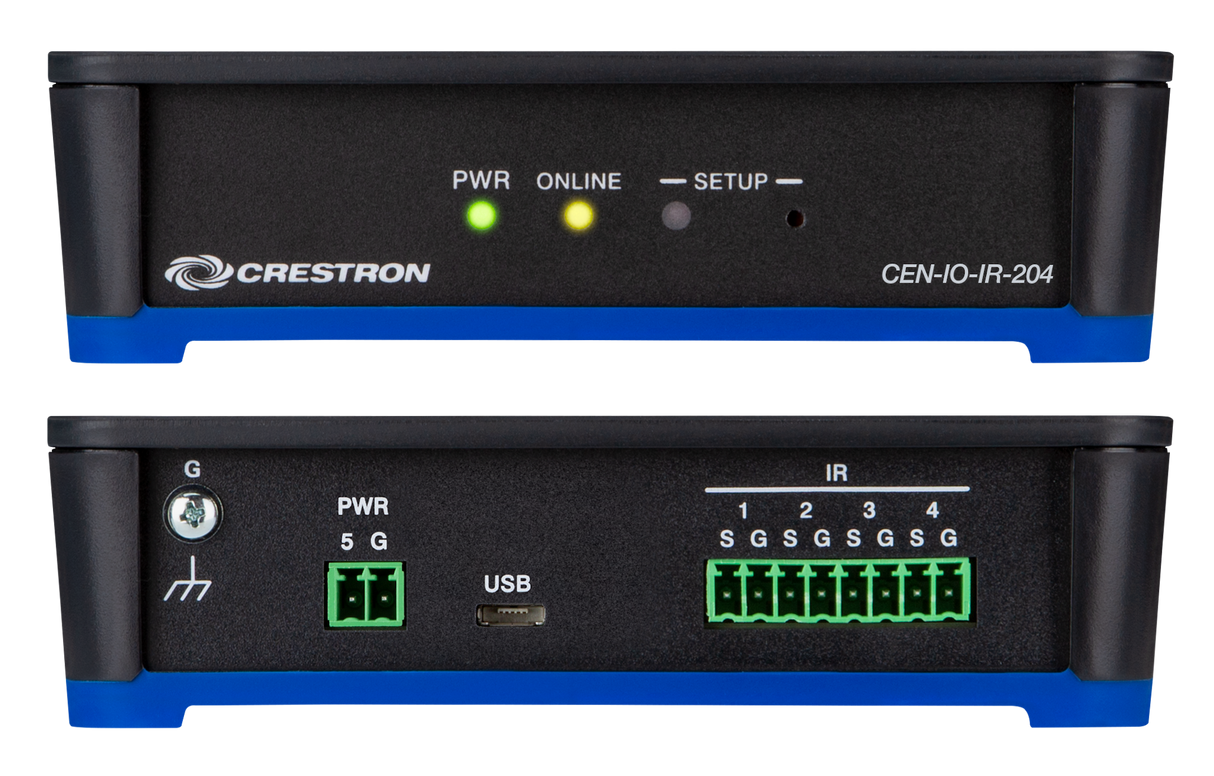

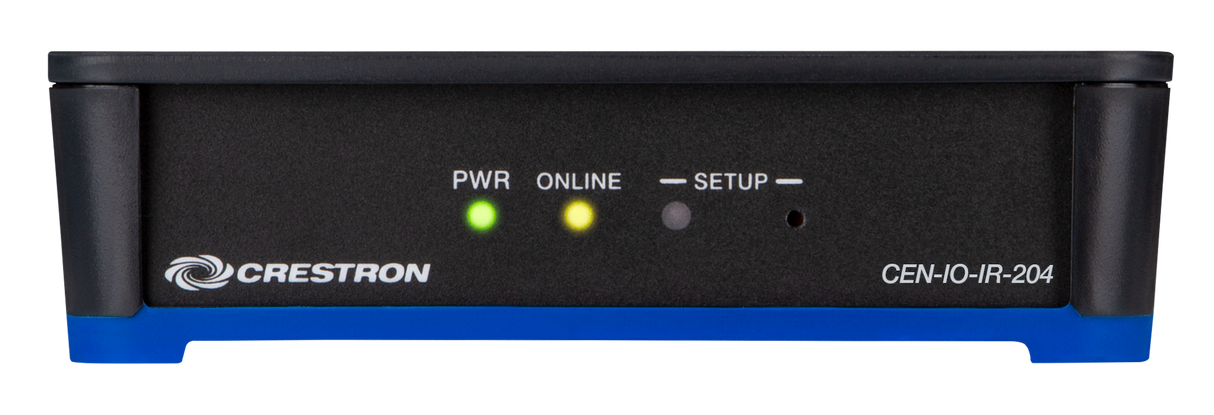

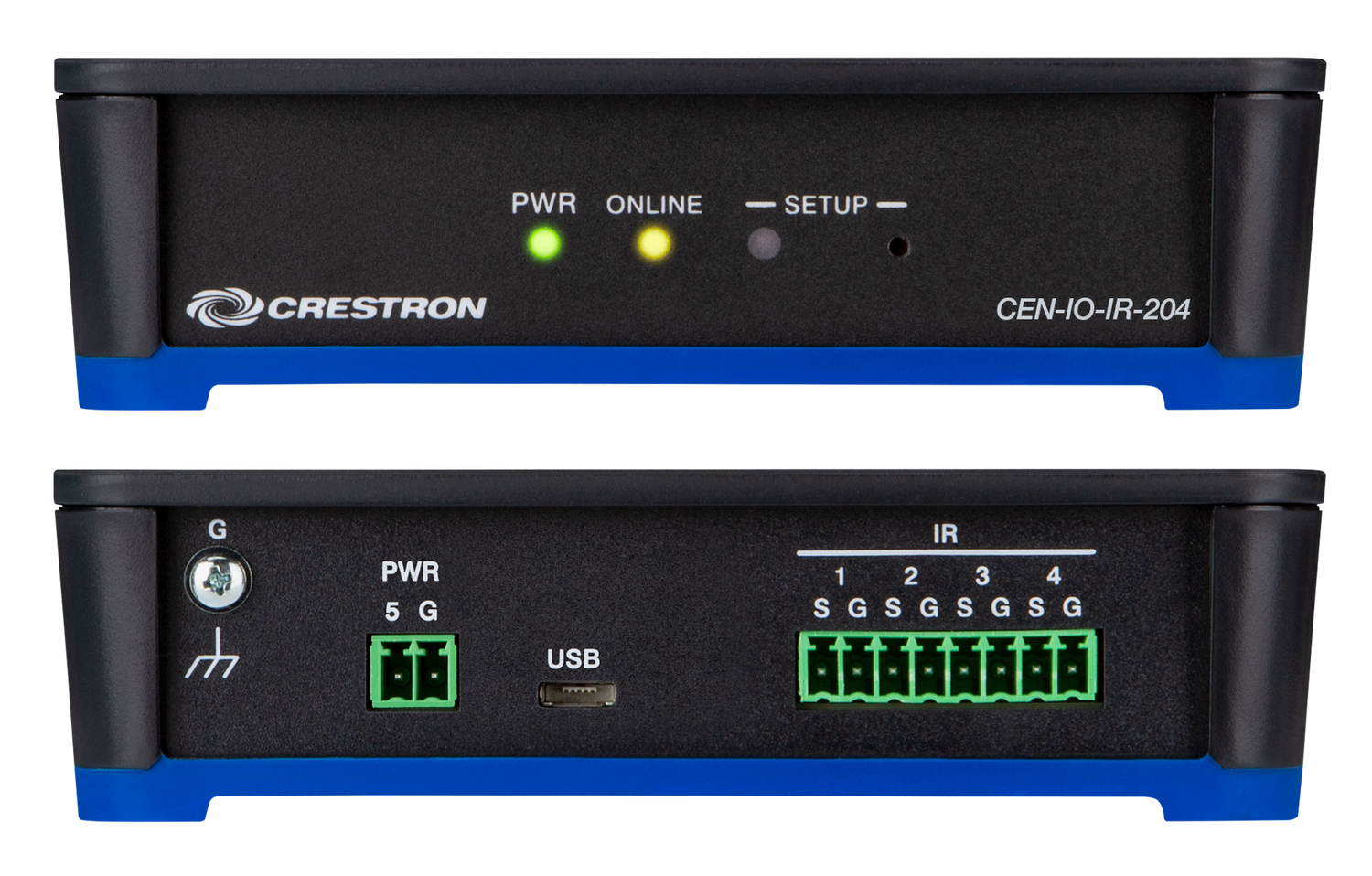

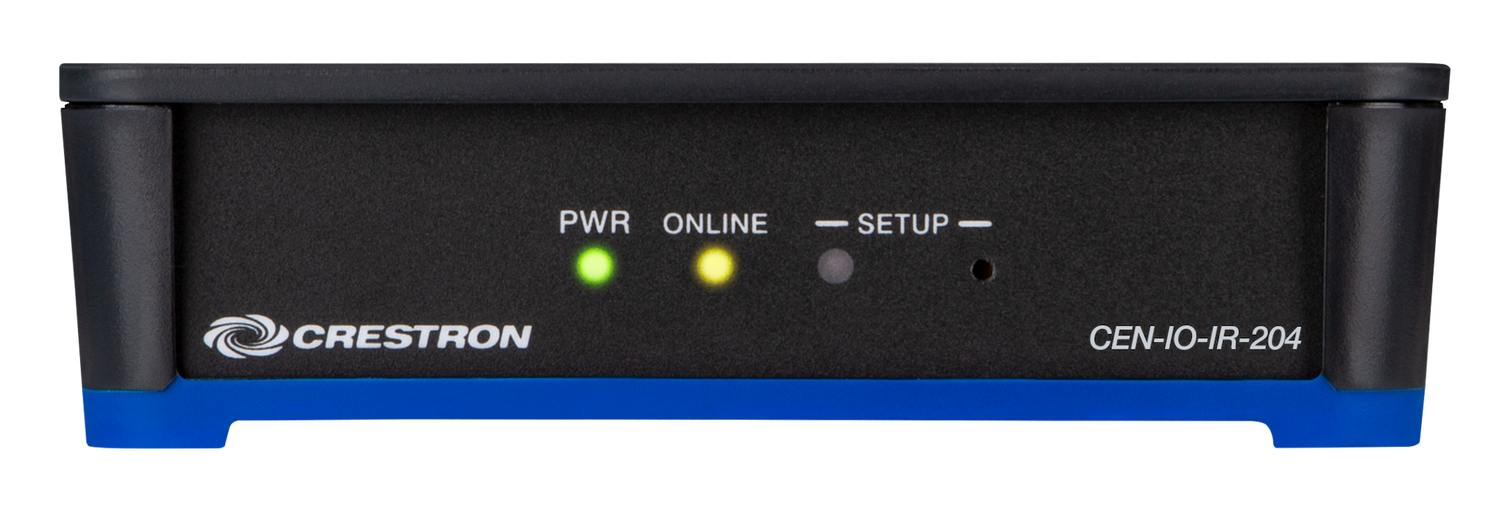

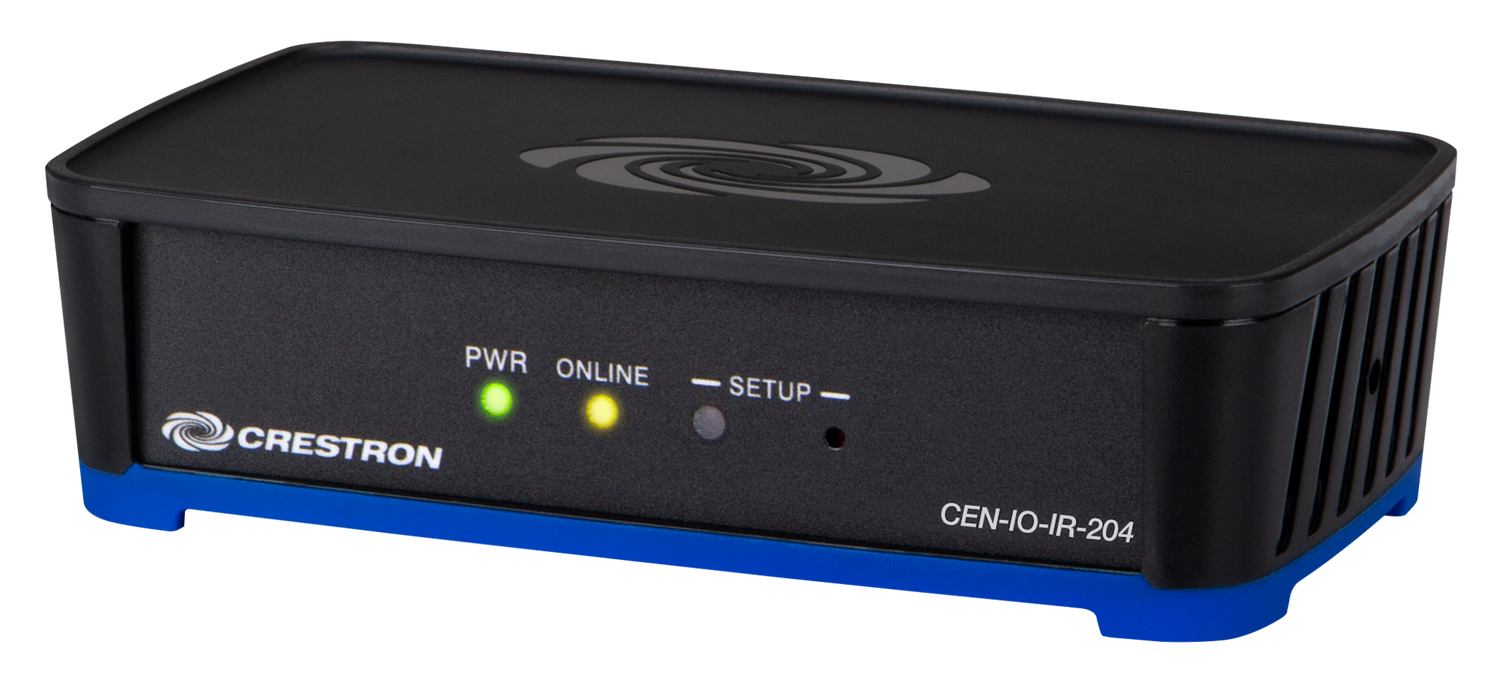

The Crestron CEN-IO-IR-204 is a compact, cost-effective wireless I/O extender that adds four IR/1-way serial ports to any Crestron control system via Wi-Fi. Using the Crestron IFE micro form factor, it can be surface-mounted, DIN rail-mounted, or left freestanding, making it straightforward to deploy IR control at remote equipment locations without running additional control wiring.
Product Description
The CEN-IO-IR-204 communicates with the local network over IEEE 802.11a/b/g/n Wi-Fi at 2.4 or 5 GHz with a typical omnidirectional range of 50 ft (15 m). Up to five wireless access points can be stored for seamless roaming across larger networks. Each of the four onboard IR/1-way serial ports supports infrared output up to 1.2 MHz or TTL/RS-232 serial at up to 115.2k baud, enabling direct integration with virtually any third-party AV or automation device. Setup is performed via Crestron Toolbox software or a web browser. The device supports TLS 1.2 and Local Authentication security protocols. Power is supplied by the included 5 VDC power pack (100–240 VAC input). The IFE micro enclosure is stackable with other CEN-IO devices and includes a surface/DIN rail mounting bracket.
Key Features
- Four IR/1-way serial ports: IR up to 1.2 MHz, TTL/RS-232 up to 115.2k baud
- IEEE 802.11a/b/g/n Wi-Fi (2.4 or 5 GHz), up to 50 ft (15 m) range
- Stores up to five Wi-Fi access points for multi-AP environments
- TLS 1.2 and Local Authentication security support
- Configurable via Crestron Toolbox or web browser
- Included 5 VDC power pack (100–240 VAC)
- IFE micro form factor: stackable, surface or 35 mm DIN rail mountable
- Optional rack mount (RMK-IFE-1U) and pole mount (PLMK-IFE-101) kits available
Typical Applications
- Adding IR control ports to remote AV equipment racks without control cable runs
- Expanding existing Crestron systems with additional IR device control
- Conference room display and source device IR control in distributed installations
- Hospitality room AV IR integration over existing Wi-Fi infrastructure
- Retrofitting IR control into spaces where new cable routing is impractical
Technical Specifications
| Parameter | Value |
|---|---|

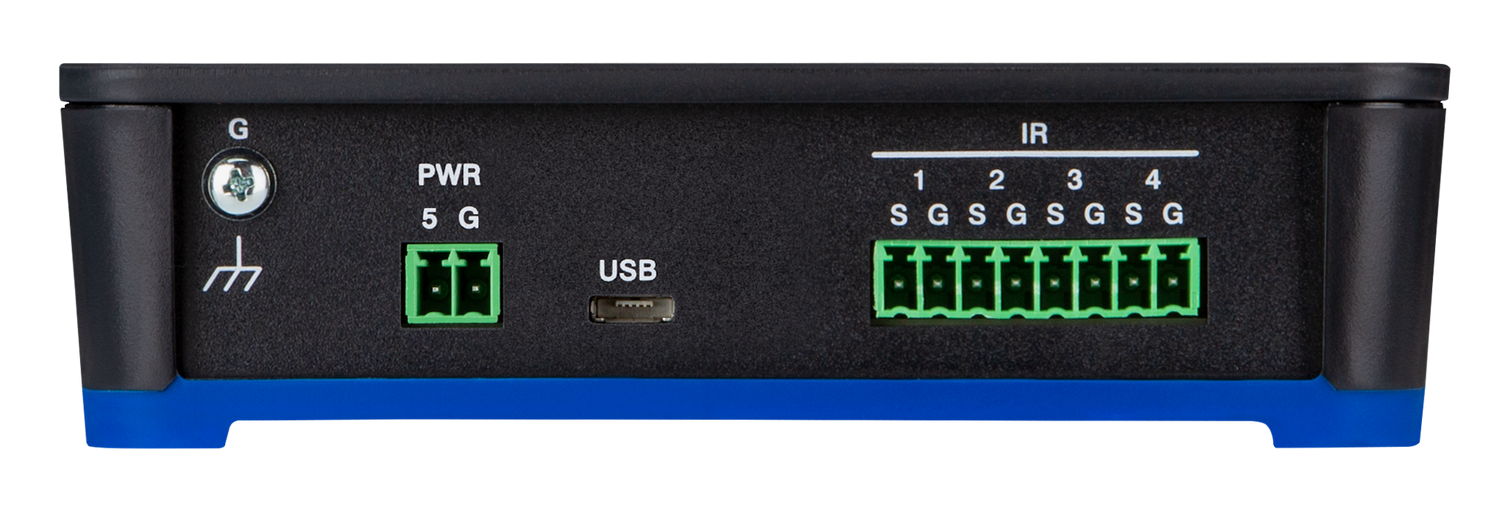

| IR Ports | 4 x IR/1-way serial (8-pin 3.5 mm detachable terminal block) |
| IR Frequency | Up to 1.2 MHz |
| Serial | TTL/RS-232 (0–5 V), up to 115.2k baud, 1-way |
| Wireless | IEEE 802.11a/b/g/n, 2.4 or 5 GHz, static or DHCP |
| Wi-Fi Range | Up to 50 ft (15 m) omnidirectional |
| Wi-Fi Security | 64/128-bit WEP, WPA, WPA2-PSK with TKIP and AES |
| Console Port | Micro-USB Type B |
| Power Input | 100–240 VAC, 50/60 Hz via included PW-0510WUL power pack |
| Power Consumption | 1.1 W typical |
| Operating Temperature | 41° to 104°F (5° to 40°C) |
| Humidity | 10% to 90% RH (noncondensing) |
| Height | 1.35 in (34 mm); 1.77 in (45 mm) with bracket |
| Width | 5.04 in (128 mm); 5.36 in (136 mm) with bracket |
| Depth | 2.86 in (73 mm); 3.33 in (85 mm) with bracket |
| Weight | 6.4 oz (180 g) |
| Compliance | UL Listed US/Canada, CE, IC, FCC Part 15 Class B |
Frequently Asked Questions
Q: Can the CEN-IO-IR-204 be used with a wired Ethernet connection instead of Wi-Fi?
A: No. The CEN-IO-IR-204 communicates exclusively over Wi-Fi. For wired Ethernet connectivity, Crestron offers the CEN-IO-IR-104 with a physical Ethernet port.
Q: Does this device require a Crestron control system to function?
A: The CEN-IO-IR-204 requires an Ethernet-enabled Crestron control system on the same network. It does not operate as a standalone IR blaster without a connected control system.
Q: How many CEN-IO-IR-204 units can be stacked together?
A: Multiple IFE micro form factor devices can be stacked physically, though each unit operates independently. There is no electrical limit on the number of units deployable per system.
