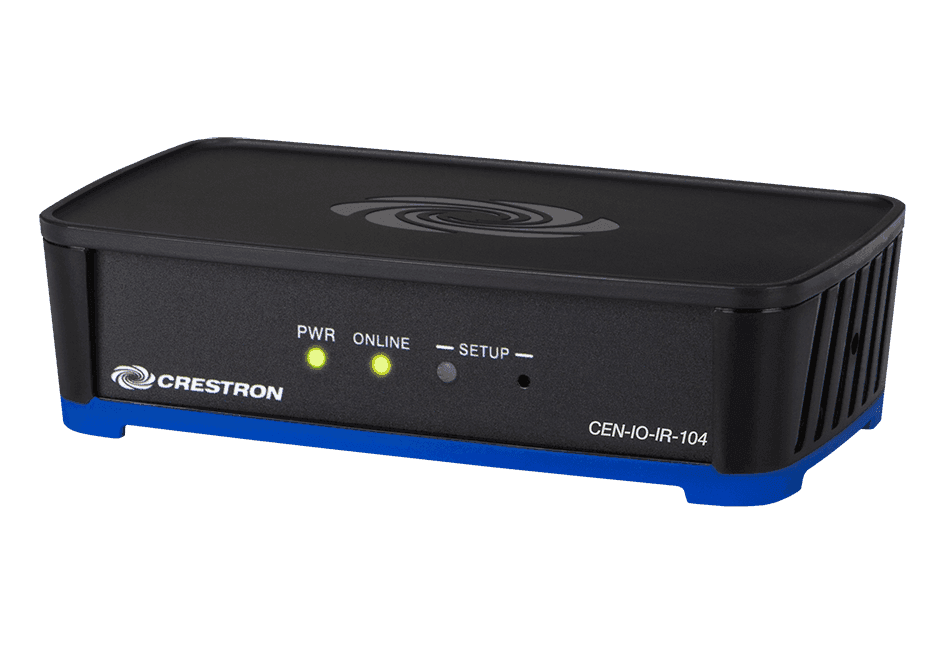

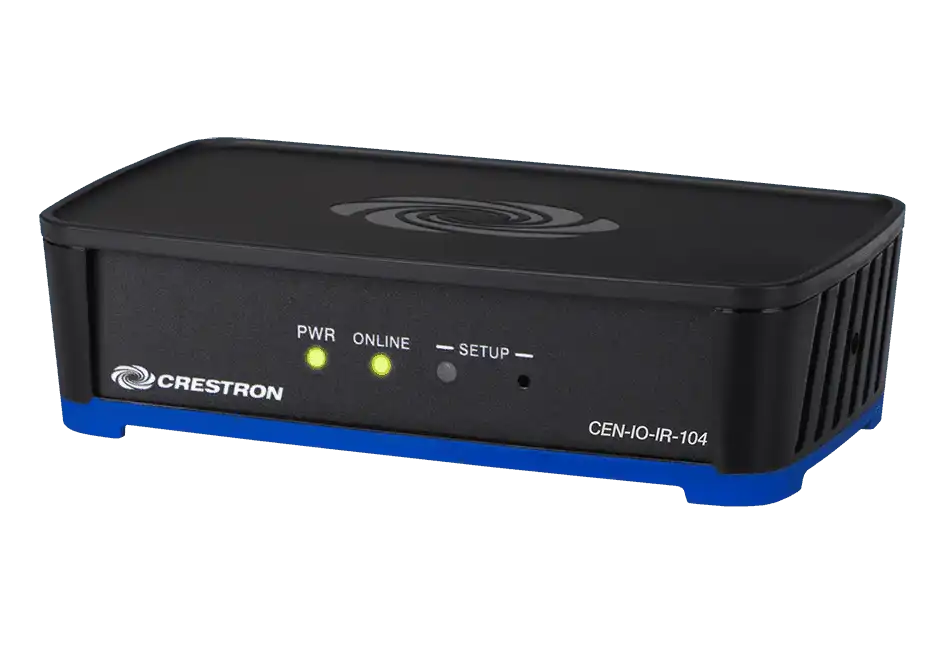

Crestron Wired Ethernet Module with 4 IR Ports - CEN-IO-IR-104

Availability: Call for Availability
Crestron SKU: CEN-IO-IR-104
No reviews
Price:
$408.00

Description

Spec Sheet

The Crestron® CEN-IO-IR-104 is a compact and cost-effective wired I/O module designed to easily expand the available IR/Serial ports within a commercial or residential system. A small form factor allows the CEN-IO-IR-104 to be placed just about anywhere, with the option to attach it to a flat surface or DIN rail using the included mounting bracket. The four onboard IR/1-way Serial ports enable direct integration with all kinds of third-party equipment.

The CEN-IO-IR-104 communicates to the local network using the available LAN connection, allowing the connected equipment to be remotely controlled and monitored from a computer or tablet. Power is conveniently supplied to the CEN-IO-IR-104 via PoE (Power over Ethernet) or a Crestron control system, eliminating the need for a local power supply or extra wiring.

Security Protocols:
The CEN-IO-IR-104 supports the following security protocols to help protect against service interruptions and malicious intrusions:

  • TLS 1.2 for web server and control system connections
  • Local Authentication for console, web server, and control system connections
  • SSL for console connections

Power over Ethernet
Using PoE technology, the CEN-IO-IR-104 gets its operating power directly through the LAN wiring. PoE eliminates the need for a local power supply or any dedicated power wiring. A PoE Injector (PWE-4803RU) simply connects in line with the LAN cable at any convenient location. Crestron PoE switches (CEN-SW-POE-5 or CEN-SWPOE-16) may also be used to provide a total networking solution with built-in PoE. All PoE injectors and switches are sold separately.

Integrator Friendly Enclosure
The CEN-IO-IR-104 features the Crestron IFE form factor, a compact "Integrator Friendly Enclosure" design that fits almost anywhere and enables a variety of installation options. Its shape allows multiple CEN-IO and other IFE compliant devices to be stacked together. Using the included mounting bracket, it can be fastened to any flat surface or snapped onto a standard DIN rail. Rack mount and pole mount kits are also available.
  • Compact, cost-effective wired Ethernet I/O module
  • Provides four IR/1-way Serial ports
  • Installer setup via Crestron Toolbox™ software or web browser
  • Supports TLS 1.2, Local Authentication, and SSL security protocols
  • PoE (Power over Ethernet) network powered
  • Compact, stackable "IFE micro" form factor
  • Surface or DIN rail mountable
  • Available rack mount and pole mount options
Communications
Ethernet 100 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, DHCP, SSL, TLS, IEEE 802.3af and 802.3at Type 1 compliant
IR/Serial Supports 1-way device control via infrared up to 1.2 MHz or Serial TTL/RS-232 (0–5 Volts) up to 115.2k baud

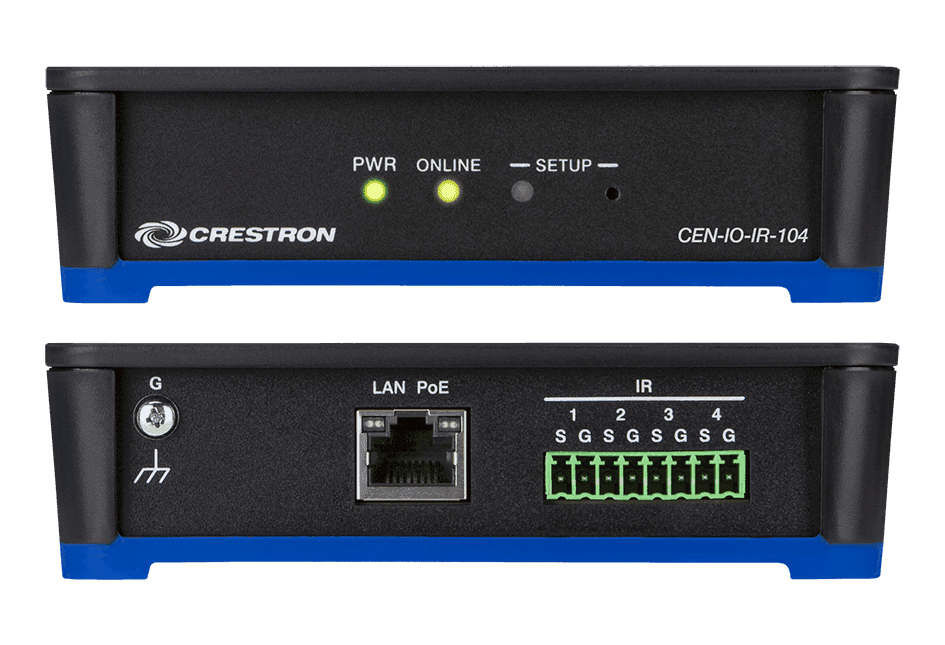

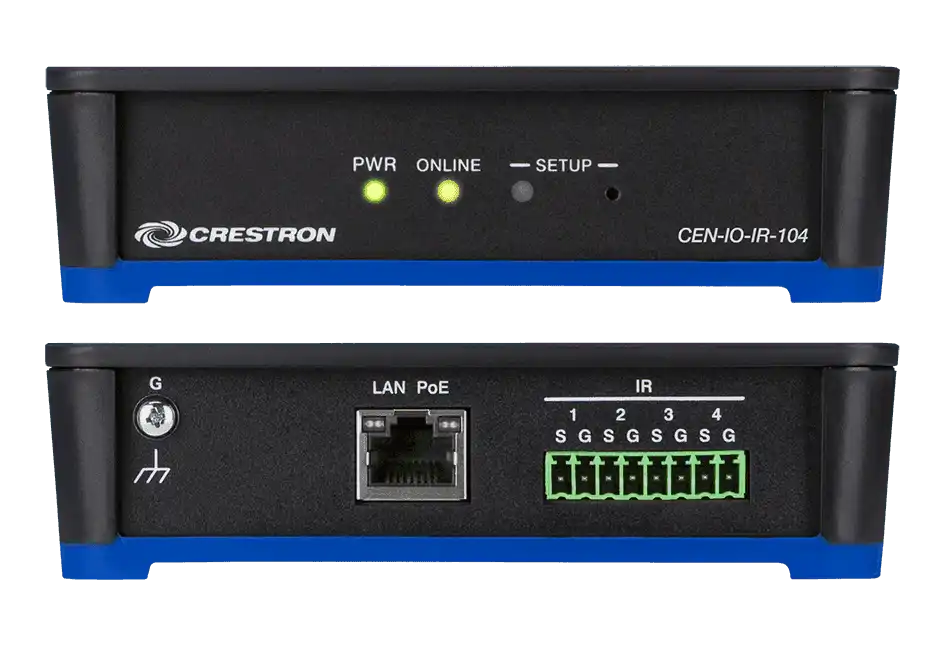

Connectors
LAN PoE (1) 8-pin RJ45 connector, female;
100Base-TX Ethernet port;
PoE (Power over Ethernet) PD (Powered Device) port
IR (1) 8-pin 3.5 mm detachable terminal block;
Comprises (4) IR/Serial output ports;
IR output up to 1.2 MHz;
1-way serial TTL/RS-232 (0–5 Volts) up to 115.2k baud
G (1) 4-40 screw;
Chassis ground lug
Controls & Indicators
PWR (1) Bicolor green/amber LED, indicates that power is present, amber indicates that the device is booting and not yet ready to operate, green indicates that device is ready to operate
ONLINE (1) Green LED, indicates that the device is connected to a Crestron control system via Ethernet
SETUP (1) Red LED and (1) recessed pushbutton for Ethernet setup, LED indicates that the SETUP pushbutton has been pressed (times out automatically) [2]
LAN PoE (2) Bicolor LEDs, green LED indicates 100Mbps Ethernet link status, amber LED indicates Ethernet activity
Power
PoE (Power over Ethernet) IEEE 802.3at Type 1 (802.af compatible) Class 0 (12.95 Watts) PoE Powered Device
Power Consumption 2.3 Watts
Environmental
Temperature 41 to 104 °F (5 to 40 °C)
Humidity 10% to 90% RH (noncondensing)
Heat Dissipation 8 BTU/hr
Construction
Enclosure IFE micro form factor, black and blue plastic
Mounting Freestanding, stackable, surface mount, or 35 mm DIN EN 60715 rail mount;
Occupies 8 DIN module spaces (144 mm);
Surface/DIN rail mounting bracket included, optional rack mount and pole kits sold separately
Dimensions
Height 1.35 in. (34 mm), 1.77 in. (45 mm) with bracket
Width 5.04 in. (128 mm), 5.36 in. (136 mm) with bracket
Depth 2.86 in. (73 mm), 3.33 in. (85 mm) with bracket
Weight
6.4 oz (180 g)
Compliance
UL Listed for US & Canada, CE, IC, FCC Part 15 Class B digital device
