Crestron CEN-IO-DIGIN-204 – Wi-Fi Network I/O Extender with 4 Digital Inputs

Product Overview

The Crestron CEN-IO-DIGIN-204 is a compact Wi-Fi network I/O extender that adds four digital inputs to a Crestron control system over a standard wireless network. Designed for both commercial and residential AV control installations, it connects via Wi-Fi and integrates into Crestron's control ecosystem without requiring dedicated control wiring to the device location.

Product Description

The CEN-IO-DIGIN-204 expands the digital input capacity of any Crestron control system by communicating over Wi-Fi to the local network. The device is ideal for adding contact closure monitoring — such as door sensors, pushbuttons, or occupancy indicators — at locations where running dedicated Cresnet or Ethernet cable is impractical. It is provisioned and configured using Crestron Toolbox software and supports touch-settable ID for easy network enrollment. The extender ships with a mounting bracket that supports both flat-surface and DIN rail installation, and is powered by the included PW-0512WUL power pack. Its LED indicators provide clear status feedback for connection state and operational readiness.

Key Features

• Four independently monitored digital inputs for contact closure sensing
• Communicates over standard 802.11 Wi-Fi — no Cresnet wiring required at the device
• DIN rail and flat-surface mounting bracket included

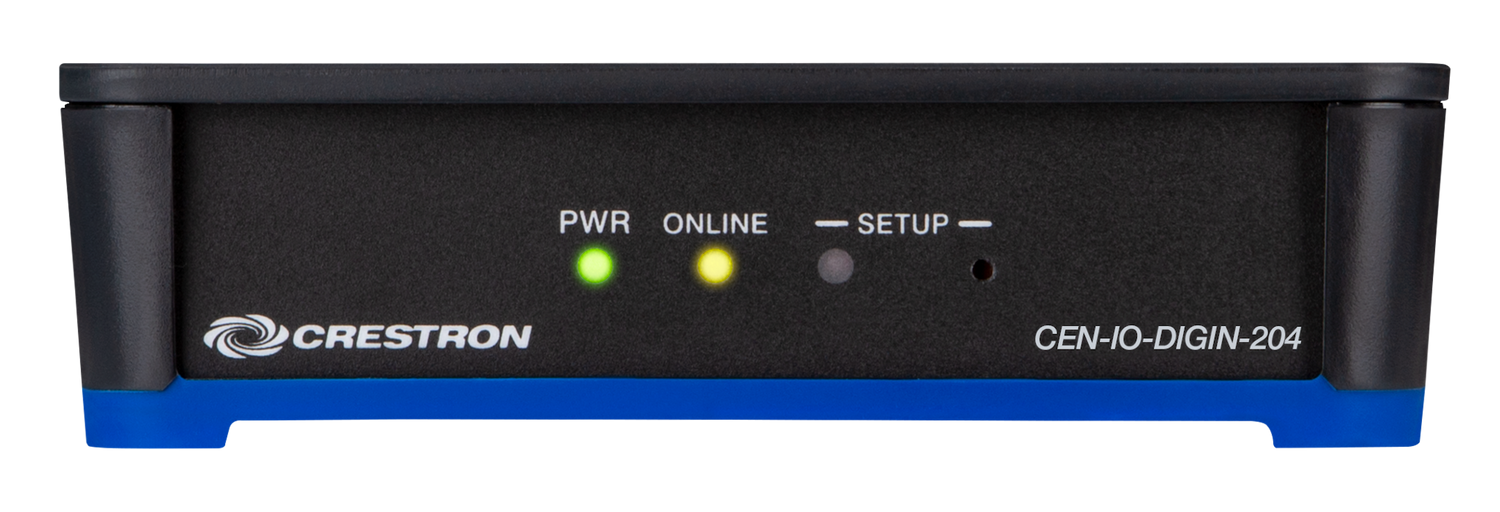

• ONLINE and PWR LED indicators for quick status verification during installation and service
• Configured via Crestron Toolbox software with access point mode for initial setup
• Factory reset available via SETUP button hold (10 seconds)
• Compatible with Crestron 3-Series and 4-Series control processors

Typical Applications

• Monitoring door, window, or gate contact closures in commercial automation systems
• Adding pushbutton trigger inputs in locations without Cresnet infrastructure
• Integrating third-party dry-contact sensors into a Crestron control program
• Distributed I/O expansion in retrofit AV and building automation projects
• Occupancy or environmental sensor integration in conference rooms and classrooms

Technical Specifications

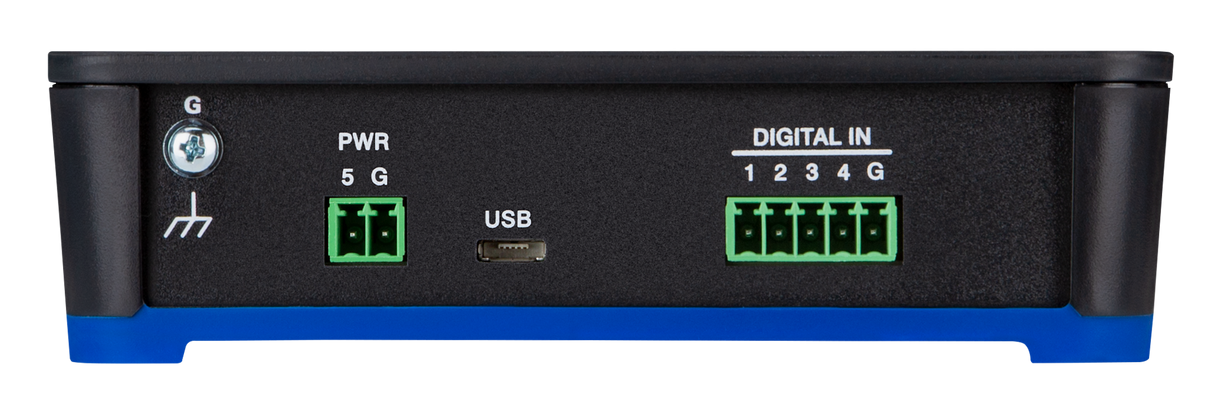

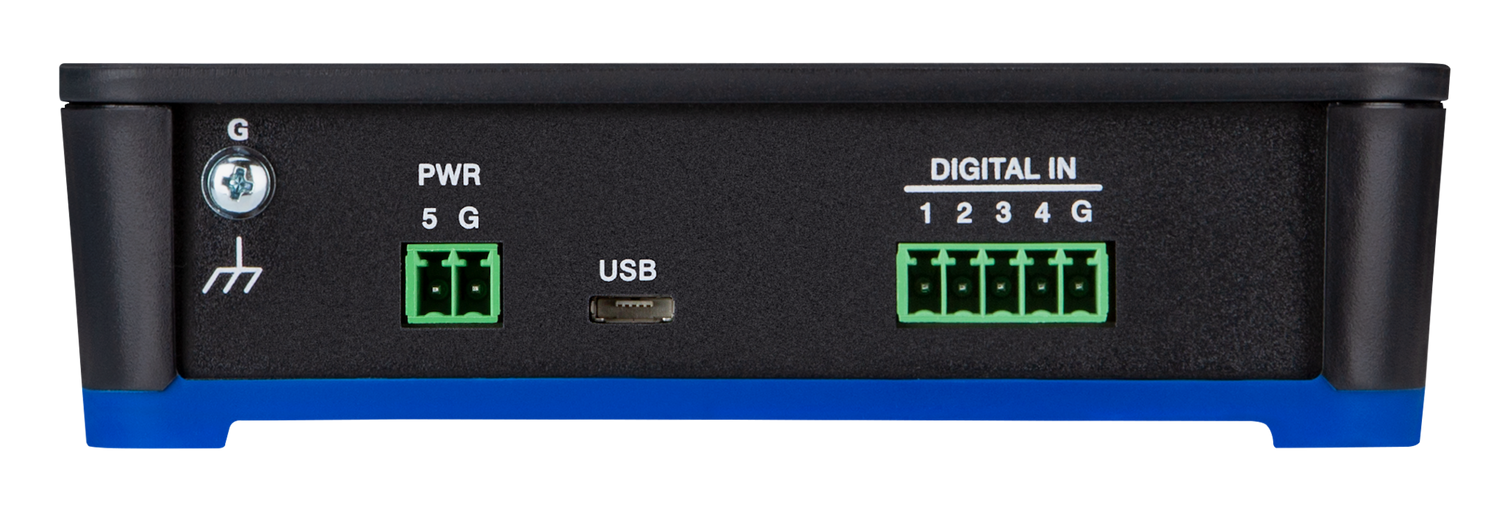

• Inputs: 4 digital inputs (contact closure)
• Network: Wi-Fi (802.11), communicates to local LAN
• Mounting: Flat surface or DIN rail via included bracket
• Power: Requires PW-0512WUL power pack (included)
• Operating Temperature: 41 to 104°F (5 to 40°C)
• SKU: CEN-IO-DIGIN-204

FAQs

Does the CEN-IO-DIGIN-204 require a Cresnet connection?
No. The device communicates exclusively over Wi-Fi to the local network. No Cresnet wiring to the extender is needed.

How is the CEN-IO-DIGIN-204 configured?
On first power-up, the device operates as a Wi-Fi access point. Connect a computer to its SSID, navigate to 192.168.0.1, and enter your network credentials. After joining the network, use Crestron Toolbox to provision the device to a control system.

Where can I purchase the CEN-IO-DIGIN-204?
Creation Networks (creationnetworks.net) is an authorized Crestron dealer and carries the CEN-IO-DIGIN-204 along with related I/O extenders and Crestron control hardware.
