| Wireless Communications |
| Transceiver |
infiNET EX Transceiver:
2‑way RF, 2.4 GHz ISM;
Channels 11‑26 (2400 to 2483.5 MHz), default channel 15;
IEEE 802.15.4 compliant;
Mesh network topology;
infiNET EX devices act as expanders2;
Dedicated infiNET EX expanders are also available (CLW‑EXPEX, sold separately) |
ER Transceiver:
2‑way RF, 2.4 GHz ISM;
Channels 11‑26 (2400 to 2483.5 MHz), default channel 15;
IEEE 802.15.4 compliant;
Star network topology;
ER devices can roam between up to eight gateways;
Additional gateways act as range extenders (sold separately) |
SG Transceiver:
2‑way RF;
Channels 0-29 (903 to 926.2 Mhz;
SG channels are scanned after a factory restore, the best channel is selected;
Star network topology |
| Transmit Power |
infiNET EX and ER:
+19 dBm |
SG:
+27 dBm |
| Range |
infiNET EX:
150 ft (46 m) indoor (250 ft (76 m) outdoor) to nearest mesh network device(s) |
ER:
100 to 200 ft (31 to 61 m) maximum indoor (1,000 ft (305 m) outdoor) to ER wireless device |
SG:
230 ft (70 m) indoor (656 ft (200 m) outdoor) to SG wireless device |
| Range is subject to site‑specific conditions and individual device capabilities |
| Supported Devices |
| Supports Crestron and third‑party infiNET EX devices, Crestron ER wireless devices, Crestron SG devices, and Crestron infiNET EX expanders1, 2
|
| Maximum Devices Allowed3
|
| infiNET EX Devices* |
infiNET EX Expanders |
ER "Extended Range" Devices |
SG Devices |
| 100 |
5 |
0 |
50 |
| 90 |
5 |
1 |
50 |
| 80 |
5 |
2 |
50 |
| 70 |
5 |
3 |
50 |
| 60 |
5 |
4 |
50 |
| 50 |
5 |
5 |
50 |
| 40 |
5 |
6 |
50 |
| 30 |
5 |
7 |
50 |
| 20 |
5 |
8 |
50 |
| 10 |
5 |
9 |
50 |
| 0 |
5 |
10 |
50 |
|
| Note: To maintain optimal performance, use no more than 50% of the maximum devices allowed per gateway. Use additional gateways to support more devices. Up to 16 gateways can be used in a system (RF conditions allowing). |
| Wired Communications |
| Ethernet |
10/100 Mbps, auto‑switching, auto‑negotiating, auto‑discovery, full/half duplex, DHCP, IEEE 802.3at Type 1 compliant |

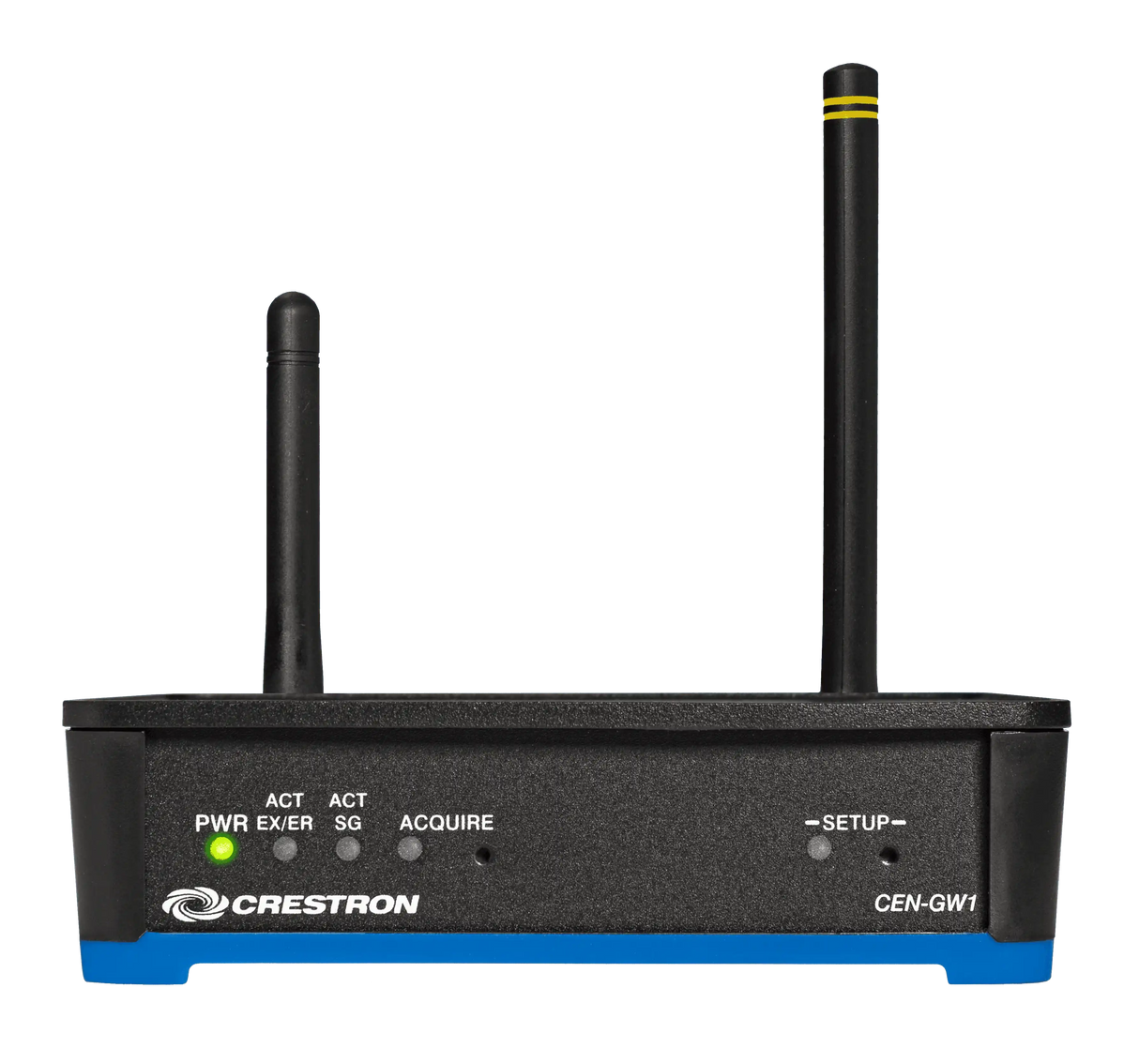

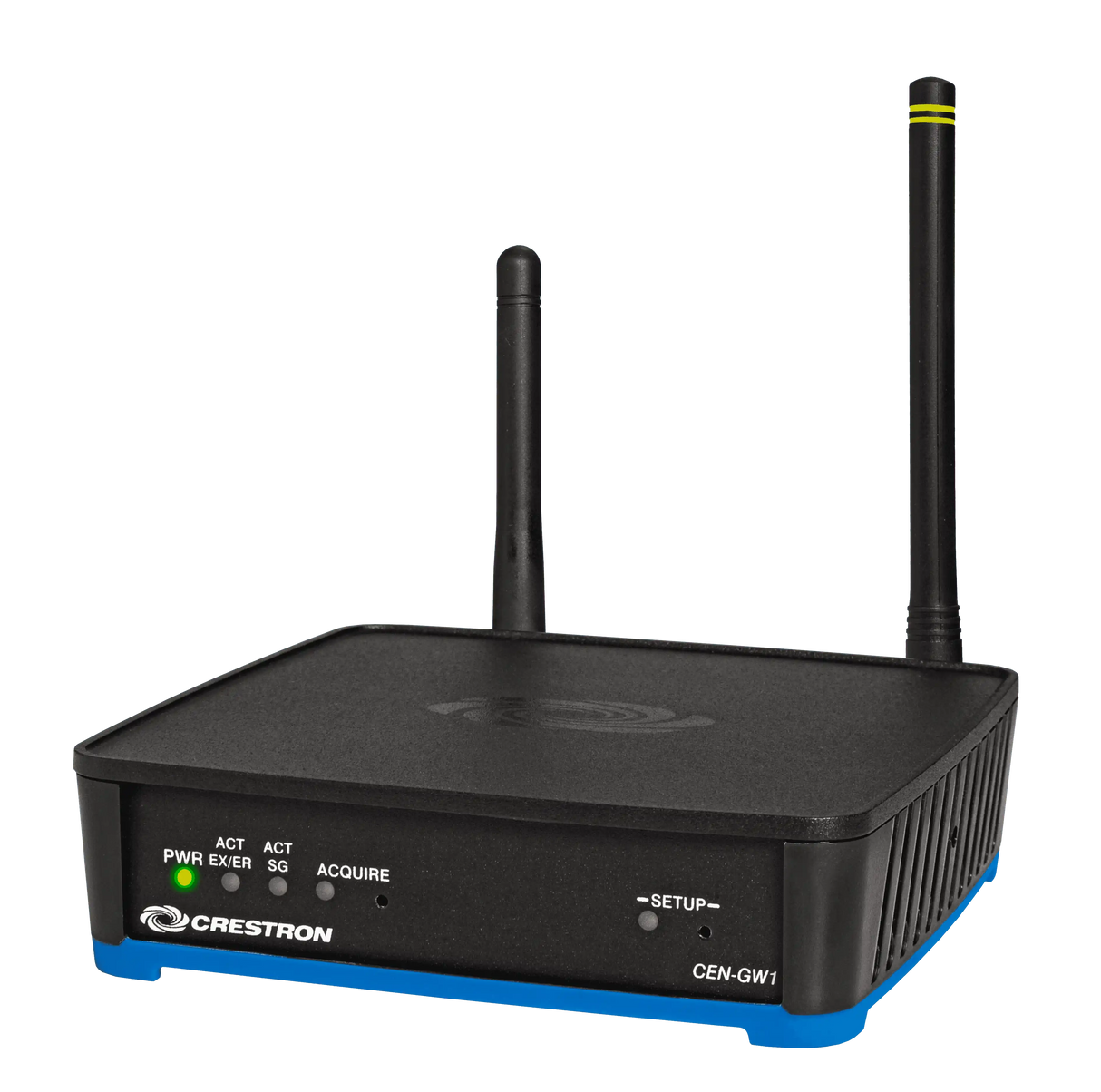

| Controls and Indicators |
| PWR |
(1) Bi‑color green/amber LED;
Green indicates operating power is being supplied via PoE or 24VDC;
Amber indicates that the device is booting |
| ACT EX/ER |
(1) Green LED;
Indicates infiNET EX and ER wireless RX and TX data activity |
| ACT SG |
(1) Green LED;
Indicates SG wireless RX and TX data activity |
| ACQUIRE |
(1) Recessed pushbutton with red LED:
Used to enter Acquire mode to pair wireless devices;
Press to enter and exit Acquire mode |
| SETUP |
(1) Recessed pushbutton with red LED
Used to set up connection with the control system via Ethernet;
To factory reset the gateway, press and hold SETUP until the SETUP LED flashes 6 times. |
| RESET |
(1) Recessed pushbutton;
To reboot the gateway, press and hold RESET for 8 seconds. |
| LAN PoE |
(1) Green and (1) Amber LED;
Green indicates Ethernet link status;
Amber indicates Ethernet activity |

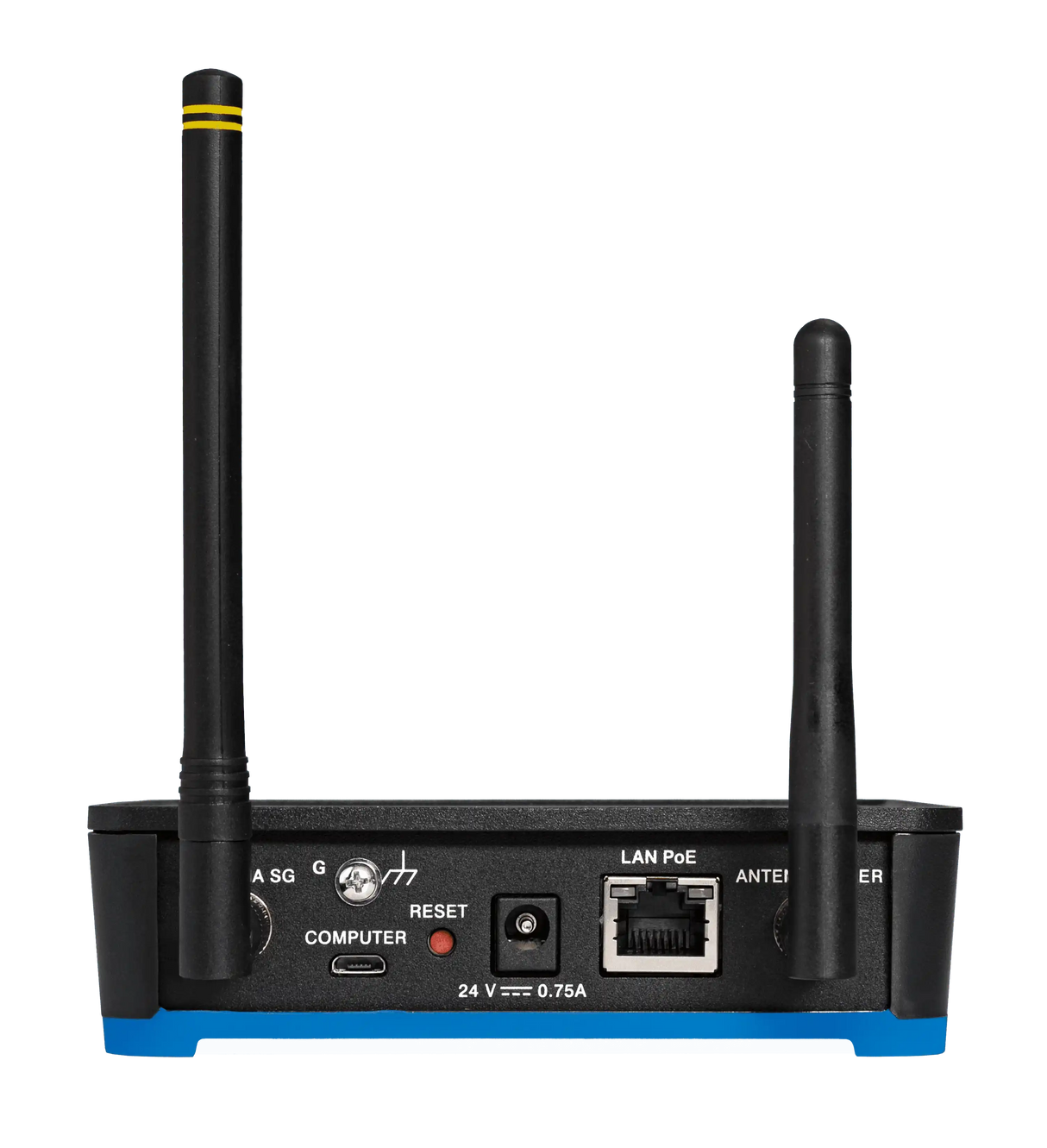

| Connectors |
| ANTENNA EX/ER |
(1) Connection for supplied EX/ER antenna or antenna extender |
| ANTENNA SG |
(1) Connection for supplied SG antenna or antenna extender;
Yellow bands around the top |
| COMPUTER |
(1) Micro‑B USB female;
Computer console port, installer use only;
For setup and firmware upgrades |
| G |
(1) 4‑40 screw, chassis ground lug |
| 24VDC 0.75A |
(1) 2.1 x 5.5 mm DC power connector;
24VDC power input;
PW‑2407WU power pack sold separately |
| LAN PoE |
(1) 8‑pin RJ‑45, female;
10BASE‑T/100BASE‑TX Ethernet port;
Power over Ethernet compliant |
| Power |
| Power over Ethernet |
IEEE 802.3at Type 1 (802.3af compatible) Class 3 (5.3 W) PoE Powered Device |
| Power Pack |
0.75A (minimum) @ 24VDC (PW‑2407WU sold separately) |
| Power Consumption |
2.1 W typical |
| Environmental |
| Temperature |
41° to 104 °F (5° to 40 °C) |
| Humidity |
10% to 90% RH (noncondensing) |
| Heat Dissipation |
18.1 BTU/hr |
| Construction |
| Enclosure |
IFE small form factor, black and blue plastic with die‑cast zinc top cover |
| Mounting |
Freestanding, stackable, surface mount, or 35 mm DIN EN 60715 rail mount;
Occupies 8 DIN module spaces (144 mm);
Surface/DIN rail mounting bracket included;
Rack mount and pole mount kits sold separately |
| Dimensions |
| (Without antenna) |
| Height |
1.35 in. (35 mm);
1.77 in. (45 mm) with bracket |
| Width |
5.04 in. (128 mm);
5.36 in. (137 mm) with bracket |
| Depth |
5.17 in. (131 mm) |
| Weight |
| Gateway |
13.1 oz (372 g) with antennas |
| Bracket |
1.5 oz (42 g) |
| Compliance |
Regulatory Model: M201913001
UL, CE, RCM, FCC, IC, WEEE |
