Crestron CCS-UCA-SMK Swivel Mount Kit for CCS-UC-1
Product Overview

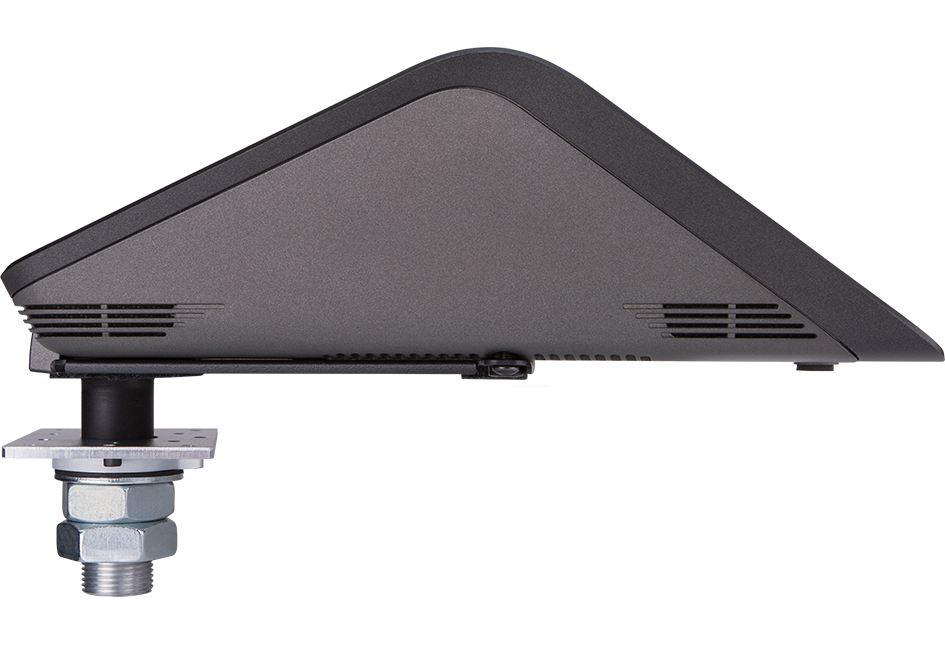

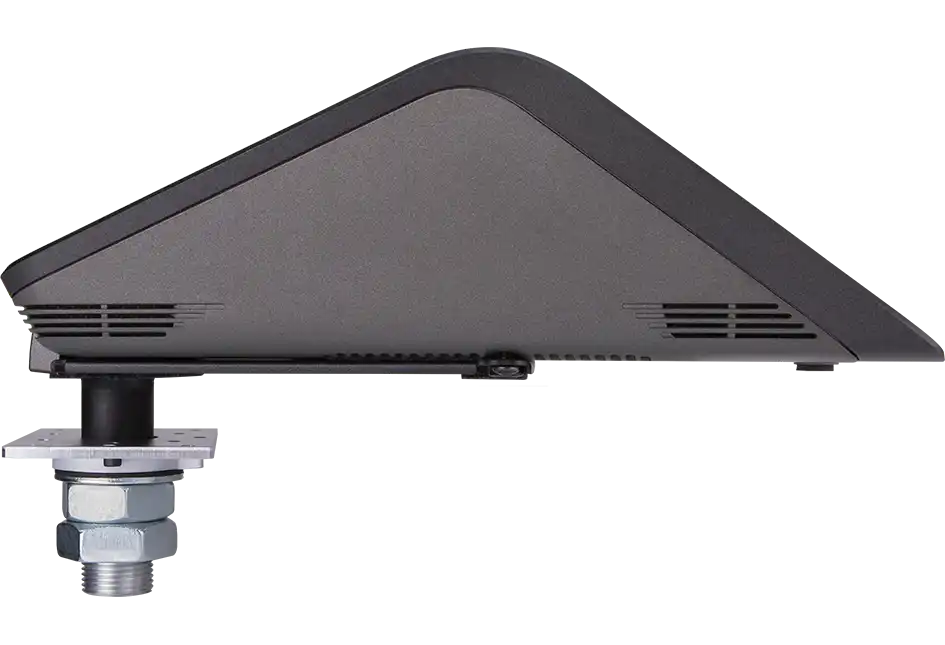

The Crestron CCS-UCA-SMK is a low-profile swivel mount accessory for the Crestron Mercury Tabletop Conference System (model CCS-UC-1). It provides a means for permanently mounting the device to a tabletop surface while retaining the ability to rotate it for optimal positioning. The swivel range can be customized using optional limit screws, with a maximum of approximately 180-degree rotation. Wiring is routed through the center of the mount and beneath the table for a fully concealed appearance.
Product Description
In conference rooms where the tabletop device is shared by participants seated around the table, a fixed placement is rarely ideal. The CCS-UCA-SMK swivel mount kit secures the CCS-UC-1 to the table so it cannot be removed or repositioned by unauthorized users, while still allowing the device to be turned toward the active speaker. Installers can constrain the rotation using the optional limit screws, setting a swivel range up to roughly 180 degrees to suit the room layout. The swivel mount installs on any flat, level surface with a thickness from 1 inch (25 mm) minimum to 1-3/8 inch (35 mm) maximum. All wiring passes through the center of the mount and beneath the mounting surface, eliminating exposed cabling for a clean, tamper-resistant installation. A cable retention bracket is included to manage the cables connected to the device. The kit is purpose-built for the Crestron Mercury CCS-UC-1, preserving the device's intended fit and finish. For complete installation steps, refer to the Crestron DO Guide for the CCS-UCA-SMK.
Key Features
- Tabletop security — Permanently mounts the CCS-UC-1 to a table to deter removal and tampering.
- Adjustable swivel — Rotates up to approximately 180 degrees, with optional limit screws to customize the range.
- Concealed wiring — Routes cabling through the center of the mount and beneath the surface for a hidden appearance.
- Defined surface range — Installs on flat, level surfaces from 1 in. (25 mm) to 1-3/8 in. (35 mm) thick.
- Cable management — Includes a cable retention bracket to organize device cabling.
- Device-specific design — Engineered exclusively for the Crestron Mercury CCS-UC-1 conference device.
Technical Specifications
| Model | CCS-UCA-SMK |
| Compatible Device | Crestron Mercury CCS-UC-1 Tabletop Conference System |
| Mount Type | Low-profile tabletop swivel mount |
| Swivel Range | Up to approximately 180 degrees; customizable with optional limit screws |
| Surface Thickness | 1 in. (25 mm) minimum to 1-3/8 in. (35 mm) maximum |
| Cable Routing | Through center of mount, beneath mounting surface; includes cable retention bracket |
| Dimensions / Weight | Refer to Crestron data sheet |
