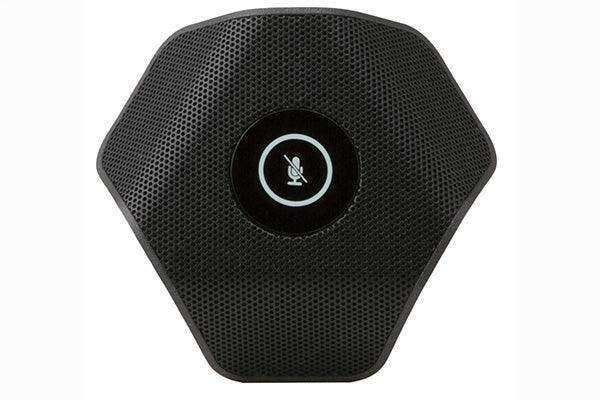

Crestron Microphone Pod - CCS-UCA-MIC

Availability: Call for Availability
Crestron SKU: CCS-UCA-MIC
No reviews
Price:
$232.00 $386.00

Description

Spec Sheet

The CCS-UCA-MIC is a low-profile extension microphone pod designed exclusively for use with a Crestron Flex Tabletop Conference System.1 Up to two mic pods may be connected to a single conference device to extend its pickup range to cover large tables.

Optionally, two microphone pods may be daisy-chained, or connected to the mic pod ports on the rear of the conference device, using the cables provided with each microphone pod.


  • Attractive, low-profile design
  • 360° pickup with 20 ft (6 m) range
  • Microphone mute button and indicator
  • Home-run or daisy-chain wiring options
  • 12 ft (3.7 m) cable included
  • Powered via the tabletop conference device
  1. CCS-UCA-MIC microphone pods are not compatible with UC-2 devices.
Communications
A²B bus protocol, slave, synchronous data, multichannel I2S/TDM to I2S/TDM
Audio
Microphone Triple mic array with (3) cardioid electret elements
Pickup Range 20 ft (6 m) typical, 360°
Buttons & Indicators
Mic Mute (1) Capacitive button with bi-color LED, button switches between mute and unmute (affects all system mics), illuminates red when the mic is muted, illuminates green when the mic is unmuted if a USB device is connected to the conference device or a SIP call is active
Connectors
IN (1) RJ9 4P4C connector, female;
For connection to the conference device or to the first CCS-UCA-MIC in a daisy chain;
12 ft (3.7 m) cable included
OUT (1) RJ9 4P4C connector, female;
For connection to the second CCS-UCA-MIC in a daisy chain (not included)
Power
Powered via the conference device through the A²B bus. The conference device must be powered using the PW-2420RU power pack provided with all compatible conference devices.
Environmental
Operational Temperature 32° to 95° F (0° to 35° C)
Storage Temperature -4° to 160° F (-20° to 70° C)
Humidity 5% to 95% RH (non-condensing)
Dimensions
Height 0.97 in (25 mm)
Width 3.81 in (97 mm)
Depth 3.42 in (87 mm)
Weight
6 oz (170 g)
Compliance
CE, IC, UL 60950-1, FCC Part 15 class B, ICES-003 Issue 6 Class B, EN 55022:2010, EN 55024:2010, IEC60950-1:2005, IEC60950-A2:2013, EN60950-1:2006, EN60950-A2:2013, CAN/CSA-C22.2
