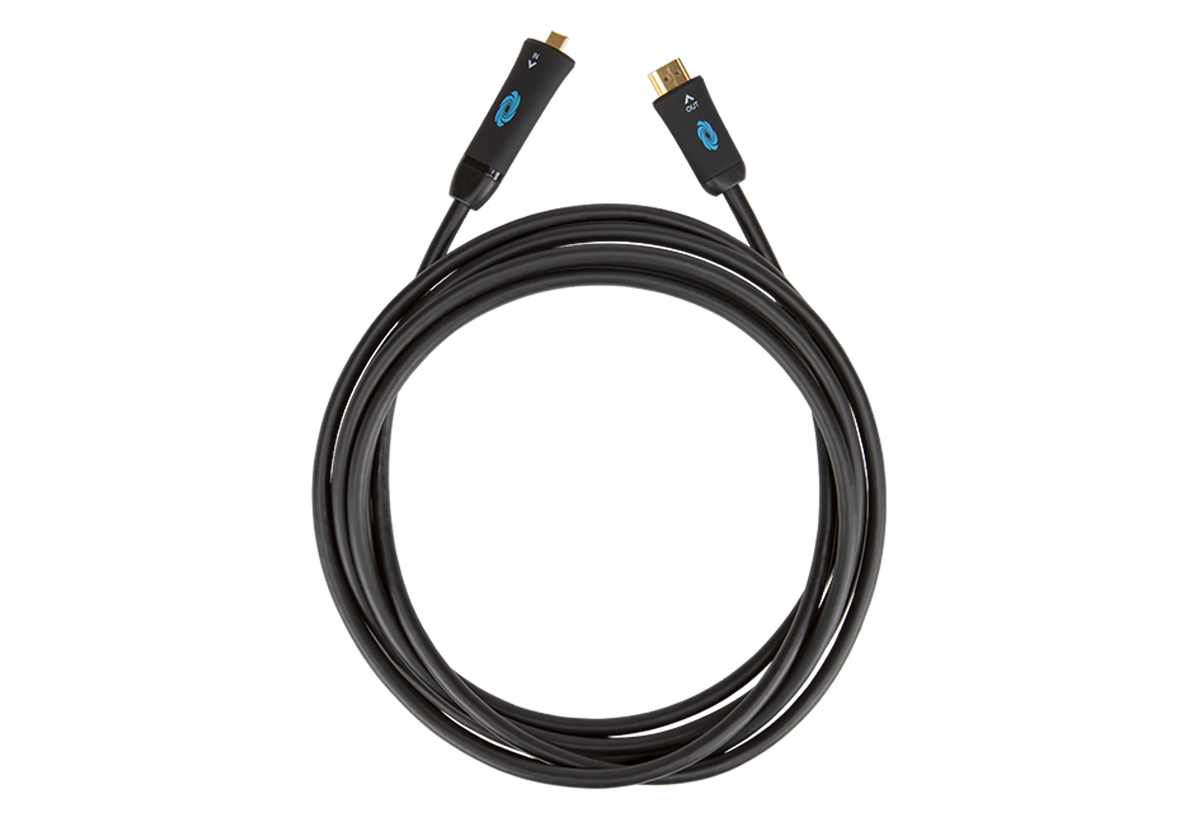

Crestron CBL-4K-USBC-HD-12 – Active Converter Cable, USB-C to HDMI, 18 Gbps, 12 ft

Product Overview

The Crestron CBL-4K-USBC-HD-12 is a 12-foot active converter cable that connects a USB Type-C source device directly to an HDMI display or input. Supporting 18 Gbps TMDS bandwidth and resolutions up to 4K60 4:4:4, it enables laptop and device connections to conference room displays and AV systems without a separate adapter or converter box.

Product Description

The CBL-4K-USBC-HD-12 is a one-way directional active cable with a USB-C male connector at the source end and an HDMI Type-A male connector at the sink end. It draws power from the USB-C port of the connected source device and requires no external power supply. The cable supports HDCP 2.2 content protection and passes HBR audio and EDID for full AV compatibility. Double shielded 28 AWG conductors provide signal integrity across the 12-foot run, and sculpted ABS connector boots with PVC strain relief make it durable for frequent use in bring-your-own-device (BYOD) meeting environments.

Key Features

• Active directional conversion: USB-C source to HDMI output — not reversible
• 18 Gbps TMDS bandwidth; supports up to 4096 x 2160 at 60 Hz (DCI 4K60)
• Color sampling: 4:4:4 at 24-bit and 4:2:2 at 36-bit color depth
• HDCP 2.2 compliant; passes HBR audio and EDID
• USB-C powered — no external power supply needed
• Double shielded 28 AWG conductors with black PVC outer jacket
• Sculpted matte black connector boots for secure grip and consistent appearance
• CE and FCC Part 15 Class B compliant

Typical Applications

• Laptop-to-display connections in BYOD conference rooms and huddle spaces
• Connecting USB-C equipped computers to HDMI projectors or flat panel displays
• AV source connections in Crestron Flex and other UC room configurations
• Permanent table cable in presentation rooms where a 12-foot reach is needed
• Integration with Crestron AV switching systems accepting HDMI inputs

Technical Specifications

• Functionality: Active, directional USB-C to HDMI converter cable
• Bandwidth: 18 Gbps TMDS
• Maximum Resolution: Up to 4096 x 2160 at 60 Hz (DCI 4K60)
• Color Sampling: 4:4:4 at 24-bit; 4:2:2 at 36-bit
• HDCP: HDCP 2.2
• Power: USB Type-C powered (from source device)
• Input Connector: USB Type-C male (gold plated)
• Output Connector: HDMI Type-A male (gold plated)
• Cable Length: 12 ft (3.66 m)
• Cable Outer Diameter: 0.28 in (7 mm)
• Cable Construction: 28 AWG conductors, double shielded, black PVC jacket
• Compliance: CE, FCC Part 15 Class B
• SKU: CBL-4K-USBC-HD-12

FAQs

Can the CBL-4K-USBC-HD-12 be connected in reverse (HDMI source to USB-C display)?
No. The cable is directionally active — the USB-C end must connect to the source device and the HDMI end to the display or HDMI input. Reverse connection will not work.

Does the CBL-4K-USBC-HD-12 require a driver or separate power?
No separate power supply is needed. The cable draws power directly from the USB-C port of the connected source device. No driver installation is required on the host computer.

Where can I purchase the CBL-4K-USBC-HD-12?
Creation Networks (creationnetworks.net) is an authorized Crestron dealer stocking the CBL-4K-USBC-HD-12 and the complete Crestron cable portfolio.
