Crestron CAEN-UMP1X2-DIN-PWS – CAEN Mounting Kit for 4-Series Processor and Hub

Product Overview

The Crestron CAEN-UMP1X2-DIN-PWS is an automation enclosure mounting kit that allows a Crestron 4-Series Automation Processor and Hub to be installed inside a CAEN Automation Enclosure. It includes DIN rail mounting provisions and power supply support components for a clean, integrated installation.

Product Description

The CAEN (Crestron Automation Enclosure) product line provides structured chassis for Crestron control system modules. The CAEN-UMP1X2-DIN-PWS extends this system by providing a purpose-built mounting solution for the 4-Series processors and hub accessories, which require a 1x2 module slot footprint within the CAEN enclosure.

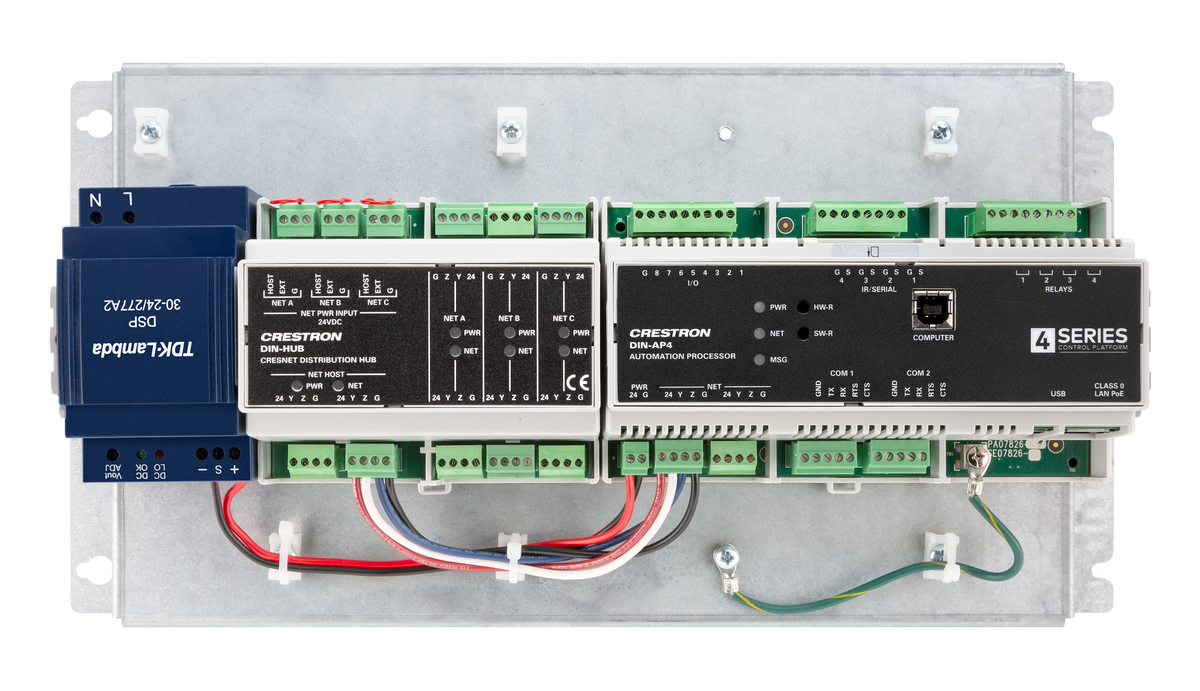

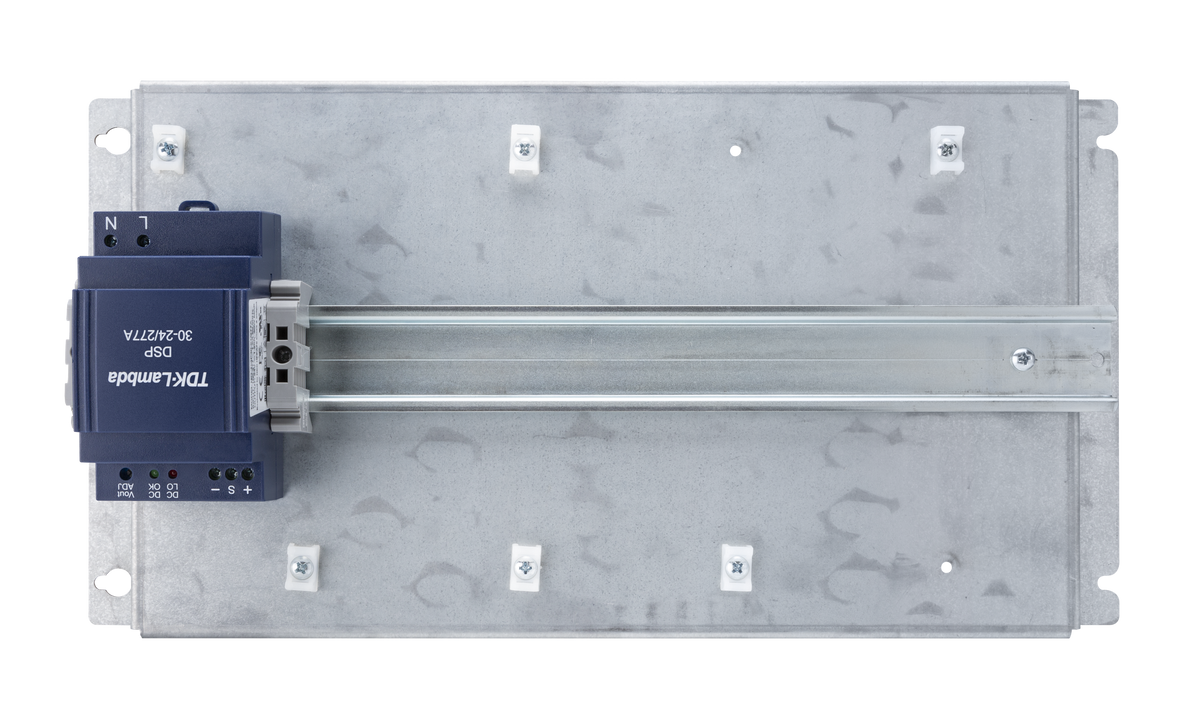

The kit includes a universal mounting plate configured at 1 module high by 2 modules wide (1x2), DIN rail sections for mounting the processor and its associated power supply hardware, and hardware for a clean and secure installation. This allows integrators to consolidate the 4-Series processor and associated power supply within the same CAEN enclosure that houses lighting control modules, I/O devices, and network accessories — reducing overall cabinet count and cable runs.

Using the CAEN-UMP1X2-DIN-PWS ensures that the 4-Series processor is properly supported and thermally managed within the CAEN enclosure. The DIN rail provision accommodates standard DIN-mount power supplies approved for use with Crestron 4-Series hardware.

Key Features

• Occupies a 1-module high x 2-module wide slot in a CAEN Automation Enclosure
• DIN rail provisions for mounting 4-Series processors and compatible power supply hardware
• Consolidates processor and control modules within a single CAEN enclosure
• Reduces cable routing complexity in multi-module installations
• Purpose-designed for Crestron 4-Series Automation Processor and Hub
• Includes all required mounting hardware for secure installation

Typical Applications

• Residential and commercial installations where a Crestron 4-Series processor is co-located with CAEN lighting and I/O modules in a single enclosure
• Structured wiring closet builds requiring a consolidated control system and lighting module chassis
• New construction projects specifying Crestron 4-Series as the primary control processor with CAEN-based peripherals

Technical Specifications

• Model: CAEN-UMP1X2-DIN-PWS
• Enclosure Footprint: 1 module high x 2 modules wide (CAEN slot)
• Mounting Type: DIN rail within CAEN enclosure
• Compatible With: Crestron 4-Series Automation Processors and Hubs
• Includes: Universal mounting plate (1x2), DIN rail sections, mounting hardware
• Power Supply Mounting: Supports DIN-mount power supplies for 4-Series hardware

Frequently Asked Questions

Which CAEN enclosure sizes are compatible with the CAEN-UMP1X2-DIN-PWS?

The CAEN-UMP1X2-DIN-PWS requires a CAEN enclosure with at least a 2-module-wide configuration. It is compatible with CAEN-7X2, CAEN-4X2, and other CAEN enclosures that provide at least a 1-high by 2-wide open slot. It will not fit in single-wide (1x1, 2x1, 4x1, 7x1) CAEN enclosures. Browse compatible CAEN enclosures at creationnetworks.net.

Does this kit include the 4-Series processor or power supply?

No. The CAEN-UMP1X2-DIN-PWS is a mounting hardware kit only. The 4-Series processor, hub, and associated power supplies are purchased separately.

Can third-party DIN-mount devices be installed using this kit?

The DIN rail provisions are standard 35mm DIN rail, so third-party DIN-mount devices of appropriate size could physically mount to the rail. However, the kit is designed and tested for Crestron 4-Series hardware and accessories. Use of third-party devices in the CAEN enclosure is at the installer's discretion.
