Crestron CAEN-BLOCK – Cresnet Network Termination Block for CAEN Enclosures

Product Overview

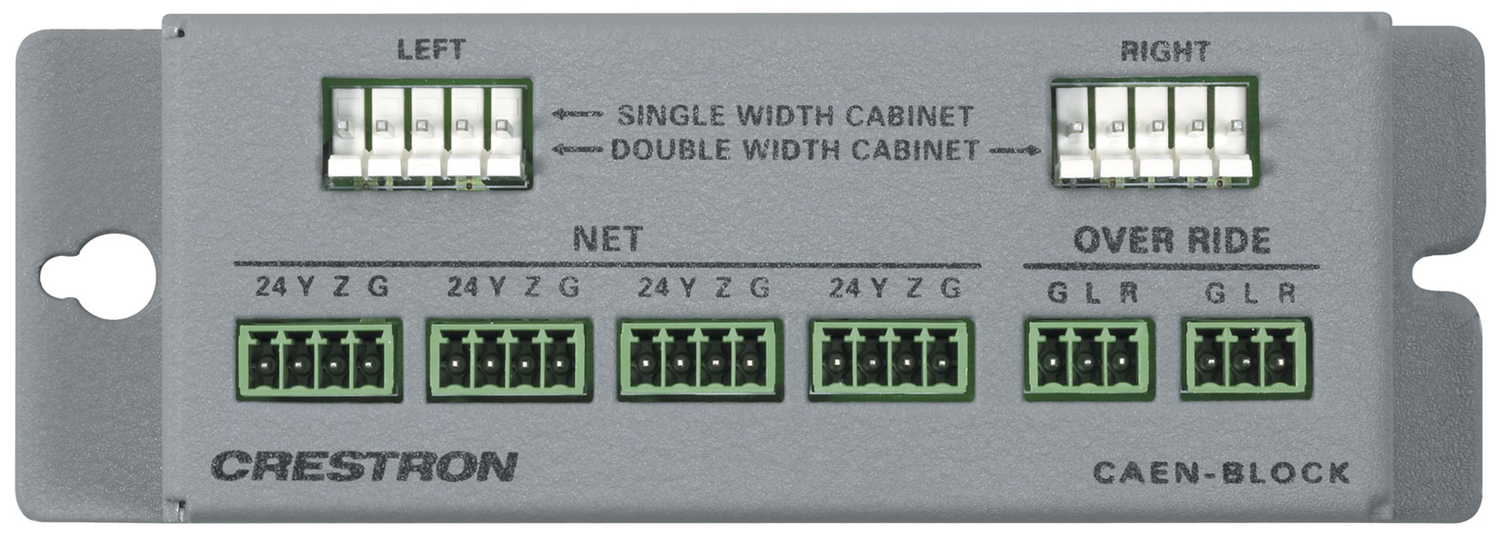

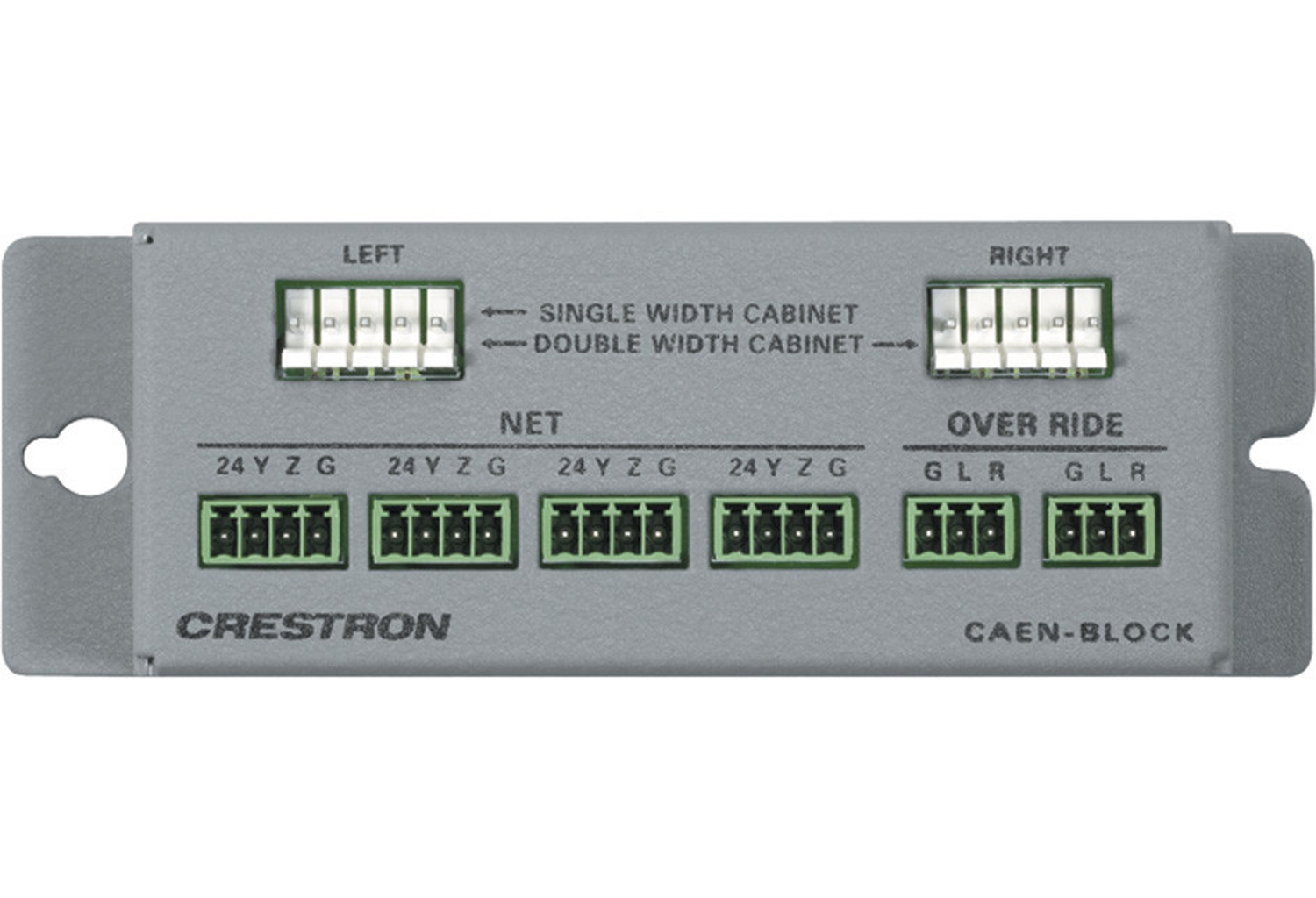

The Crestron CAEN-BLOCK is a Cresnet network termination and distribution block designed to mount inside CAEN automation enclosures. It provides organized wiring termination points for the Cresnet network backbone and branch connections, along with an override terminal block, in a compact gray metal housing with integral surface-mount flanges. The CAEN-BLOCK simplifies network wiring inside the enclosure and supports compliant Cresnet network topology.

Product Description

Cresnet is a 4-wire RS-485 network used throughout Crestron systems to connect keypads, thermostats, shades, sensors, and other devices to the control processor. Proper network termination and a star or homerun wiring topology improve network reliability and simplify troubleshooting. The CAEN-BLOCK provides four independent 4-pin 3.5mm detachable terminal block connectors for Cresnet branch runs (labeled NET), two 5-pin 0.156in header connectors for left/right daisy-chain connections (labeled LEFT/RIGHT), and two 3-pin 3.5mm terminal blocks for an override switch input (labeled OVERRIDE). The block mounts directly to the interior of any CAEN enclosure via its two integral mounting flanges.

Key Features

• Four 4-pin 3.5mm detachable Cresnet terminal blocks (NET) for branch device connections
• Two 5-pin 0.156in header connectors (LEFT/RIGHT) for daisy-chain backbone connections
• Two 3-pin 3.5mm terminal blocks (OVERRIDE) for override switch input wiring
• Gray metal housing with two integral surface-mount flanges
• Mounts inside any CAEN series automation enclosure
• Supports Cresnet star or homerun network topology

Typical Applications

• Cresnet wiring termination hub inside CAEN lighting control enclosures
• Central Cresnet distribution point in CLX Series residential automation panels
• Organized network termination in CAEN-4X1, CAEN-4X2, or other CAEN enclosure sizes
• Installations requiring an override switch input tied to the CAEN panel

Technical Specifications

• Dimensions: H 2.0 in. x W 6.0 in. x D 1.75 in.
• Weight: 3.4 oz (96 g)
• LEFT/RIGHT connectors: 2x 5-pin 0.156 in. headers
• NET connectors: 4x 4-pin 3.5 mm detachable terminal blocks
• OVERRIDE connectors: 2x 3-pin 3.5 mm detachable terminal blocks
• Construction: Gray metal housing
• Mounting: Surface mount via 2 integral flanges; installs inside CAEN enclosures

Frequently Asked Questions

Does the CAEN-BLOCK come with the CAEN enclosure?

No. The CAEN-BLOCK is a separately purchased accessory. It is not included with CAEN enclosures and must be ordered independently. Verify quantity required based on the number of Cresnet network branches in the design.

How many devices can be connected to a single CAEN-BLOCK?

The CAEN-BLOCK provides four Cresnet branch terminal blocks (NET connectors). Each NET connection can support a homerun or short daisy-chain run of Cresnet devices, subject to Crestron’s overall Cresnet network limits of 250 devices per system and network distance limits per the Crestron design guide.
