Crestron CAEN-7X1 – Automation Enclosure, 7-Module High x 1-Module Wide

Product Overview

The Crestron CAEN-7X1 is a 7-module high by 1-module wide Automation Enclosure designed to house Crestron control system modules in a structured, protected chassis. It provides a standardized mounting platform for Crestron CAEN-compatible modules within residential and commercial automation installations.

Product Description

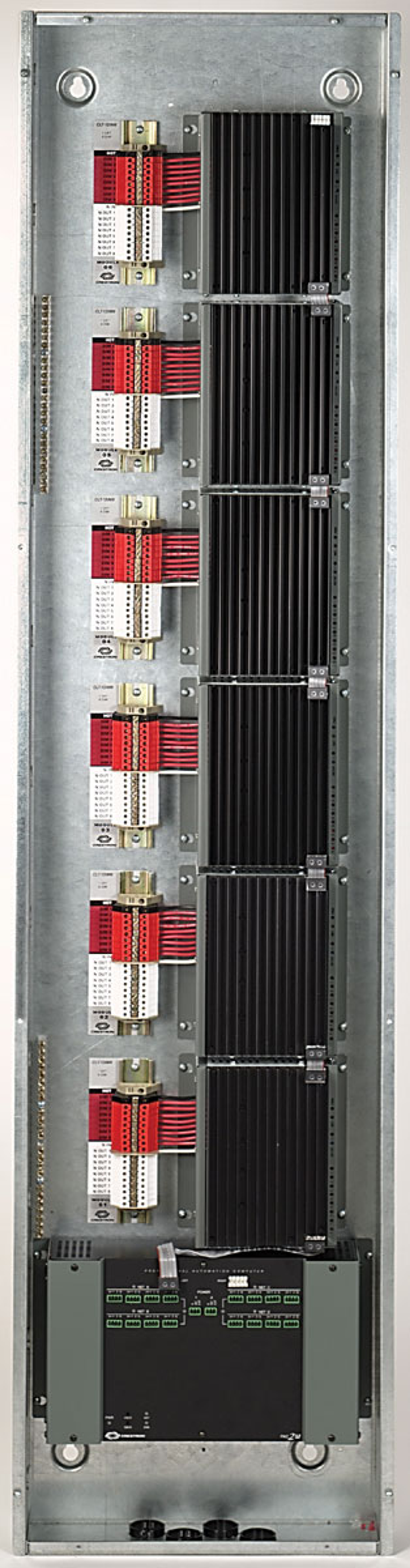

The CAEN-7X1 is part of Crestron's CAEN (Crestron Automation Enclosure Network) product line. The enclosure accommodates up to seven single-module-high expansion modules stacked vertically in a single-wide column. This form factor is suited for installations where vertical space is available but horizontal footprint must be minimized, such as in structured wiring closets, AV racks, or in-wall equipment bays.

The enclosure accepts CAEN modules including lighting control modules, I/O expanders, network bridges, and power supply accessories. Modules snap into the enclosure and interconnect via the internal Cresnet distribution bus. The CAEN-7X1 is constructed for flush or surface mounting and can accept optional cover extension kits (CAEN-CK-7X1) for additional depth when required by deeper modules.

Key Features

• Accommodates 7 single-wide CAEN-compatible automation modules
• Single-wide (1-module) column configuration for compact footprint installations
• Integrated Cresnet bus distribution for internal module interconnection
• Compatible with CAEN-BLOCK and CAEN-BLOCK-CENCN-2-POE network accessories
• Accepts optional CAEN-CK-7X1 cover extension for deeper module clearance
• Constructed for structured wiring closets, in-wall bays, and equipment enclosures
• Supports Crestron Universal Mounting Plates (CAEN-UMP1X1) for non-standard module mounting

Typical Applications

• Residential lighting and environmental control installations using Crestron CLX-series modules
• Commercial AV and building automation installations requiring modular I/O expansion
• Structured wiring enclosures in new construction or retrofit projects
• Multi-system installations where lighting, shading, and HVAC control modules are co-located

Technical Specifications

• Model: CAEN-7X1
• Configuration: 7 modules high x 1 module wide
• Module Slots: 7
• Compatible Modules: Crestron CAEN-series lighting, I/O, and network modules
• Internal Bus: Cresnet distribution
• Mounting: Flush or surface mount
• Optional Accessories: CAEN-CK-7X1 (cover extension), CAEN-BLOCK (Cresnet termination), CAEN-BLOCK-CENCN-2-POE (Ethernet-to-Cresnet bridge)

Frequently Asked Questions

Can standard non-CAEN Crestron modules be mounted in the CAEN-7X1?

Non-CAEN modules can be accommodated using Crestron Universal Mounting Plates (CAEN-UMP1X1), which fill a single module slot and provide a flat surface for attaching third-party or non-CAEN devices. Module compatibility should be confirmed in the Crestron product documentation.

Does the CAEN-7X1 include a power supply?

No. The CAEN-7X1 is an unpowered enclosure. Power supplies, Cresnet distribution accessories, and Ethernet bridges are purchased separately and installed as CAEN modules or as external accessories. Browse compatible accessories at creationnetworks.net.

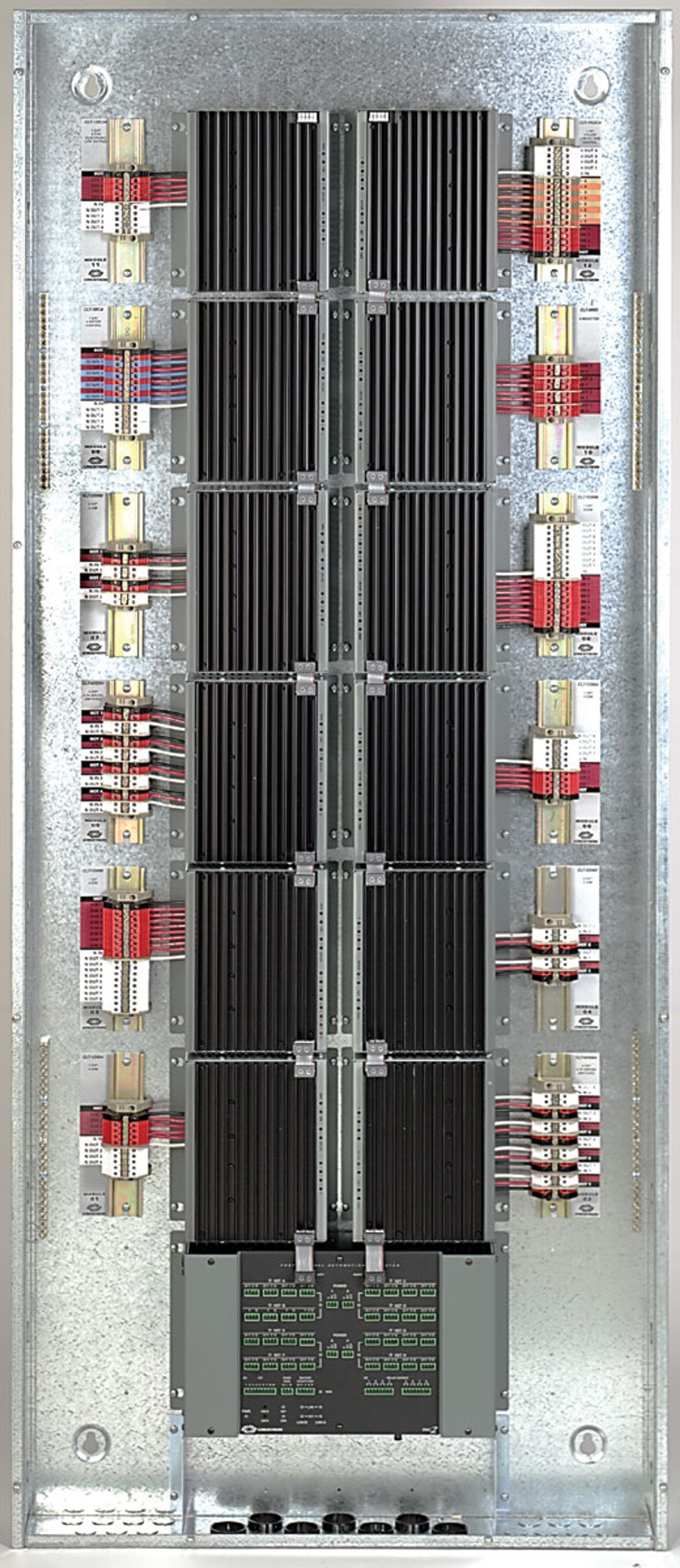

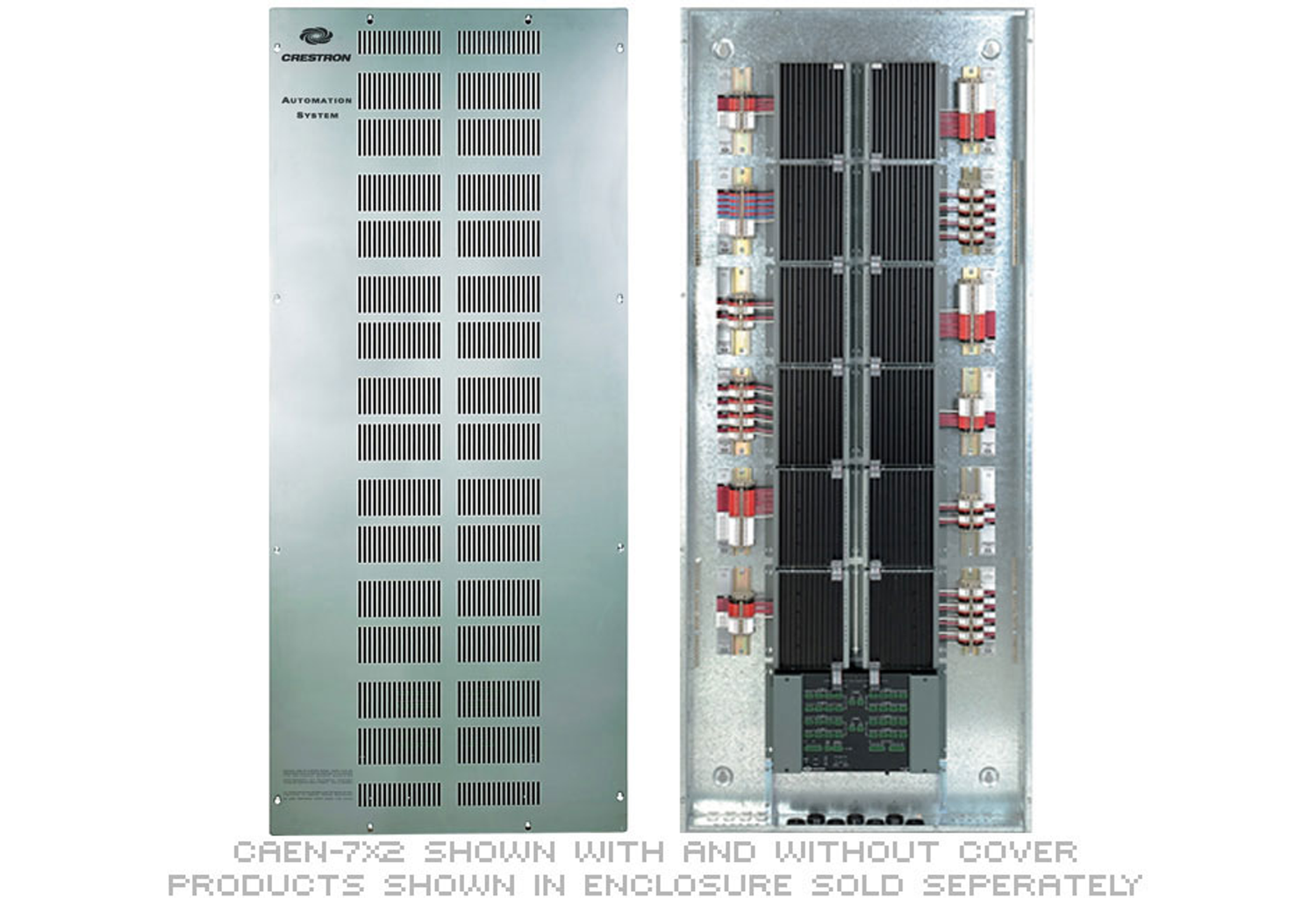

What is the difference between the CAEN-7X1 and the CAEN-7X2?

The CAEN-7X1 is one module wide (a single column of 7 slots), while the CAEN-7X2 is two modules wide (two columns of 7 slots each, totaling 14 slots). Choose the CAEN-7X2 when a higher module count is required in the same vertical height envelope.
