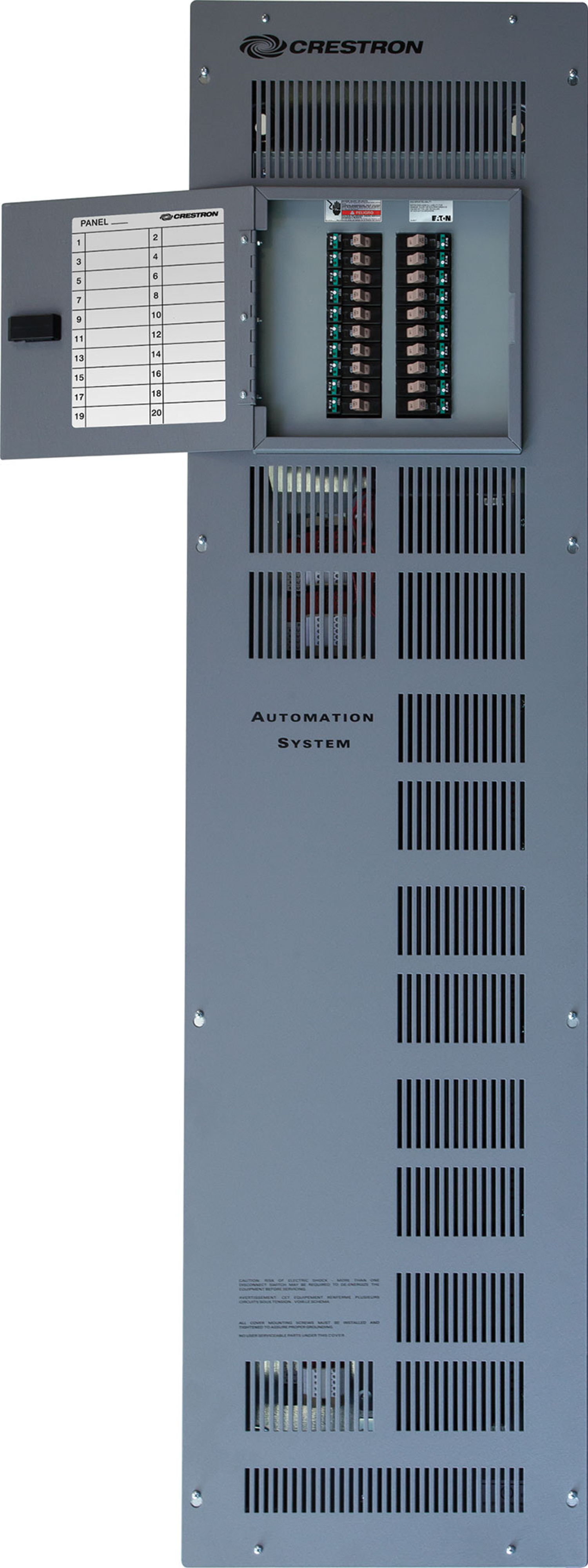

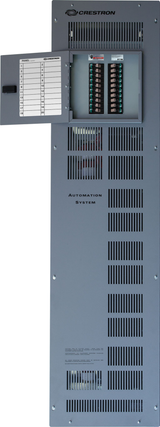

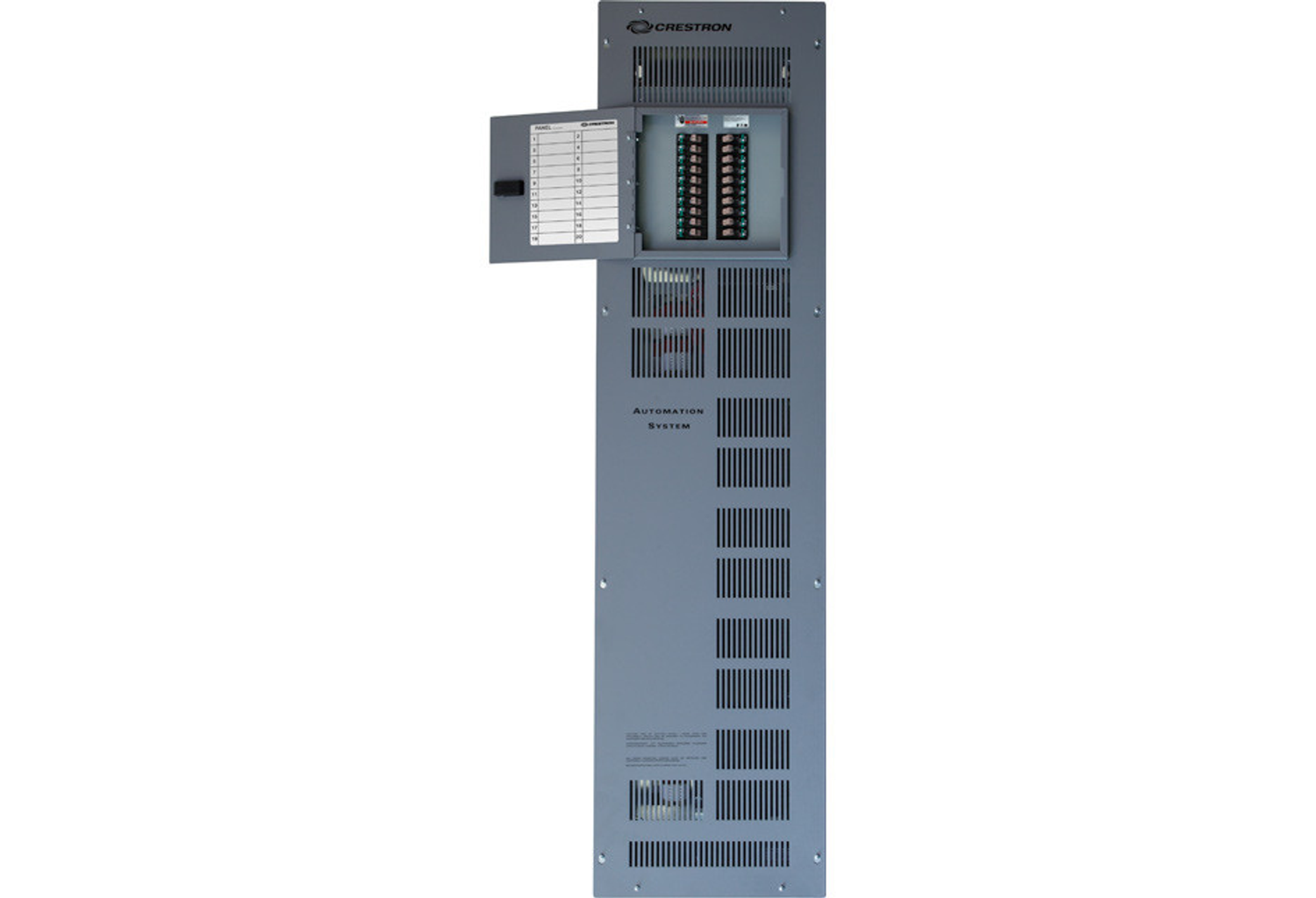

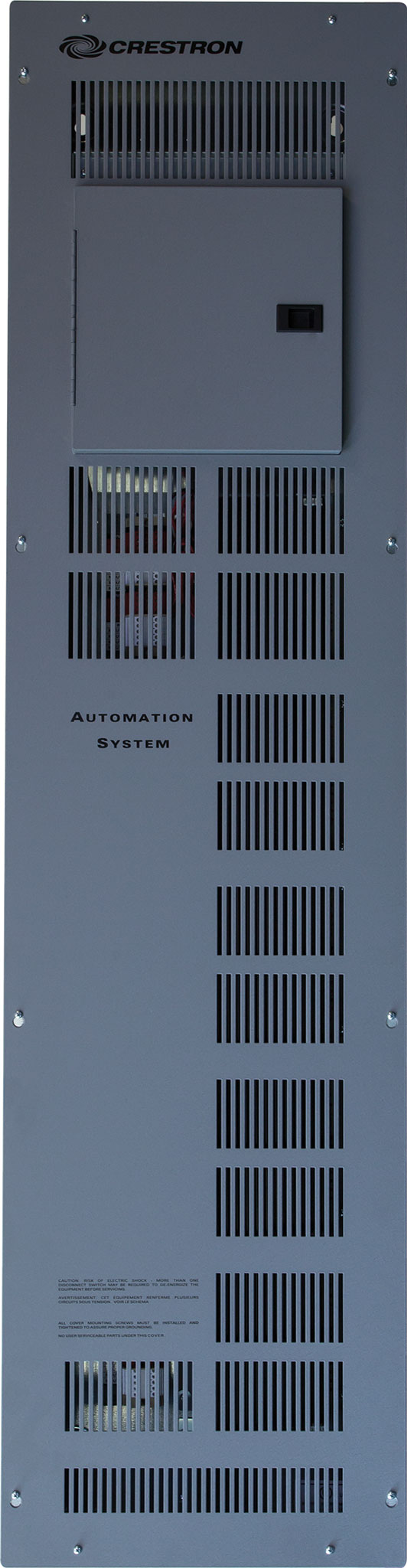

Crestron CAEN-5X1-MLO-120/2P – Automation Enclosure, 5-Module, 20 Breaker Slots, Split Phase

Product Overview

The Crestron CAEN-5X1-MLO-120/2P is a surface or flush wall-mount automation enclosure with 5 module slots, a 20-slot breaker panel, and split-phase 120/240 VAC electrical distribution. It is designed for custom residential and light commercial installations where Crestron CLX-Series lighting control modules must be co-located with the building's branch circuit panel. The enclosure consolidates automation control and electrical distribution into a single, code-compliant cabinet.

Product Description

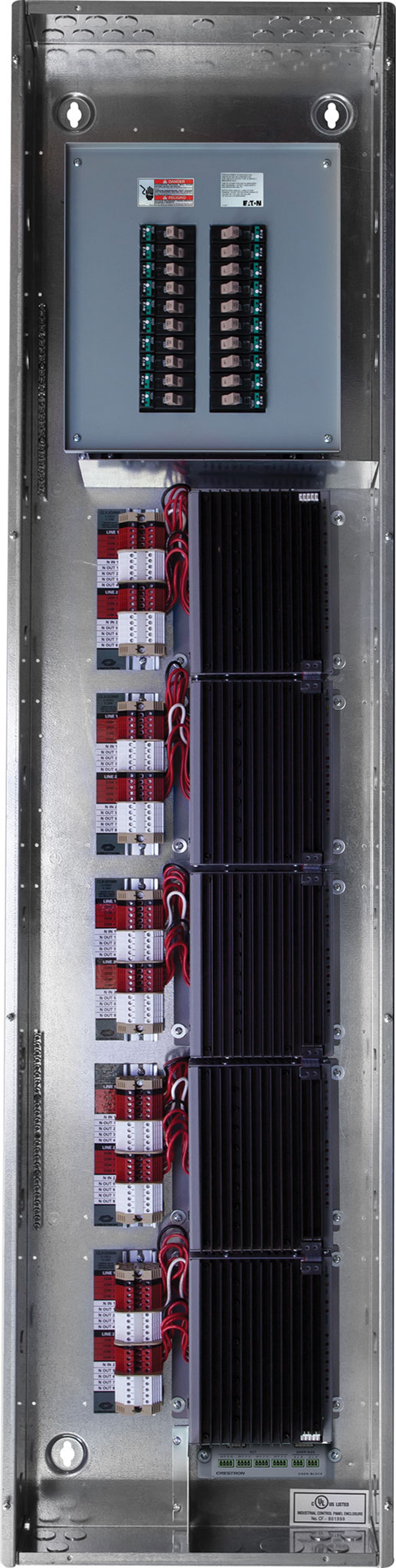

The CAEN-5X1-MLO-120/2P accepts up to 5 CLX-Series module slots on one side and supports a 20-breaker main lug only (MLO) load center on the other, handling split-phase 120/240 VAC or 120/208 VAC 3-phase at up to 225A. The enclosure is constructed from 16-gauge galvanized steel with a perforated grey steel cover and supports surface or flush wall mounting. Compatible Eaton CHF-series breakers include AFCI, GFCI, and standard types, providing flexible circuit protection options. The enclosure is invertible to accommodate various installation orientations.

Key Features

• 5 CLX-Series module slots plus 20-slot main lug only (MLO) breaker panel
• Split-phase 120/240 VAC or 120/208 VAC 3-phase input; up to 225A
• Compatible Eaton CHF breakers: CHF120, CHFCAF120PN (AFCI), CHFGF120PN (GFCI)
• Single-pole 20A breakers, 10 kAIC rated; 4 AWG max branch circuit wire
• 4/0 AWG max main lug wire gauge
• 16-gauge galvanized steel enclosure with perforated cover; invertible
• Surface or flush wall mount installation
• Certifications: Intertek Listed (US & Canada); designed to UL50 and CSA C22.2 No. 94.1

Typical Applications

• Custom residential whole-home lighting control enclosure co-located with branch circuit panel
• New construction electrical and automation hub in a dedicated utility space
• Multi-zone Crestron CLX lighting system with integrated circuit breakers
• Light commercial office space where Crestron lighting and electrical distribution share one enclosure
• Retrofit installations replacing a legacy load center with a Crestron automation-integrated panel

Technical Specifications

• Model: CAEN-5X1-MLO-120/2P
• Weight: 50.0 lb (22.68 kg)
• Dimensions (H x W x D): 62.75 in. x 16.10 in. x 4.98 in. (1594 mm x 409 mm x 127 mm)
• Module Slots: 5 CLX-Series module slots
• Breaker Capacity: 20 single-pole breaker slots; main lug only (MLO)
• Power Input: 120/240 VAC split-phase or 120/208 VAC 3-phase; 225A max; 50/60 Hz
• Compatible Breakers: Eaton CHF120, CHFCAF120PN (AFCI), CHFGF120PN (GFCI); 20A single-pole, 10 kAIC
• Main Lug Wire Gauge: 4/0 AWG max
• Branch Circuit Wire Gauge: 4 AWG max
• Enclosure Material: 16-gauge galvanized steel with perforated grey steel cover
• Mounting: Surface or flush wall mount; invertible
• Operating Temperature: 32 to 104°F (0 to 40°C)
• Certifications: Intertek Listed (US & Canada); UL50, CSA C22.2 No. 94.1

Frequently Asked Questions

Q: What CLX-Series modules fit in the CAEN-5X1-MLO-120/2P?
A: The enclosure accepts any standard Crestron CLX-Series module that occupies a single module slot, including dimmer, switch, and universal dimmer modules such as the CLX-2DIM8, CLX-2DIMU8, and CLX-1DIMU4-HP.

Q: Does the CAEN-5X1-MLO-120/2P include a main breaker?
A: No. This is a main lug only (MLO) enclosure, meaning it does not include a main breaker. A main disconnect must be provided upstream by the electrical contractor or utility service.

Q: What is the maximum amperage this enclosure supports?
A: The CAEN-5X1-MLO-120/2P supports up to 225A at the main lugs on split-phase or 3-phase service.
