Crestron CAEN-4X1 – Automation Enclosure, 4-Module High x 1-Module Wide

Product Overview

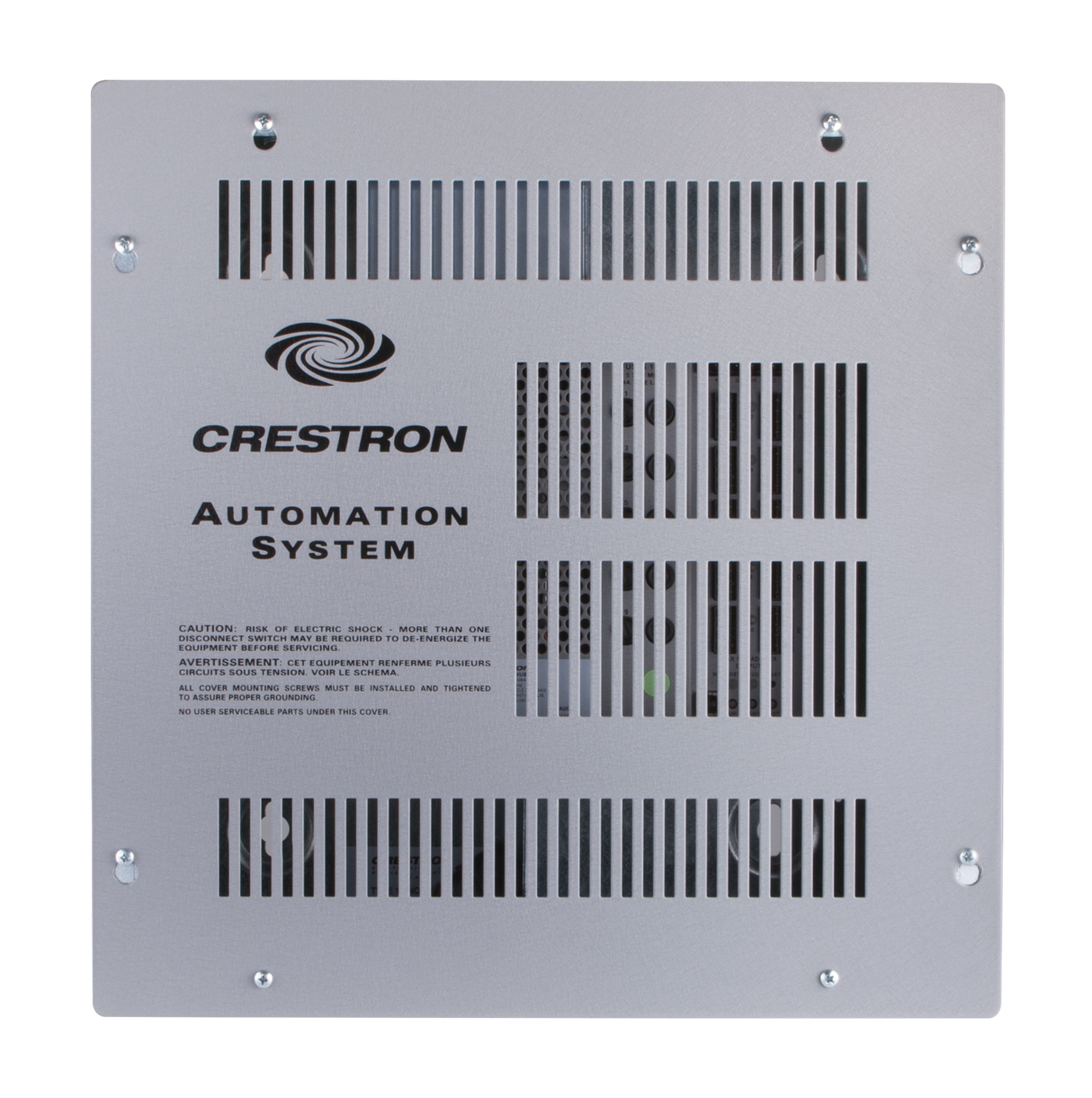

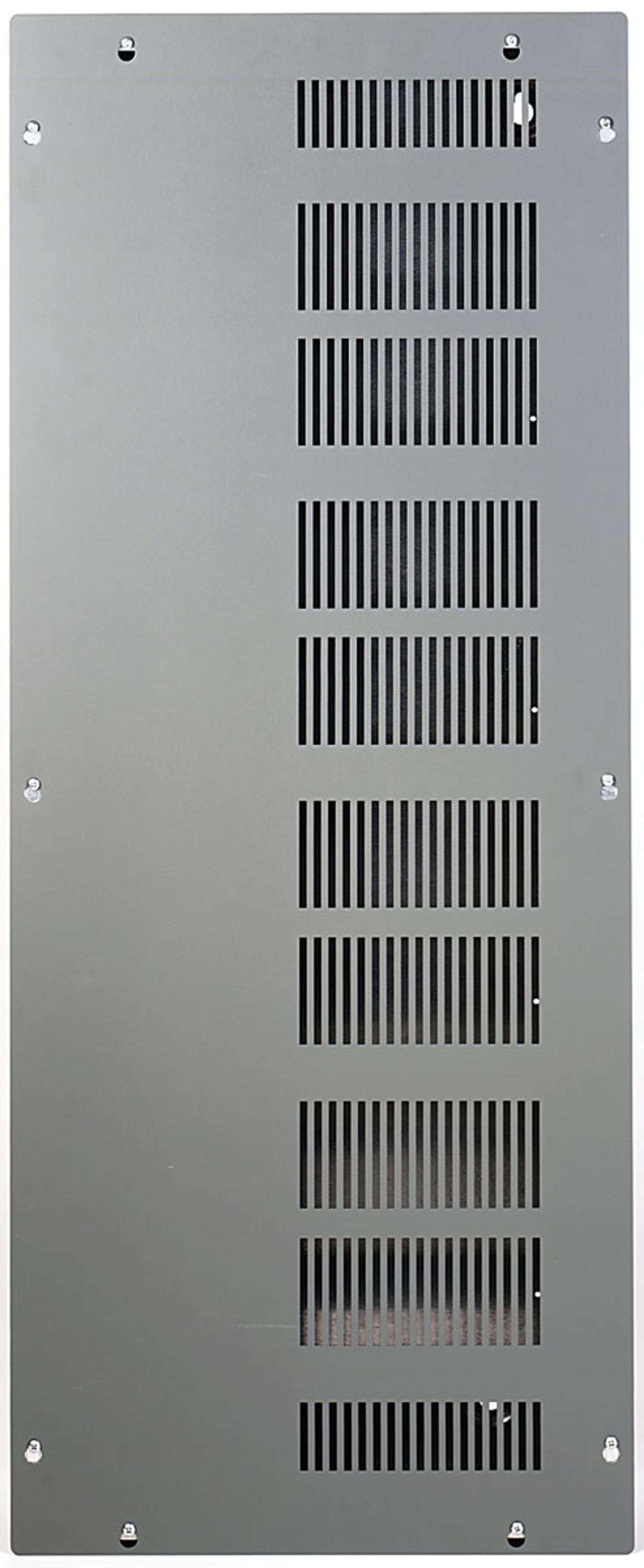

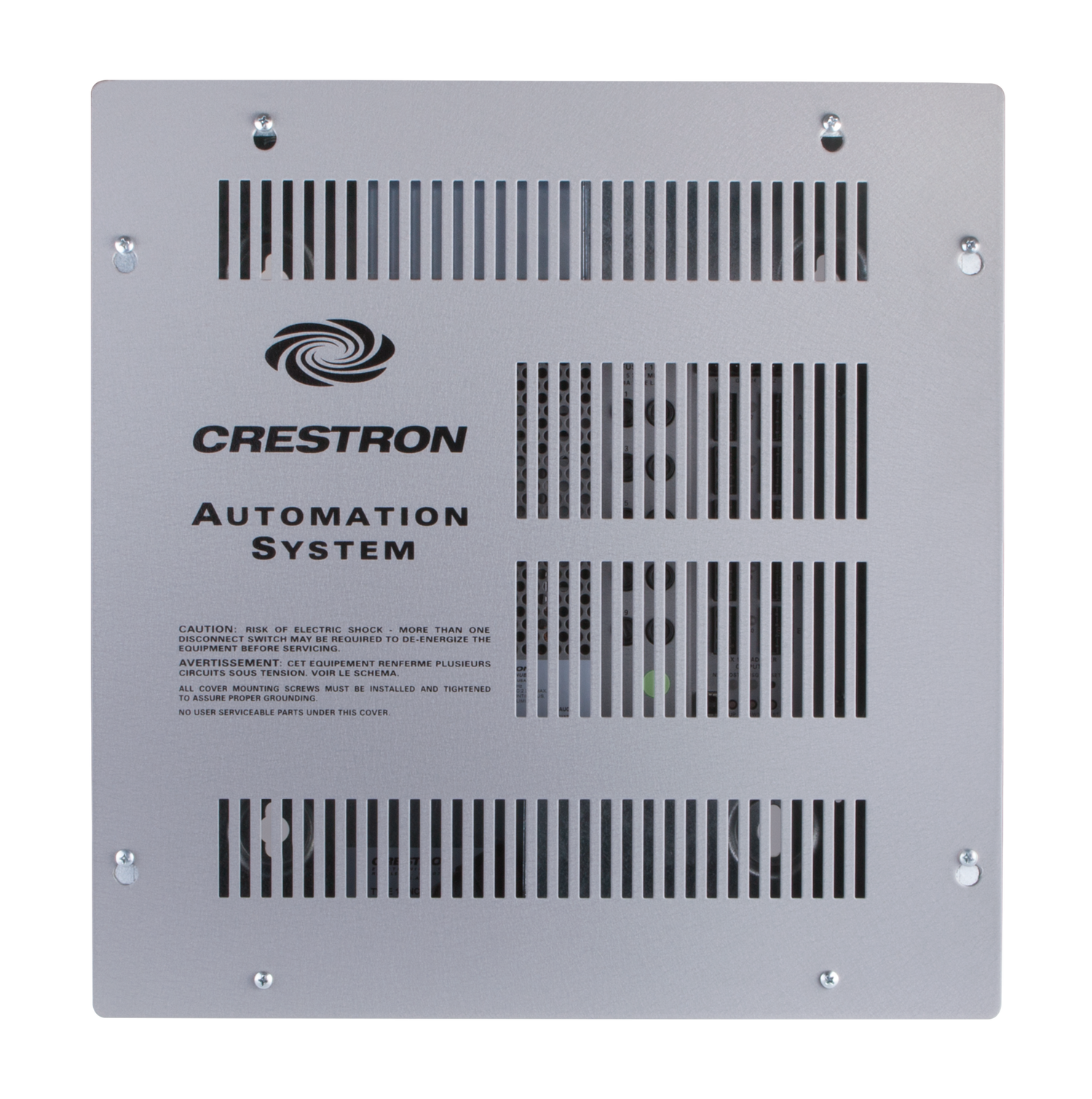

The Crestron CAEN-4X1 is a wall-mount automation enclosure sized to hold four CLX Series lighting control modules stacked vertically in a single-module-wide column. It provides a structured, code-compliant housing for CLX Series dimmers, switches, and relay modules, along with their associated wiring, in surface or flush-wall installations. The enclosure is constructed from 16-gauge galvanized steel with a perforated grey steel cover for ventilation.

Product Description

The CAEN enclosure series is the standard installation chassis for Crestron CLX Series lighting control systems. The CAEN-4X1 holds up to four CLX module positions in a vertical single-wide column, making it well-suited for smaller residential zones or individual rooms. When outfitted with the CAEN-UMP1X2-DIN-PWS DIN rail adapter, the enclosure can also house DIN-AP4 or DIN-AP4-R control processors. A PAC2M processor may also be installed directly in the enclosure. All wiring lands inside the enclosure, keeping the installation clean and accessible for service. The enclosure supports both surface-mount and flush-wall installation methods.

Key Features

• Holds up to 4 CLX Series lighting control modules (4-module high x 1-module wide)
• Compatible with CLX Series dimmers, switches, and relay modules
• Accepts DIN-AP4/DIN-AP4-R with CAEN-UMP1X2-DIN-PWS adapter
• PAC2M control processor compatible
• 16-gauge galvanized steel construction with perforated grey steel cover
• Supports surface mount or flush wall installation
• Integral mounting flanges for secure wall attachment

Typical Applications

• Single-room or small-zone CLX Series lighting control installations
• Residential new construction where flush-wall enclosures are specified
• Retrofit installations using surface-mount wiring methods
• Closet or utility space enclosures for CLX system wiring termination
• Smaller-scale commercial projects with limited module count per zone

Technical Specifications

• Dimensions: H 38.25 in. (97.16 cm) x W 14.38 in. (36.51 cm) x D 4.00 in. (10.16 cm)
• Weight: 28.0 lb (12.7 kg)
• Construction: 16-gauge galvanized steel body; perforated grey steel cover
• Module capacity: 4 CLX module positions (4 high x 1 wide)
• Operating temperature: 32°–104°F (0°–40°C)
• Humidity: 10%–90% RH non-condensing
• Installation: Surface mount or flush wall

Frequently Asked Questions

How many CLX modules does the CAEN-4X1 hold?

The CAEN-4X1 holds four CLX module positions arranged in a single column (4 high x 1 wide). Each position accommodates one CLX Series dimmer, switch, or relay module. For larger systems requiring more module positions, Crestron offers wider CAEN enclosures such as the CAEN-4X2 or CAEN-4X4.

Does the CAEN-4X1 include the CLX modules?

No. The CAEN-4X1 is the enclosure only. CLX Series dimmer, switch, and relay modules must be purchased separately and installed into the enclosure during system commissioning.
