Crestron Cameo® Keypad - International Version, Black Textured - C2NI-CB-B-T

Product Overview

The Crestron C2NI-CB-B-T is an international-version Cameo wall mount keypad in a black textured finish, designed to control lighting, shades, AV, and other functions in residential and commercial spaces. It installs in a single-gang UK (BS 4662) or European (DIN 49073) electrical box and communicates over a wired Cresnet connection. Each keypad provides two independently configurable button columns for a tailored control interface. It integrates with a Crestron control system or Crestron Home OS.

Product Description

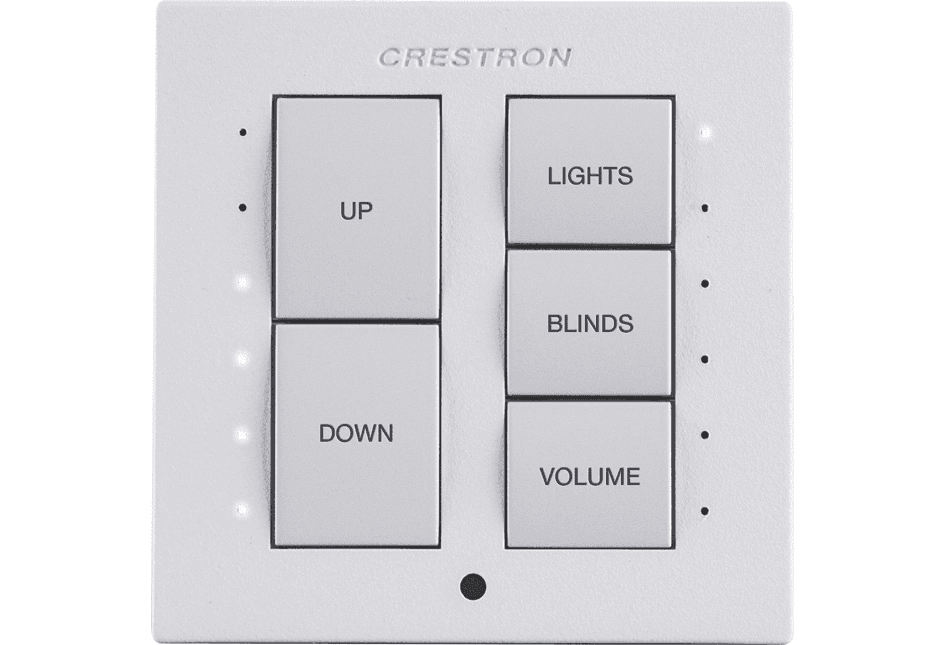

The C2NI-CB-B-T Cameo International Keypad is configured by the installer to deliver the precise control functionality required by the end user. Two button columns each accept one of three included button strip sets: two large buttons, three medium buttons, or one medium and four small buttons, for a maximum of 12 button positions. Button events can be programmed for tap, double-tap, and press-and-hold actions, allowing a single keypad to trigger multiple commands. Each button position includes a white LED indicator that can confirm a press, display a selected lighting scene, or report device status, with ten assignable flash patterns and dual six-segment bargraph capability. A built-in photosensor enables auto-brightness control, adjusting backlight and LED intensity between day and night settings based on ambient light. Two dry contact closure sensing inputs on the rear interface with low-voltage devices such as door switches and motion detectors. Pushbuttons can be ordered with backlit laser-etched engraving (sold separately) for clear labeling in darkened rooms.

Key Features

• Configurable button layout — Two columns accept interchangeable strip sets for up to 12 button positions per keypad.
• Cresnet wired communication — A 4-wire bus carries bidirectional data and 24VDC power to each keypad.
• White LED feedback — Twelve white LEDs offer flash patterns and dual six-segment bargraph display for status and dimming levels.
• Auto-brightness control — An integrated photosensor adjusts backlight and indicator intensity for day and night conditions.
• Two contact closure inputs — Rear sensing inputs connect door switches, motion detectors, and other dry-contact devices.
• International box mounting — Installs in a single-gang UK or European electrical box or a 51 x 51 mm cutout.
• Backlit engraving option — Replacement button strips support laser-etched, backlit labels (sold separately).
• Crestron Home compatible — Programs with a Crestron control system or Crestron Home OS.

Typical Applications

• Conference and meeting rooms — Single-press recall of lighting, shade, and AV presets.
• Hospitality guest rooms — In-room scene control on UK and European electrical boxes.
• Executive offices — Discreet wall control of lighting and shades with status feedback.
• Residential interiors — Customizable scene keypads integrated with Crestron Home.

Technical Specifications

Frequently Asked Questions

Is the C2NI-CB-B-T compatible with US electrical boxes? No. This international version mounts in a single-gang UK (BS 4662) or European (DIN 49073) box or a 51 x 51 mm cutout. For US single-gang installations, refer to the standard Cameo keypad models.

How does the keypad connect to a control system? It communicates over Cresnet, a 4-wire bus that carries both data and 24VDC power, connecting to a Crestron control system or Crestron Home system.

Is button engraving included? The included button strips are blank. Backlit laser-etched engraving is available by ordering replacement button strip sets separately.

Can it interface with door switches or motion detectors? Yes. Two rear dry contact closure sensing inputs accept low-voltage devices such as door switches and motion detectors.

What warranty applies? This product is covered by the Crestron limited warranty (3-year limited). For warranty or configuration support, Contact Creation Networks.
