Crestron C2N-UNI8IO – Universal Keypad Interface

Product Overview

The Crestron C2N-UNI8IO is a compact universal keypad interface that connects virtually any third-party keypad or button panel to the Cresnet control network. With support for 8 digital inputs and 8 digital outputs, it gives AV integrators a flexible solution for custom-styled control interfaces in residential, commercial, and institutional installations.

Product Description

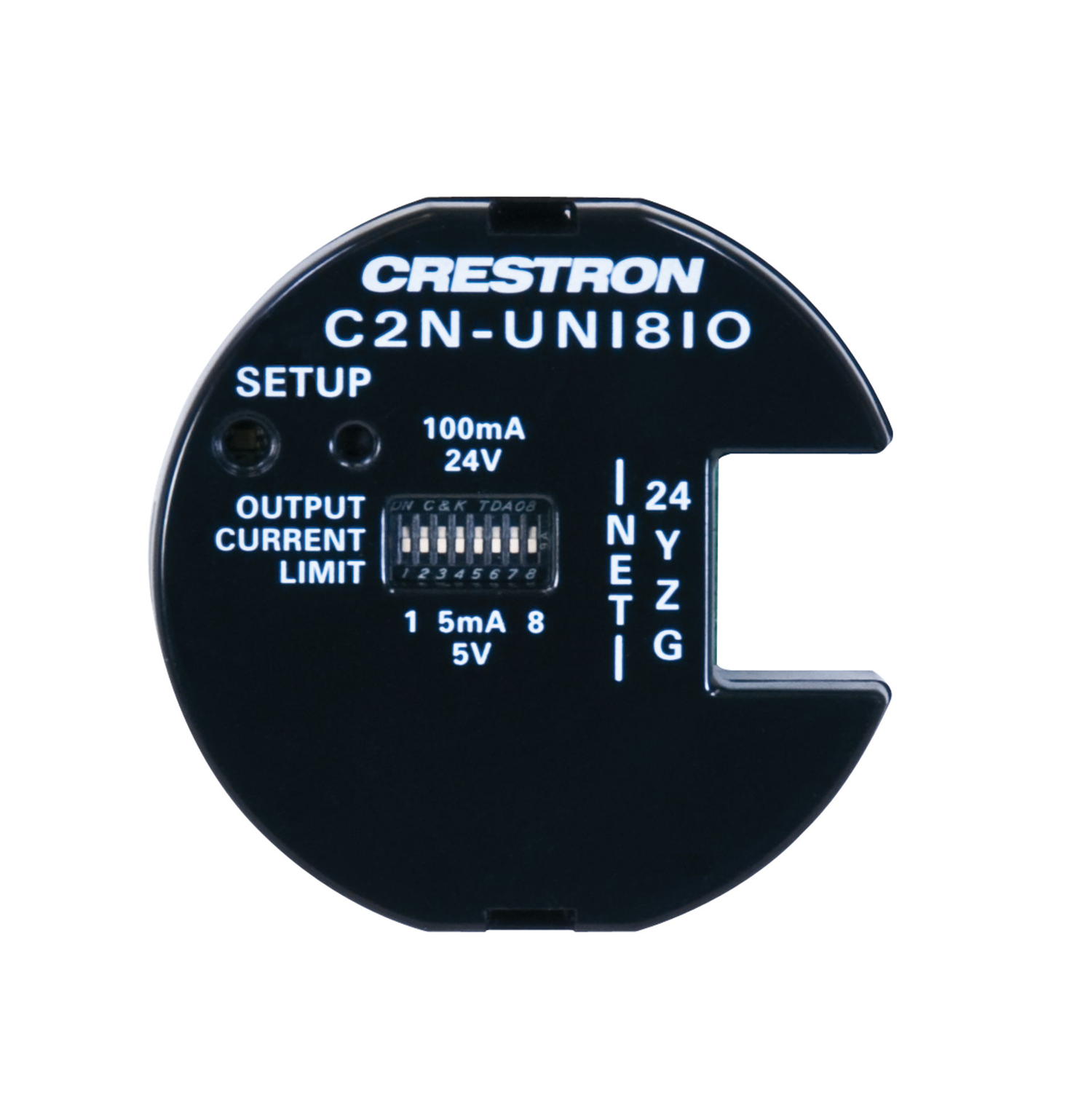

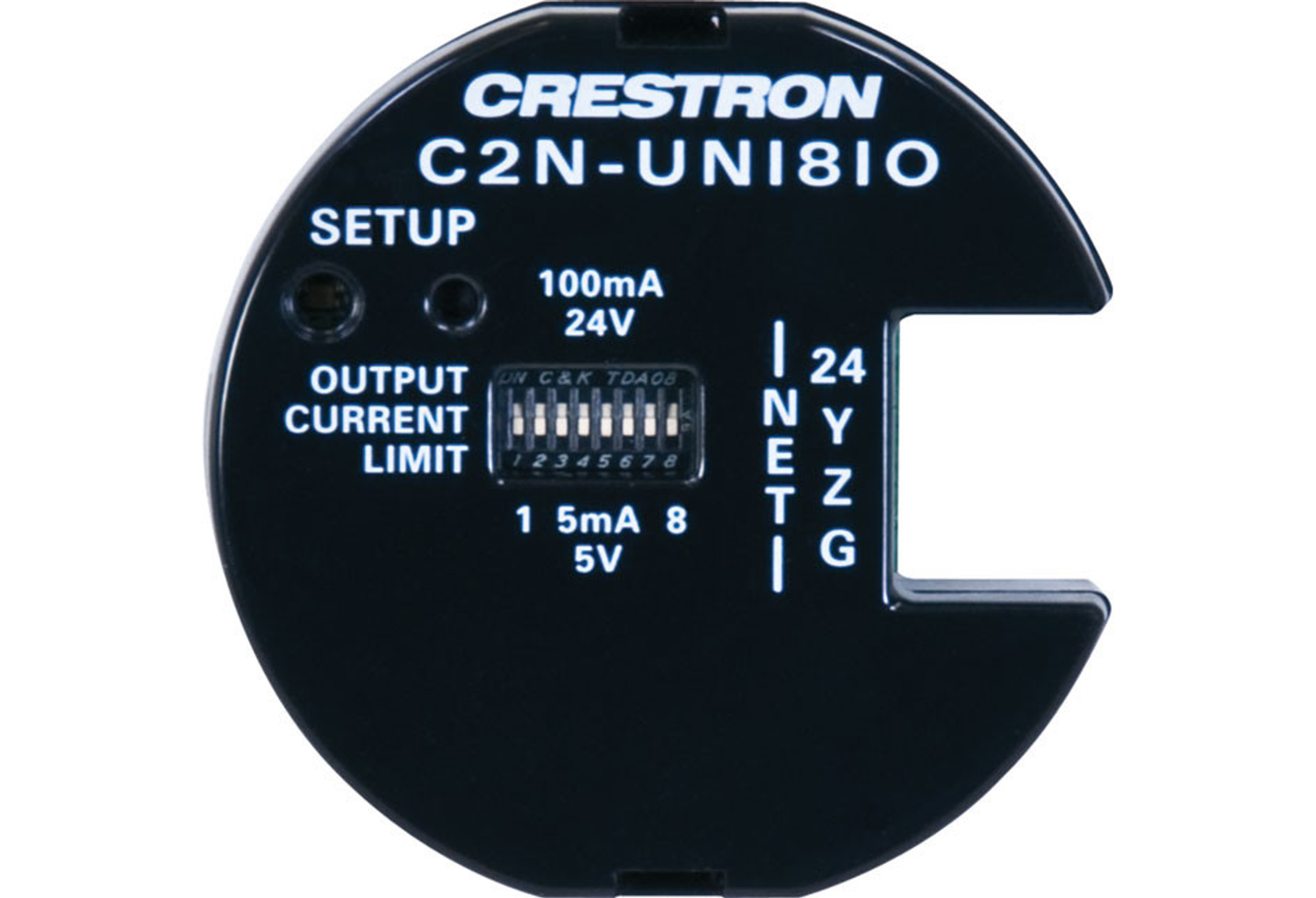

The C2N-UNI8IO allows a non-Crestron keypad — or any device with dry-contact outputs — to function as a native Cresnet device. Its ultra-slim profile fits directly inside a standard 55 mm European electrical box, making it suitable for architecturally demanding installations where aesthetics dictate the choice of control surface. Eight digital inputs accept 0–24V DC contact closures, while eight open-drain outputs rated at 100 mA each can drive LEDs, relay coils, or small lamps at up to 24V DC. An integrated DIP switch enables per-output current limiting to 5 mA for direct LED operation without external resistors. Power is derived from the Cresnet bus at 0.5 W, so no separate power supply is needed at the device.

Key Features

• 8 digital inputs and 8 digital outputs on a single Cresnet device
• Low-profile design fits inside a 55 mm European electrical box
• Contact closure inputs accept 0–24V DC signals with 10K ohm pull-ups to 5V
• Open-drain outputs rated 100 mA at 24V DC; 500 mA combined maximum
• Built-in 8-position DIP switch for per-output current limiting (5 mA at 5V for LEDs)
• Powered directly from Cresnet — no separate supply required (0.5 W draw)
• Touch-settable device ID via on-board SETUP button and LED

Typical Applications

• Integrating designer third-party keypads into Cresnet control systems
• Museum or courtroom installations requiring simple, custom-styled interfaces
• Adding door/gate contact sensors to building automation programs
• Providing LED feedback on any standard button panel without a dedicated Crestron keypad
• Converting doorbells or standard switches into Cresnet event triggers

Technical Specifications

• Digital Inputs: 8, rated 0–24V DC; 10K ohm pull-up to 5V; Logic Low ≤1V, Logic High ≥3.7V
• Digital Outputs: 8 open-drain; 100 mA at 24V DC each; 500 mA combined maximum
• Maximum Power Load: 1A at 24V DC (pass-thru) and 40 mA at 5V DC
• Cresnet Power: 0.5 W (0.02 A at 24V DC)

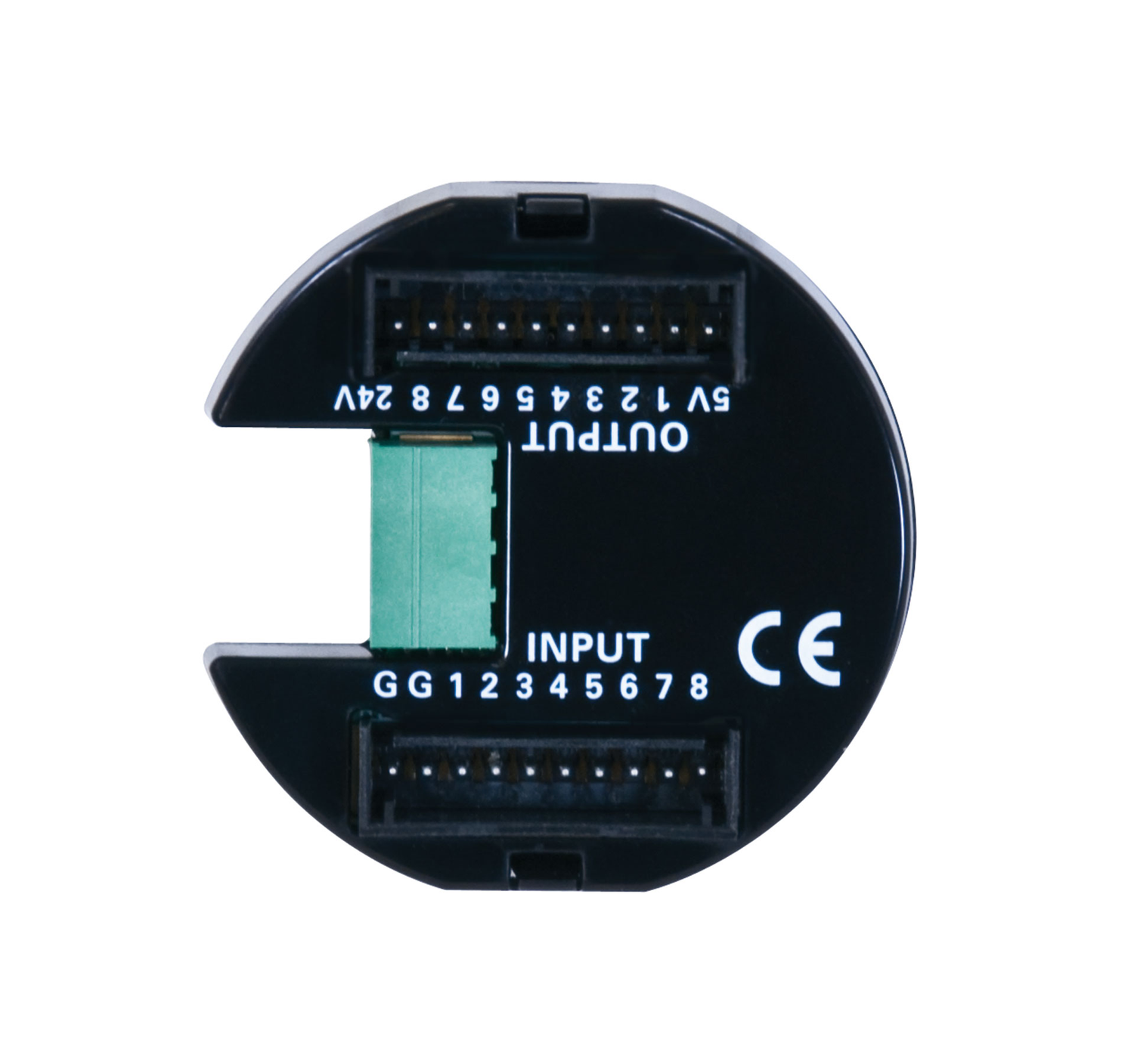

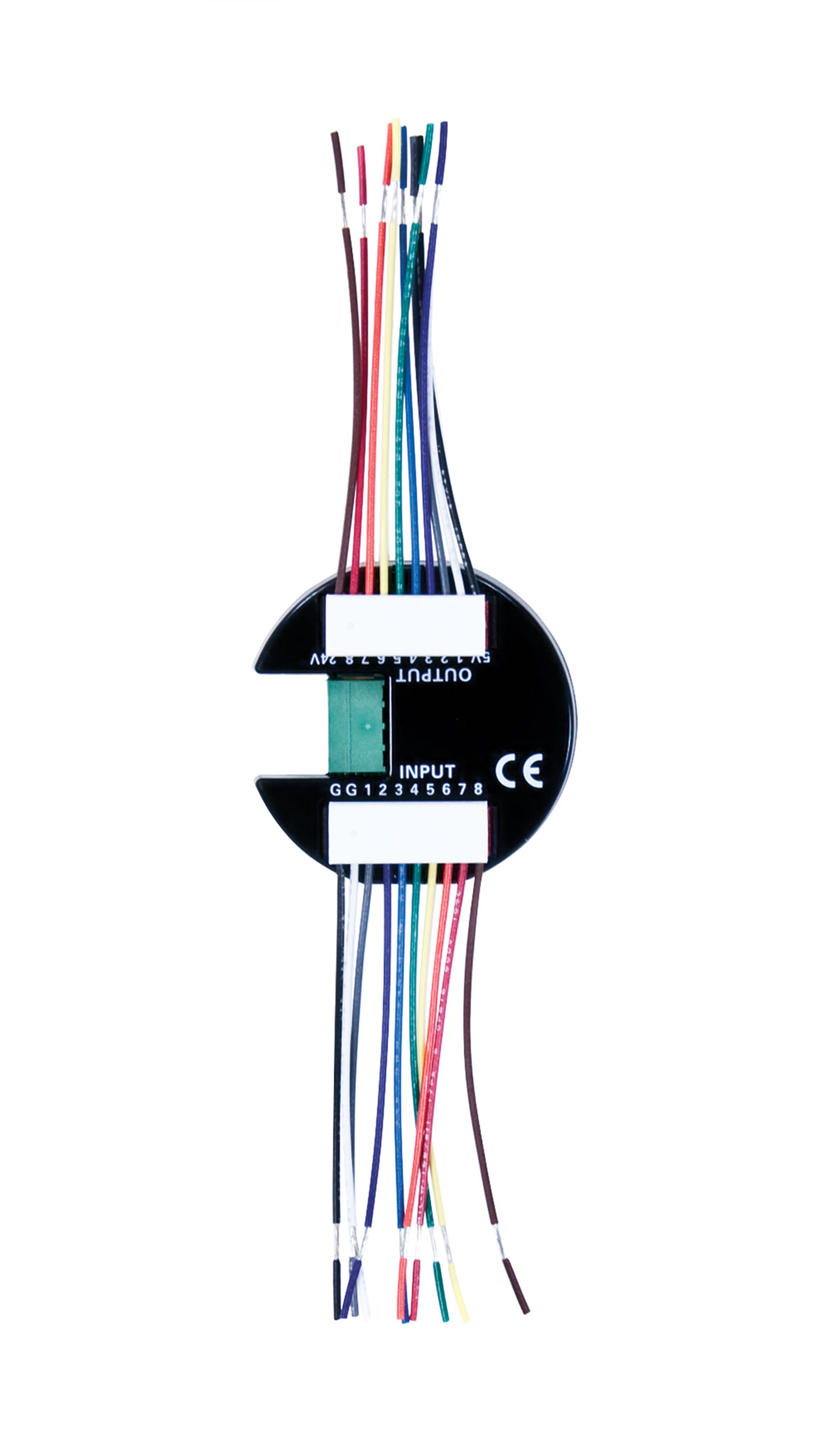

• Connectors: NET — (1) 4-pin 3.5 mm terminal block (Cresnet slave); INPUT — (1) 10-pin 0.1-in IDC with flying leads; OUTPUT — (1) 10-pin 0.1-in IDC with flying leads
• Dimensions: 52.3 mm H x 51.9 mm W x 17.3 mm D (2.06 x 2.05 x 0.68 in)
• Weight: 23.1 g (0.815 oz)
• Operating Temperature: 0° to 40°C (32° to 104°F)
• Operating Humidity: 10% to 95% RH non-condensing
• SKU: C2N-UNI8IO

FAQs

Can the C2N-UNI8IO control any keypad brand?
Yes. Any keypad or switch panel that provides dry contact closures can be wired to the C2N-UNI8IO inputs, allowing it to send events to a Crestron control processor via Cresnet.

Does the C2N-UNI8IO require its own power supply?
No. The device draws 0.5 W directly from the Cresnet bus. The 24V pass-through on the output connector supplies external devices such as LEDs, but that power comes from the Cresnet infrastructure.

Where can I purchase the C2N-UNI8IO?
Creation Networks (creationnetworks.net) is an authorized Crestron dealer and stocks the C2N-UNI8IO along with Cresnet accessories and compatible control processors.
