Crestron C2N-RTHS – Cresnet Remote Temperature and Humidity Sensor
Product Overview

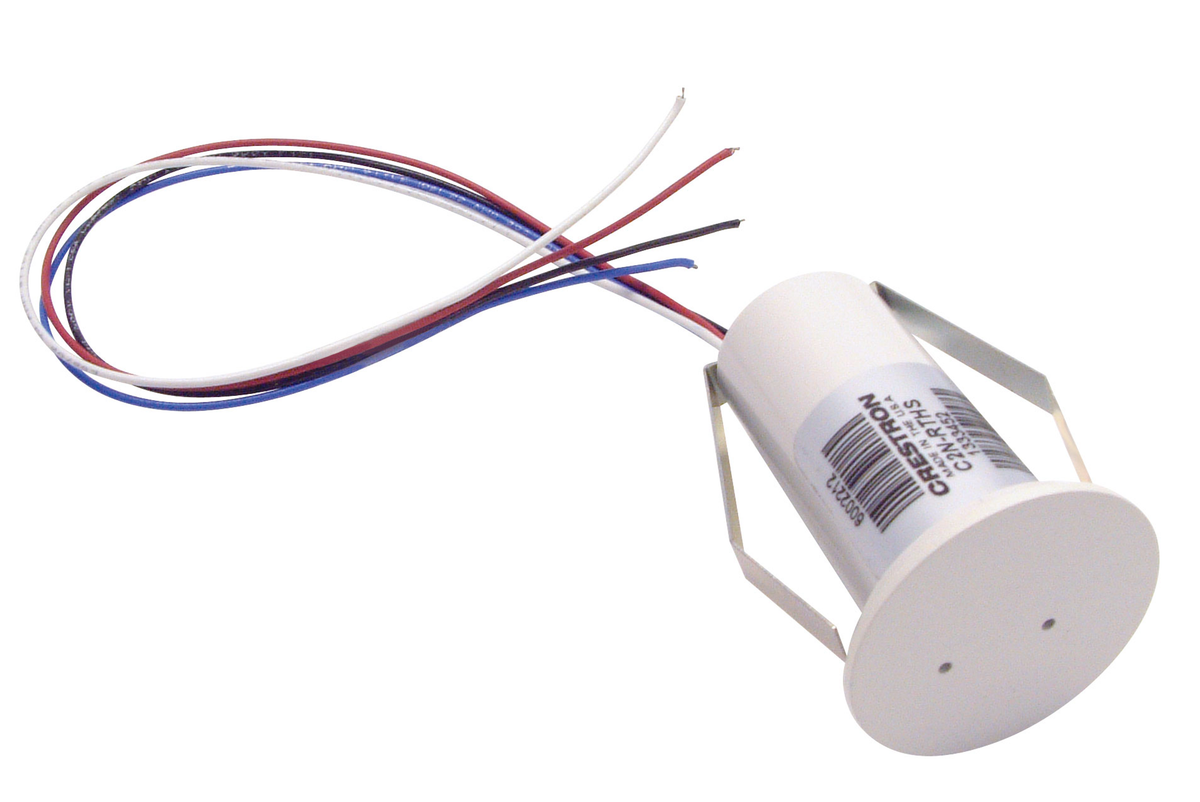

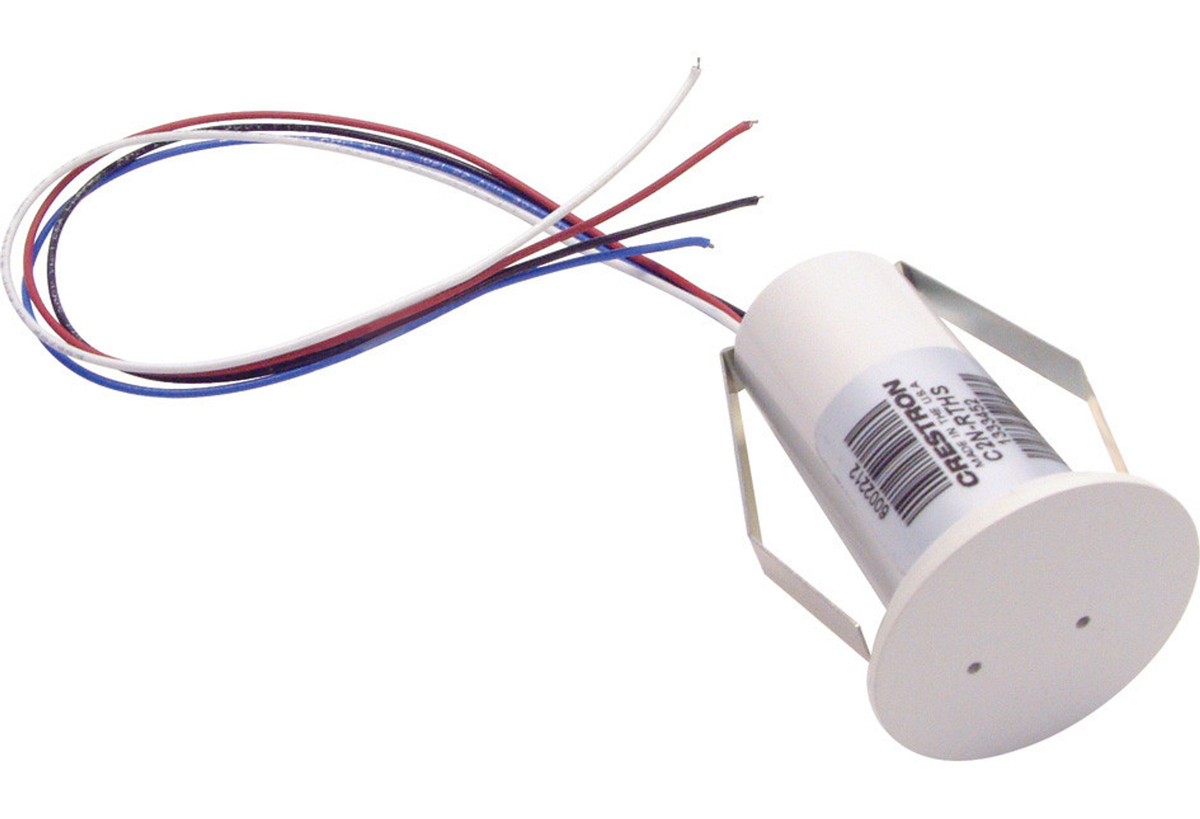

The Crestron C2N-RTHS is a wall-mounted remote temperature and relative humidity sensor that communicates over the Cresnet wired control network. Its compact cylindrical form factor with a 1.5-inch diameter face protrudes only 1/8 inch from the wall surface, making it nearly invisible in a finished space. It can be painted or wallpapered to match the surrounding wall.
Product Description
Designed for simple one-piece mounting in a 1-inch round hole in drywall, the C2N-RTHS connects to any Crestron control system via a 4-wire Cresnet pigtail approximately 10 inches in length. It measures temperature from -40° to 176°F with ±1°F accuracy and relative humidity from 0% to 100% RH with ±5% tolerance. Temperature output resolution is 0.1°F and humidity resolution is 1% RH. A recessed Touch-Settable ID (TSID) button allows network address assignment without Crestron Toolbox. The optional MMK-RS pre-construction mounting kit (sold separately) simplifies rough-in wiring and allows completely flush mounting for a wall-level installation.
Key Features
- Temperature range: -40° to 176°F (-40° to 80°C), ±1°F accuracy
- Relative humidity range: 0% to 100% RH, ±5% tolerance
- 1.5-inch diameter face protrudes only 1/8 inch from wall surface
- Primed metal cap accepts paint or wallpaper for concealed installation
- Cresnet wired communication, 4-wire pigtail connection
- Recessed TSID button for network address assignment
- Compatible with optional MMK-RS pre-construction mounting kit
- 0.25 W Cresnet power draw
Typical Applications
- Concealed climate monitoring in hotel guest rooms and hospitality spaces
- Residential automation zones requiring discreet temperature and humidity sensing
- Server room or equipment room environmental monitoring via Cresnet network
- Commercial office zones where sensor aesthetics must match wall finishes
- Multi-zone Crestron HVAC control systems requiring distributed sensing
Technical Specifications
| Parameter | Value |
|---|---|
| Temperature Range | -40° to 176°F (-40° to 80°C) |
| Temperature Tolerance | ±1°F (±0.5°C) over full range |
| Temperature Resolution | 0.1°F (0.1°C) |
| Humidity Range | 0% to 100% RH |
| Humidity Tolerance | ±5% RH |
| Humidity Resolution | 1% RH |
| Communication | Cresnet wired, 4-wire pigtail ~10 in (254 mm) |
| Power | 0.25 W (0.01A @ 24 VDC) via Cresnet |
| Diameter | 1.50 in (39 mm) |
| Depth | 2.22 in (57 mm) |
| Mounting | 1 in (26 mm) round hole in drywall; flush mount with MMK-RS (sold separately) |
| Construction | Cylindrical plastic body, primed metal cap |
Frequently Asked Questions
Q: Can the C2N-RTHS be used with any Crestron control system?
A: Yes. The C2N-RTHS communicates over the Cresnet wired bus and is compatible with any Crestron control system that supports Cresnet slave devices.
Q: Is the sensor completely flush with the wall?
A: By default, the sensor protrudes 1/8 inch from the wall surface. Using the optional MMK-RS pre-construction mounting kit, the sensor can be installed completely flush with the drywall.
Q: Does the C2N-RTHS require external power?
A: No. The sensor is powered entirely over the Cresnet wiring at 0.25 W (0.01A @ 24 VDC). No separate power supply is needed.
