Crestron AUD-EXT-100 – Audio over CAT5 Extender, One Stereo Signal

Product Overview

The Crestron AUD-EXT-100 extends a single unbalanced stereo analog audio signal up to 2,000 feet using standard CAT5 or better UTP cable. It consists of one transmitter and one receiver, both completely passive with no power required, making it a cost-effective and reliable solution for distributing audio signals across large facilities.

Product Description

AV designers and integrators use the AUD-EXT-100 to transport unbalanced stereo line-level audio over existing or new CAT5 infrastructure without the cost or complexity of active signal processors. Because both units are passive, there are no power supplies to source or fail in the field. The extender delivers professional-quality audio performance with bandwidth from 20 Hz to 20 kHz, THD+N below 0.1%, and a signal-to-noise ratio above 100 dB.

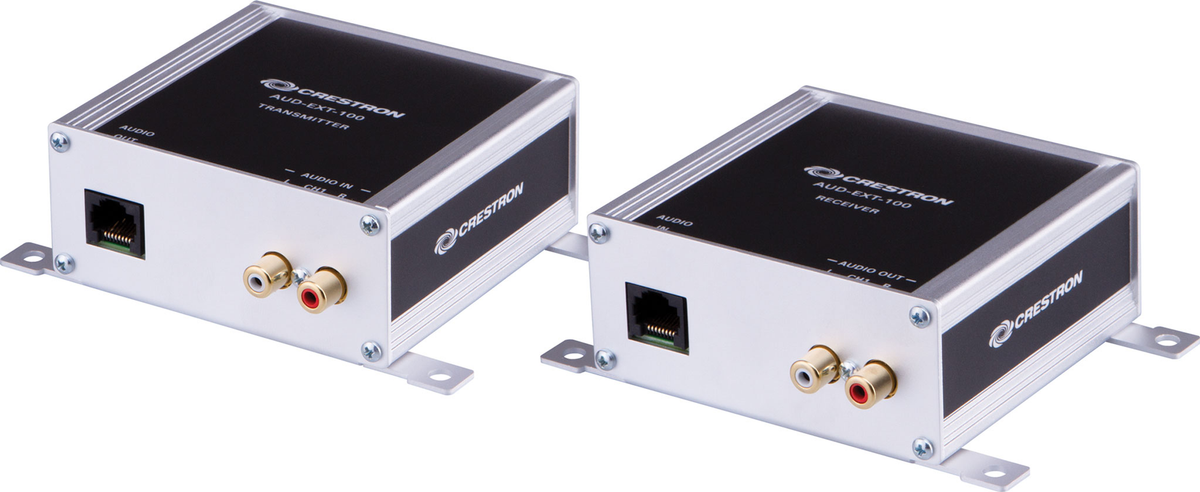

Each unit features an RJ-45 port for the CAT5 extension run and a pair of RCA connectors for the unbalanced stereo line-level audio connection. The aluminum chassis includes integral mounting flanges so units can be mounted to a flat surface, to a single rack rail, or positioned freestanding. Three AUD-EXT units fit side by side on a standard 1U 19-inch rack shelf.

The AUD-EXT-100 is ideal as an audio return channel in Crestron Sonnex multiroom audio systems. Shop the full AUD-EXT Series at Creation Networks: creationnetworks.net.

Key Features

• Extends one unbalanced stereo audio signal up to 2,000 ft (610 m) via CAT5 or better UTP cable
• Completely passive — no power supply required for either transmitter or receiver unit
• Audio bandwidth: 20 Hz to 20 kHz; THD+N: less than 0.1% at 20 Hz, 2 Vrms
• Signal-to-noise ratio: greater than 100 dB; Crosstalk: less than -70 dB
• RJ-45 CAT5 extension port and RCA stereo connectors on both transmitter and receiver
• Aluminum chassis with integral mounting flanges for surface, rack rail, or freestanding installation
• Three units fit side by side on a standard 1U 19-inch rack shelf

Typical Applications

• Audio return channels in Crestron Sonnex multiroom audio distribution systems
• Extending a stereo source from a head-end equipment room to a remote zone amplifier or zone input
• Distributing audio in commercial facilities, hospitality venues, or large residences where source and output are separated by long cable runs
• Adding analog audio infrastructure to existing CAT5 structured wiring plants

Technical Specifications

• Signal Type: One unbalanced stereo line-level audio (per unit direction)
• Maximum Extension Distance: 2,000 ft (610 m) via CAT5 or better UTP cable
• Bandwidth: 20 Hz to 20 kHz
• THD+N: Less than 0.1% at 20 Hz, 2 Vrms
• S/N Ratio: Greater than 100 dB
• Crosstalk: Less than -70 dB
• Input Impedance: 10k Ohms; Maximum Input Level: 2 Vrms
• Output Impedance: 100 Ohms; Maximum Output Level: 2 Vrms
• Transmitter Connectors: (1) RJ-45 female CAT5 output; (1) pair RCA female stereo input
• Receiver Connectors: (1) RJ-45 female CAT5 input; (1) pair RCA female stereo output
• Power: Passive — no power required
• Chassis: Aluminum with polycarbonate label overlay and integral mounting flanges
• Dimensions (each unit): 5.12 in W x 3.79 in D x 1.68 in H (131 mm x 97 mm x 43 mm)
• Mounting: Freestanding, surface mount, or single rack rail
• Environmental: 41 to 122F (5 to 50C); 10% to 90% RH noncondensing

Frequently Asked Questions

Does the AUD-EXT-100 work with digital S/PDIF audio signals?

No. The AUD-EXT-100 extends only one unbalanced analog stereo signal. For S/PDIF digital audio extension, use the AUD-EXT-201 model instead.

Is any configuration or setup required after connecting the transmitter and receiver?

No. Both units are completely passive and require no configuration. Connect the audio source to the transmitter RCA inputs, run a CAT5 (or better) cable to the receiver, and connect the receiver RCA outputs to the destination device.

Can the AUD-EXT-100 be used with Crestron DM or other CAT-based signal extension technologies?

No. AUD-EXT CAT5 extension technology is not compatible with Crestron Sonnex Link, Crestron Home, DigitalMedia (DM), or other CAT-based signal extension systems.
