Crestron X Series Media Presentation Amplifier - AMP-X50MP

Availability: Call for Availability
Crestron SKU: AMP-X50MP
No reviews
Price:
$496.00

Description

Spec Sheet

The Crestron® AMP-X50MP is a low-cost audio amplifier solution that is suitable for a variety of applications. It features a compact, surface‑mountable design that installs virtually anywhere without requiring an equipment rack.

LoZ (4/8 Ω) and Hi-Z (70V or 100V) Output
High-efficiency Class D circuitry delivers 25 W per channel to drive one pair of 4 or 8 Ohm speakers, making it ideal to support stereo speakers at the front of a room or mono speakers in the ceiling. The amplifier can also be used with Hi-Z (70/100V) speakers, delivering 50 W.

Convection Cooling
The efficient design provides cool running operation to ensure long term reliability. The AMP-X50MP is high-density stackable with other Crestron X Series and Modular Amplifiers, allowing multiple units to be installed vertically in an equipment rack without needing extra ventilation space.

Easy Installation

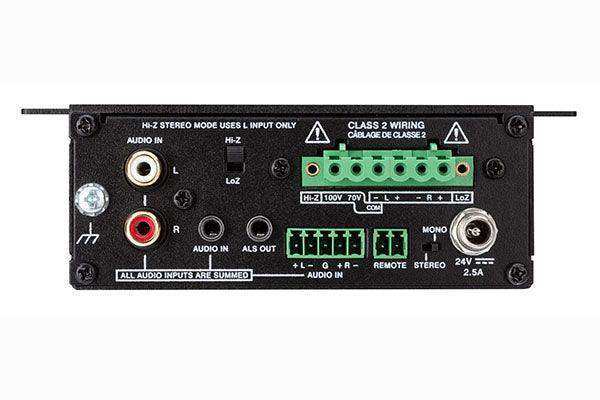

Installation and setup of the AMP-X50MP is simple. Detachable connectors facilitate the termination of wiring. Balanced and unbalanced inputs can connect directly to the line output of a video projector or display, audio processor, mixer, or AV switcher. Independent controls for volume, bass, and treble allow a custom sound in any location. A knob cover is included with the product to protect against accidental changes to the front panel settings.

Fully Protected
The AMP-X50MP features protection against overheating, shorted or overloaded speaker lines, excessive input signals, and other faults. In the case of a shorted speaker line, both outputs mute automatically until the fault condition is resolved.

ENERGY STAR® Certified
An energy-efficient design enables the AMP-X50MP to meet demanding ENERGY STAR requirements. In addition to its high efficiency operation, the AMP-X50MP powers down automatically when no input signal is detected for more than 25 minutes, reducing overall power consumption and heat as part of an Energy Star® compliant system design. The amplifier quickly powers back on the instant an input signal is detected. A remote input can connect to a contact closure to place the amplifier in standby mode.

  • Compact and versatile power amplifier
  • 2 x 25 W per channel (1 x 50 W) into 4 or 8 Ohm speakers
  • 1 x 50 W output for Hi-Z (70V and 100V) speakers
  • Balanced, unbalanced, and stereo 3.5 mm inputs with auto summing
  • Stereo or mono-summed operation
  • Remote power control
  • Energy saving design reduces power consumption when idle
  • Highly sensitive audio-sensing circuitry with high-speed wake time
  • Convection cooled for noiseless operation

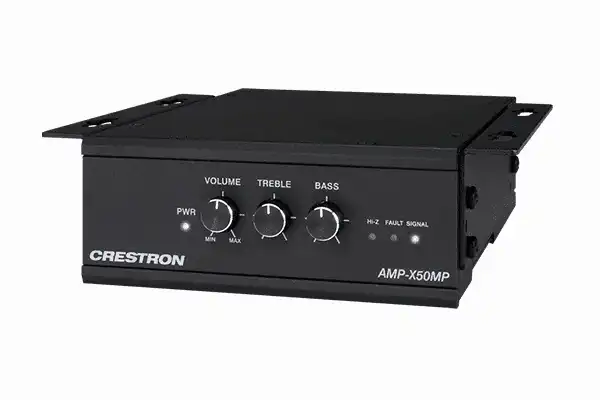

  • Volume, bass, and treble adjustments
  • Knob cover protects accidental changes to the device settings
  • Captive speaker and power connectors for secure and robust connectivity
  • Electronic short-circuit and overload protection
  • Factory installed surface mount flange brackets are removable and reversible
  • Quarter-Rack width for rack mounting with optional kit
  • 60 W DC power supply with locking barrel connector and DC cable included

AMP-X50MP Specifications

Audio
Input Signal Types Balanced or unbalanced analog line-level
Output Power

Mode 1 Channel Driven 2 Channels Driven
LoZ 8 ohm: 25 W
4 ohm: 50 W		 8 ohm: 25 W
4 ohm: 25 W
Hi-Z 70V 50 W N/A
Hi-Z 100V 50 W N/A
Frequency Response LoZ (4-8 Ohms): 20 Hz to 20kHz
+/-0.5 dB at 1 W;
Hi-Z (70V/100V): 90 Hz to 20kHz
+/-3 dB at 1 W;
HPF @ 80 Hz (+/-10 Hz),
-12 dB/Octave
THD+N < 0.1 % at 1kHz @ -3 dB full rated output power
S/N Ratio > 90 dBA, 20 Hz to 20kHz, balanced, Hi-Z
Crosstalk -75 dB at 1 kHz
Input Sensitivity 1.23Vrms, +4 dBu balanced;
0.316Vrms, -10 dBV unbalanced;
For 25 W @ 8 Ohms
50 W @ 70V/100V
Gain 21.5 dB @ 8 Ohms, Balanced
Wake Signal Threshold -57 dBu (1 mV) max
Protection Clip limiter, over current, under voltage, over temperature, DC offset, extreme high frequency
