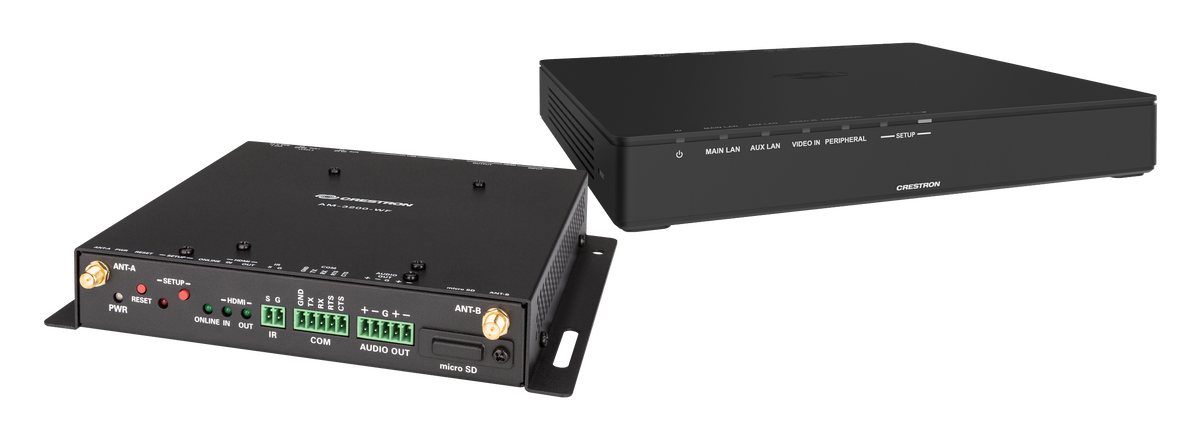

Crestron AM3-222 KIT – AirMedia Series 3 Wireless Presentation Kit with TX3-200

Product Overview

The Crestron AM3-222 KIT bundles the AM-3200-WF AirMedia Series 3 wireless presentation receiver with two AM-TX3-200 tabletop endpoint units, providing a complete out-of-box wireless presentation and USB conferencing solution for conference rooms and collaboration spaces. The AM-3200-WF receiver supports Wi-Fi 6, wired Ethernet, and up to four simultaneous wireless sources via AirMedia Canvas, while the AM-TX3-200 endpoints deliver 4K30 presentation via HDMI or USB-C and provide USB conferencing peripheral access for the connected laptop. This kit is suited for conference rooms where a permanent tabletop transmitter is preferred over a plug-in dongle.

Product Description

The AM-3200-WF receiver at the heart of this kit accepts a local HDMI input at up to 1080p60 and outputs to a display at up to 4K60 over HDMI. It supports four simultaneous wireless sources via AirMedia Canvas, allowing participants to share content from Windows, Mac, iOS, Android, and Chromebook devices using the AirMedia app, Apple Screen Mirroring, Chrome Extension, or a connected AM-TX3 adaptor or endpoint. Wi-Fi 6 (802.11ax) dual-band wireless with two external antennas covers up to 70 feet at 80 Mbps; wired Ethernet at 100/1000 Mbps is available for rooms where wireless infrastructure is not preferred. IEEE 802.1X authentication, AES content encryption, TLS, and SSL ensure compliance with enterprise security policies. The AM-TX3-200 endpoints included in this kit are tabletop devices with both HDMI Type A and USB-C with DisplayPort Alt Mode inputs, accepting 4K30 video from laptops and other sources. The primary USB-C port (USB2/DP-S TO HOST) passes video, audio, and data to the receiver; a second USB-C port (USB2 TO HOST) provides access to USB conferencing peripherals — cameras, speakerphones, and microphones connected to the room — from the presenter’s laptop. Each AM-TX3-200 has a wired Ethernet pass-through port (RJ-45 AUX) at 100/1000 Mbps, and when DC-powered delivers PoE+ Class 4 output on that port for powering a touch panel. Each endpoint is PoE+-powered (IEEE 802.3at) via its LAN port, consuming 4 W idle and 12.5 W active, or can be powered via a DC adapter (PW-2420RU, sold separately). The AM-3200-WF is also PoE-capable as a powered device (IEEE 802.3af), making it possible to power the entire kit from the network switch without separate power supplies. The receiver outputs balanced/unbalanced stereo audio via a 5-pin 3.5 mm terminal block (4 Vrms balanced) and supports 2-way RS-232 display control plus 1-way IR/serial for display power management. XiO Cloud management provides centralized provisioning, monitoring, and firmware updates across multi-room deployments.

Key Features

• AM-3200-WF Receiver — Wi-Fi 6 dual-band wireless, 4K60 HDMI output, four simultaneous AirMedia Canvas sources.
• Two AM-TX3-200 Tabletop Endpoints — HDMI and USB-C inputs; 4K30 presentation; USB conferencing peripheral access for the presenter’s laptop.
• Wi-Fi 6 (802.11ax) — Dual-band 2.4/5 GHz wireless with two external antennas; up to 70 ft range at 80 Mbps.
• 4K30 Presentation, 4K60 Display Output — Sources share at up to 4K30; receiver outputs to display at up to 4K60.
• USB Conferencing Integration — AM-TX3-200 provides laptop access to room USB peripherals (camera, speakerphone) for Teams, Zoom, and other UC platforms.
• PoE-Powered — AM-3200-WF powers via IEEE 802.3af; AM-TX3-200 powers via IEEE 802.3at PoE+; no separate power adapters required.
• Enterprise Security — IEEE 802.1X, AES content encryption, TLS, SSL, and HTTPS browser management.
• AirMedia Canvas — Four simultaneous wireless sources displayed in a configurable layout on the room display.
• Display Control — RS-232 2-way and IR/serial 1-way display control for automated power management.
• XiO Cloud Management — Centralized provisioning, remote monitoring, and firmware updates across all deployed units.

Typical Applications

• Conference room wireless presentation with permanent tabletop transmitters
• Boardroom with USB conferencing peripheral integration for BYOM (Bring Your Own Meeting)
• Training room multi-source wireless sharing with AirMedia Canvas
• Commercial meeting space with managed AirMedia infrastructure
• All-hands room requiring simultaneous wireless content sharing from multiple presenters

Technical Specifications

Frequently Asked Questions

What is the difference between the AM3-222 KIT and AM3-212 KIT?
The AM3-222 KIT includes two AM-TX3-200 tabletop endpoints with HDMI and USB-C inputs, wired Ethernet, and USB conferencing peripheral access. The AM3-212 KIT includes two AM-TX3-100 dongles (plug-in USB-C adaptors) and a cradle. The TX3-200 is better suited for conference rooms with a permanent table box; the TX3-100 is more appropriate for huddle rooms or hot-desking where users carry their own adaptor.

Does the AM-TX3-200 support USB conferencing peripherals?
Yes. The USB2 TO HOST port on the AM-TX3-200 passes USB peripheral access from the room (connected camera, speakerphone, or microphone) to the presenter’s laptop, enabling BYOM (Bring Your Own Meeting) workflows without requiring a separate dock or adapter.

How many sources can present simultaneously?
The AM-3200-WF supports AirMedia Canvas with up to four simultaneous wireless sources displayed in a configurable layout on the room display.

Does this system require a dedicated wireless network?
No. The AM-3200-WF includes a built-in Wi-Fi 6 access point with two external antennas and supports both infrastructure Wi-Fi and Wi-Fi Direct. It can also connect to the network via wired Ethernet.

What is the maximum presentation resolution?
Sources transmit at up to 4K30 (3840x2160@30Hz) from the AM-TX3-200 endpoints. The AM-3200-WF receiver outputs to the display at up to 4K60.

Is software installation required on the presenter’s laptop?
The AirMedia app is available for Windows and Mac for wireless presentation. When using the AM-TX3-200 endpoint via USB-C, no driver installation is required. Apple Screen Mirroring and Chrome Extension are also supported without additional software.
