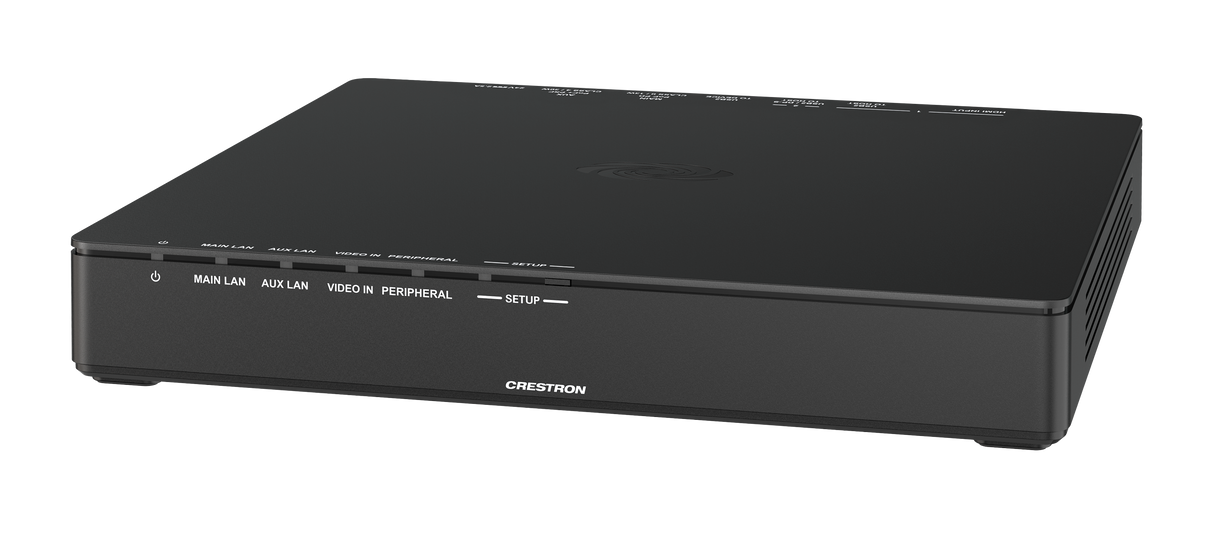

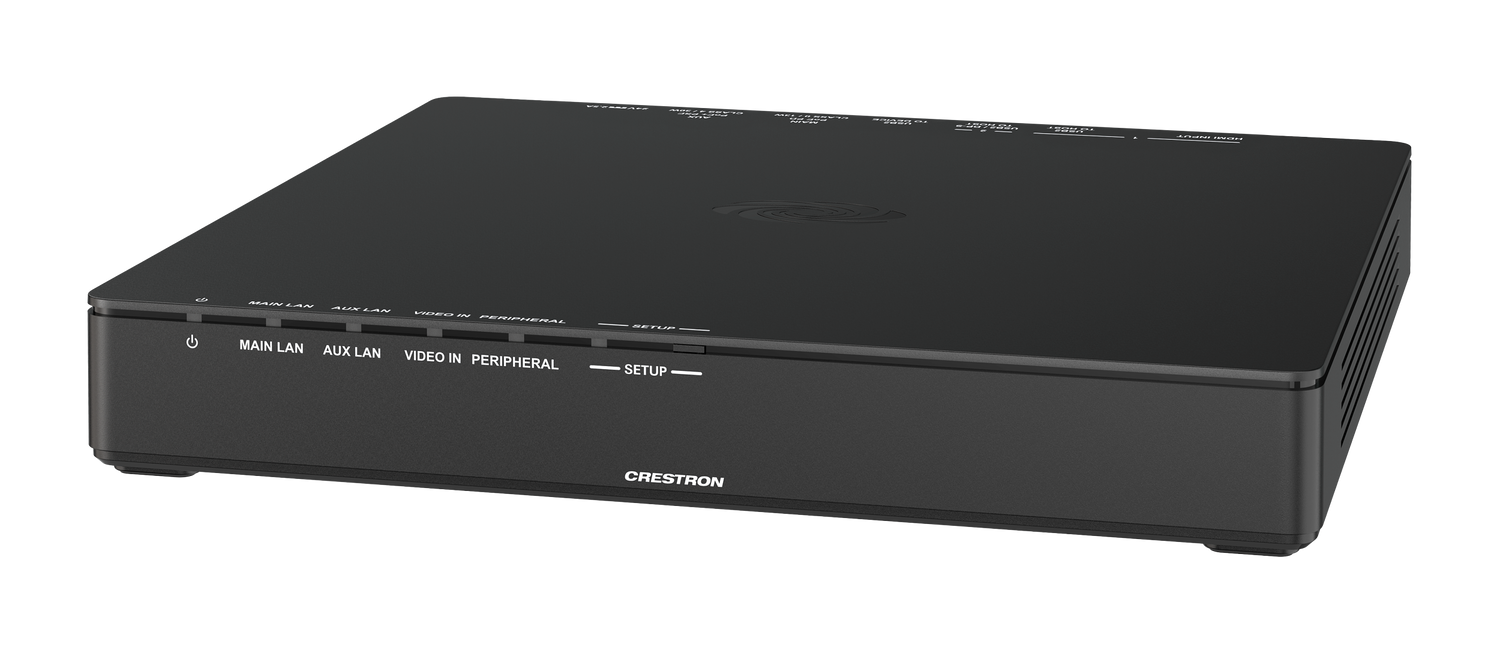

Crestron AM-TX3-200 – AirMedia Series 3 Connect Endpoint

Product Overview

The Crestron AM-TX3-200 is the transmitter half of the AirMedia Series 3 wireless presentation system. It connects directly to a presenter's laptop or device and pairs with a compatible AirMedia Series 3 Receiver to deliver wireless content sharing and USB peripheral access in conference rooms, classrooms, and collaboration spaces.

Product Description

Designed for integrators and IT managers who need a reliable, low-latency wireless presentation solution, the AM-TX3-200 supports both HDMI and DisplayPort Alt Mode over USB-C inputs. The unit is powered via USB-C from the connected laptop, PoE from the network, or an optional DC power supply, giving installers flexibility in how the device is deployed. A dedicated AUX PoE+ port can pass network access and power to a downstream touch panel or other device.

The AM-TX3-200 supports dual-band Wi-Fi 6 (802.11ax) for high-throughput wireless streaming and handles resolutions up to 3840x2160 at 30Hz. All video inputs are scaled to the paired receiver's output resolution. Pairing is accomplished via a front-panel SETUP button, with a recessed RESET button for restoring factory defaults.

The AM-TX3-200 is available from Creation Networks at creationnetworks.net.

Key Features

• Dual-band Wi-Fi 6 (802.11a/b/g/n/ac/ax, 2.4 GHz and 5 GHz) with up to 70 ft range at 80 Mbps
• HDMI input (HDCP 1.4, EDID) and DisplayPort Alt Mode over USB-C input
• Maximum output resolution 3840x2160@30Hz streamed to paired AirMedia Series 3 receiver
• 100/1000 Mbps autoswitching Ethernet with PoE (IEEE 802.3af Class 0) on MAIN port
• AUX PoE+ port (Class 4) provides passthrough Ethernet and power to downstream devices when powered by DC supply
• USB 2.0 peripheral sharing allows conferencing peripherals to be used by the presenter device
• Flexible power options: USB-C from laptop, PoE from switch, or optional PW-2420RU DC power pack

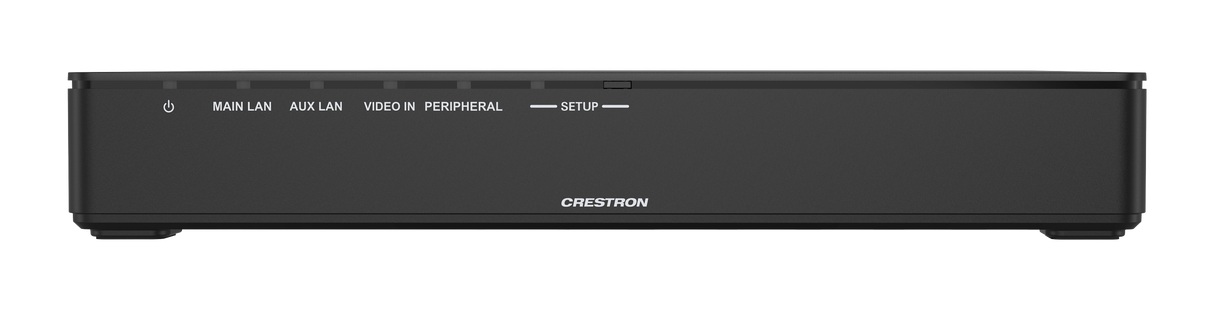

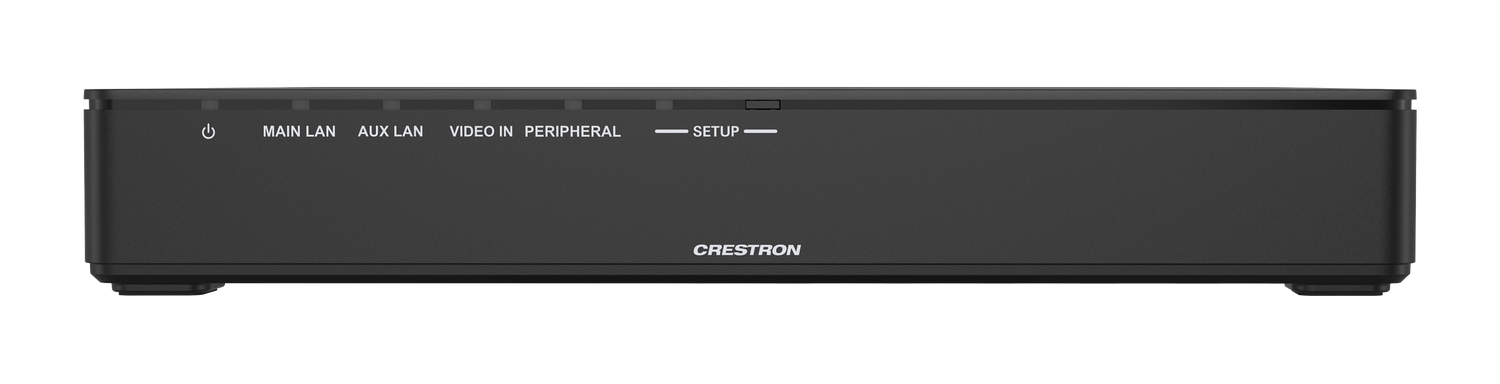

• LED status indicators for power, LAN, video input, peripheral activity, and setup state

Typical Applications

• Wireless presentation in corporate conference rooms paired with an AirMedia Series 3 Receiver
• Huddle spaces and small meeting rooms requiring simple plug-and-present capability
• Education classrooms where instructors connect laptops for content sharing without cable management at the table
• Boardrooms with integrated Crestron control systems requiring USB peripheral passthrough for conferencing cameras and speakerphones
• Flexible workspaces where the transmitter travels with the presenter between rooms

Technical Specifications

• Communications: Ethernet 100/1000 Mbps autoswitching, TCP/IP, DHCP, SSL, TLS, 802.3af PoE PD
• Wi-Fi: Wi-Fi 6 802.11a/b/g/n/ac/ax, 2.4 GHz and 5 GHz dual-band
• Video Input: HDMI (HDCP 1.4, EDID); DisplayPort Alt Mode over USB-C
• Maximum Resolution: 3840x2160@30Hz (2160p30)
• Audio I/O: 2-channel LPCM via HDMI and USB-C; streamed to receiver

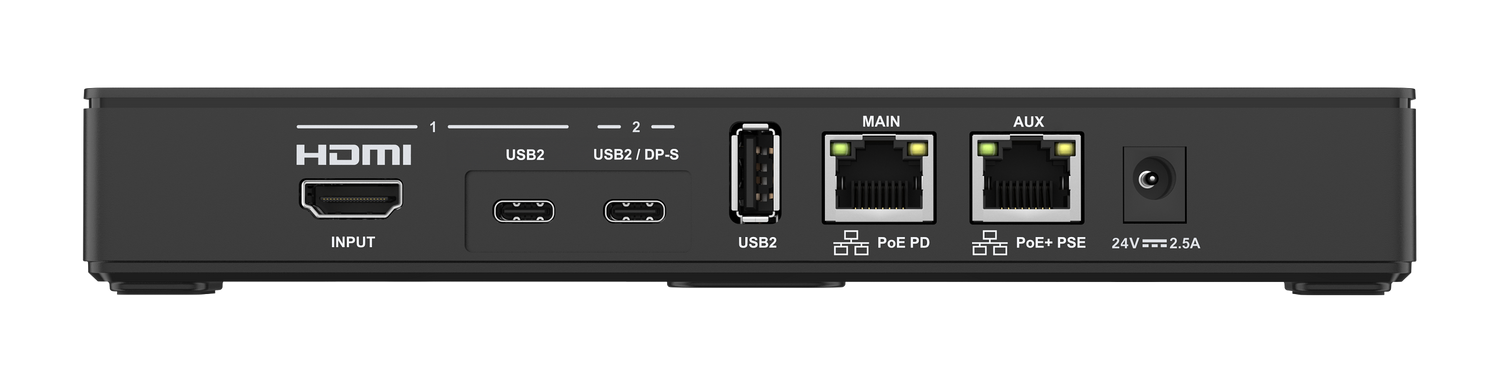

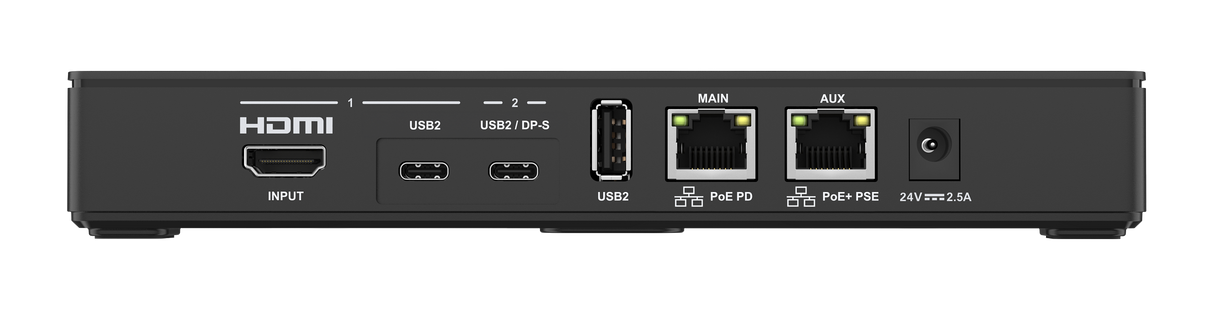

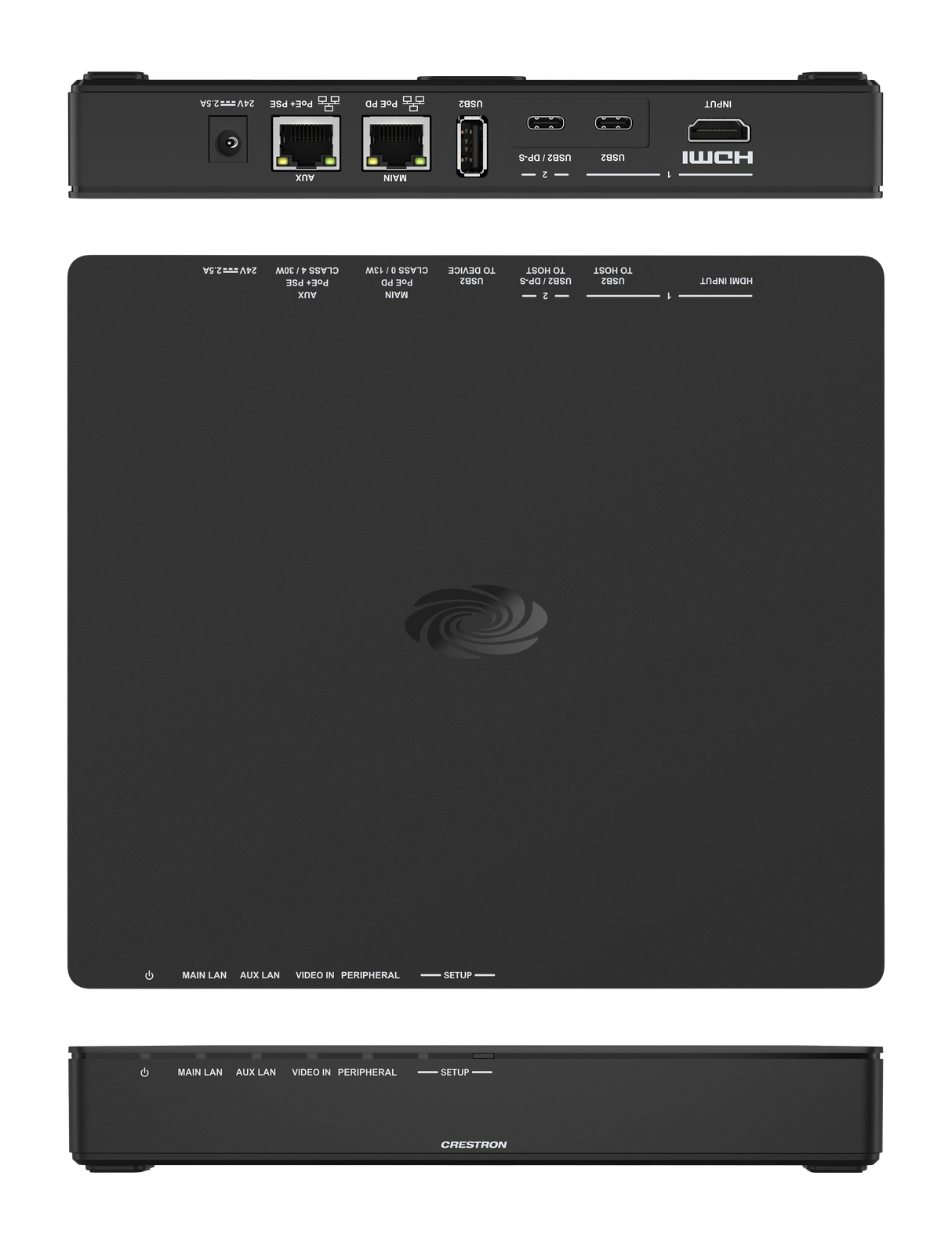

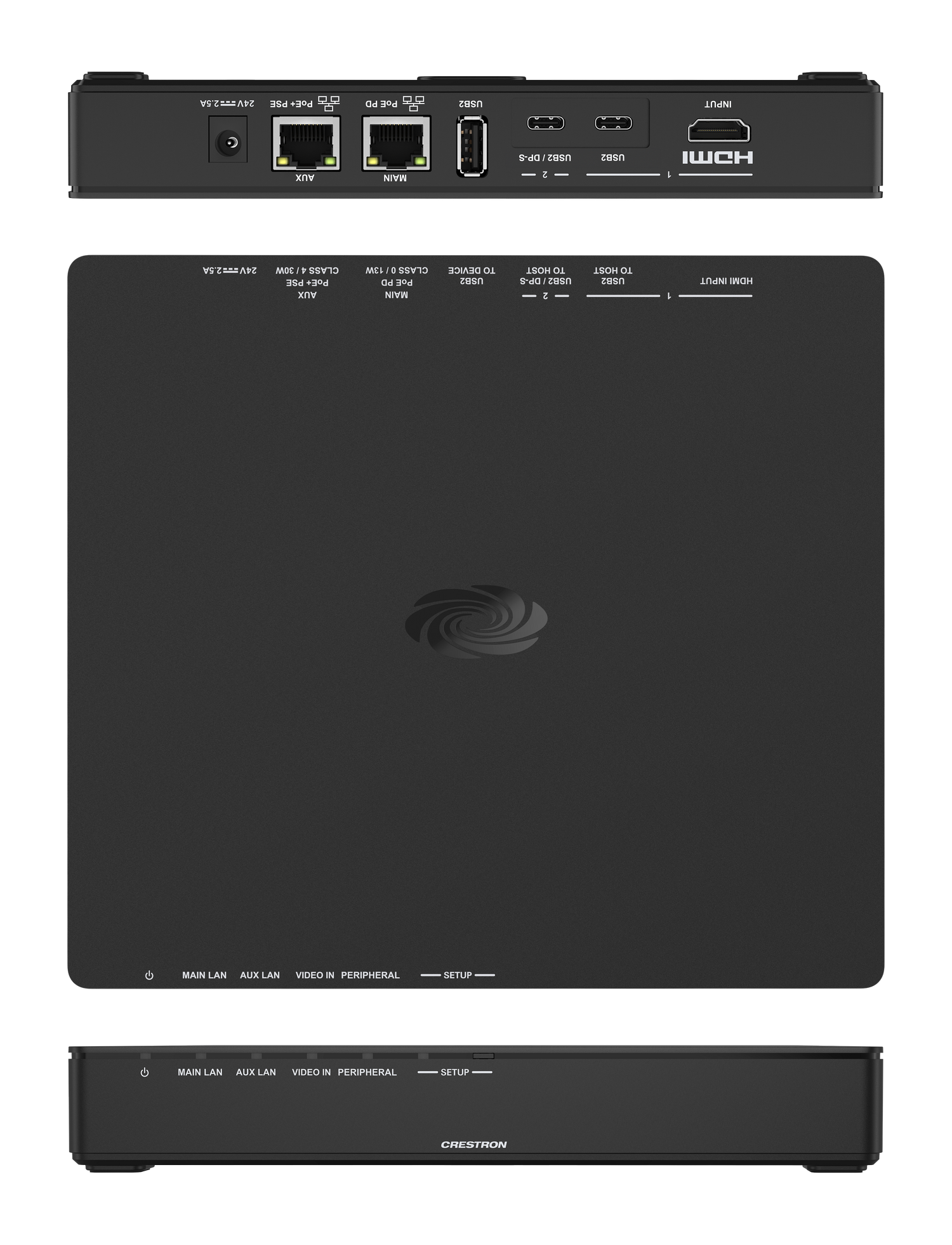

• Connectors: (1) HDMI Type A input; (1) USB-C DP Alt Mode + USB 2.0; (1) USB-C USB 2.0 to host; (1) RJ-45 MAIN PoE PD; (1) RJ-45 AUX PoE+ PSE; (1) 2.1x5.5mm DC input
• Power Consumption: 4W idle (PoE/DC); 12.5W in use (PoE/DC); 2.5W via USB-C
• OS Support: Windows 10, Windows 11, macOS 11 or newer
• Dimensions (device): 7.87 in W x 7.08 in D x 1.18 in H (200 mm x 180 mm x 30 mm)
• Weight (device): 21.06 oz (597 g)
• Environmental: 32 to 104F (0 to 40C); 10% to 90% RH noncondensing
• Compliance: FCC Part 15 Class B, IC, CE, Intertek Listed US and Canada

Frequently Asked Questions

Does the AM-TX3-200 require a separate receiver to function?

Yes. The AM-TX3-200 is a transmitter that must be paired with a compatible AirMedia Series 3 Receiver. The receiver connects to the room display and network; the AM-TX3-200 sends the wireless stream to it.

Can the AM-TX3-200 be powered without a network switch that supports PoE?

Yes. The device supports three power methods: PoE (IEEE 802.3af) from a network switch, USB-C power from the connected laptop, or the optional PW-2420RU DC power pack (sold separately, 24VDC 2.5A).

What USB peripherals are supported for conferencing?

The AM-TX3-200 supports most mainstream USB conferencing peripherals including cameras and speakerphones. Crestron maintains a compatibility list; refer to Crestron OLH Answer ID 1001764 for the current supported peripheral list.
