Overview

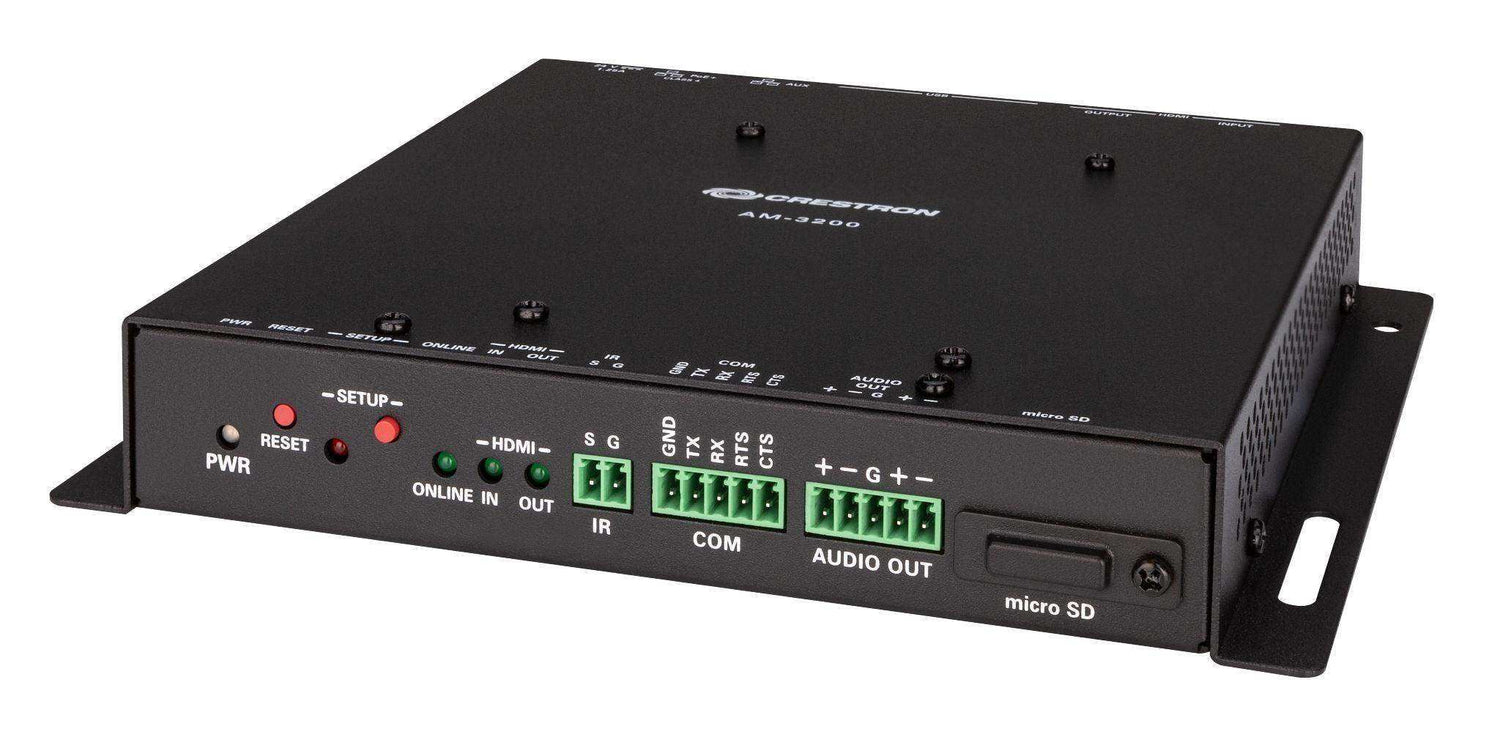

The AirMedia® Receiver 3200, Government Version (AM-3200-GV) enables secure wireless collaboration in the modern digital workspace. Easy to deploy and manage, install the Receiver in conference rooms, huddle rooms, lounges, lobbies, or almost any space to establish a productive meeting environment. The AM-3200-GV is a fully featured TAA-compliant AM-3200 that is suitable for government deployments.
Connect and Present
The AirMedia Series 3 Receiver can be installed beneath, beside, or behind a wall-mount display and enables a smart room with wireless collaboration. The receiver features AirMedia wireless presentation capability, an HDMI® output that connects to a display (up to 4K), an HDMI input, and various USB interfaces for wireless conferencing. Connect your laptop, smart phone, tablet, or other source type to instantly present the source image on the display.
AirMedia Wireless Presentation
With AirMedia technology, users can wirelessly present content from laptops, smartphones, and tablet devices via an external Wi‑Fi® wireless network. Present content from desktop or laptop computers using downloadable client software, the AirMedia extension for the Google Chrome™ web browser (Windows® 10 and Windows 11 computers only). Present content from Android™ and iOS® mobile devices with the AirMedia app.
Features
- Fully featured TAA-compliant AM-3200 suitable for government deployments
- Complete room solution enables secure presentation from laptops, smartphones, and tablet devices using either a wired HDMI® connection or a wireless AirMedia® connection
- Integration friendly features such as HDMI® input, dual LAN, balanced audio output, and display control via RS-232 and IR
- Enables smart automation via intelligent display control, occupancy detection, and integration into a broader connected ecosystem
- Enterprise-grade security and content encryption protects privacy and ensures compliance with IT policies
- XiO Cloud® service support for remote provisioning and management
- Built-in digital signage functionality with support for Appspace® software and other web-based signage providers
- Supports content sharing of four simultaneous sources for multi-user collaboration with AirMedia Canvas
- Wireless conferencing and presentation allows for collaboration with in-room and remote participants
Specs
| Communications | |
| Ethernet | 100/1000 Mbps, auto-switching, autonegotiating, autodiscovery, full/half duplex, TCP/IP, UDP/IP, DHCP, SSL, TLS5, SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1x, Active Directory authentication, HTTPS web browser setup and XiO Cloud service, 802.3af compliant |
| AirMedia | Via Ethernet: IPv4, mDNS, TLS, AES1 |
| USB Host | USB 2.0 for connecting a USB conferencing peripheral; USB 3.0 for connecting a USB conferencing peripheral |
| USB Device | USB 3.0 for computer console (installer setup and firmware update) |
| RS-232 | 2-way display device control up to 115.2k baud with hardware and software handshaking |
| IR/Serial | 1-way display device control via infrared up to 1.1 MHz or serial TTL/RS-232 (0-5V) up to 19.2k baud |
| HDMI Input | HDCP 1.4, EDID; Supports management of HDCP and EDID |
| HDMI Output | HDCP 2.2, EDID, CEC; Supports management of HDCP and EDID |
| AirMedia Software1 | |
| OS Support | Apple® iOS®, Android™, Windows 10, Windows 11, macOS®, Chrome OS™ |
| Video Frame Rate | Up to 30 fps, audio supported |
| Output Resolutions | 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x720@50Hz (720p50), 1280x720@60Hz (720p60), 1280x800@60Hz, 1366x768@60Hz, 1440x900@60Hz, 1600x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@50Hz (1080p50), 1920x1080@60Hz (1080p60) NOTE: All video inputs will be scaled to the selected HDMI output resolution. |
| Bitrate Peak | 0.25 to 8.5 Mbps, variable depending on content complexity |
| Bitrate Average | 1.4 Mbps typical NOTES:
|
| Audio Format | Stereo |
| Wireless Conferencing | |
| OS Support (AirMedia Application) | Windows 10, Windows 11 |
| Supported Conferencing Services | Microsoft Teams software; Zoom software |
| Supported Conferencing Peripherals | For a list of supported conferencing peripherals, refer to OLH 1001764. |
| Video | |
| Input Signal Types | AirMedia, HDMI (DVI & Dual-Mode DisplayPort™ compatible2); Simultaneous display of up to four sources with AirMedia Canvas |
| Maximum Input Resolutions | HDMI Input: 1920x1080@60Hz (HD 1080p60); AirMedia presentation: 1920x1080@30Hz (1080p30) NOTES:
|
| Output Signal Types | HDMI (DVI compatible2) |
| HDMI Output Resolutions | 1280x720@50Hz (720p50), 1280x720@60Hz (720p60), 1280x800@60Hz,6 1366x768@60Hz,6 1440x900@60Hz,6 1600x900@60Hz,6 1600x1200@60Hz, 1680x1050@60Hz,6 1920x1080@50Hz (1080p50), 1920x1080@60Hz (1080p60), 3840x2160@30Hz (2160p30), 3840x2160@50Hz (2160p50), 3840x2160@60Hz (2160p60) NOTE: All video inputs will be scaled to the selected HDMI output resolution. |
| Background & Logo File Support | JPEG, PNG |
| Audio | |
| Input Signal Types | AirMedia, HDMI (Dual-Mode DisplayPort™ compatible2) |
| Output Signal Type | HDMI |
| Input/Output Format | 2 channel LPCM |
| NOTE: Audio input signals are passed to the output without any processing. Volume control capability requires a display device with discrete volume, up, down, and mute commands available via CEC, IP, IR, or RS‑232. | |
| Connectors | |
| IR | (1) 2-pin 3.5 mm detachable terminal block; IR/Serial output port for display device control; IR output up to 1.1 MHz; 1-way serial TTL/RS-232 (0-5V) up to 19200 baud |
| COM | (1) 5-pin 3.5 mm detachable terminal block; Bidirectional RS-232 port for display device control; Up to 115.2k baud, hardware and software handshaking support |
| AUDIO OUT | (1) 5-pin 3.5 mm detachable terminal block; Balanced/unbalanced stereo line-level audio output; Maximum Output Level: 4 Vrms balanced, 2 Vrms unbalanced; Output Impedance: 200 ohms balanced, 100 ohms unbalanced |
| microSD | For caching digital signage content |
| HDMI INPUT | (1) HDMI Type A connector; HDMI digital video/audio input; (DVI & Dual-Mode DisplayPort compatible2) |
| HDMI OUTPUT | (1) HDMI Type A connector; HDMI digital video/audio output (DVI compatible2) |
| USB | (2) USB Type A connectors; USB 2.0 host port for USB conferencing peripheral; USB 3.0 host port for USB conferencing peripheral; (1) USB Type B connector; USB 3.0 device port for computer console |
| LAN PoE+ | (1) 8-pin RJ-45 connector; 100Base-TX/1000Base-T Ethernet port and PoE+ Class 4 |
| LAN AUX | (1) 8-pin RJ-45 connector; 100Base-TX/1000Base-T Ethernet port; Connects to a secondary, guest‑only network |
| 24VDC 1.25A | (1) 2.1 x 5.5 mm DC power connector; 24VDC power input; PW‑2412WU power pack sold separately |

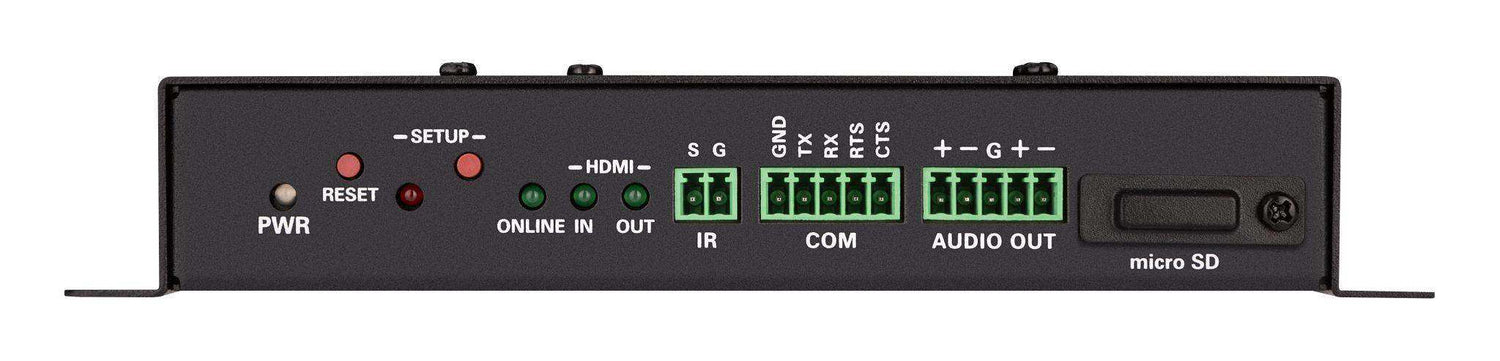

| Controls and Indicators | |
| PWR | (1) Green LED, indicates operating power supplied via the local power pack or PoE+ |
| RESET | (1) Recessed push button for hardware reset |
| SETUP | (1) Green LED and (1) recessed push button for onscreen IP address display |
| ONLINE | (1) Green LED, indicates control system connection |
| HDMI IN/OUT | (2) Green LEDs, indicate HDMI signal presence at the HDMI input/output |
| microSD | For future use |
| LAN PoE+ | (2) LEDs, green LED indicates Ethernet link status, amber LED indicates Ethernet activity |
| LAN AUX | (2) LEDs, green LED indicates Ethernet link status, amber LED indicates Ethernet activity |
| Power | |
| Power over Ethernet | IEEE 802.3af Class 4 Powered Device |
| Power Pack (sold separately) | Input: 100-240VAC, 50/60 Hz; Output: 1.25A @ 24VDC; Model: PW‑2412WU |
| Power Consumption | 14 W (typical) |
| NOTE: When wireless conferencing is used, the receiver must be powered by either Power over Ethernet+ (PoE+) or a power pack (sold separately). | |
| Environmental | |
| Temperature | 32° to 104°F (-0° to 40° C) |
| Humidity | 10% to 90% RH (non‑condensing) |
| Heat Dissipation | 47.8 BTU/hr |
| Construction | |
| Chassis | Metal, black finish, with (2) integral mounting flanges, vented sides |
| Mounting | Freestanding, surface mount, or attach to a single rack rail |
| Dimensions | |
| Height | 1.26 in. (33 mm) |
| Width | 7.40 in. (188 mm) |
| Depth | 6.54 in. (166 mm) |
| Weight | |
| 1.9 lb (0.86 kg) | |
