Overview

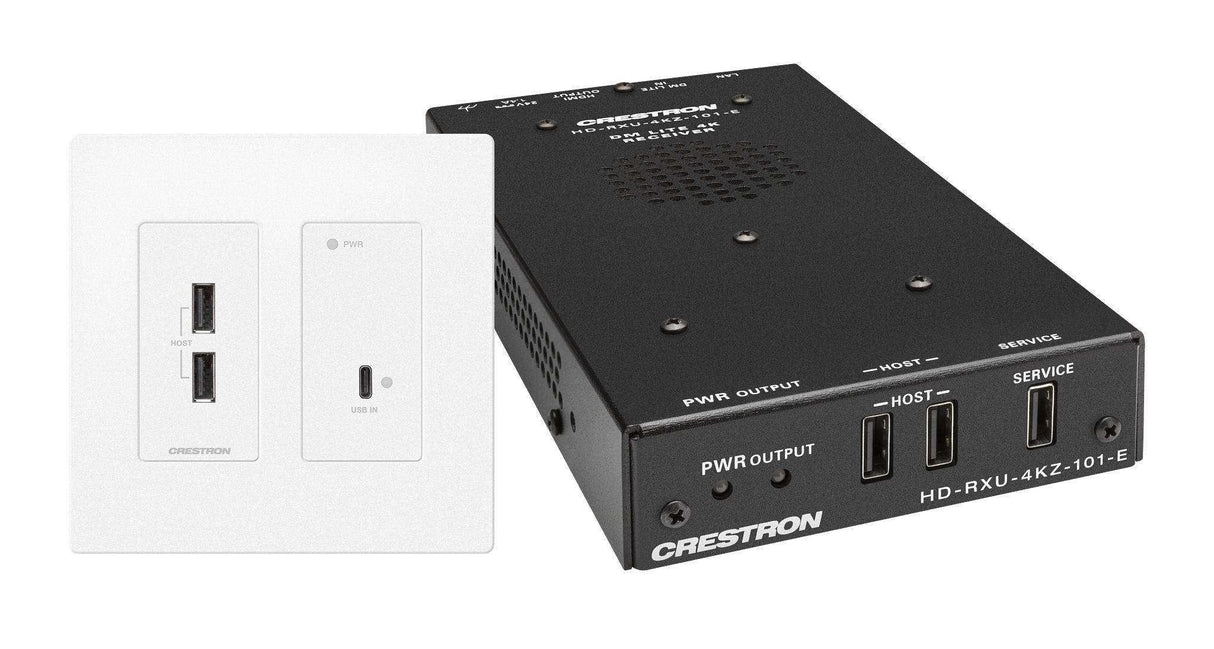

The DM‑EXT‑2011‑2G KIT consists of a wall plate transmitter (HD‑TXU‑4KZ‑111‑2G[‑W/B]) and receiver (HD‑RXU‑4KZ‑101‑E), and enables the extension of HDMI® and USB 2.0 signals. This is useful in applications where an AV source is located remotely from its destination, such as a display, projector, or codec solution. A CAT5e or higher twisted pair cable must be used to connect the transmitter and receiver.1
NOTE: Power is transmitted over the CATx cable that connects the transmitter to the receiver.
The DM‑EXT‑2011‑2G KIT is available in two models, the DM‑EXT‑2011‑2G‑B KIT and DM‑EXT‑2011‑2G‑W KIT. The DM‑EXT‑2011‑2G‑B KIT includes a HD‑TXU‑4KZ‑111‑2G‑B black wall plate transmitter, and the DM‑EXT‑2011‑2G‑W KIT includes a HD‑TXU‑4KZ‑111‑2G‑W white wall plate transmitter.
4K60 4:4:4 and HDR Support
The DM‑EXT‑2011‑2G‑B-KIT supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.2
USB 2.0 Data Extension
Two USB 2.0 host ports are provided on both the HD‑TXU‑4KZ‑111-2G and HD‑RXU‑4KZ‑101‑E, enabling connection to a wide variety of supported USB 2.0 peripheral devices.4
Low Profile Installation
The transmitter and receiver can be placed on or attached to a flat surface. The transmitter . The receiver can be mounted onto a wall behind a display or onto a ceiling above a projector. The devices are also rack rail mountable.
Features
- 4K60 video with 4:4:4 color sampling
- 2-gang wall plate transmitter and receiver for extension of a USB-C® DisplayPort™ AV signal, and USB 2.0 data signals over a CAT5e or higher cable
- 2x1 auto-switching transmitter and 2x1 auto-switching receiver for extension of a USB-C® DisplayPort™ AV signal or HDMI® signal and USB 2.0 data over a CAT5e or higher cable
- HDR10, HDR10+, and Dolby Vision® video formats
- Signal extension distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
- EDID and HDCP 2.3 management
- Consumer Electronics Control (CEC) capability
- EDID and CEC pass-through capability
- Low-profile installation
- 100-240VAC power pack included
Specs
| Video | |||||||||||||||||||||||||||||||||
| Input Signal Types | DisplayPort™ over USB-C® (DisplayPort Alt Mode) with HDR10, HDR10+, Dolby Vision®, Deep Color, and 4K60 4:4:4 support2 | ||||||||||||||||||||||||||||||||
| Output Signal Types | HDMI® with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support2 | ||||||||||||||||||||||||||||||||
| Copy Protection | HDCP 2.3 | ||||||||||||||||||||||||||||||||
| Maximum Resolutions | Common resolutions are listed in the following table. | ||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||
| Audio | |||||||||||||||||||||||||||||||||
| Input Signal Type | DisplayPort over USB-C (DisplayPort Alt Mode) | ||||||||||||||||||||||||||||||||
| Output Signal Type | HDMI | ||||||||||||||||||||||||||||||||
| Digital Formats | Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, Dolby Atmos®, DTS®, DTS ES, DTS 96/24, DTS HD® High Res, DTS-HD Master Audio, DTS:X®, LPCM up to 8 channels | ||||||||||||||||||||||||||||||||
| Communications | |||||||||||||||||||||||||||||||||
| HDMI | HDCP 2.3, EDID, CEC pass-through | ||||||||||||||||||||||||||||||||
| DM | HDCP 2.3, EDID; USB 2.0 up to 300 Mbps |
||||||||||||||||||||||||||||||||
| USB | USB signal extension via USB 2.0 host ports | ||||||||||||||||||||||||||||||||
| Connectors - Transmitter (HD‑TXU‑4KZ‑111‑2G) | |||||||||||||||||||||||||||||||||
| 24 VDC 0.5A | (1) 2-pin 3.5 mm detachable terminal block; 24VDC power input; Power pack not included NOTE: The power pack included with the receiver will power both units. Do not connect both power packs at once. |
||||||||||||||||||||||||||||||||
| DM | (1) 8-pin RJ-45 connector, female, shielded; DM output port for connection to the receiver1 |
||||||||||||||||||||||||||||||||
| USB INPUT | (1) USB Type‑C® connector, female; Digital video/audio input using DisplayPort Alt Mode; USB 2.0 data support |
||||||||||||||||||||||||||||||||
| HOST | (2) USB Type-A connectors, female; USB 2.0 host ports; USB signal extender ports for connection to USB mice, keyboards, or other USB 2.0 peripheral devices;4 Available Power: 500mA @ 5VDC per port |
||||||||||||||||||||||||||||||||
| Ground | (1) Chassis ground lug | ||||||||||||||||||||||||||||||||
| Connectors - Receiver (HD‑RXU‑4KZ‑101‑E) | |||||||||||||||||||||||||||||||||
| DM IN | (1) 8‑pin RJ‑45 yellow connector, female, shielded; DM input port for connection to the transmitter1 |
||||||||||||||||||||||||||||||||
| HDMI OUTPUT | (1) HDMI Type A connector, female; HDMI digital video/audio output (DVI compatible) |
||||||||||||||||||||||||||||||||
| 24 VDC 1.4A | (1) 2.1 x 5.5 mm DC power connector; 24VDC power input; PW-2420RU power pack included NOTE: The power pack included with the receiver will power both units. Do not connect both power packs at once. |
||||||||||||||||||||||||||||||||
| SERVICE | (1) USB 2.0 Type‑A connector, female; Used for firmware loading, configuration management, or as a USB host port for one TT-100 series cable caddy (sold separately); Can also provide up to 5V 500 mA power to a USB powered device |
||||||||||||||||||||||||||||||||
| HOST | (2) USB Type-A connectors, female; USB 2.0 host ports; USB signal extender ports for connection to USB mice, keyboards, or other USB 2.0 peripheral devices;4 Available Power: 500mA @ 5VDC per port |
||||||||||||||||||||||||||||||||
| Ground | (1) Chassis ground lug | ||||||||||||||||||||||||||||||||
| Controls and Indicators - Transmitter (HD‑TXU‑4KZ‑111‑2G) | |||||||||||||||||||||||||||||||||
| LINK | (1) Green LED, indicates that DM link is established. | ||||||||||||||||||||||||||||||||
| PWR | (1) Green/amber bi-color LED; Amber indicates that the device is booting; Green indicates that the device is operational |
||||||||||||||||||||||||||||||||
| USB IN | (1) Green LED, indicates that the device is receiving a DisplayPort over USB‑C (DisplayPort Alt Mode) input signal | ||||||||||||||||||||||||||||||||
| DM OUT | (2) LEDs on RJ‑45 connector, one green and one amber; Green indicates that DM link is established; Flashing amber indicates non‑HDCP video; Solid amber indicates HDCP video |
||||||||||||||||||||||||||||||||
| RESET | (1) Push button, restores factory default settings | ||||||||||||||||||||||||||||||||
| Controls and Indicators - Receiver (HD‑RXU‑4KZ‑101‑E) | |||||||||||||||||||||||||||||||||
| PWR | (1) Green/amber bi-color LED; Amber indicates that the device is booting; Green indicates that the device is operational |
||||||||||||||||||||||||||||||||
| DM IN | (2) LEDs on RJ-45 connector, one green and one amber; Green indicates that DM link is established; Flashing amber indicates non-HDCP video; Solid amber indicates HDCP video |
||||||||||||||||||||||||||||||||
| Power | |||||||||||||||||||||||||||||||||
| Power Pack (included with Receiver) | Input: 100-240VAC; Output: 24VDC 2.5A; Models: PW‑2420RU NOTE: The power pack included with the receiver will power both units. Do not connect both power packs at once. |
||||||||||||||||||||||||||||||||
