Crestron 4K60 4:4:4 DM® Essentials Transmitter Receiver Pair for USB‑C® DisplayPort™, and USB 2.0 Signal Extension over CATx Cable, Wall Plate (Black) - DM-EXT-2011-2G-B KIT

Product Overview

The Crestron DM-EXT-2011-2G-B KIT is a DM Essentials point-to-point extender pair that sends 4K60 4:4:4 video, USB-C DisplayPort signals, and USB 2.0 data over a single CATx cable. The kit pairs a black 2-gang wall plate transmitter with a surface- or rack-mountable receiver for a tidy in-room source connection. It carries video up to 130 ft for 4K and up to 230 ft for 1080p, with power delivered over the CATx link. The DM-EXT-2011-2G-B KIT is designed for meeting rooms and classrooms that need clean wall-plate AV and USB extension.

Product Description

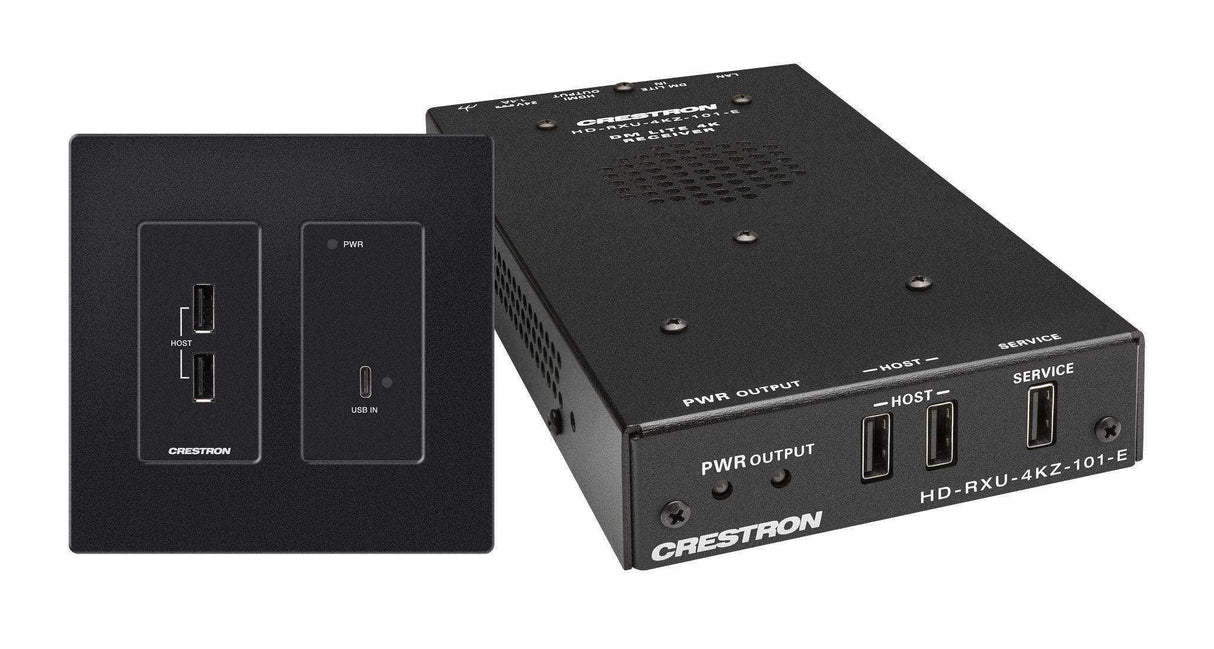

The DM-EXT-2011-2G-B KIT consists of an HD-TXU-4KZ-111-2G-B black wall plate transmitter and an HD-RXU-4KZ-101-E receiver, connecting over CAT5e or higher cable to extend HDMI and USB 2.0 signals between a source and a remote display, projector, or codec. The transmitter accepts a USB-C DisplayPort Alt Mode input and provides two USB 2.0 host ports; the receiver outputs HDMI and adds two more USB 2.0 host ports plus a service port. The kit supports video up to 4K60 with 4:4:4 color sampling along with HDR10, HDR10+, and Dolby Vision, and it manages EDID, HDCP 2.3, and CEC pass-through. Extension distance reaches up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals. Power is transmitted over the CATx cable from the included PW-2420RU power pack, which powers both units, so only one power pack is connected at a time. The transmitter mounts in a 2-gang electrical box and requires a decorator-style FP-G2-DM Series faceplate (sold separately), while the receiver mounts to a surface, wall, ceiling, or rack rail. A matching white version, the DM-EXT-2011-2G-W KIT, is available for lighter installations.

Key Features

• 4K60 4:4:4 extension — Sends video up to 4K60 with 4:4:4 color sampling over a single CATx cable.
• USB-C and USB 2.0 — Carries a USB-C DisplayPort Alt Mode AV signal plus USB 2.0 data for peripherals.
• Wall plate transmitter — Black 2-gang wall plate transmitter mounts cleanly at the table or wall.
• HDR support — Handles HDR10, HDR10+, and Dolby Vision video formats.
• Long reach — Extends up to 130 ft (40 m) for 4K or 230 ft (70 m) for 1080p signals.
• Power over CATx — The included receiver power pack powers both units over the connecting cable.
• EDID, HDCP, CEC management — Provides EDID and HDCP 2.3 handling with CEC pass-through.
• Flexible mounting — Receiver mounts to a surface, wall, ceiling, or rack rail for low-profile installation.

Typical Applications

• Conference rooms and huddle spaces with table-side source connections.
• Classrooms and lecture halls extending laptops to projectors.
• Codec and video conferencing room AV extension.
• Digital signage and lobby displays over structured cabling.
• Training rooms requiring USB peripheral extension.

Technical Specifications

Frequently Asked Questions

What is included in the DM-EXT-2011-2G-B KIT? The kit includes the HD-TXU-4KZ-111-2G-B black wall plate transmitter, the HD-RXU-4KZ-101-E receiver, and a PW-2420RU power pack.

What cable connects the transmitter and receiver? A CAT5e or higher twisted-pair cable is required. Shielded cable and connectors are recommended for resolutions above 1080p (cable sold separately).

How far can the signal travel? Up to 130 ft (40 m) for UHD and 4K signals, or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals.

Does the transmitter need a faceplate? Yes. The wall plate transmitter requires a decorator-style FP-G2-DM Series faceplate, sold separately.

How is the kit powered? The included power pack connects to the receiver and powers both units over the CATx cable; do not connect both power packs at once.

What warranty applies? The DM-EXT-2011-2G-B KIT is covered by the Crestron 3-year limited warranty. For installation guidance, Contact Creation Networks.
