Overview

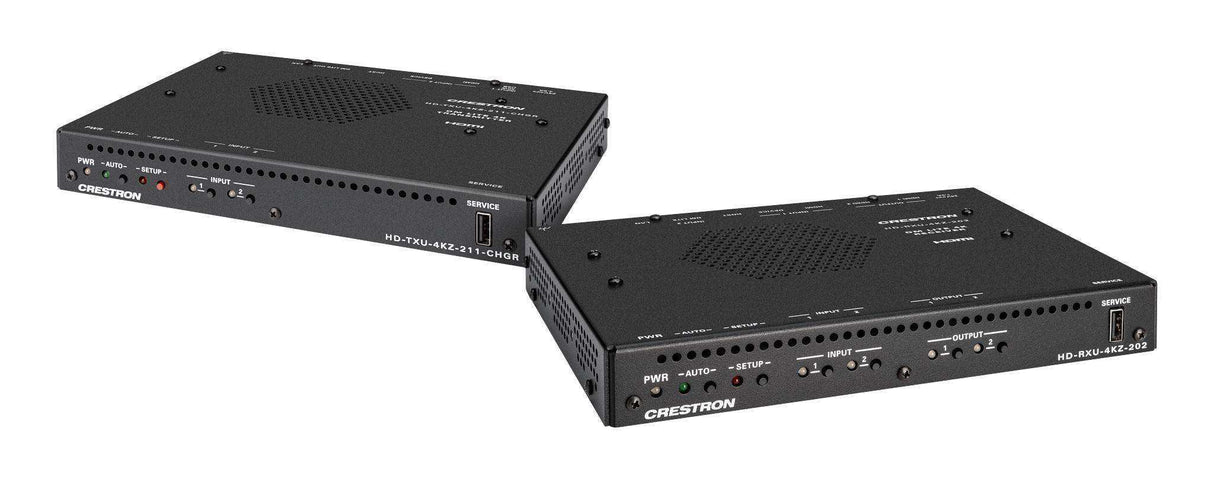

The DM‑EXT‑2022‑KIT consists of a transmitter (HD‑TXU‑4KZ‑211-CHGR) and auto-switching receiver (HD‑RXU‑4KZ‑202), and enables the extension of HDMI® and USB 2.0 signals. This is useful in applications where an AV source is located remotely from its destination, such as a display, projector, or codec solution. A CAT5e or higher twisted pair cable must be used to connect the transmitter and receiver.1
4K60 4:4:4 and HDR Support
The DM‑EXT‑2022‑KIT supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.2
Integrated Web Server
The transmitter and auto-switching receiver each provide an integrated web server for device configuration and management. The web servers also provide device, network, and other types of status information.
Automatic Input Switching
Automatic switching between the HDMI and USB-C DisplayPort inputs of the transmitter as well as between the HDMI input and DM input on the receiver occurs based on the last connected input or on the routing priority assigned to each input. Switching behavior is configurable using the web interface or programmable using a Crestron control system. In addition to automatic switching, input selection push buttons on the transmitter and receiver enable the desired input to be selected manually.
USB 2.0 Data Extension
Two USB 2.0 host ports are provided on both the HD‑TXU‑4KZ‑211‑CHGR and HD‑RXU‑4KZ‑202, enabling connection to a wide variety of supported USB 2.0 peripheral devices.4
Low Profile Installation
The transmitter and receiver can be placed on or attached to a flat surface. The transmitter can fit discreetly inside a presentation lectern or be attached to the underside of a table. The receiver can be mounted onto a wall behind a display or onto a ceiling above a projector. The devices are also rack rail mountable.
Features
- 4K60 video with 4:4:4 color sampling
- Automatic input switching
- HDR10, HDR10+, and Dolby Vision® video formats
- Signal extension distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
- Enterprise-grade security
- EDID and HDCP 2. management
- Consumer Electronics Control (CEC) capability
- Built-in web interface for easy configuration and monitoring
- Compatible with Crestron® 3-Series® control systems or later
- .AV Framework™ technology support
- XiO Cloud® service support
- Low-profile installation
- 100-240VAC power pack included
Specs
| Video | |||||||||||||||||||||||||||||||||||
| Switcher | 3x2 (2 inputs at transmitter plus 1 input at recever x 2 outputs at receiver) auto-switching or manual | ||||||||||||||||||||||||||||||||||
| Input Signal Types | HDMI® (DVI and Dual-Mode DisplayPort™ interface compatible4) and DM Lite® with HDR10, HDR10+, Dolby Vision®, Deep Color, and 4K60 4:4:4 support2 | ||||||||||||||||||||||||||||||||||
| Output Signal Types | HDMI® with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support2 | ||||||||||||||||||||||||||||||||||
| Copy Protection | HDCP 2.3 | ||||||||||||||||||||||||||||||||||
| Maximum Resolutions | Common resolutions are listed in the following table. | ||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||
| Audio | |||||||||||||||||||||||||||||||||||
| Input Signal Type | DisplayPort over USB-C (DisplayPort Alt Mode) | ||||||||||||||||||||||||||||||||||
| Output Signal Type | HDMI | ||||||||||||||||||||||||||||||||||
| Digital Formats | Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, Dolby Atmos®, DTS®, DTS ES, DTS 96/24, DTS HD® High Res, DTS-HD Master Audio, DTS:X®, LPCM up to 8 channels | ||||||||||||||||||||||||||||||||||
| Communications | |||||||||||||||||||||||||||||||||||
| Ethernet | 100/1000 Mbps, autoswitching, autonegotiating, autodiscovery, full/half duplex, Secure CIP, DHCP, web browser setup and control, Crestron control system integration, IEEE 802.1X, Authentication, SSH/SSL, TLS | ||||||||||||||||||||||||||||||||||
| HDMI | HDCP 2.3, EDID, CEC | ||||||||||||||||||||||||||||||||||
| DM | HDCP 2.3, EDID; USB 2.0 up to 300 Mbps |
||||||||||||||||||||||||||||||||||
| USB | USB signal extension via USB 2.0 host ports | ||||||||||||||||||||||||||||||||||
| Connectors - Transmitter (HD‑TXU‑4KZ‑211‑CHGR) | |||||||||||||||||||||||||||||||||||
| 24 VDC 4.5A | (1) 2.1 x 5.5 mm DC power connector; 24VDC power input; PW-2475DU power pack included |
||||||||||||||||||||||||||||||||||
| DM | (1) 8-pin RJ-45 connector, female, shielded; DM output port for connection to the receiver1 |
||||||||||||||||||||||||||||||||||
| HDMI, INPUT 2 | (1) HDMI Type A connectors, female; HDMI digital video/audio input; DVI and Dual-Mode DisplayPort interface compatible4 |
||||||||||||||||||||||||||||||||||
| DEVICE, INPUT 2 | (1) USB Type‑C® connector, female; USB 2.0 device port associated with HDMI input for AV sources that require USB 2.0 support; USB signal extender port for connection to a computer or other USB 2.0 host3 |
||||||||||||||||||||||||||||||||||
| 60W USB INPUT | (1) USB Type‑C® connector, female; Digital video/audio input using DisplayPort Alt Mode; USB 2.0 data support; Can also charge connected AV source with up to 60W of power |
||||||||||||||||||||||||||||||||||
| HOST | (2) USB Type-A connectors, female; USB 2.0 host ports; USB signal extender ports for connection to USB mice, keyboards, or other USB 2.0 peripheral devices;3 Available Power: 500mA @ 5VDC per port |
||||||||||||||||||||||||||||||||||
| SERVICE | (1) USB 2.0 Type-A connector, female; Used for firmware loading, configuration management, or as a USB host port for one TT‑100 series cable caddy (sold separately); Can also provide up to 5V, 500mA power to a USB powered device |
||||||||||||||||||||||||||||||||||
| LAN | (1) 8-pin RJ-45 connector, female; 100BASE-TX/1000BASE-T Ethernet port for device configuration and management |
||||||||||||||||||||||||||||||||||
| Ground | (1) Chassis ground lug | ||||||||||||||||||||||||||||||||||
| Connectors - Receiver (HD‑RXU‑4KZ‑202) | |||||||||||||||||||||||||||||||||||
| HDMI INPUT 1 | (1) HDMI Type A connector, female; HDMI digital video/audio input; DVI and Dual-Mode DisplayPort interface compatible4 |
||||||||||||||||||||||||||||||||||
| DM IN | (1) 8‑pin RJ‑45 yellow connector, female, shielded; DM input port for connection to the transmitter1 |
||||||||||||||||||||||||||||||||||
| HDMI OUTPUT 1-2 | (2) HDMI Type A connectors, female; HDMI digital video/audio output; DVI compatible5 |
||||||||||||||||||||||||||||||||||
| LAN | (1) 8-pin RJ-45 connector, female; 100BASE-TX/1000BASE-T Ethernet port for device configuration and management |
||||||||||||||||||||||||||||||||||
| 24 VDC 1.9A | (1) 2.1 x 5.5 mm DC power connector; 24VDC power input; PW-2420RU power pack included |
||||||||||||||||||||||||||||||||||
| SERVICE | (1) USB 2.0 Type‑A connector, female; Used for firmware loading, configuration management; Can also provide up to 5V 500 mA power to a USB powered device |
||||||||||||||||||||||||||||||||||
| HOST | (2) USB Type-A connectors, female; USB 2.0 host ports; USB signal extender ports for connection to USB mice, keyboards, or other USB 2.0 peripheral devices;3 Available Power: 500mA @ 5VDC per port |
||||||||||||||||||||||||||||||||||
| Ground | (1) Chassis ground lug | ||||||||||||||||||||||||||||||||||
| Controls and Indicators - Transmitter (HD‑TXU‑4KZ‑211‑CHGR) | |||||||||||||||||||||||||||||||||||
| PWR | (1) Green/amber bi-color LED; Amber indicates that the device is booting; Green indicates that the device is operational |
||||||||||||||||||||||||||||||||||
| AUTO | (1) Push button for enabling or disabling automatic switching of inputs; (1) LED, green indicates that automatic switching of inputs is enabled |
||||||||||||||||||||||||||||||||||
| SETUP | (1) Push button for Ethernet setup; (1) LED, red indicates that the SETUP push button is pressed |
||||||||||||||||||||||||||||||||||
| INPUT 1 | (1) Push button for manual selection of USB-C DisplayPort input; (1) LED, green indicates that the USB-C DisplayPort input is routed to an output, and amber indicates that a source is detected but is not routed to an output |
||||||||||||||||||||||||||||||||||
| INPUT 2 | (1) Push button for manual selection of HDMI input; (1) LED, green indicates that the HDMI input is routed to an output, and amber indicates that a source is detected but is not routed to an output |
||||||||||||||||||||||||||||||||||
| DM OUT | (2) LEDs on RJ‑45 connector, one green and one amber; Green indicates that DM link is established; Flashing amber indicates non‑HDCP video; Solid amber indicates HDCP video |
||||||||||||||||||||||||||||||||||
| LAN | (2) LEDs on RJ-45 connector, one green and one amber; Green indicates that a 100 Mbps link is established; Solid amber indicates that a 1000 Mbps link is established; Flashing amber indicates 1000 Mbps Ethernet activity |
||||||||||||||||||||||||||||||||||
| Controls and Indicators - Receiver (HD‑RXU‑4KZ‑202) | |||||||||||||||||||||||||||||||||||
| PWR | (1) Green/amber bi-color LED; Amber indicates that the device is booting; Green indicates that the device is operational |
||||||||||||||||||||||||||||||||||
| AUTO | (1) Push button to enable or disable automatic switching; (1) LED, green indicates that automatic switching is enabled |
||||||||||||||||||||||||||||||||||
| SETUP | (1) Push button for Ethernet setup; (1) LED, red indicates that the SETUP push button is pressed |
||||||||||||||||||||||||||||||||||
| INPUT 1 | (1) Push button for manual selection of HDMI input; (1) LED, green indicates that the HDMI input is routed to an output, and amber indicates that a source is detected but is not routed to an output |
||||||||||||||||||||||||||||||||||
| INPUT 2 | (1) Push button for manual selection of DM Lite input; (1) LED, green indicates that the DM Lite input is routed to an output, and amber indicates that a source is detected but is not routed to an output |
||||||||||||||||||||||||||||||||||
| OUTPUT 1 | (1) Push button for manual selection of HDMI output 1; (1) LED, green indicates that a display or other destination device is detected and HDMI output 1 is transmitting video and amber indicates that a display or other destination device is detected but no video is routed to the output |
||||||||||||||||||||||||||||||||||
| OUTPUT 2 | (1) Push button for manual selection of HDMI output 2; (1) LED, green indicates that a display or other destination device is detected and HDMI output 2 is transmitting video and amber indicates that a display or other destination device is detected but no video is routed to the output |
||||||||||||||||||||||||||||||||||
| DM IN 2 | (2) LEDs on RJ-45 connector, one green and one amber; Green indicates that DM link is established; Flashing amber indicates non-HDCP video; Solid amber indicates HDCP video |
||||||||||||||||||||||||||||||||||
| LAN | (2) LEDs on RJ-45 connector, one green and one amber; Green indicates that a 100 Mbps link is established; Solid amber indicates that a 1000 Mbps link is established; Flashing amber indicates 1000 Mbps Ethernet activity |
||||||||||||||||||||||||||||||||||
