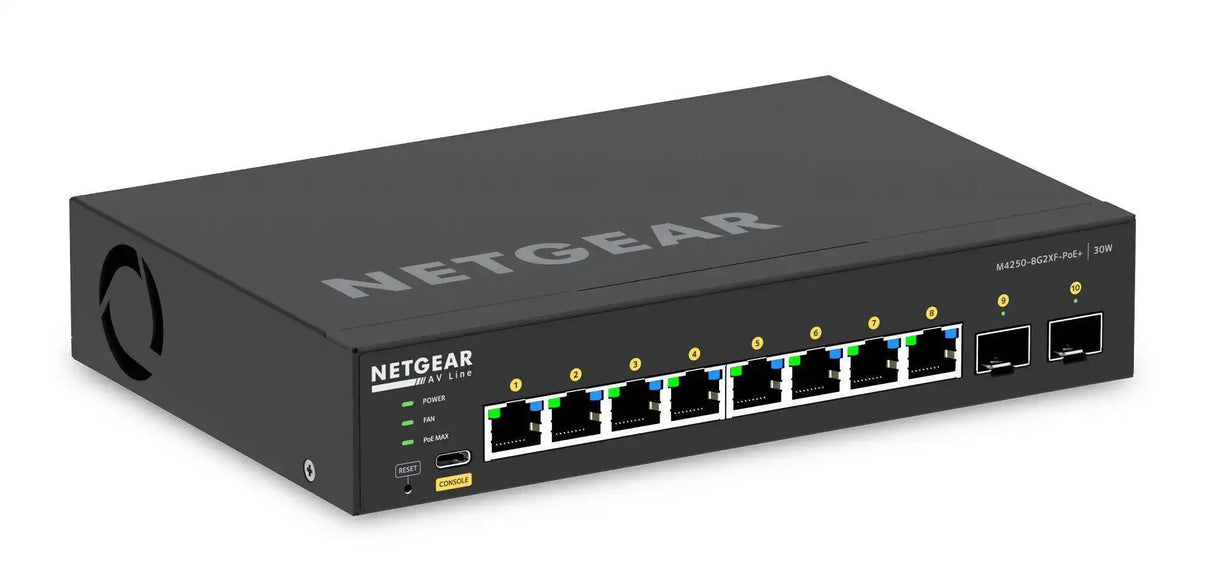

Crestron 10 Port PoE+ Managed Switch - CEN-SWPOE-10

Crestron SKU: CEN-SWPOE-10
No reviews

Sale price$1,124.00


NETGEAR's class-leading AV network switches are designed to make integration with Crestron AV-over-IP products as simple as possible. The CEN-SWPOE-10 is a 10 port managed Ethernet switch that provides PoE+ from eight of its ports. The two 10 Gigabit Base-X SFP+ ports enable use of transceiver modules to connect to a fiber network.

DM NVX and DM NAX Profiles for Quick Configuration
When configuring a DM NVX or DM NAX system, select the appropriate profile to automatically configure the CEN-SWPOE-10 with the multicast functionality required for AV-over-IP.

Web Browser Interface
Using a streamlined interface, quickly and completely configure individual ports or assign AV profiles for use with DM NVX or DM NAX systems. An advanced command line interface is also available.

Two SFP+ Ports
All SFP+ ports offer 10 Gigabit Base-X connections with support for both multimode and single-mode fiber transceiver modules, such as the SFP-10G-SR.

Power Over Ethernet+
PoE+ is supplied simultaneously across 8 ports, providing a centralized power source for numerous PoE+ powered devices and eliminating the need for cumbersome power supplies and extra wiring. Up to 30 W is provided per port up to a maximum of 220 W.

  • Class-leading NETGEAR® AV network switch
  • Small form factor with versatile mounting options
  • 10 port managed switch
  • Eight 1000Base-T Gigabit Ethernet ports
  • Supports PoE+ (802.3at Type 2) on all Ethernet ports
  • Provides up to 30 W per port, 220 W total
  • Two 10 Gigabit Base-X SFP+ ports
  • Selectable DM NVX® and DM NAX™ AV-over-IP profiles
  • Layer 2 and Layer 3 managed switching functionality
  • LLDP (Link Layer Discovery Protocol) support
  • 56 Gbps switching fabric (non-blocking)
  • Simple-to-use Web browser interface
Ports (8) 10/100/1000Base-T auto-sensing Gigabit Ethernet w/PoE+
(2) 10 Gigabit Base-X SFP+
Network Standards IEEE 802.3af, 802.3at
MAC Addresses Up to 16K
Switch Fabric 56 Gbps non-blocking
Lite Layer 3 Package
Management Out-of-band;
IT Web GUI (main);
HTTPs, CLI, Telnet, SSH;
Radius users, TACACS+
IPv4/IPv6 ACL and QoS Ingress/egress;
1 Kbps shaping, time-based;
Single rate policing
IPv4/IPv6 Multicast Filtering Automated IGMP between switches;
IGMPv3 MLDv2 snooping, proxy ASM and SSM;
IGMPv1, v2 querier (compatible with v3);
Control packet flooding
IPv4/IPv6 Policing and Convergence Auto-VoIP;
Policy-based routing;
IEEE 1588 PTPv2
IPv4/IPv6 Authentication Security Successive tiering (DOT1X, MAB, Captive portal);
DHCP snooping;
Dynamic ARP inspection;
IP source guard
IPv4/IPv6 Static Routing Port, subnet, VLAN routing;
Multicast static routes;
DHCPv4 server;
DHCP relay;
Stateful DHCPv6 Server
IPv4/IPv6 Dynamic Routing IPv4: RIP;
Spanning Tree Green Ethernet STP, MTP, RSTP;
EEE 802.3az
VLANs Static, dynamic, voice, MAC;
Double VLAN mode;
Private VLANs
POWER (1) green LED, indicates operating power supplied via main power input
FAN (1) green LED, indicates fan is in operation
PoE MAX (1) green LED, indicates the unit is supplying the maximum amount of PoE

(2) green LEDs for Ethernet port, indicates Ethernet link status for out-of-band (service) port

1-8 (2) LEDs per each (8) Ethernet port, left (green) LEDs indicate Ethernet link status for each corresponding port, right (blue) LEDs indicate PoE for each corresponding port

(1) green LED per SFP+ port, indicates active connection

OOB (1) 8-wire RJ45, female;
10/100/1000Base-T Ethernet port
CONSOLE USB-C® port, female
USB Storage USB Type A, female
54V - 4.7A (1) power connector

(8) 8-wire RJ45, female;
10/100/1000Base-T Ethernet ports and PoE Power Sourcing Equipment (PSE) outputs;
Supports IEEE 802.3at Type 2 PoE+ power sourcing from any ports up to the maximum specified power capabilities;
Maximum 30 Watts per port, 220 Watts total


(2) SFP+ ports, female;
10 Gigabit Base-X SFP+

Power Requirements
Main Power 4.7 Amps @ 100–240 Volts AC, 50/60Hz
Power Consumption Max PoE: 257.7 W
No PoE: 18.14 W
Standby: 9.51 W
Temperature 32° to 122° F (0° to 50° C)
Humidity 10% to 90% RH (non‑condensing)
Ambient Noise 3 dB at 77° F (25° C)
Chassis Metal, black finish, fan-cooled, vented sides
Mounting Freestanding, or mountable on a flat surface
Height 1.57 in. (40 mm)
Width 8.26 in. (210 mm)
Depth 5.51 in. (140 mm)
2.13 lb (967 g)
