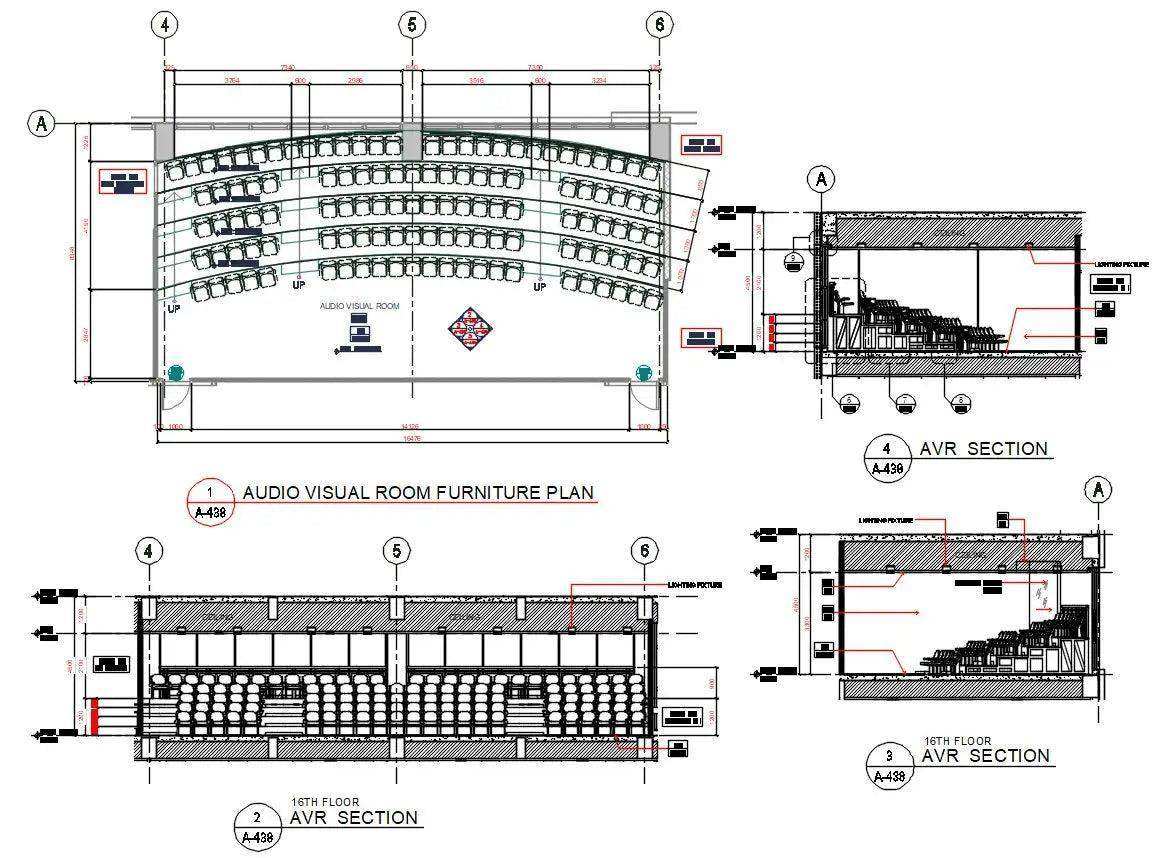

Audio Visual Room Furniture Plan AutoCAD File; 2d CAD drawing of corporate office building training AVR room plan, Ceiling Plan and front elevation design with description detail and dimension details.
Showing complete electrical wiring detail for installing projector, LCD, AV Devices, Amplifier, requirement and usage of sockets etc. Providing conference room Furniture Layout plan, Ceiling Plan and LCD wall elevation.
Why choose Creation Networks?
Our room CAD design service enables you to utilize the knowledge of our team who are trained to the highest standard, offering advice and suggestions for the most logical and technically sound placement of equipment within racks, also taking into consideration thermal management which is so often overlooked.
Is there anything else I need to know?
If you purchase the AV hardware from Creation Networks, you will receive your AV Detail design for free! This will be credited against your invoice.
You will also be provided with a comprehensive list of hardware including the rack and associated accessories required for your build.
