Vaddio PrimeSHOT 20 HDMI PTZ Camera (White) - 20x Optical Zoom

Product Overview

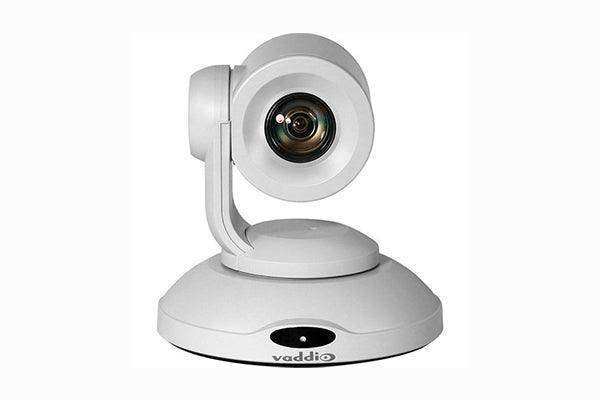

The Vaddio PrimeSHOT 20 HDMI (White) 999-30420-000W is a professional motorized PTZ camera with 20x optical zoom and simultaneous HDMI, S-Video, and IP H.264 streaming outputs in a white finish. Functionally identical to the black version (999-30420-000), it is designed for installations where a white camera body blends with light-colored ceilings and walls. Recommended for large meeting rooms, training rooms, lecture halls, and houses of worship. For installations requiring HDBaseT single-cable extension, see 999-30420-300W.

Product Description

The PrimeSHOT 20 HDMI White delivers 1080p HD video with a 20x optical zoom, covering a 55° horizontal field of view at the wide end and 3° at full tele. Simultaneous HDMI and S-Video outputs allow connection to both modern and legacy display and switching equipment, while the integrated H.264 IP streaming encoder delivers live video over the network for remote viewing, lecture capture, or soft-client integration.

Web-based administration provides full camera configuration, preset management, and status monitoring from any browser. RS-232 and IP control enable integration with AMX, Crestron, Extron, and similar room control systems.

Key Features

• 20x Optical Zoom - 55° HFOV (wide) to 3° (tele) for flexible framing in medium-to-large spaces.
• White Finish - Blends with light-colored ceilings and walls; black version available as 999-30420-000.
• Simultaneous HDMI + S-Video + IP H.264 Streaming - Connect to displays, legacy monitors, and network endpoints simultaneously.
• Web-Based Administration - Full configuration and preset management via browser interface.
• RS-232 and IP Control - Compatible with AMX, Crestron, Extron, and major room control platforms.
• 1080p HD Resolution - High-definition video for conferencing, lecture capture, and broadcast applications.

Typical Applications

• Conference rooms and boardrooms with light-colored ceilings requiring a white PTZ camera
• University lecture halls with lecture capture systems connected via IP H.264 or HDMI
• Houses of worship with long-distance zoom requirements and network streaming
• Training rooms needing a cost-effective 20x zoom camera with web management

Technical Specifications

Frequently Asked Questions

What is the difference between 999-30420-000W and 999-30420-000?
Both are functionally identical. The 999-30420-000W is white; the 999-30420-000 is black. Choose based on your ceiling/wall color.

Is an HDBaseT extender version available in white?
Yes. The 999-30420-300W is the PrimeSHOT 20 HDMI with HDMI Extender in white, providing single-cable HDBaseT extension to the AV rack.

What room control systems are supported?
RS-232 and IP control are compatible with AMX, Crestron, Extron, and most major platforms. Contact Creation Networks for integration support.
