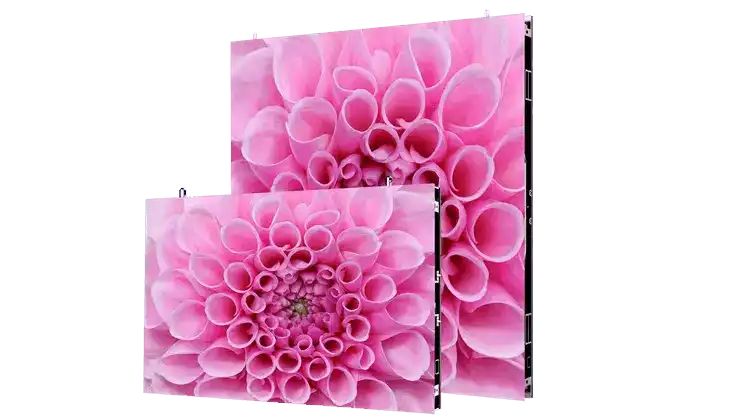

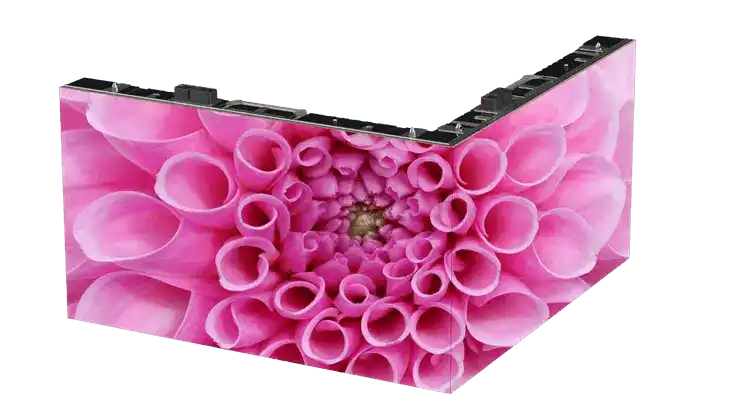

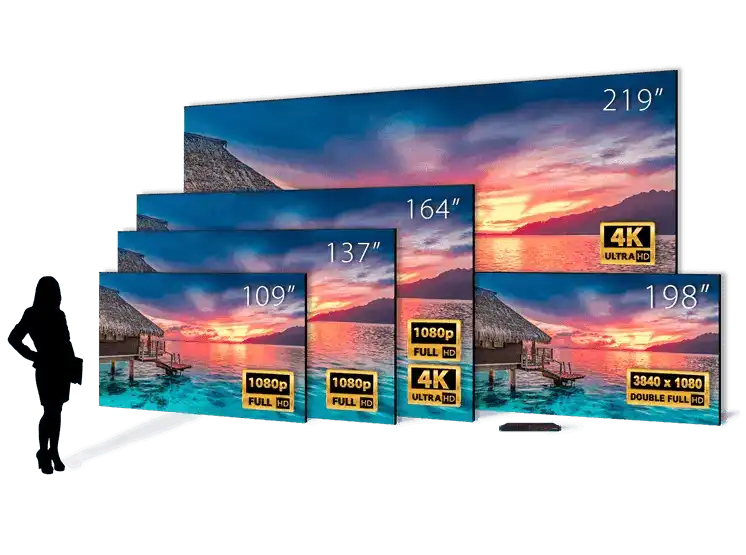

Planar UHD164" DirectLight Pro Series Complete, Full HD/UHD Diagonal Video Wall, w/WallDirector VC, wall mounts, trim, cables and spares - 998-3565-00

Product Overview

The Planar DirectLight Pro UHD 164 LED video wall (SKU 998-3565-00) is engineered for demanding indoor fixed installations where image quality, serviceability, and procurement compliance are non-negotiable. This complete bundle delivers a 164-inch diagonal fine pixel pitch LED video wall system with Full HD and UHD output capability, making it a strong fit for government operations centers, corporate headquarters, and large-format command environments. As a TAA-compliant LED video wall, it meets federal procurement standards while supporting flexible signal processing through WallDirector VC, Brompton Technology, and Colorlight. The all-inclusive package — wall mounts, trim, cabling, and spare components — significantly reduces project lead time and sourcing complexity for AV integrators and facilities teams.

Product Description

The Planar DirectLight Pro Series is one of the most specified fine pixel pitch video wall platforms in the commercial AV market, and the 998-3565-00 configuration packages everything needed for a turnkey deployment into a single line item. The 164-inch diagonal display area provides commanding visual coverage suited to environments where audience size and viewing distance demand large-format output without sacrificing pixel density.

Front-serviceable panel design allows technicians to access and swap modules from the front face of the wall — a critical advantage in installations where rear access is restricted by architecture or infrastructure. The system supports both Full HD and UHD resolutions, giving system designers the flexibility to match output to source content and processing capability.

Compatibility with Planar WallDirector VC, Brompton Technology, and Colorlight processing platforms gives integrators maximum flexibility in signal routing, calibration, and content management. The high-bandwidth architecture reduces the number of signal runs required, lowering installation labor and point-of-failure count across the system.

All mounting hardware, architectural trim, interconnect cabling, and spare components are included in the 998-3565-00 bundle, allowing procurement teams to issue a single purchase order rather than managing multiple vendor quotes for accessories and spare parts.

Key Features

• Fine Pixel Pitch LED — High pixel density delivers smooth, detailed imagery at standard commercial viewing distances without visible pixel structure.

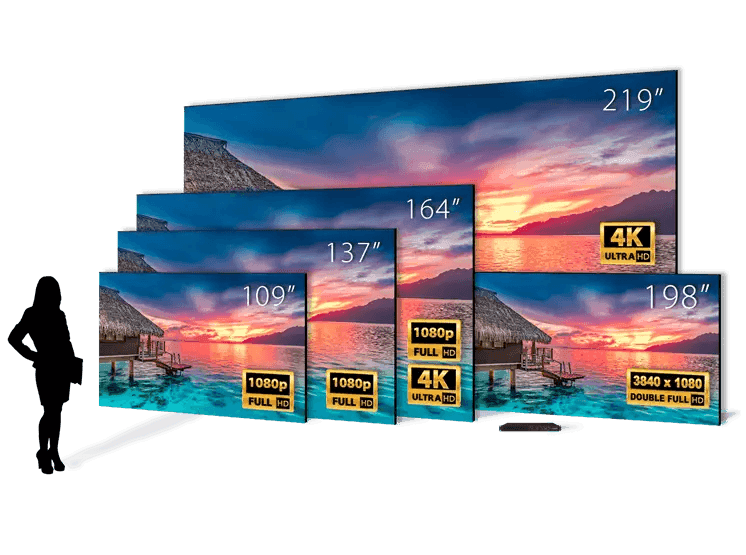

• 164-Inch Diagonal Display — Large-format coverage suitable for wide viewing angles and audiences in excess of 50 people.
• Full HD and UHD Resolution — Supports both 1080p and 4K output, giving system designers flexibility based on content source and processing platform.
• TAA-Compliant — Meets Trade Agreements Act requirements for federal and government procurement programs including GSA schedules.
• Front-Serviceable Design — Modules are accessible from the front face, enabling maintenance without rear wall access and reducing downtime in operational environments.
• WallDirector VC Compatible — Works natively with Planar WallDirector Video Controller for centralized display management, source switching, and calibration.
• Brompton Technology and Colorlight Compatible — Supports leading third-party LED processing platforms for wider system integration flexibility.
• High-Bandwidth Architecture — Reduces cable runs and infrastructure complexity, lowering installation cost and improving system reliability.
• Complete Bundle (998-3565-00) — Includes wall mounting hardware, architectural trim, interconnect cables, and factory spare components as a single SKU.
• Indoor Fixed Installation Optimized — Engineered for permanent indoor deployment with consistent brightness, color uniformity, and thermal management.

Typical Applications

• Government operations and command centers requiring TAA-compliant commercial indoor LED video wall systems

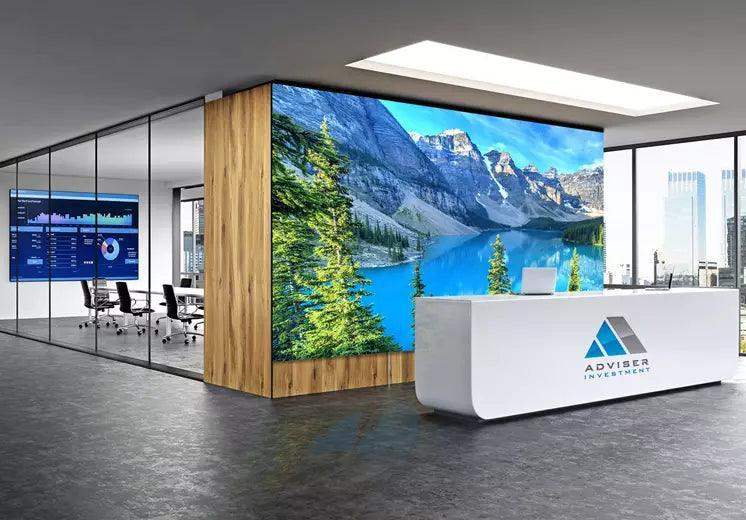

• Corporate all-hands rooms and executive briefing centers with large-format display requirements

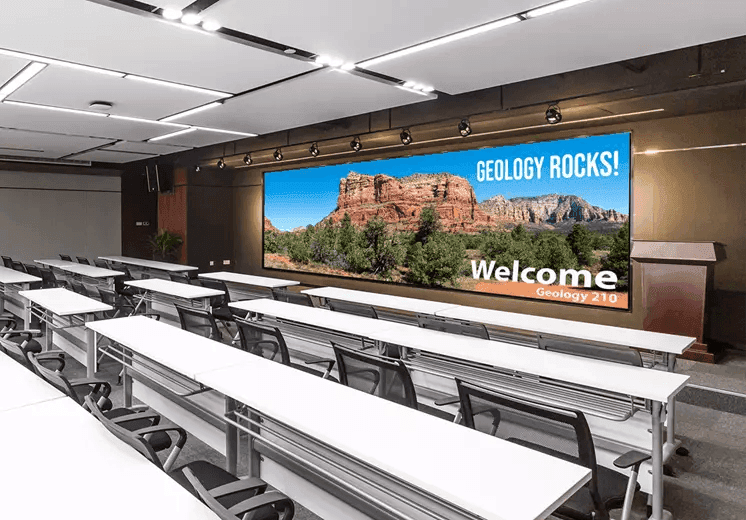

• Auditoriums and large multi-purpose rooms where 164-inch diagonal coverage supports full audience sightlines
• Broadcast studios requiring fine pixel pitch 4K LED video wall system performance under studio lighting
• Training rooms with wide viewing angles and high ambient light environments

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Is the 998-3565-00 bundle truly complete, or will I need to source additional components?

The 998-3565-00 SKU includes the LED video wall panels, WallDirector VC controller, wall mounting hardware, architectural trim, all interconnect cabling, and a set of factory spare components. For most fixed installations this is a complete system, though site-specific structural support, conduit, and input source equipment are typically scoped separately by the integrator.

Does this system qualify for government procurement under GSA schedules?

Yes. The Planar DirectLight Pro Series 998-3565-00 is TAA-compliant, meaning it meets the country-of-origin requirements under the Trade Agreements Act and is eligible for purchase through GSA schedule contracts and other federal procurement vehicles.

Can I use a third-party LED processor instead of the included WallDirector VC?

Yes. The system is compatible with Brompton Technology and Colorlight processors in addition to WallDirector VC. Integrators who have a preferred processing platform or need to integrate into an existing infrastructure can do so without compatibility issues.

What is the maintenance process for a front-serviceable LED video wall?

Front-serviceable panels allow individual LED modules to be removed and replaced from the front face of the installation. A technician can swap a faulty module in minutes without moving furniture, removing rear wall access panels, or disrupting the surrounding installation — making this design well-suited to operational environments where downtime is costly.

What resolution should I specify — Full HD or UHD — for a 164-inch installation?

This depends on viewing distance, content sources, and processing platform. At typical viewing distances for a 164-inch display in a large conference room or auditorium, Full HD delivers excellent image quality. UHD is appropriate when content will be displayed at close viewing distances, when detailed data visualization is the primary use case, or when future-proofing for 4K source infrastructure.

What warranty coverage comes with this system?

Planar provides a standard commercial warranty on the DirectLight Pro Series. Specific terms, extended coverage options, and on-site service agreements should be confirmed with your authorized Planar dealer or Creation Networks at the time of purchase.
