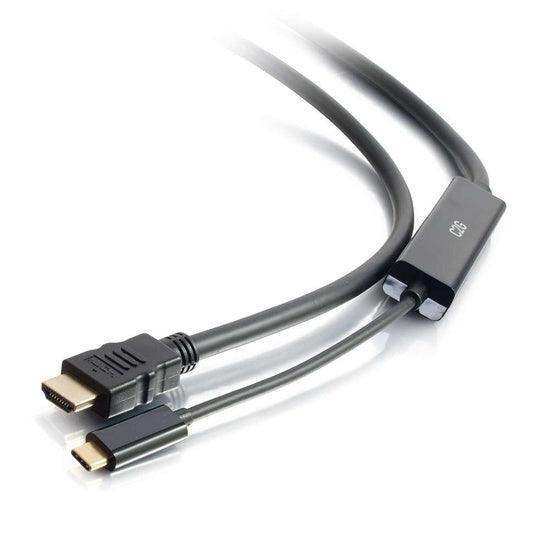

C2G 10ft (3m) USB-C® to HDMI® Audio/Video Adapter Cable - 4K 60Hz - CG26896

The USB-C to HDMI Audio/Video Adapter Cable 4K 30Hz allows for a direct connection of a USB-C device to an HDTV, projector, or other display with an HDMI port--making it an ideal solution for the office, work space applications or home use. This adapter cable is a perfect accessory for Apple® , Microsoft® Surface® , and other leading laptops and tablets.

The cable form factor of this adapter provides a simple and convenient solution that eliminates the need for a separate adapter and cable.

This adapter utilizes the audio/video support built into USB Type-C ports to feed an audio/video signal to an HDMI HDTV or projector. This adapter supports up to a 4K (4096 x 2160 at 30Hz) resolution, allowing it to deliver a high quality video image to the connected display.

Features

• Supports resolutions up to 4K (4096 x 2160 at 30Hz)
• Adapter in cable form factor
• Compatible with 3.1 USB-C and Thunderbolt™ 3 ports
• Reversible, symmetrical USB-C connector
• Plug and Play—no driver required
• Compatible with the Apple® iPad Pro® , MacBook® , MacBook Air® , and MacBook Pro®
• Compatible with the Microsoft® Surface® Book 2 and Surface Go

Specs

Electrical Specifications

• USB Type-C OD:3.9MM, Black
• Rated Temperature: 80°C
• Voltage: 30V
• Max Conductor Resistance at 20°C: 34AWG , 860 OHMS/KM
• Insulation Resistance: 10M-KM MIN at 20°C DC 500V.(EIA—364—21)
• Dielectric Strength: AC 500V/1 Minute No Breakdown.(EIA—364—20)

  Physical Specifications


• Operating Temperature: 0 ~ 45°C Ambient
• Storage Temperature: -10 ~ 70°C Ambient
• USB Type-C Male: Contacts Terminal Gold Flash, Nickel Plated Shell; Black Insulation
• HDMI Male: Contacts Terminal Gold Flash, Nickel Plated Shell; Black Insulation. Chipset: PS171 QFN-56
• Molding Material: Black PVC Conforms RoHS
• Product is CE Marked and Conforms to 2011/65/EU RoHS2
