Belkin F1D9019B06T – TAA DisplayPort SKVM Combo Cable 6ft

Product Overview

The Belkin F1D9019B06T is a TAA-compliant, single-head DisplayPort Secure KVM combo cable connecting computers and servers to Belkin Secure KVM switches with DisplayPort video, USB HID, and 3.5mm audio in one cable run. At 6 feet, it is the standard-length option for workstation-to-KVM connections in government, defense, and enterprise environments where TAA compliance and high-resolution display support are required. The passive cable supports video up to 4K at 60Hz and includes gold-plated high-retention connectors, hook-and-loop ID straps, and color-coded cable ties for organized multi-port SKVM installations.

Product Description

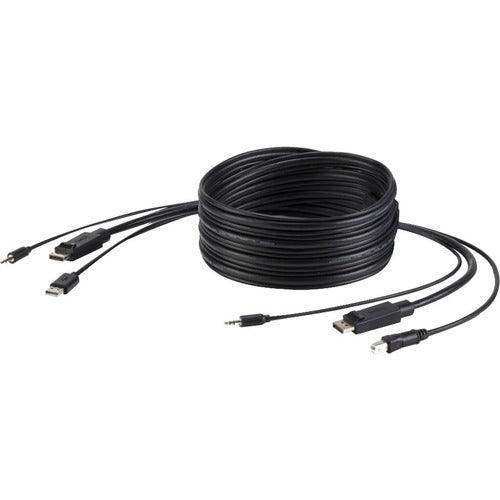

The F1D9019B06T single-head DisplayPort SKVM combo cable carries all signals required for a complete KVM connection in one cable assembly: DisplayPort Male to DisplayPort Male for video (supporting up to 4K@60Hz), USB Type-A to USB Type-B for keyboard and mouse HID pass-through, and 3.5mm mini-phone stereo audio on both ends for speaker and microphone connectivity. This passive design requires no power and installs directly between the host computer's DP output and the Belkin Secure KVM switch port. TAA compliance satisfies federal acquisition requirements under the Trade Agreements Act, making this cable appropriate for GSA schedule and government contract purchases. High-retention gold-plated connectors prevent accidental disconnection in rack-mounted or under-desk environments where vibration or cable tension is a concern. Included hook-and-loop identification straps and color-coded cable ties (two per Belkin SKVM port button color) simplify port identification and cable management in multi-port KVM installations. A 3-year Belkin limited warranty covers the cable for commercial and government deployments.

Key Features

• Single-Head DisplayPort Video — Carries one DP signal supporting resolutions up to 4K at 60Hz between host and KVM switch.
• TAA Compliant — Meets Trade Agreements Act requirements for government, defense, and enterprise procurement.
• USB-A to USB-B HID Pass-Through — Delivers keyboard and mouse control between computer and KVM switch without a separate USB cable.
• 3.5mm Audio Both Ends — Enables speaker and microphone connectivity through the KVM switch via mini-phone stereo connectors.
• 4K@60Hz Video Support — Handles high-resolution display output for professional AV and multi-monitor secure workstation environments.
• Passive Cable — No power required; plug-and-play installation with compatible Belkin Secure KVM switches.
• High-Retention Gold-Plated Connectors — Secure seating and low contact resistance for reliable long-term connections in commercial installations.
• Hook-and-Loop ID Straps — Wire identification straps included for clean labeling in multi-port KVM environments.
• Color-Coded Cable Ties — Two per port color, matching Belkin SKVM port button color chips for streamlined port identification.
• 3-Year Belkin Warranty — Standard commercial limited warranty for government and enterprise deployments.

Technical Specifications
