Product Overview

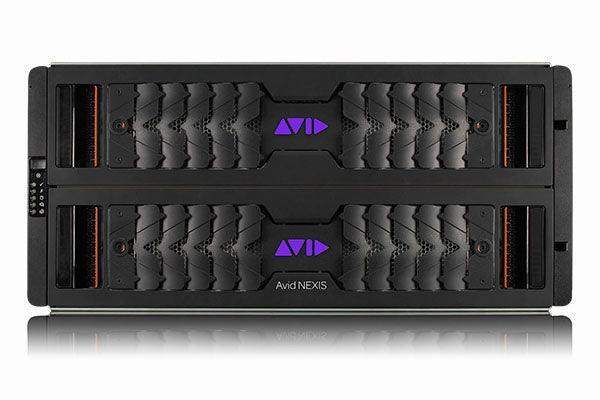

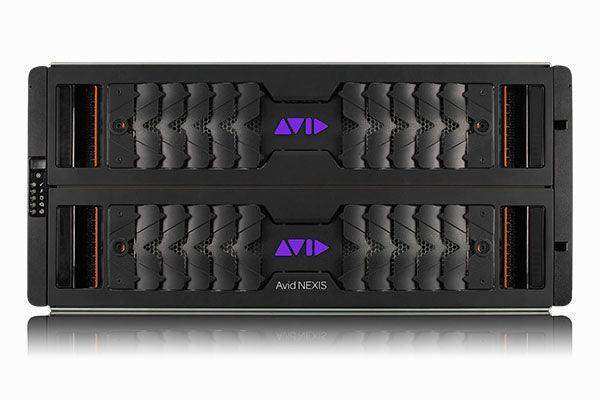

The Avid NEXIS | F5 400TB shared storage system is a scalable enterprise storage engine designed for mid-to-large broadcast facilities and post-production studios requiring high-performance shared storage with a clear growth path. Half-populated with four 100TB HDD Media Packs, this configuration delivers 400TB of usable capacity and up to 1.92 GB/s of aggregate bandwidth over 25/50GbE networking, with the chassis ready to accept four additional packs for a full 800TB configuration. This bundle includes Avid ExpertPlus with Hardware Support, providing hardware replacement coverage and expert technical access.
Product Description
The Avid NEXIS | F5 400TB provides a scalable entry into F5 enterprise storage. Four 100TB HDD Media Packs deliver 400TB of usable capacity and 1.92 GB/s of aggregate bandwidth. When additional capacity is required, four more 100TB Media Packs can be added to the same chassis to reach 800TB and 3.84 GB/s without chassis replacement.
The F5 Controller ships with two 40/50Gbps Ethernet QSFP28 interfaces (unpopulated) for 25GbE or 50GbE network connectivity. The included Avid NEXIS | FS license provides centralized workspace management, per-user bandwidth allocation, and integration with Avid Media Composer, Pro Tools, Adobe Premiere Pro, Apple Final Cut Pro, and DaVinci Resolve. Dual 220V redundant power supplies and five cooling modules support continuous production operation. Two 10TB spare drives and two SSDs are included. The system ships with a rack-mount kit.

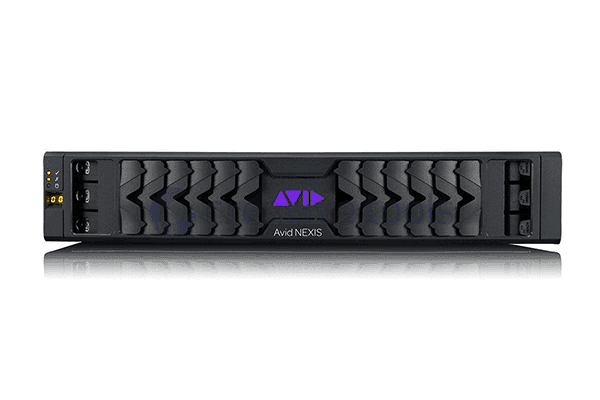

Note: Avid NEXIS | SDA or SDA+ is required for all F5 configurations and is sold separately. ExpertPlus with Hardware Support provides hardware replacement logistics and expert technical access for facilities with capable in-house technical staff.
Key Features
- 400TB Expandable Capacity — Four 100TB HDD Media Packs provide 400TB with in-chassis expansion to 800TB by adding four additional packs—no chassis replacement required.
- 1.92 GB/s Aggregate Bandwidth — Four Media Packs at 480 MB/s each, scaling to 3.84 GB/s at full population.
- 25/50GbE QSFP28 Connectivity — Two 40/50Gbps QSFP28 Ethernet interfaces (unpopulated) for high-bandwidth network integration.
- Avid NEXIS | FS License Included — Centralized workspace management, per-user bandwidth allocation, and bandwidth control.
- Redundant 220V Power Supplies — Dual PSUs for uninterrupted production operation.
- Two 10TB Spare Drives — Hot-spare HDDs for immediate response to Media Pack drive failures.
- Two SSDs Included — Solid-state drives for file system metadata and cache performance.
- Five Cooling Modules — Redundant cooling for continuous-duty rack-mount deployments.
- Rack-Mount Kit Included — Standard 19-inch mounting hardware included.
- ExpertPlus with Hardware Support — Hardware replacement coverage and expert technical access for the contract period.
Typical Applications
- Broadcast production facility shared storage with planned growth
- Post-production studio collaborative 4K/HDR editorial
- Government media operations
- Multi-purpose production environment
- Training and education production facility storage
Technical Specifications
| Specification | Value |
|---|---|
| Model | Avid NEXIS | F5 |
| Total Usable Capacity | 400TB |
| Media Pack Configuration | 4x 100TB HDD Media Packs (half populated) |
| Maximum Expandable Capacity | 800TB (add 4x 100TB Media Packs) |
| Current Aggregate Bandwidth | Up to 1.92 GB/s (4 packs) |
| Network Interfaces | Two 40/50Gbps Ethernet QSFP28 (unpopulated) |
| Power Supply | Two 220V PSU (redundant) |
| Cooling | 5 cooling modules |
| Spare Drives | Two 10TB HDDs |
| SSDs Included | Two SSDs (metadata/cache) |
| Form Factor | Rack-mount (kit included) |
| Software Included | Avid NEXIS | FS license |
| Required Accessory | Avid NEXIS | SDA or SDA+ (sold separately) |
| Support Level | ExpertPlus with Hardware Support |
Frequently Asked Questions
Q: Can I expand this system to 800TB?
A: Yes. The half-populated chassis supports four additional 100TB Media Packs for a full 800TB configuration without chassis replacement. Contact Creation Networks for expansion guidance.
Q: Is Avid NEXIS | SDA or SDA+ required?
A: Yes. SDA/SDA+ is required for all F5 configurations and sold separately. Contact Creation Networks for guidance.
Q: What is ExpertPlus with Hardware Support?
A: ExpertPlus provides hardware replacement coverage and expert technical access. Elite Support is available with higher response priority for 24/7 broadcast operations.
Q: Where can I get configuration assistance?
A: Contact Creation Networks for configuration assistance and volume pricing.
