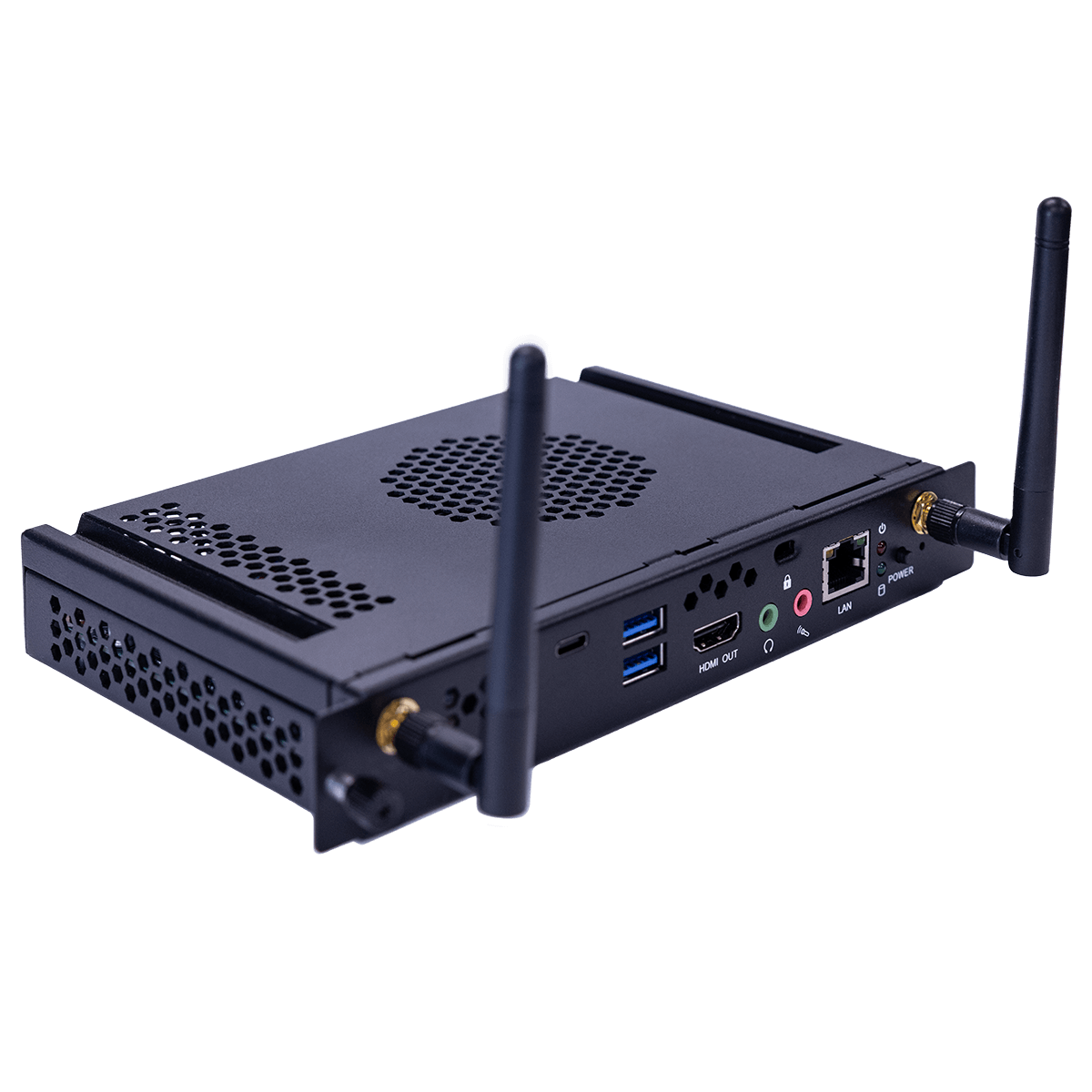

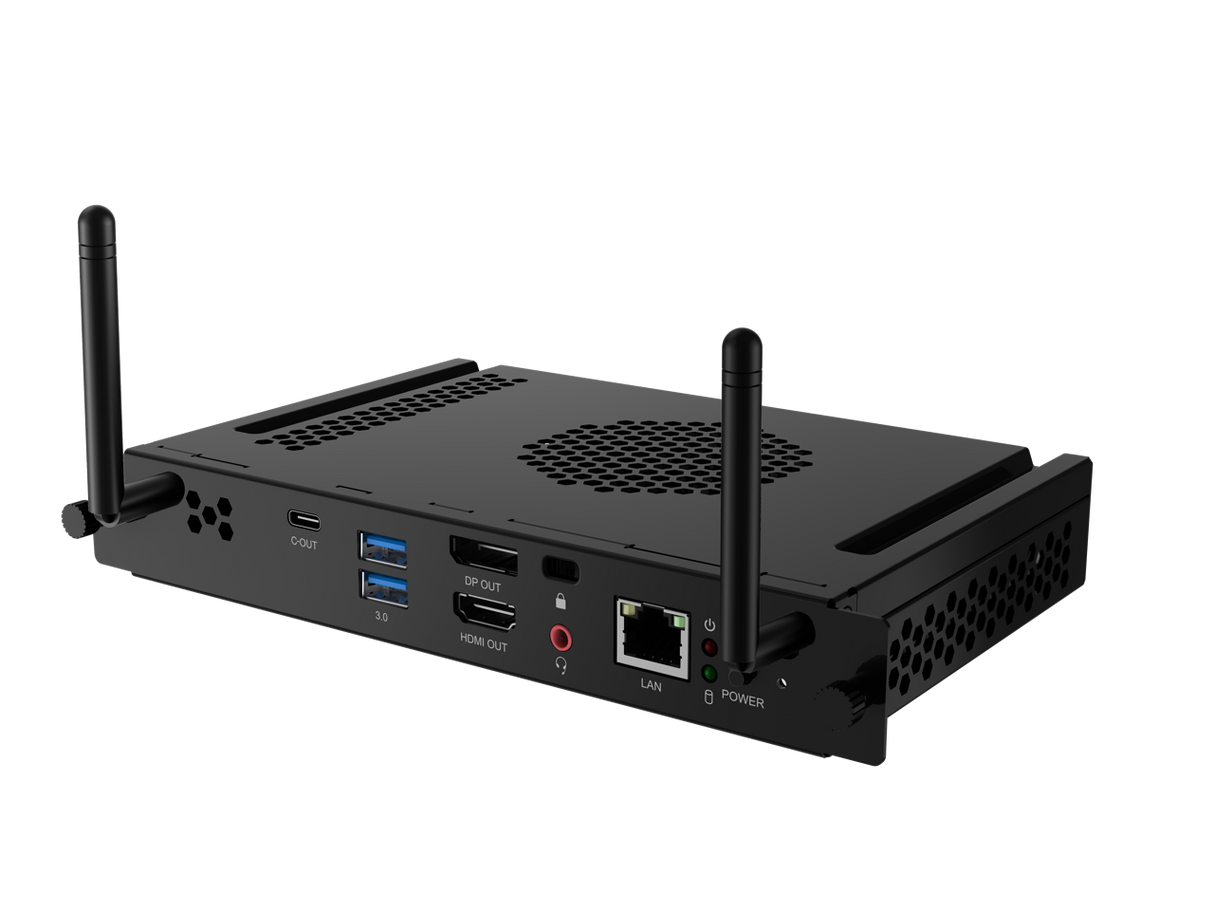

ClearTouch CTI-PCOPS-PC27-IG Core i7 OPS PC Module (Performance)

Product Overview

The ClearTouch CTI-PCOPS-PC27-IG is a Core i7 OPS PC module that adds full Windows compute to a compatible interactive display through the standard OPS slot. As a Performance-tier OPS PC module for interactive display deployments, it pairs an Intel Core i7-1360P with 32GB of RAM, a 1TB NVMe SSD, and discrete AMD Radeon RX 550 graphics. This slot-in OPS PC eliminates external mini-PCs and cabling, making it well suited to Microsoft Teams Rooms and other in-room conferencing workflows. It is compatible with ClearTouch 6000A+ and 7000XT panels.

Product Description

This OPS module is the Performance option for organizations that need more than the panel's onboard Android system can provide. The Intel Core i7-1360P CPU, 32GB of DDR4 memory, and 1TB NVMe SSD handle demanding workloads including multi-window conferencing, content creation, and data-heavy presentations, while the discrete AMD Radeon RX 550 graphics support graphics-intensive applications beyond integrated video. The module slides directly into the OPS slot of a compatible ClearTouch panel, drawing power and passing video and touch through the connector so there is no separate power brick or video cable to manage. For external peripherals and displays, it provides two USB 3.0 ports, USB-C, DisplayPort out, HDMI out, RJ45, an audio combo jack, and a Kensington lock point. Networking covers gigabit Ethernet, Wi-Fi 6 via the Intel AX200, and Bluetooth. The module ships without an operating system and is Windows 10 and 11 capable; ClearTouch OS imaging services are available to deliver it pre-configured. It is compatible with ClearTouch 6000A+ and 7000XT panels; for 6000K+ and older panels, the CTI-PCOPS-ADPT-120 adapter is required. For compatible panels, see the ClearTouch collection.

Key Features

• Intel Core i7-1360P CPU — The Core i7 processor drives demanding in-room workloads including conferencing, content creation, and large presentations.
• 32GB RAM and 1TB NVMe SSD — Generous memory and fast NVMe storage support multitasking and quick access to large files.
• Discrete AMD Radeon RX 550 — Dedicated graphics handle graphics-intensive applications beyond what integrated video provides.
• Slot-In OPS Form Factor — This slot-in OPS PC installs directly into the panel's OPS slot, passing power, video, and touch through the connector with no external cabling.
• Comprehensive Port Set — Two USB 3.0, USB-C, DisplayPort out, HDMI out, RJ45, audio combo jack, and a Kensington lock cover peripherals and external displays.
• Wi-Fi 6 and Gigabit Ethernet — Intel AX200 Wi-Fi 6, 10/100/1000M Ethernet, and Bluetooth provide flexible network connectivity.
• Teams Rooms Capable — The module is well suited as a Microsoft Teams Rooms OPS PC and other in-room conferencing platforms.
• Windows 10/11 Capable — The module ships without an OS and supports Windows 10 and 11, with ClearTouch OS imaging services available.
• Panel Compatibility — Compatible with ClearTouch 6000A+ and 7000XT panels; the CTI-PCOPS-ADPT-120 adapter is required for 6000K+ and older.

Typical Applications

• Boardrooms and conference rooms running Microsoft Teams Rooms
• Huddle rooms requiring in-room Windows compute
• Training rooms and instructional spaces
• Government and public-sector meeting spaces
• Commercial meeting spaces and multi-purpose rooms
• All-hands and presentation rooms

Technical Specifications

Frequently Asked Questions

Which panels is this module compatible with?

It is compatible with ClearTouch 6000A+ and 7000XT interactive panels. For 6000K+ and older panels, the CTI-PCOPS-ADPT-120 adapter is required.

How does it install?

The module slides into the panel's OPS slot and connects through the OPS connector, passing power, video, and touch with no external power brick or video cable required.

Does it come with an operating system?

No. The module ships without an OS and is Windows 10 and 11 capable. ClearTouch OS imaging services are available to deliver it pre-configured.

Is it suitable for Microsoft Teams Rooms?

Yes. With its Core i7-1360P CPU, 32GB RAM, discrete graphics, Wi-Fi 6, and gigabit Ethernet, it is well suited as a Teams Rooms OPS PC and for other conferencing platforms.

What external connections does it offer?

It provides two USB 3.0 ports, USB-C, DisplayPort out, HDMI out, RJ45, an audio combo jack, and a Kensington lock for peripherals, additional displays, and physical security.

What is the warranty?

The module carries a 1-year warranty. Contact Creation Networks for support and imaging service details.
