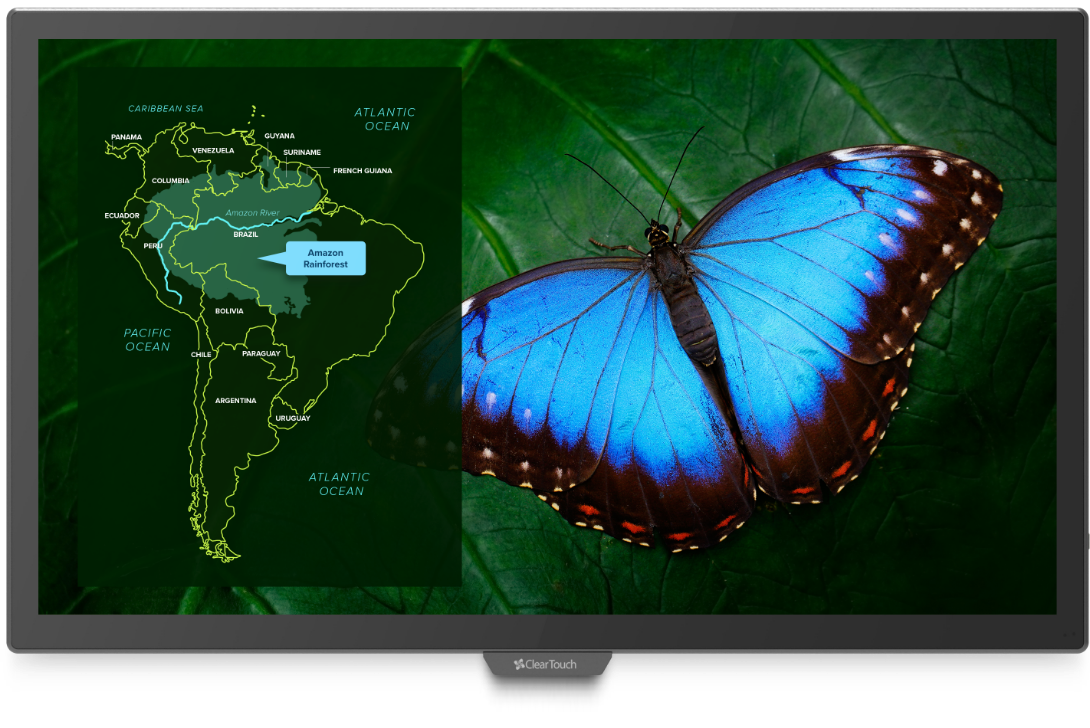

ClearTouch CTI-7086XE-UH20 86" 7000XE Interactive Flat Panel Display

Product Overview

The ClearTouch CTI-7086XE-UH20 is an 86 inch interactive flat panel display built for high-traffic boardrooms and large commercial meeting spaces. As a 4K interactive panel for boardrooms, it pairs a 3840 x 2160 RGB panel with 20-point capacitive touch and an optional OPS slot for in-room compute. This large format interactive display delivers 450 cd/m² brightness, a 178° viewing angle, and toughened glass rated at Mohs level 7 for daily institutional use. It is designed to drop into managed AV environments with RS-232 control and LAN pass-through to a connected PC.

Product Description

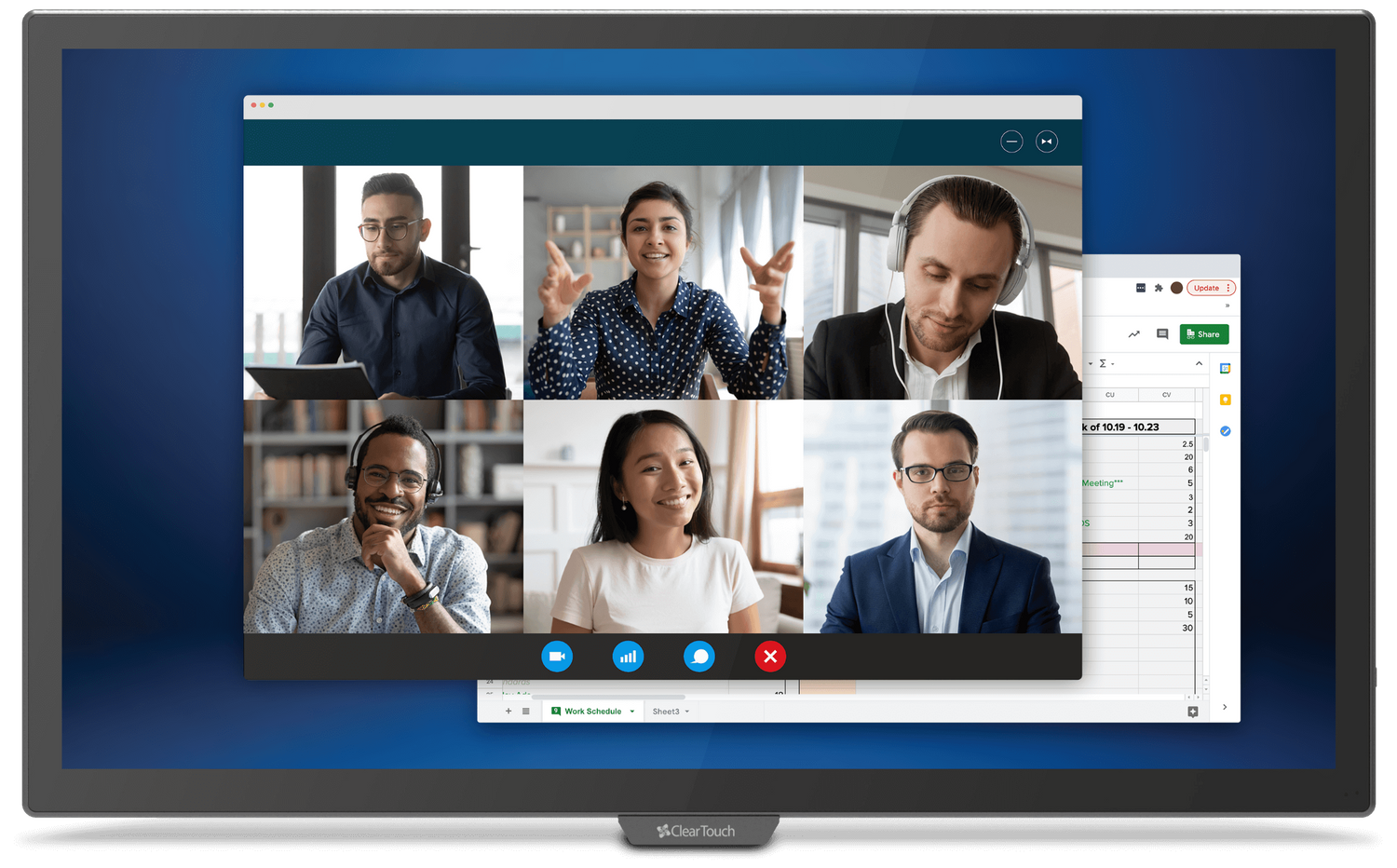

The 7000XE Series is positioned for organizations that need a dependable, presentation-grade interactive surface at scale. The 86" display area of 74.61" x 41.97" gives presenters a true large-format canvas for video conferencing, annotation, and content sharing. Capacitive touch supports 20 simultaneous touch points and 10 writing points with palm rejection and pressure sensitivity, so multiple participants can write and manipulate content at once without interference. An 8 ms touch response and 8 ms panel response keep inking and on-screen interaction tracking close to the pen tip. The built-in Android 8.0 system (A73 and A53 CPU cores, Mali G51 GPU, 4GB RAM, 32GB ROM) runs whiteboarding and casting without an external source, while the OPS slot accepts an optional Core i5 or Core i7 PC module for Windows-based workflows such as Microsoft Teams Rooms. Connectivity is extensive: four HDMI inputs, HDMI out, mixed USB 2.0 and 3.0 ports, a 45W USB-C port for single-cable laptop connection, VGA, and dual touch outputs. For integrators, RS-232 and RJ45 with LAN pass-through to the PC support centralized control and remote management across a fleet. The unit ships with a wall mount, Wi-Fi module, and two capacitive pens, and is covered by a layered warranty. For other models in this product family, see the ClearTouch collection.

Key Features

• 86" 4K UHD Panel — The RGB panel renders 3840 x 2160 resolution with 1.07 billion colors at 10-bit depth for sharp text and detailed visuals across the room.

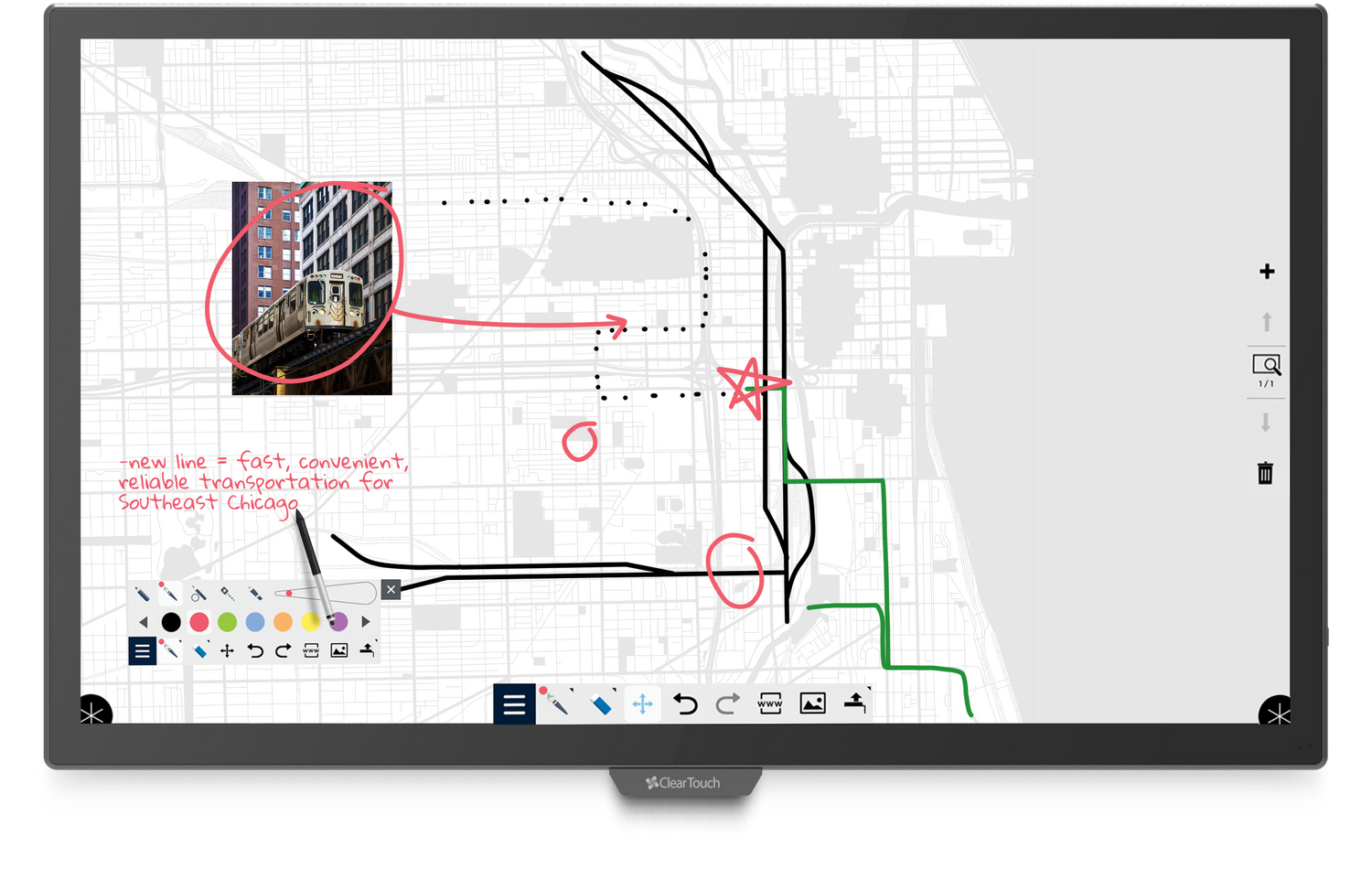

• 20-Point Capacitive Touch — Capacitive recognition supports 20 simultaneous touch points and 10 writing points with palm rejection for true multi-user collaboration.
• Toughened Mohs Level 7 Glass — The hardened touch surface resists scratching and abuse in high-traffic boardrooms and shared meeting spaces.
• USB-C with 45W Power Delivery — A single USB-C cable carries video, touch, and 45W charging to a connected laptop to simplify guest connections.
• Optional OPS PC Slot — The interactive flat panel with OPS slot accepts a slot-in Core i5 or Core i7 module for native Windows workflows without external cabling.
• RS-232 and LAN Control — This RS-232 controllable display integrates with room control systems and supports RJ45 LAN pass-through to the connected PC.

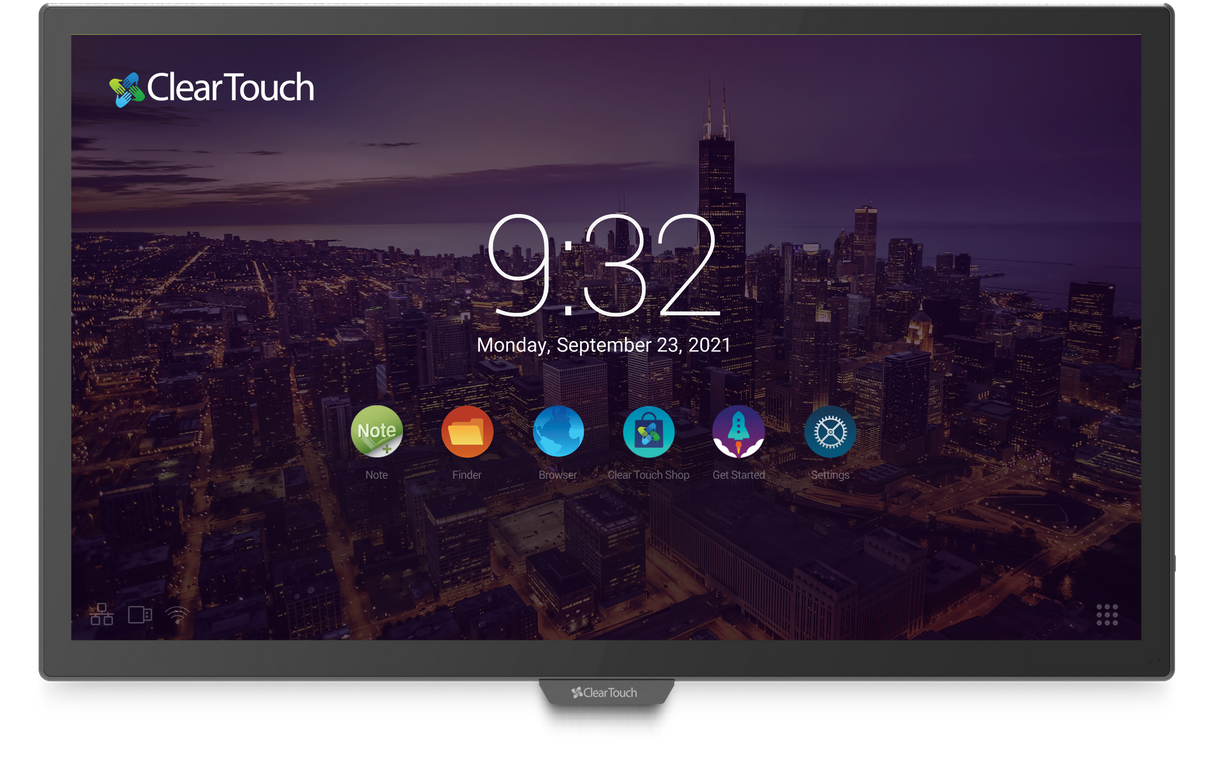

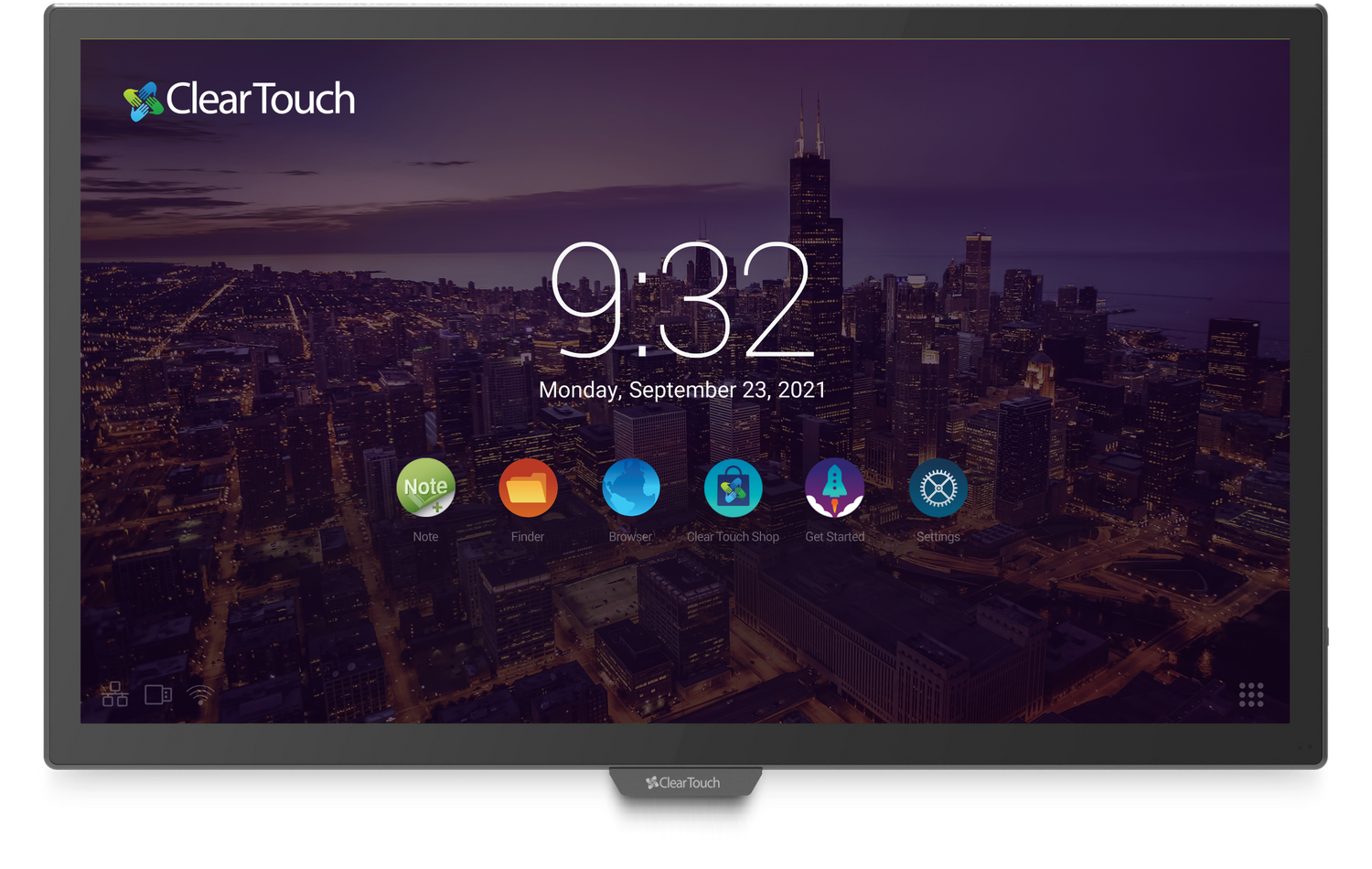

• Integrated Android System — The onboard Android 8.0 platform runs whiteboarding, screen casting, and apps without an external source.
• 2.1-Channel Audio — Dual 10W speakers and a 15W subwoofer channel provide clear program audio for presentations in larger rooms.
• Rated >50,000 Hour Lifetime — The Direct-type LED backlight is rated for more than 50,000 hours of operation to support long deployment cycles.

Typical Applications

• Boardrooms and executive conference rooms
• Large commercial meeting spaces
• All-hands and town hall rooms
• Government and public-sector meeting spaces
• Corporate training rooms
• Higher-education lecture and auditorium spaces
• House of worship presentation environments

Technical Specifications

Frequently Asked Questions

Does this display require an external PC?

No. The integrated Android 8.0 system runs whiteboarding, casting, and apps out of the box. For Windows-based workflows you can add an optional OPS module (Core i5 CTI-PCMOD-PC55-ST or Core i7 CTI-PCMOD-PC67-VP) into the slot.

How does it connect to a laptop?

The panel offers four HDMI inputs, VGA, and a USB-C port that carries video, touch, and 45W power delivery over a single cable, simplifying guest and BYOD connections.

Can it be controlled by a room control system?

Yes. The display supports RS-232 control and includes an RJ45 port with LAN pass-through to the connected PC, allowing integration with centralized control and remote management platforms.

What mount does it use?

The panel uses an 800 x 600 mm VESA pattern and ships with a wall mount included. Confirm wall structure and weight support for the 157.63 lb unit with your integrator before installation.

What warranty is included?

Coverage is 1 year standard, extending to 3 years with product registration, and an optional 5-year term is available. Contact Creation Networks for registration and extended coverage details.

How many people can write on it at once?

The capacitive touch system supports 20 simultaneous touch points and 10 writing points with palm rejection and pressure sensitivity, enabling true multi-user collaboration.
