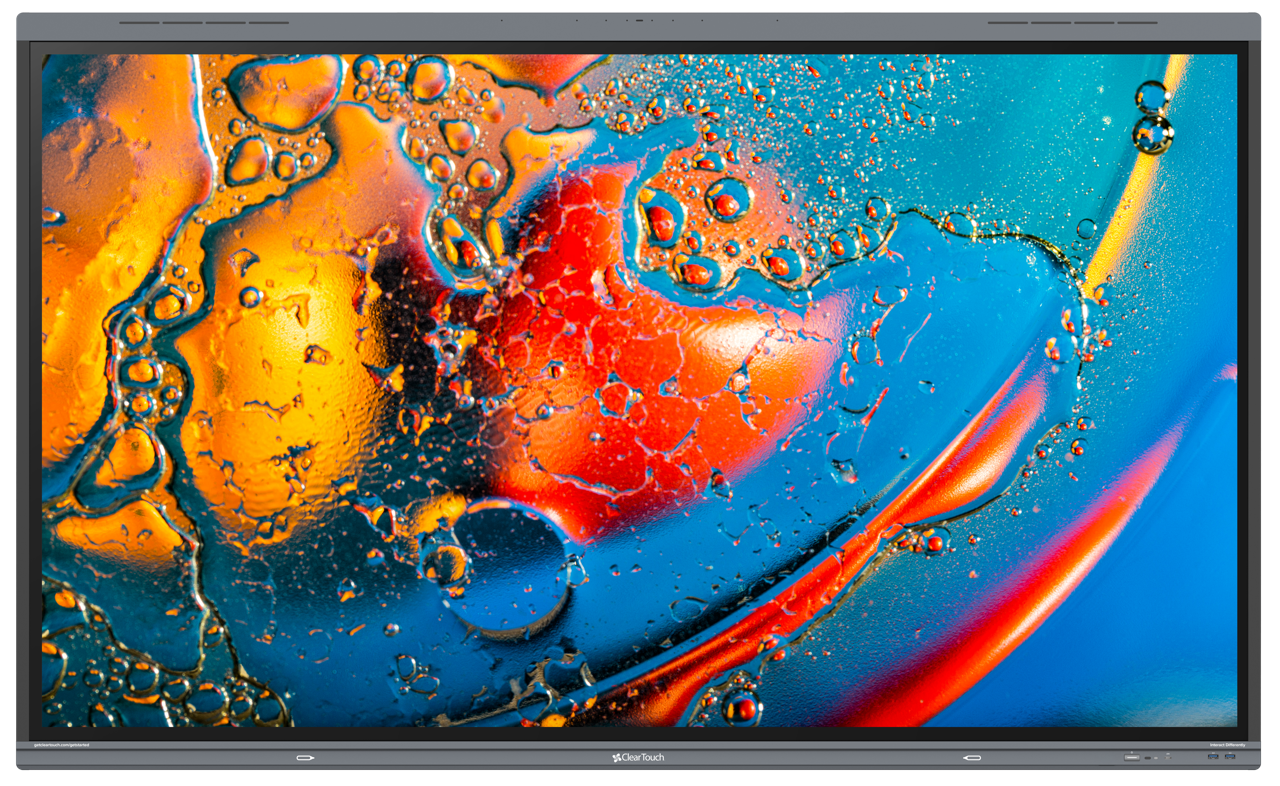

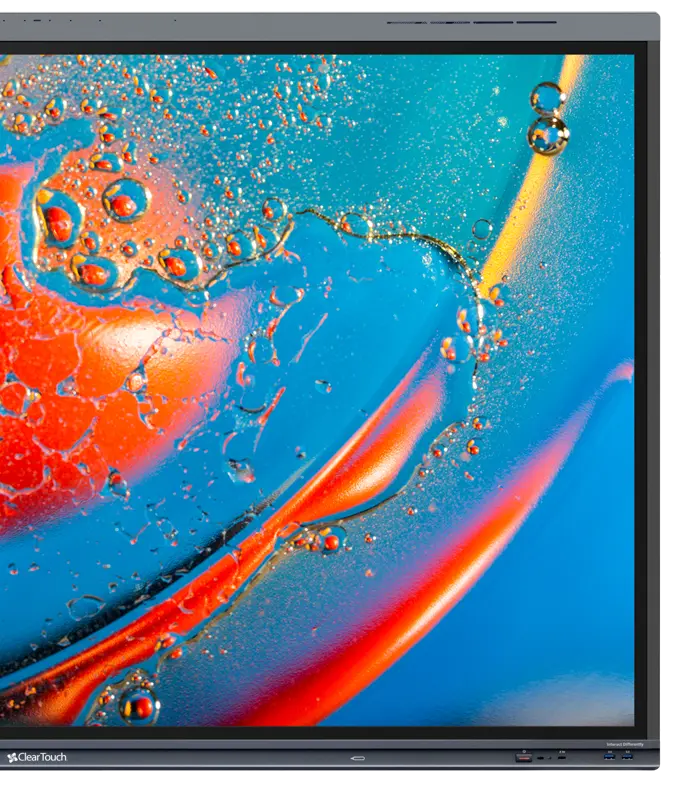

ClearTouch CTI-6086A+UH40 86" 6000A+ Interactive Flat Panel Display

Product Overview

The ClearTouch 6000A+ 86 inch interactive flat panel display is built for large boardrooms, training rooms, and auditoriums where every seat needs a clear view of the content. As an EDLA certified interactive display on Android 13, it delivers native Google Play and Google application access without sideloading. This commercial interactive display for conference rooms scales 4K Ultra HD resolution, 40-point touch, and full USB-C connectivity to an 86" commercial-grade format. It is part of the first EDLA-certified ClearTouch series, giving AV teams a standards-based platform for collaboration in their largest rooms.

Product Description

The 6000A+ 86" is the flagship size in the series, suited to rooms where viewing distance and audience size demand a large canvas. Its Hybrid Touch engine combines infrared and elastic wave sensing for 40 touch points under Windows and 16 under Android, with a 2 mm minimum object size and ±1 mm accuracy that supports precise annotation across the full surface. The 3 mm tempered glass carries a 9H Mohs rating, so the panel endures heavy daily use in training rooms and shared spaces. As an Android 13 interactive panel with EDLA certification, it lets IT teams deploy standard Google applications under normal device management, and the included Wi-Fi module with Bluetooth 5.2 simplifies wireless setup.

For integrators specifying larger rooms, the I/O set is comprehensive. Three USB-C inputs each carry video, audio, touch, and LAN over a single cable, while three HDMI inputs and DisplayPort handle laptops, room PCs, and fixed sources. The 2.2 sound channel audio system, with dual 8W speakers and dual 18W subwoofers, plus an 8-array microphone rated to 32.8 ft, supports larger rooms, though auditorium-scale spaces may still benefit from reinforced house audio. An OPS slot accepts an optional Intel Core i5 module for Windows-standardized environments. As an interactive whiteboard for training rooms or a large-format presentation surface, the 86" delivers presence and integration flexibility for high-visibility spaces.

Key Features

• EDLA-Certified Android 13 — Native Google Play and Google application access lets this EDLA certified interactive display run standard apps under your existing device management policies.
• 40-Point Hybrid Touch — Infrared and elastic wave sensing supports 40 touch points under Windows and 16 under Android with ≤10 ms response, enabling several users at the board at once.
• USB-C Single-Cable Connectivity — Each of the three USB-C inputs carries video, audio, touch, and LAN, so one cable docks a laptop and reduces table clutter.
• 4K Ultra HD Display — The 3840 x 2160 panel with 1.07 billion colors and a 178° viewing angle keeps content legible across a large room and wide seating.
• 86" Large-Format Canvas — A 74.62" x 41.97" display area provides the working space and visibility needed for auditoriums and large boardrooms.
• Integrated Conference Audio — A 2.2 sound channel system with dual subwoofers and an 8-array microphone reaching 32.8 ft covers larger rooms without external audio in many cases.
• Durable 9H Glass — The 3 mm tempered surface rated at 9H Mohs hardness withstands constant touch in high-traffic commercial environments.
• Optional OPS PC Slot — An Intel Core i5 OPS module can be installed for Windows-standardized rooms, keeping the room PC inside the panel.
• Comprehensive I/O and Control — Three HDMI inputs, DisplayPort, RS232, and RJ45 in/out give AV system designers the source and control flexibility needed for integration.

Typical Applications

• Boardroom
• Auditorium
• Training room
• All-hands room
• Commercial meeting space
• Government space
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Is the 86" appropriate for an auditorium or only a boardroom?

The 86" works well in large boardrooms, training rooms, and smaller auditoriums. For very large auditoriums with long throw distances, pair it with reinforced house audio, since the integrated 85 dB SPL system is sized for room collaboration rather than full auditorium reinforcement.

What does EDLA certification mean for our deployment?

EDLA certification provides licensed native access to Google Play and Google applications. Your IT team can install and manage standard Android apps without sideloading, which simplifies device management and security review.

How is the display mounted and what mount does it use?

The 86" uses an 800 x 600 mm VESA pattern and ships with pre-installed wall-mount brackets. Given the 141.3 lb net weight, specify a commercial wall mount or heavy-duty cart rated for the load and verify wall structure before installation.

Can a single cable carry video, audio, and touch to a laptop?

Yes. Each of the three USB-C inputs carries video, audio, touch, and LAN over one cable, so a USB-C laptop connects with a single connection for display and interactivity.

How does this integrate with our existing AV control system?

The panel provides RS232 and RJ45 control ports for integration with room control and AV management platforms, along with three HDMI inputs and DisplayPort for source switching.

What warranty and support are included?

The panel carries a 3-year standard warranty, extendable to 5 years at the time of purchase. For deployment or specification support, reach our team through our ClearTouch collection at creationnetworks.net/collections/cleartouch.
