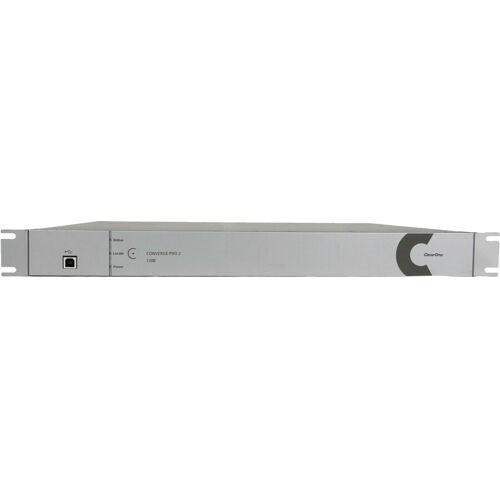

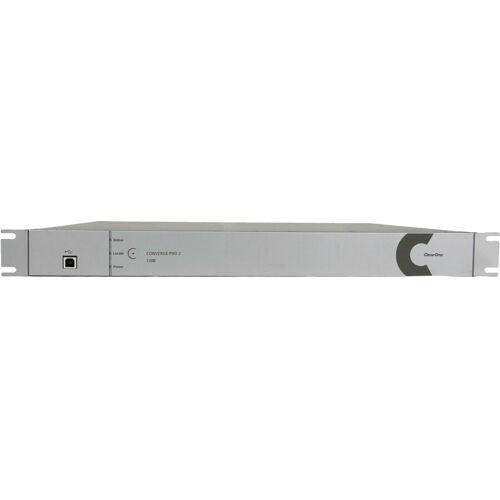

ClearOne 910-3200-008-D CONVERGE Pro 2 48VTD

CONVERGE Pro 2 is the industry's most advanced professional audio DSP platform for conferencing and sound reinforcement applications. It outperforms in any size room, audio environment, and application.

The 48VT model mixer has 4 inputs with AEC, 8 outputs, built-in VoIP/Skype for Business interface, Telco, USB audio; GPIO, RS232, IP control interfaces; and P-Link and C-Link expansion buses.

CONVERGE Pro 2 is optimized to work with the new Beamforming Mic Array 2 and DIALOG® 20 2-Channel Wireless Microphone System through its native connection.

Powerful Architecture

• 4 Mic/Line inputs with AEC
• Built-in VoIP: 5 lines
• Built-in Skype for Business Client
• Built-in Telco with ClearEffectTM processing
• Separate ports for VoIP/Skype for Business and Ethernet
• Built-in USB for PC-based conferencing
• Reduced footprint and power consumption

Scalable Connectivity

• Standalone and daisy-chained system
• Stack up units up to 144 Mic/Line inputs
• Expansion bus "C-Link" with 64 channels
• "P-Link" bus to connect peripheral devices

Configuration & Management

• New CONSOLE® software
• Auto-discovery of devices
• MatrixViewTM for entire system
• FlowViewTM for visualized audio signal paths
• System monitoring and troubleshooting

Audio Signal Processing

• ClearPath™ architecture for guided work-flow and processing
• N ext-gen Acoustic Echo Cancellation processing
• Distributed Echo Cancellation® on every mic input
• Noise Cancellation with Adaptive-Ambience
• Acoustic Intelligence with faster convergence
• DARETM feedback elimination
• Advanced microphone gating

Applications

• POTS conferencing
• VoIP conferencing
• PC-based conferencing & Unified Communications
• Microsoft Skype for Business audio conferencing

Flexible Control Options

• Dialer app for Windows, Mac, iOS, Android
• Touch Panel Controller with tabletop and wall mount options
• 3rd-party control modules

Product Highlights

• Microphone: Yes
• USB: Yes
• Mount Type: Rack Mountable
• Height: 1.7"
• Width: 17"
• Depth: 10.7"
• Weight (Approximate): 9.30 lb

General Information
Manufacturer	ClearOne
Manufacturer Part Number	910-3200-008-D
Manufacturer Website Address	http://www.clearone.com
Brand Name	ClearOne
Product Line	Converge Pro
Product Model	48VT
Product Name	Converge Pro 2 48VT Audio Mixer
Product Type	Audio Mixer
Technical Information
Minimum Frequency Response	20 Hz
Maximum Frequency Response	22 kHz
Interfaces/Ports
Microphone	Yes
USB	Yes
Power Description
Input Voltage	120 V AC
	230 V AC
Maximum Power Consumption	50 W
Physical Characteristics
Mount Type	Rack Mountable
Miscellaneous
Package Contents	Converge Pro 2 48VT Audio Mixer 1 x Power Cord (6' (1.8M)) 1 x RJ-45 To RJ-45 Cable, 18" (45.7cm) (C-Link Cable) 1 x RJ-45 To RJ-45, 7' (2M) (VoIP Cable) 1 x USB Type A to Type B Cable, 6' (1.8M) 2 x Rack Ears 4 x Screw/Washer Kit
Application/Usage	Conferencing
	Sound Reinforcement
	House of Worship
