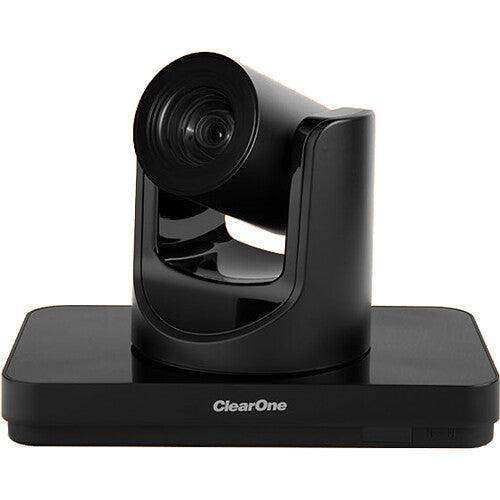

ClearOne 910-2100-018 UNITE 260 Pro PTZ Camera with 20x Optical Zoom with AI Face Tracking
Roll over image to zoom in Click on image to zoom
ClearOne 910-2100-018 UNITE 260 Pro PTZ Camera with 20x Optical Zoom with AI Face Tracking
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

ClearOne 910-2100-018 UNITE 260 Pro PTZ Camera with 20x Optical Zoom with AI Face Tracking

Availability: Call for Availability
Availability: Direct Ship
ClearOne SKU: 910-2100-018
No reviews
Price:
$2,199.00

Description

Chat, stream, and record with the UNITE 260 Pro PTZ Camera with 20x Optical Zoom with AI Face Tracking from ClearOne. This PTZ camera supports up to UHD 4K30 video via a USB 3.1 Gen 1 USB-C connector, and it features auto-focus, smart subject and face tracking, and auto-framing to keep your subjects on camera and focused. The camera is optimal for lecture halls, conference rooms, training centers, and houses of worship. With its USB output, it can be utilized with a computer for web conferencing with applications such as Zoom, WebEx, Google Meet, and more.

The UNITE 260 features a 20x zoom, bright f1.8 to 2.6 aperture, wide 60.7° horizontal field of view, and 2D and 3D digital noise reduction for a crisp, clear image. You can remotely control its PTZ (pan, tilt, zoom) functions using the included IR remote control, and it also supports VISCA, Pelco-D, and Pelco-P serial protocols over RS-232 as well as UVC/UVA control via USB. It can also be powered via a power supply or PoE (Power-over-Ethernet) on a supported network to save cabling.

Other camera features include 255 presets, horizontal and vertical flip, and image freeze. The PTZ motion features include a panning speed up to 100° per second, tilting speed up to 69.9° per second, a 340° panning range, and a 120° tilting range. This camera is compatible with Windows, macOS, and Chrome OS and collaboration services such as ClearOne COLLABORATE Space, Microsoft Teams, Zoom, WebEx, GoToMeeting, Google Meet, and more.

Applications Video Conferencing Distance Learning Lecture Capture Telepresence Surveillance Large Conference Rooms Training Centers Classrooms Webinars
  • AI-based auto framing mode always keeps the entire group perfectly in view.
  • Control the camera's functions via USB, Ethernet, RS-485, and RS-232.
  • A high SNR CMOS sensor combined with 2D and 3D noise reduction algorithms provide a super clean image, even under low-light conditions.
  • Supports USB 3.0 and 2.0 interfaces. The USB interface supports YUY2, MJPEG, and H.264 video formats.
  • Streams AV over IP using H.264 and H.265 video compression.
  • Can be powered by PoE (48 VDC), or 12 VDC power supply.
  • Compatible with popular applications such as Microsoft Teams, Zoom, WebEx, Google Meet, and more.
  • Advanced algorithms enable the lens to quickly and accurately focus.
Specs
Image Sensor 1/1.8"-Type CMOS
Sensor Resolution Effective: 8.51 Megapixel
Shutter Type Electronic Rolling Shutter
Shutter Speed 1/10000 to 1/30 Second
Optical Zoom Ratio 20x
Max Digital Zoom 16x
External Recording Modes HDMI / USB
3840 x 2160 at 25/30.00 fps
1920 x 1080p at 25/30.00 fps
Broadcast Output NTSC/PAL
IP Streaming H.264, H.265, MJPEG, ONVIF, RTMP, RTSP, TCP
3840 x 2160 to 640 x 360 at 30p (0.03 to 102.4 Mb/s)
1920 x 1080 to 320 x 180 at 30p (0.03 to 102.4 Mb/s)
Supported Control Protocols Pelco-D
Pelco-P
RS-232
RS-485
VISCA

PoE Support PoE 802.3af
Imaging
Image Sensor 1/1.8"-Type CMOS
Sensor Resolution Effective: 8.51 Megapixel
Built-In ND Filter No
Focus Control Autofocus
Exposure Control
Shutter Type Electronic Rolling Shutter
Shutter Speed 1/10000 to 1/30 Second
Signal-to-Noise Ratio 55 dB
Minimum Illumination 0.5 Lux
Flip / Mirror Support Image Flip, Mirror (Vertical)
White Balance Presets: Auto, Indoors, Manual, One Push, Outdoors
Lens
Focal Length 4.4 to 88.5mm
Optical Zoom Ratio 20x
Max Digital Zoom 16x
Field of View Horizontal: 60.7 to 3.36°
Vertical: 34.1 to 1.89°
Maximum Aperture f/1.8 to 2.6
Video Capture
External Recording Modes HDMI / USB
3840 x 2160 at 25/30.00 fps
1920 x 1080p at 25/30.00 fps
Audio Recording AAC Audio
Broadcast Output NTSC/PAL
IP Streaming H.264, H.265, MJPEG, ONVIF, RTMP, RTSP, TCP
3840 x 2160 to 640 x 360 at 30p (0.03 to 102.4 Mb/s)
1920 x 1080 to 320 x 180 at 30p (0.03 to 102.4 Mb/s)
Control
Presets 255
Move Speed Pan: 1.7 to 100°/sec
Tilt: 1.7 to 69.9°/sec
Movement Range Pan: 340° (-170 to 170°)
Tilt: 120° (-30 to 90°)
Supported Control Protocols Pelco-D
Pelco-P
RS-232
RS-485
VISCA
Interface
Video I/O 1 x HDMI 1.4b Output
1 x USB-C 3.0 / 3.1/3.2 Gen 1 Input/Output
1 x RJ45 Output
Audio I/O 1 x 1/8" / 3.5 mm TRRS Headphone/Mic Mic/Line Output
1 x 1/8" / 3.5 mm TRS Stereo Microphone Input
Other I/O 1 x RJ45 (LAN) Control Input/Output (Shared with Power Input, Video Output)
1 x Mini-DIN 8-Pin (Pelco-D, Pelco-P, RS-232, VISCA) Control Input
1 x Mini-DIN 8-Pin (Pelco-D, Pelco-P, RS-232, VISCA) Control Output
Power
PoE Support PoE 802.3af
Power I/O 1 x Barrel (12VDC at 1 A) Input
Power Consumption PoE: 48 VDC 12 W
Power Supply: 12 VDC at 1 A (12 W)
Environmental
Operating Temperature 14 to 104°F / -10 to 40°C
Storage Temperature -40 to 140°F / -40 to 60°C
